Introduction

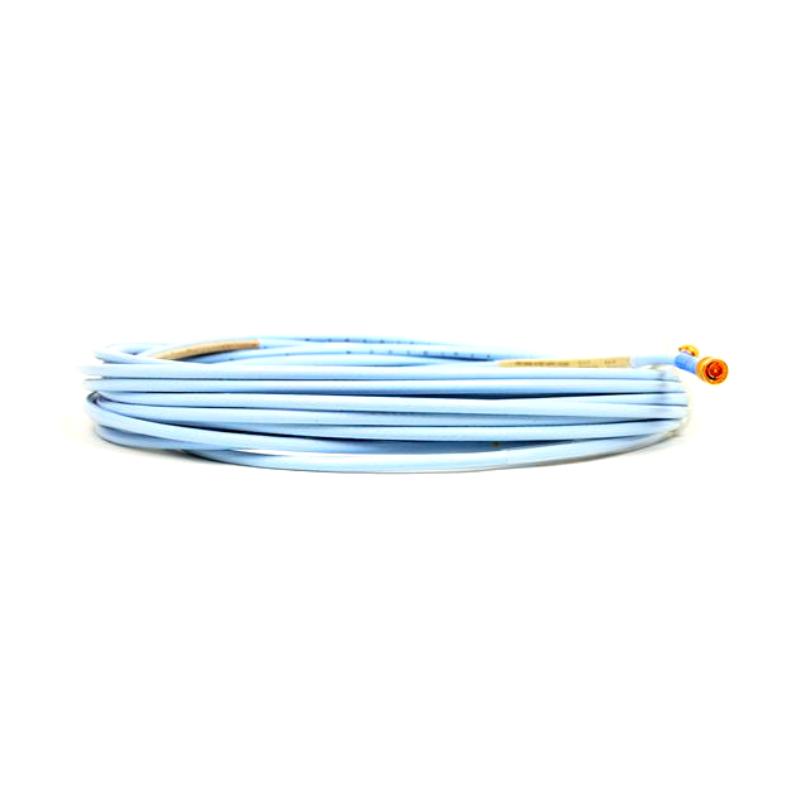

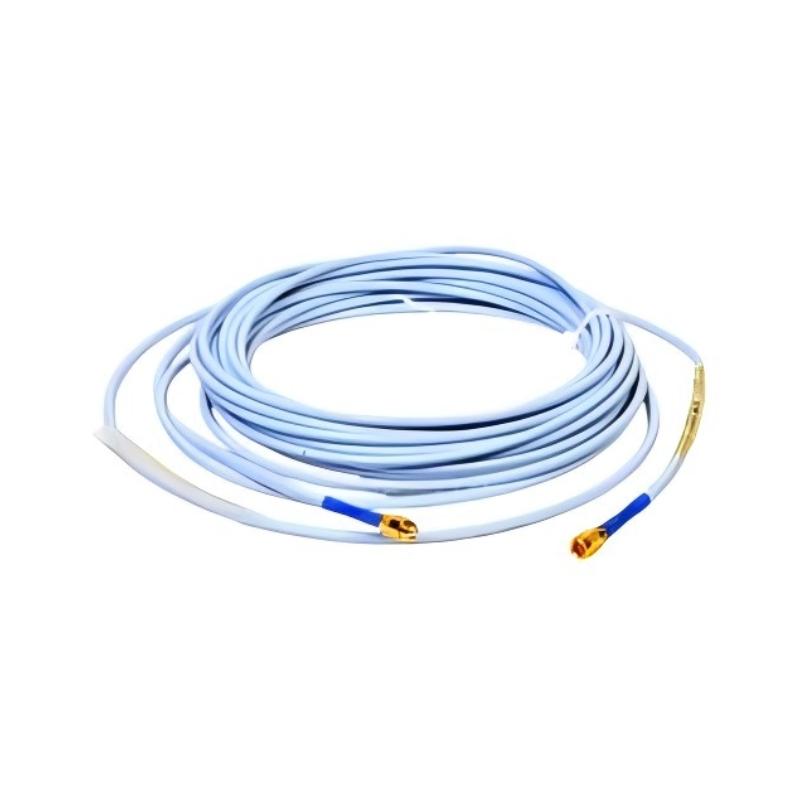

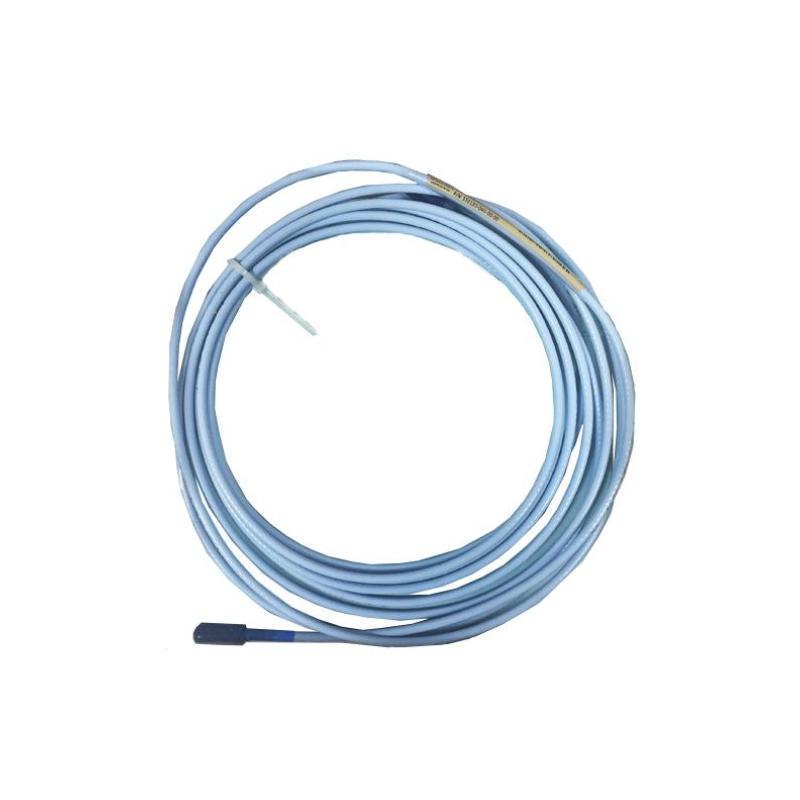

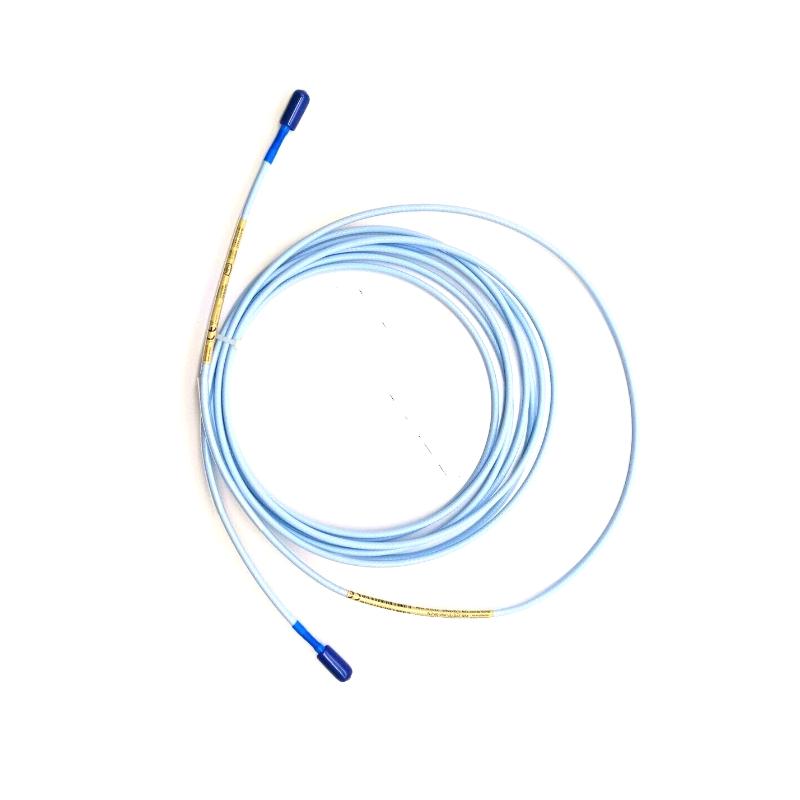

The Bently Nevada 330130-075-00-00 is a 7.5-meter 3300 XL Standard Extension Cable developed for proximity measurement and machinery monitoring applications. It provides the electrical connection between a compatible proximity probe and 3300 XL Proximitor Sensor, helping maintain dependable signal transmission across industrial monitoring installations.
Built around a 75Ω triaxial cable design with FEP insulation and ClickLoc gold-plated coaxial connectors, the 330130-075-00-00 is engineered for installations where stable measurement performance, mechanical durability, and reliable connections matter. Its operating temperature range of -52°C to +177°C also makes it suitable for demanding machinery environments.
For replacement projects and system upgrades, this cable offers a practical 7.5-meter configuration for extending the reach of a 3300 XL proximity system while preserving the established monitoring architecture.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330130-075-00-00 |
| Product Type | 3300 XL Standard Extension Cable |
| Product Family | 3300 XL |
| Cable Length | 7.5 m (24.6 ft) |
| Cable Design | 75Ω triaxial |
| Insulation | FEP |
| Connector Type | ClickLoc gold-plated coaxial connectors |
| DC Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Capacitance | 69.9 pF/m typical |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature | -52°C to +177°C |
| Tensile Strength | Up to 330 N (75 lbf) with CableLoc construction |
| Weight | Approx. 0.255 kg |
| Listed Dimensions | Cable is supplied as a flexible 7.5 m assembly; no fixed rectangular cable-body dimensions are specified |
| Typical System | 3300 XL 8 mm proximity measurement system |
Applications
The 330130-075-00-00 is designed for applications where accurate proximity signals need to travel reliably between a field-mounted probe and signal-conditioning equipment.
Rotating Machinery Monitoring
The cable can be used as part of proximity-based vibration and position measurement systems installed on critical rotating equipment. It is particularly relevant to machinery where shaft movement and vibration information are essential for condition assessment.
Fluid-Film Bearing Equipment
In machines equipped with fluid-film bearings, proximity measurement systems can provide important information about shaft position and dynamic behavior. The 3300 XL extension cable provides the physical connection required by the measurement chain.
Keyphasor and Speed Measurement
The cable can also form part of installations using Keyphasor-related reference and speed measurements, where consistent signal transmission is important for machinery analysis and monitoring.
Industrial Condition Monitoring
Its triaxial construction and shielded signal path make the cable appropriate for industrial environments where electromagnetic interference can affect instrumentation wiring.
Maintenance and Replacement Projects
The 7.5 m configuration is useful when replacing an existing cable of the same specification or when additional routing distance is required during a machinery monitoring installation.
Advantages
7.5-Meter Reach for Practical Installation
The 7.5-meter cable length provides additional routing distance without requiring an unnecessarily long cable assembly. This makes the 330130-075-00-00 a useful choice for machinery layouts where the monitoring electronics are positioned some distance from the measurement point.
Stable Electrical Characteristics
The 75Ω triaxial design, controlled resistance, and typical capacitance specification support predictable electrical behavior within the intended proximity measurement system. This is important when maintaining consistent monitoring performance.
FEP Insulation for Harsh Environments
FEP insulation is well suited to demanding industrial conditions and supports the cable's broad operating temperature range of -52°C to +177°C.
Secure ClickLoc Connection
Gold-plated ClickLoc coaxial connectors provide a secure connection arrangement while helping resist corrosion. The connector design is intended to simplify installation without requiring complicated connection procedures.
Mechanical Strength
CableLoc construction provides up to 330 N (75 lbf) tensile strength, helping protect the cable-to-connector assembly from mechanical loads encountered during installation and service.
Flexible Cable Routing
With a minimum bend radius of 25.4 mm, the cable can be routed through relatively confined machinery spaces while maintaining the manufacturer's specified installation requirements.
Suitable for EMI/RFI-Sensitive Installations
The triaxial cable construction provides shielding that helps reduce the influence of electromagnetic and radio-frequency interference, an important consideration for industrial measurement circuits.
Technical FAQs
1. What is the Bently Nevada 330130-075-00-00?
The 330130-075-00-00 is a Bently Nevada 3300 XL Standard Extension Cable used in proximity measurement systems to connect compatible proximity probes with 3300 XL Proximitor Sensors.
2. What is the cable length?
This model has a nominal cable length of 7.5 meters, or approximately 24.6 feet.
3. What type of cable does the 330130-075-00-00 use?
It uses a 75Ω triaxial cable construction with FEP insulation, designed for the signal requirements of the associated proximity measurement system.
4. What connectors are fitted to this cable?
The cable uses ClickLoc gold-plated coaxial connectors. These connectors are designed to provide a secure electrical and mechanical connection within the compatible 3300 XL system.
5. What is the minimum bend radius?
The specified minimum bend radius is 25.4 mm, equivalent to 1 inch. Maintaining this limit helps prevent unnecessary mechanical stress during installation.
6. What is the operating temperature range?
The listed operating temperature range is -52°C to +177°C, making the cable suitable for a wide range of demanding industrial machinery environments.
7. How much does the 330130-075-00-00 weigh?
The listed weight is approximately 0.255 kg.
8. Is the cable suitable for vibration monitoring?
Yes. The 3300 XL Standard Extension Cable is intended for use within proximity measurement systems commonly used for vibration, shaft position, and other rotating machinery monitoring applications.
9. Can the cable be used for Keyphasor measurements?
Yes, the cable can be used in compatible Keyphasor reference and speed measurement arrangements. The complete probe, cable, and monitoring-system configuration should be checked for the specific application.
10. What should be verified before replacing an existing extension cable?
Verify the complete part number, cable length, connector configuration, system compatibility, environmental requirements, and any certification requirements associated with the installation. Matching only the cable length is not sufficient when selecting a replacement.
