Designed for Reliable Machinery Condition Monitoring

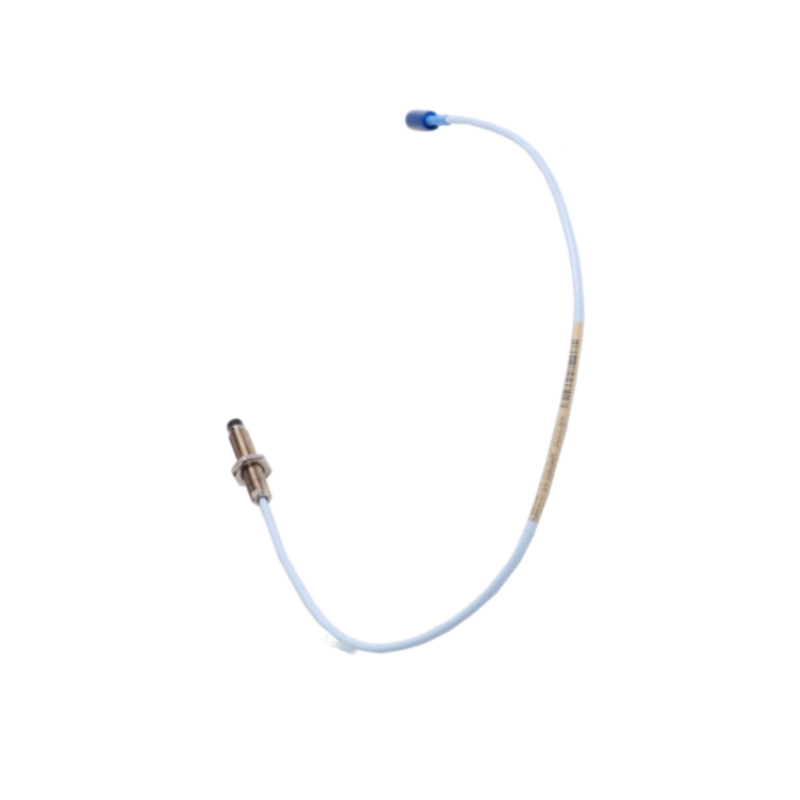

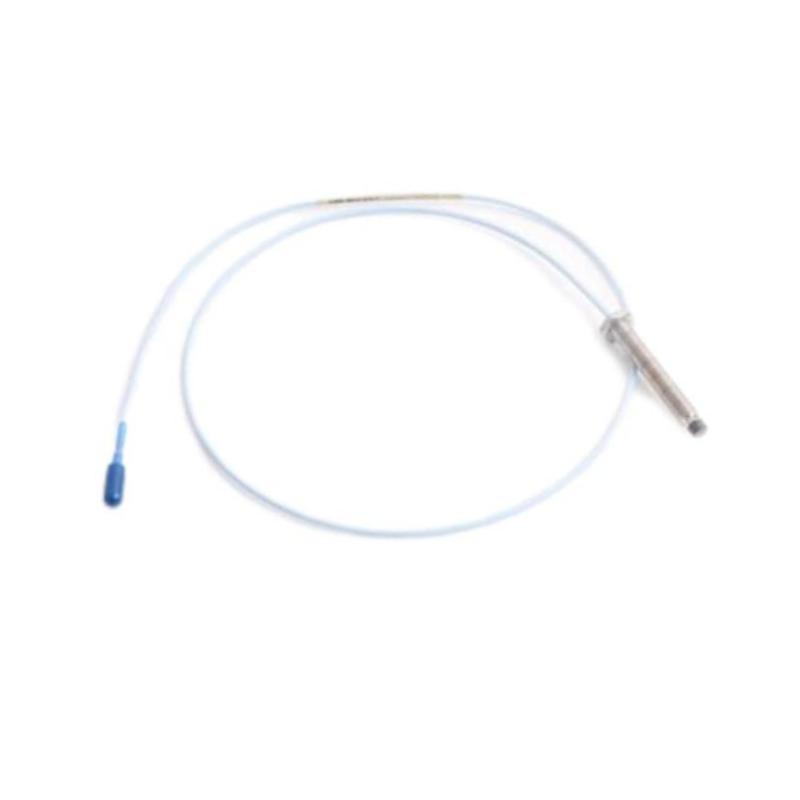

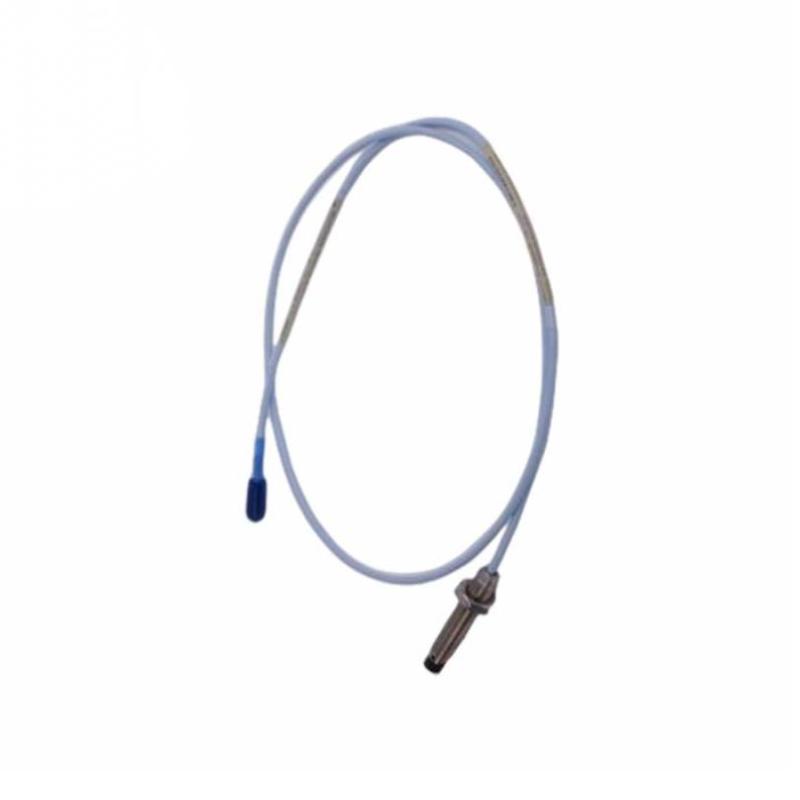

The Bently Nevada 330103-00-17-10-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact sensor developed for continuous vibration, shaft position, and displacement monitoring in critical rotating machinery. As part of the proven 3300 XL 8 mm Series, this probe provides consistent measurement accuracy, excellent environmental durability, and dependable long-term performance in industrial monitoring systems.
Featuring an M10 × 1 threaded probe body, 170 mm case length, 1.0 m standard cable, and a Miniature Coaxial ClickLoc® connector, this configuration is ideal for installations where reliable vibration data is essential for predictive maintenance and equipment protection. Its rugged construction and seamless compatibility with 3300 XL transducer systems make it an excellent solution for demanding industrial applications.
Product Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330103-00-17-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Unthreaded Length | 0 mm |
| Overall Case Length | 170 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc® Connector |
| Cable Type | Standard Cable |
| Agency Approval | Not Required |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Dimensions | Probe Case Length: 170 mm; Total Cable Length: 1.0 m |
| Approximate Weight | Approximately 0.323 kg |
Recommended Applications
The 330103-00-17-10-02-00 is engineered for continuous online monitoring of rotating assets where high measurement reliability is required.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine protection systems
-
Centrifugal compressors
-
Industrial pumps
-
High-speed electric motors
-
Gearbox monitoring
-
Power generation facilities
-
Oil & gas production equipment
-
Petrochemical processing plants
-
Chemical manufacturing
-
Mining operations
-
Marine rotating machinery
Product Advantages
Built to support modern predictive maintenance programs, this proximity probe offers dependable performance and long service life.
-
High-precision non-contact displacement measurement
-
Excellent vibration signal stability
-
Durable stainless-steel construction for harsh environments
-
Compact design for easy installation
-
Reliable ClickLoc® connector for secure connections
-
Wide operating temperature range
-
Compatible with 3300 XL monitoring systems
-
Helps reduce unexpected equipment failures
-
Supports continuous machinery protection
-
Ideal for mission-critical industrial applications
Technical FAQs
1. What is the primary function of this proximity probe?
It provides non-contact measurement of shaft vibration, displacement, and position for continuous machinery condition monitoring.
2. What is the overall case length?
This model features a 170 mm probe case length.
3. How long is the integrated cable?
The probe is supplied with a 1.0-meter (3.3-foot) standard cable.
4. What connector does this model use?
It utilizes a Miniature Coaxial ClickLoc® connector, ensuring reliable signal transmission.
5. Which thread specification does the probe use?
The probe is equipped with an M10 × 1 metric threaded body for secure installation.
6. What material is used for the probe housing?
The housing is manufactured from AISI 303/304 stainless steel, while the probe tip is made of durable PPS material.
7. Is this model approved for hazardous locations?
No. The 00 approval option indicates that no additional hazardous-area certification is included with this configuration.
8. Which industries commonly use this probe?
It is widely used in power generation, oil and gas, petrochemical, mining, chemical processing, and heavy manufacturing.
9. Can it be integrated with Bently Nevada monitoring systems?
Yes. It is designed for use with compatible 3300 XL Proximitor® Sensors, extension cables, and machinery monitoring systems.
10. Why is the 3300 XL Series widely trusted?
The series is recognized for its measurement accuracy, excellent long-term stability, robust construction, and dependable performance in critical rotating equipment.
