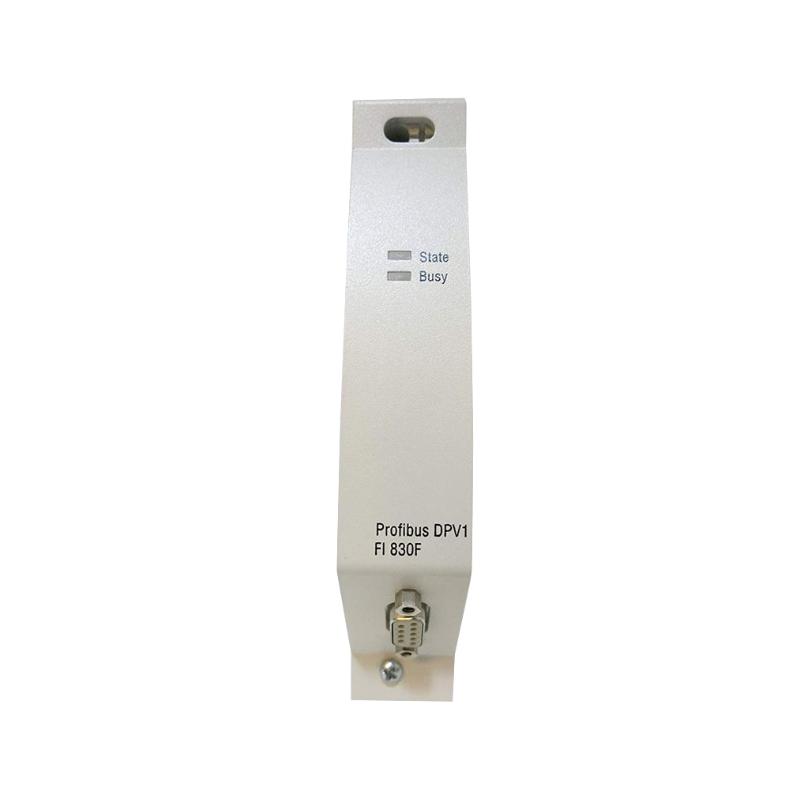

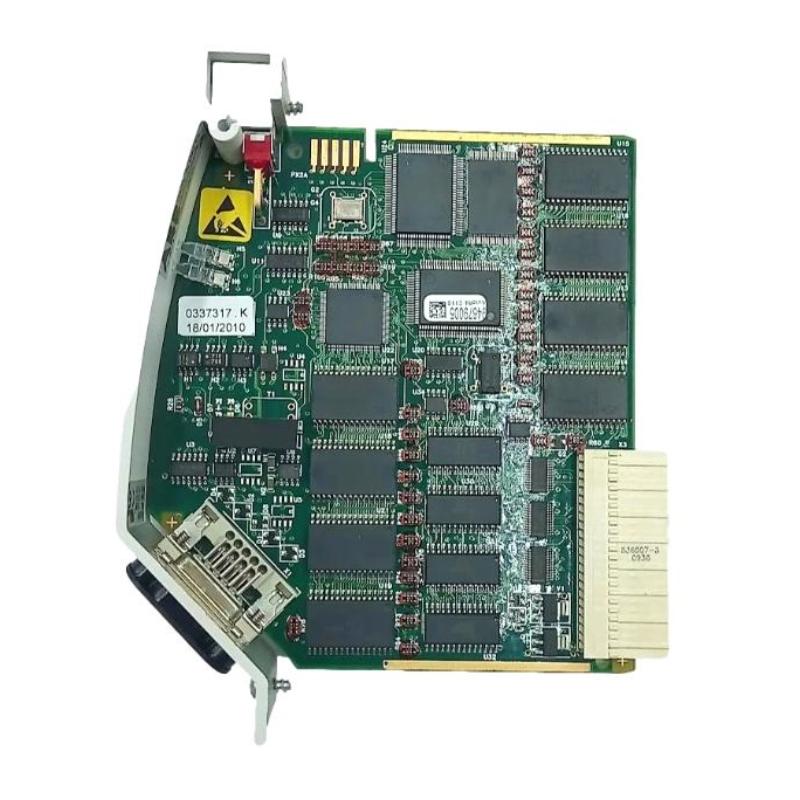

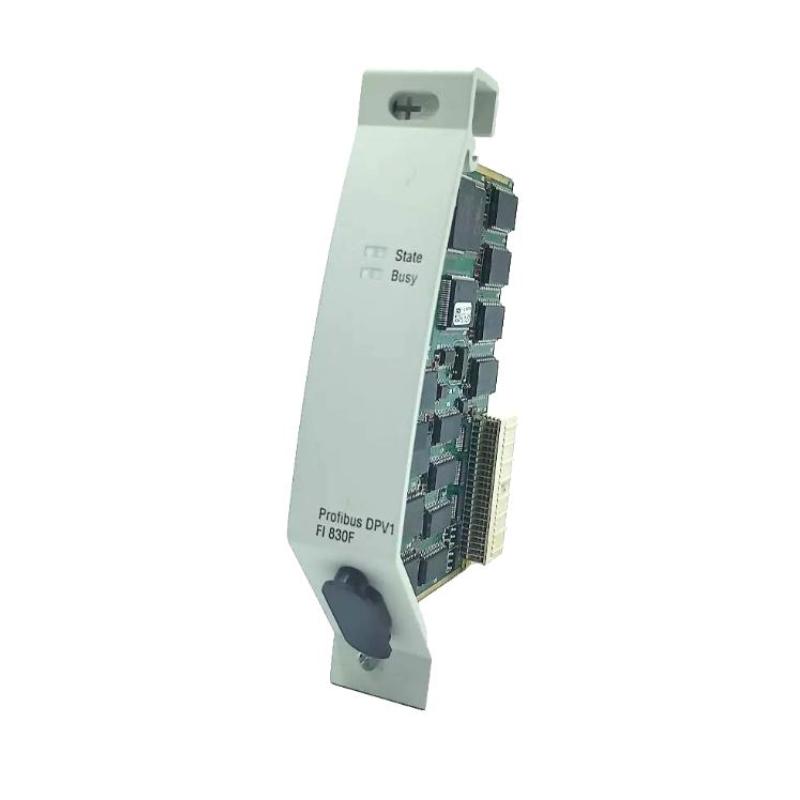

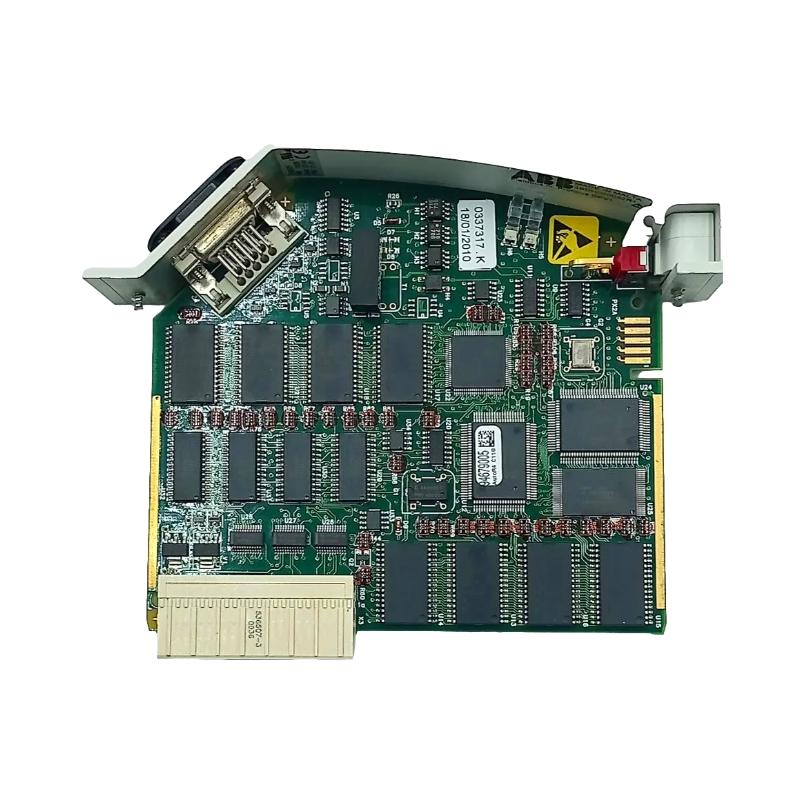

ABB FI 830F 3BDH000032R1 Fieldbus Module

Brand:ABB PLC
Item No.:FI 830F
Product Origin:Sweden
Product Dimensions:125 ×155 ×28 mm
Product Weight:0.26 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The ABB FI 830F 3BDH000032R1 Fieldbus Module is an advanced and reliable solution for integrating field devices into industrial automation systems. This module serves as a critical interface, enabling seamless communication between field devices, such as sensors, actuators, and valves, and the central control systems. The FI 830F supports various fieldbus protocols, offering flexible and scalable communication options for diverse industrial applications. Its compact size, high reliability, and efficient data transmission capabilities make it an ideal choice for industries that require real-time data exchange and system monitoring.

Technical Specifications

Parameter Specification
Model FI 830F 3BDH000032R1
Type Fieldbus Module
Dimensions 125 × 155 × 28 mm
Weight 0.26 kg (0.57 lbs)
Fieldbus Protocols Supports multiple fieldbus protocols (e.g., PROFIBUS, FOUNDATION Fieldbus, Modbus)
Communication Interface Digital I/O, serial communication
Power Supply 24V DC
Power Consumption 2W max
Operating Temperature -20°C to 60°C
Environmental Rating IP20 (dust-protected)
Compliance CE, UL, CSA

Applications
The ABB FI 830F 3BDH000032R1 Fieldbus Module is utilized across several industries where reliable and high-speed communication between field devices and control systems is essential:

  • Manufacturing: The module connects field devices, including sensors and actuators, to automation systems for precise control and real-time monitoring of production processes.

  • Oil & Gas: The FI 830F ensures reliable communication between field devices in exploration and extraction systems, such as flow meters, pressure sensors, and safety valves, which are crucial for maintaining safety and operational efficiency.

  • Power Generation: It integrates field devices like temperature sensors, flow meters, and turbine controllers into the central control system, ensuring smooth and continuous power generation.

  • Chemical Processing: The module supports the integration of various process control devices, ensuring safe and optimized chemical production processes.

  • Water Treatment: It connects sensors and actuators within water treatment plants, enabling real-time monitoring and control of water purification and distribution systems.


Advantages

  • Seamless Communication Integration: The FI 830F module supports multiple fieldbus protocols, including PROFIBUS, FOUNDATION Fieldbus, and Modbus, providing flexibility and ensuring compatibility with a wide range of field devices and control systems.

  • Compact and Lightweight: With dimensions of 125 × 155 × 28 mm and a weight of 0.26 kg, the FI 830F is compact and easy to integrate into control systems, particularly in spaces with limited room for installation.

  • Energy-Efficient Operation: The module consumes a maximum of 2W, ensuring low power consumption while maintaining reliable performance.

  • Durable and Reliable: The module’s IP20 rating protects it from dust ingress, making it suitable for industrial environments with moderate exposure to dust.

  • Wide Operating Temperature Range: The FI 830F operates effectively in environments with temperatures ranging from -20°C to 60°C, making it suitable for use in both cold and hot industrial settings.

  • Compliance with Safety Standards: The FI 830F complies with CE, UL, and CSA certifications, ensuring it meets the necessary safety and regulatory standards for industrial and hazardous environments.


Technical FAQs

  1. What is the purpose of the ABB FI 830F 3BDH000032R1 Fieldbus Module?
    The FI 830F is a fieldbus module designed to connect field devices such as sensors, actuators, and valves to industrial control systems, enabling real-time data communication and system monitoring.

  2. What are the dimensions of the FI 830F module?
    The module measures 125 × 155 × 28 mm, making it compact and easy to integrate into control systems with limited space.

  3. How much does the FI 830F weigh?
    The FI 830F weighs 0.26 kg (0.57 lbs), which makes it lightweight and easy to handle during installation.

  4. What fieldbus protocols does the FI 830F support?
    The FI 830F supports multiple fieldbus protocols, including PROFIBUS, FOUNDATION Fieldbus, and Modbus, offering versatility in industrial communication systems.

  5. What is the power supply requirement for the FI 830F?
    The FI 830F requires a 24V DC power supply, which is typical for industrial control systems.

  6. What is the maximum power consumption of the FI 830F?
    The module operates with a maximum power consumption of 2W, ensuring that it remains energy-efficient while providing reliable performance.

  7. What is the operating temperature range of the FI 830F?
    The FI 830F operates within a temperature range of -20°C to 60°C, making it suitable for use in various industrial environments with varying temperature conditions.

  8. Is the FI 830F suitable for use in hazardous environments?
    Yes, the module is certified for CE, UL, and CSA standards, ensuring it meets safety regulations for use in hazardous and industrial environments.

  9. What environmental protection does the FI 830F offer?
    The module has an IP20 rating, meaning it is dust-protected, making it ideal for environments where dust exposure is common but without direct moisture contact.

  10. In which industries is the FI 830F commonly used?
    The FI 830F is commonly used in industries such as manufacturing, oil & gas, power generation, chemical processing, and water treatment, where seamless communication between field devices and control systems is essential for efficient and safe operations.
