Introduction

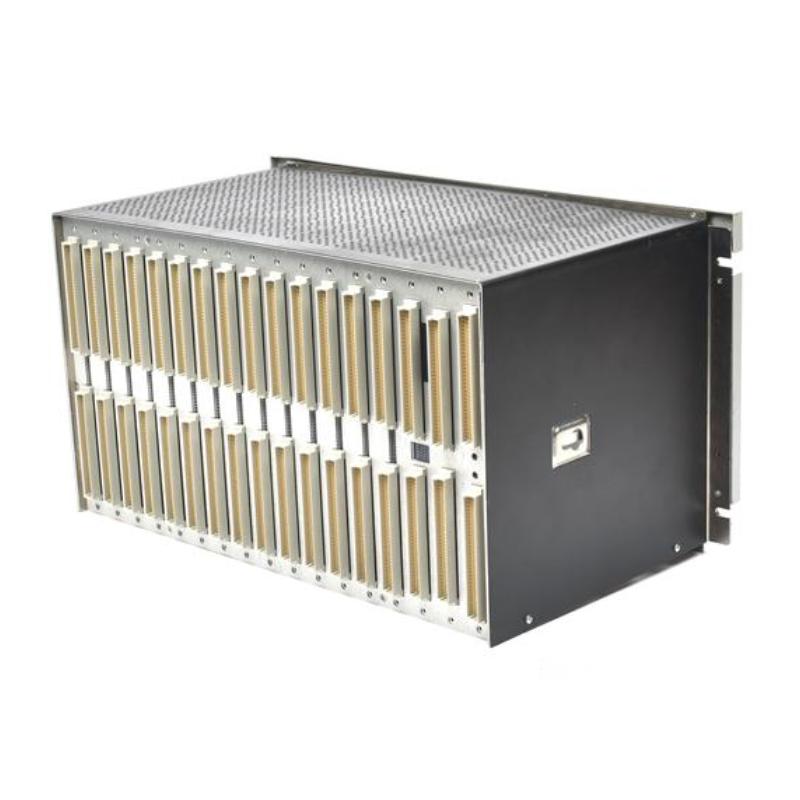

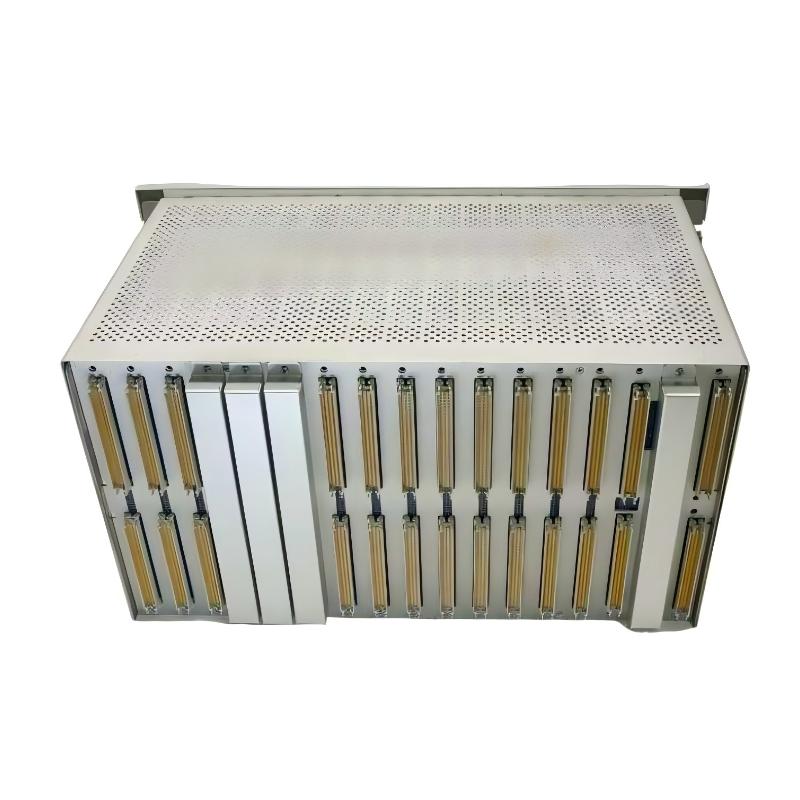

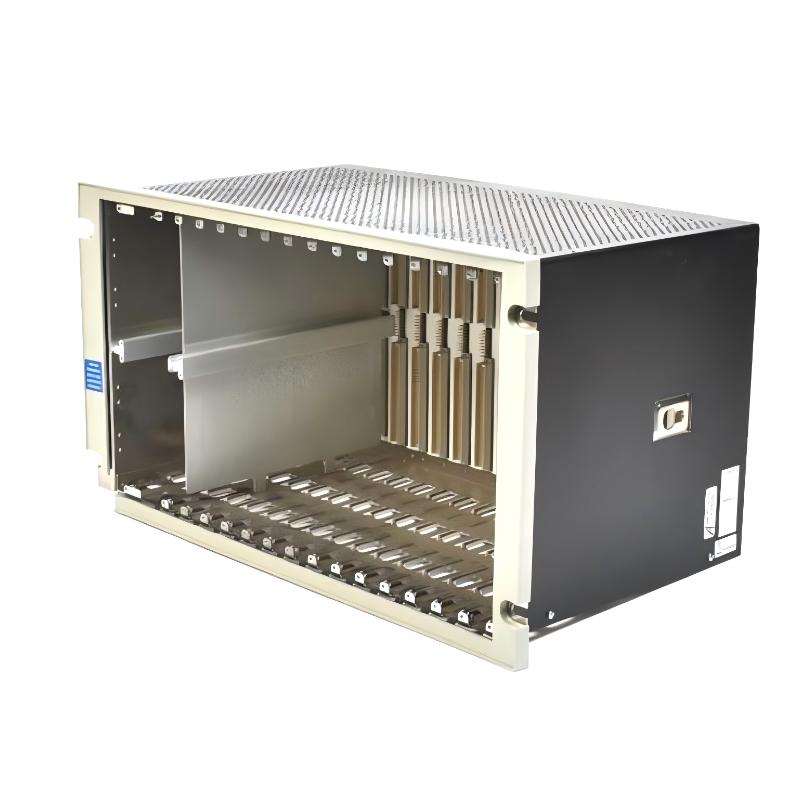

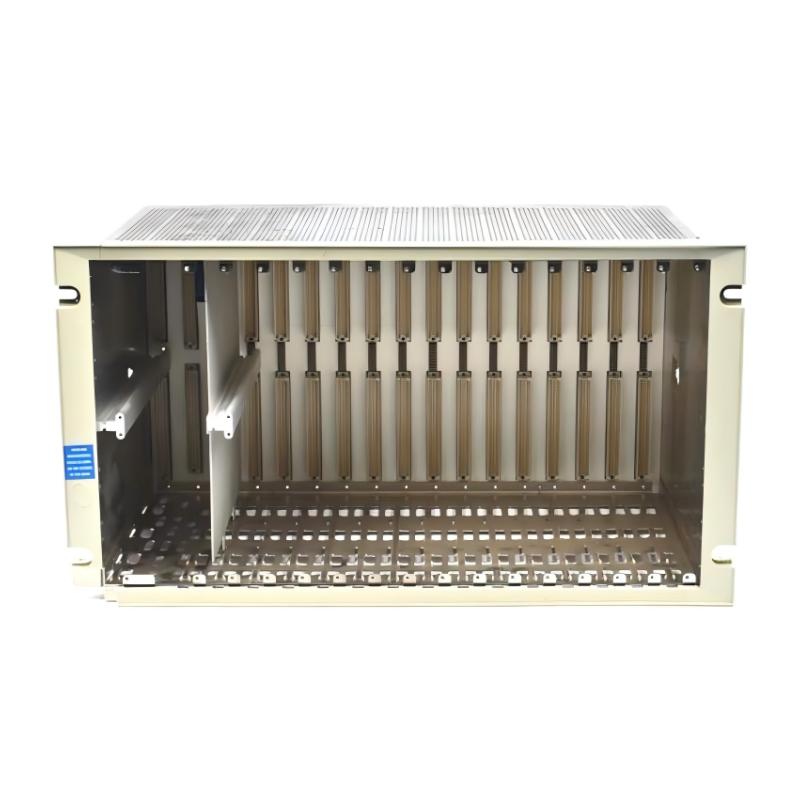

The Bently Nevada 3500/05-02-04-00 System Rack is a compact chassis designed to house and organize a reduced-size 3500 machinery protection system.
This version adopts a field-integration engineering style, focusing on how the 12-inch rack supports distributed or localized monitoring installations while maintaining the electrical and mechanical standards of the full-size 3500 platform.
With seven available module slots, it is ideal for applications where cabinet width, mounting space, or monitoring channel count is limited. Despite its smaller footprint, the rack maintains the robust framework, precise module guides, and reliable backplane pathways characteristic of all 3500 system racks.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | Bently Nevada 3500/05-02-04-00 |
| Module Type | System Rack |
| Rack Format | 12-inch compact frame |
| Slot Count | 7 module slots |
| Electrical Backbone | Integrated backplane for system-wide power and signal routing |
| Structural Design | Rigid industrial housing with secure card rails |
| Typical Deployment | Distributed protection points or small machinery monitoring panels |
| Installation Method | Panel or compact cabinet mounting |
| Dimensions | 12-inch rack width (7-slot configuration) |
| Weight | 4.5 kg |
