Introduction — Precision Analog Input for Fault‑Tolerant Control

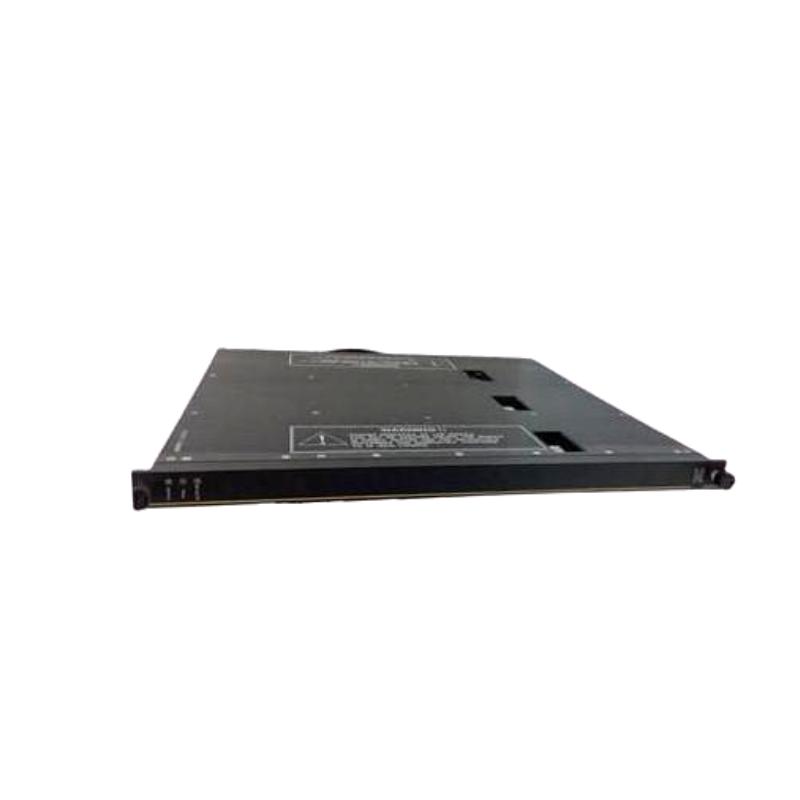

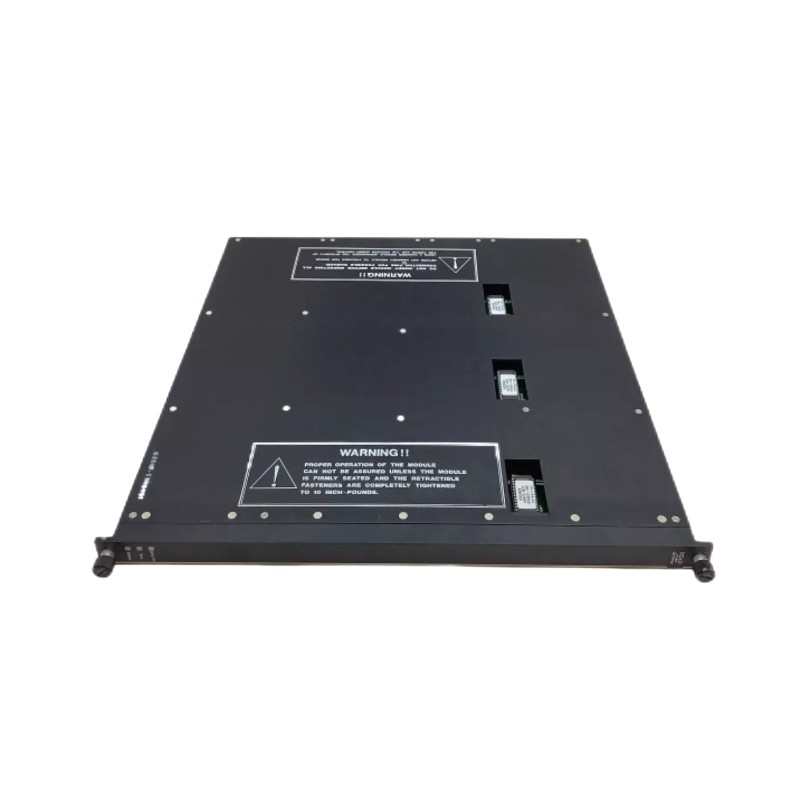

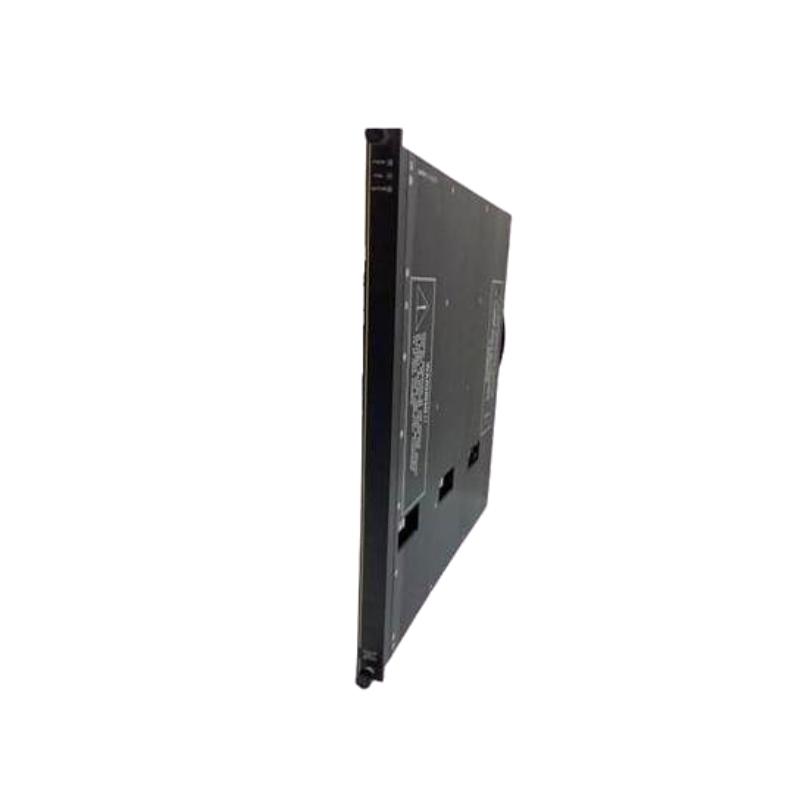

The Triconex 3700 Analog Input Module is engineered to provide high‑accuracy analog signal acquisition within the Triconex fault‑tolerant automation and safety platform. Designed for robust performance in demanding industrial environments, this module captures real‑world measurements such as temperature, pressure, flow, and level and translates them into reliable data for process control and safety logic. With deterministic behavior and strong noise immunity, the 3700 supports both control and safety instrumented systems (SIS) where precise process values are essential.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Analog Input Module |
| Model / Part Number | 3700 |
| Number of Channels | 8 differential analog inputs |
| Input Signal Types | 4–20 mA, 0–10 V, thermocouples or RTDs (depending on configuration) |
| Input Resolution | High‑resolution A/D conversion for accurate measurement |
| Accuracy | Typical industrial grade (high precision) |
| Input Isolation | Channel‑to‑backplane galvanic isolation for noise immunity |
| Update/Scan Rate | Deterministic scan capable for real‑time control |
| Power Consumption | Low power design suitable for large racks |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.48 kg |
| Mounting | DIN‑rail or Triconex modular rack compatible |
