Introduction — Robust Digital Output for Critical Automation

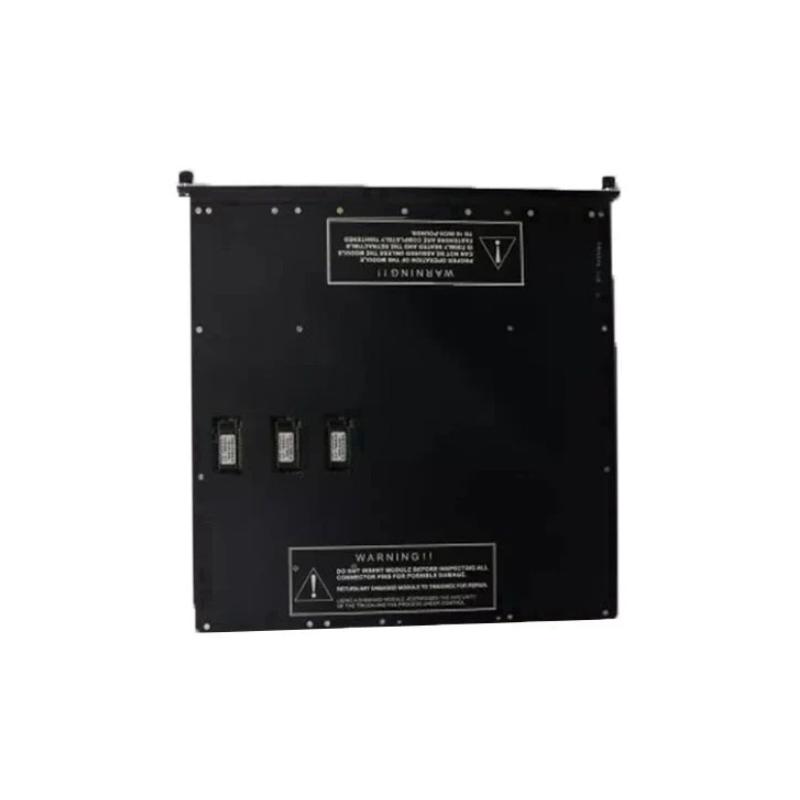

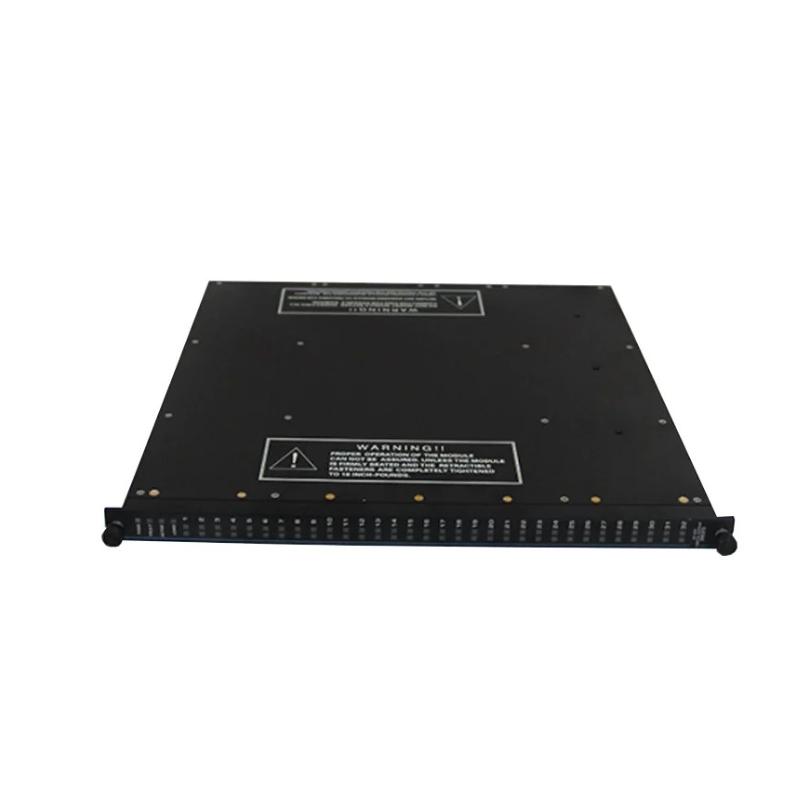

The Triconex 3674 Digital Output Module is engineered to deliver dependable and deterministic discrete outputs within high‑integrity control and safety systems. Designed for industrial automation environments, this module provides reliable on/off signaling to field devices such as valves, alarms, contactors, and solenoids. Its rugged construction and fault‑tolerant design make it an ideal choice for applications where uptime, safety, and precise control are essential, including safety instrumented systems (SIS) and process automation loops.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3674 |
| Number of Output Channels | 16 discrete outputs |
| Output Type | Solid‑state digital signals |
| Nominal Output Voltage | 24–125 V DC / 120–240 V AC |
| Maximum Output Current | 2 A per channel |
| Output Response Time | < 5 ms per channel |
| Isolation | Channel‑to‑backplane galvanic isolation |
| Power Consumption | ~4 W typical |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.45 kg |
| Mounting | DIN‑rail or Triconex modular rack |
