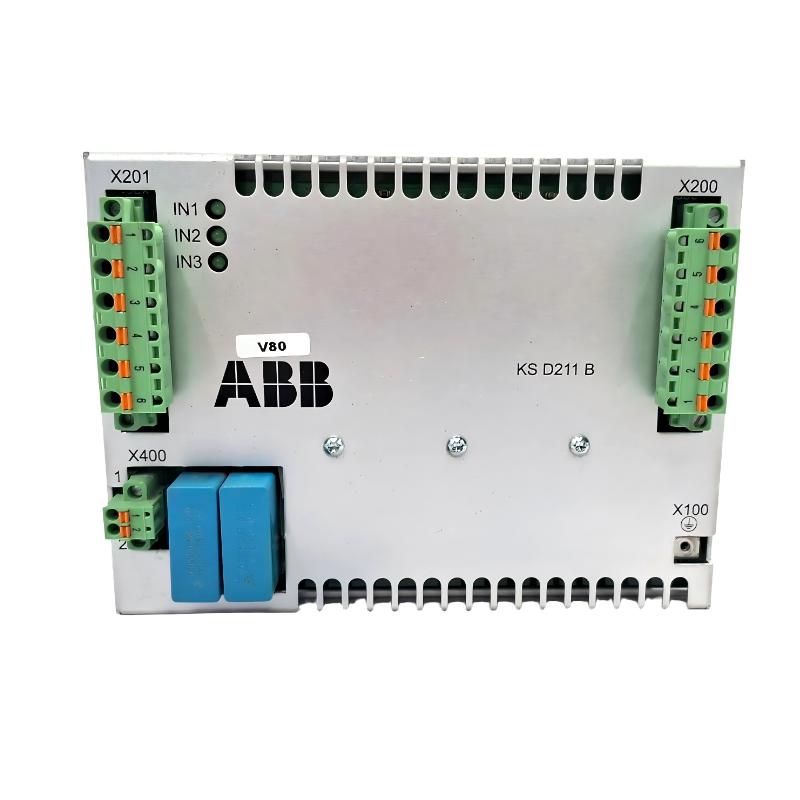

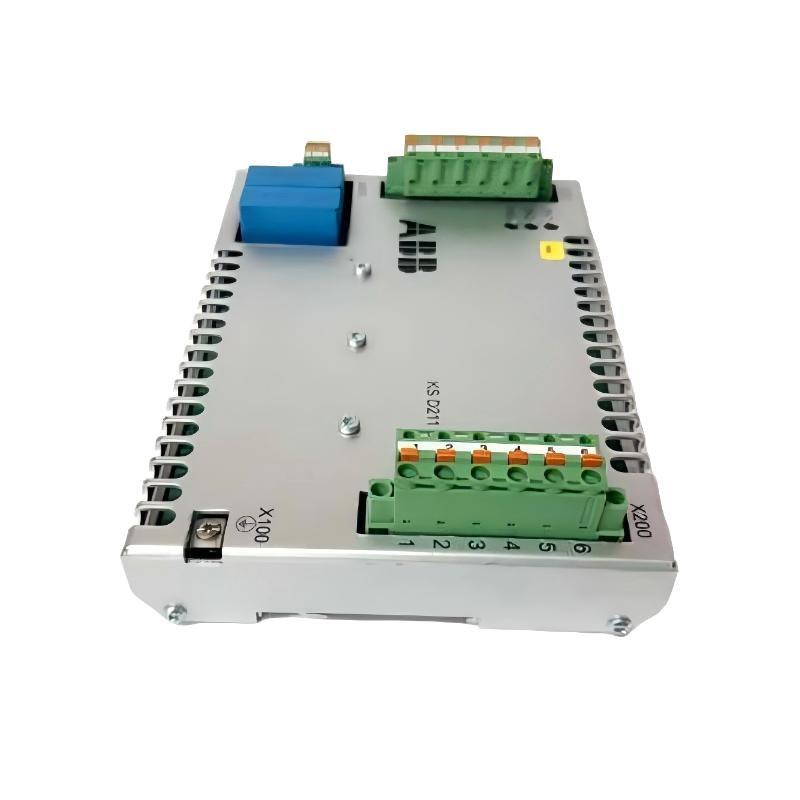

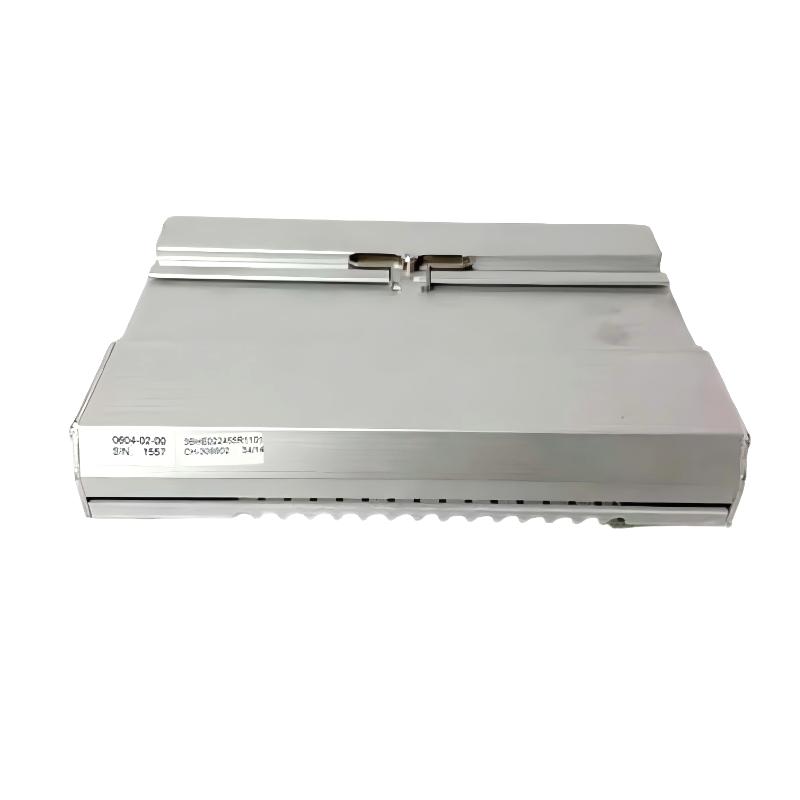

The ABB KSD211B 3BHE022455R1101 Input Coupling Unit is an industrial coupling interface designed to connect field-level signals to higher-level control electronics with precision and electrical protection.
This document follows a hardware-orientation engineering brief, focusing on how the ICU behaves as a conditioning and interface node inside larger converter and automation systems. The KSD211B ensures that incoming signals—whether from sensors, switches, or subsystem electronics—arrive clean, isolated, and ready for accurate processing by the control module.
Its internal architecture provides noise suppression, galvanic isolation, and signal shaping, which are critical in environments with dynamic loads, high EMI, and fast-switching power devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB KSD211B 3BHE022455R1101 |
| Module Type | Input Coupling Unit (ICU) |
| Primary Function | Signal isolation, conditioning, and protection for control inputs |
| Signal Compatibility | Industrial-level digital or conditioned analog inputs (system-dependent) |
| Electrical Design | Noise-filtering circuits with isolation paths |
| Operating Role | Front-end interface between field signals and core controller |
| Mounting Method | Control cabinet / frame installation |
| Dimensions | 120 × 165 × 50 mm (H × W × D) |
| Weight | 0.5 kg |
