Introduction — High‑Integrity Digital Output for Safety and Automation

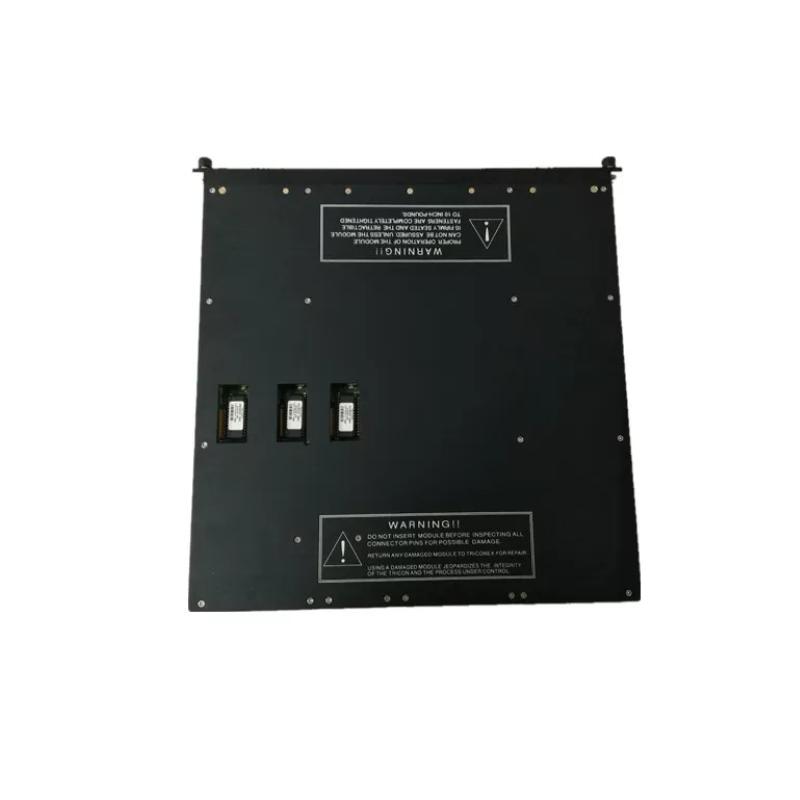

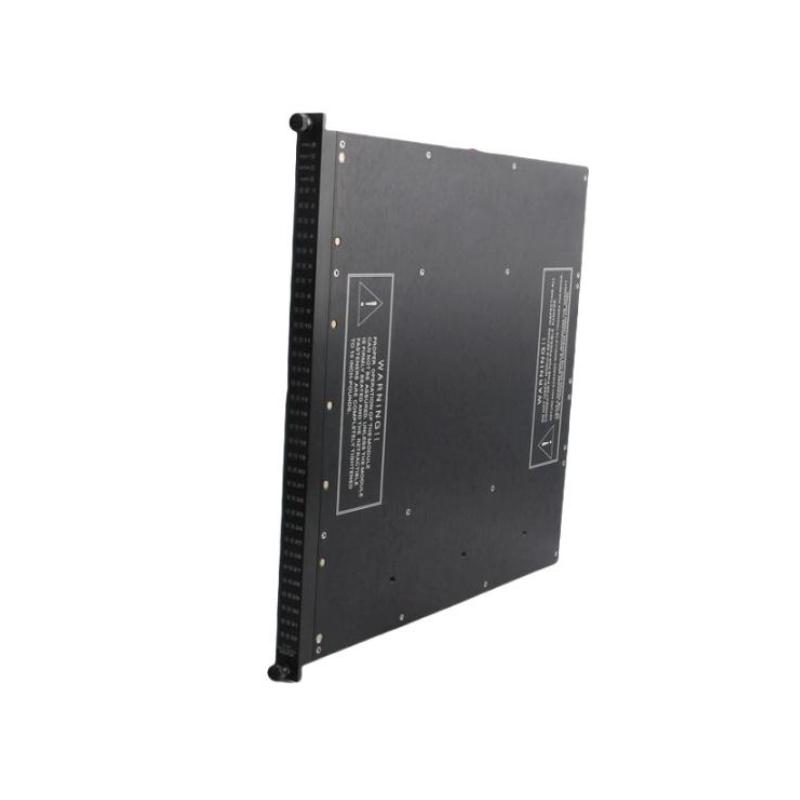

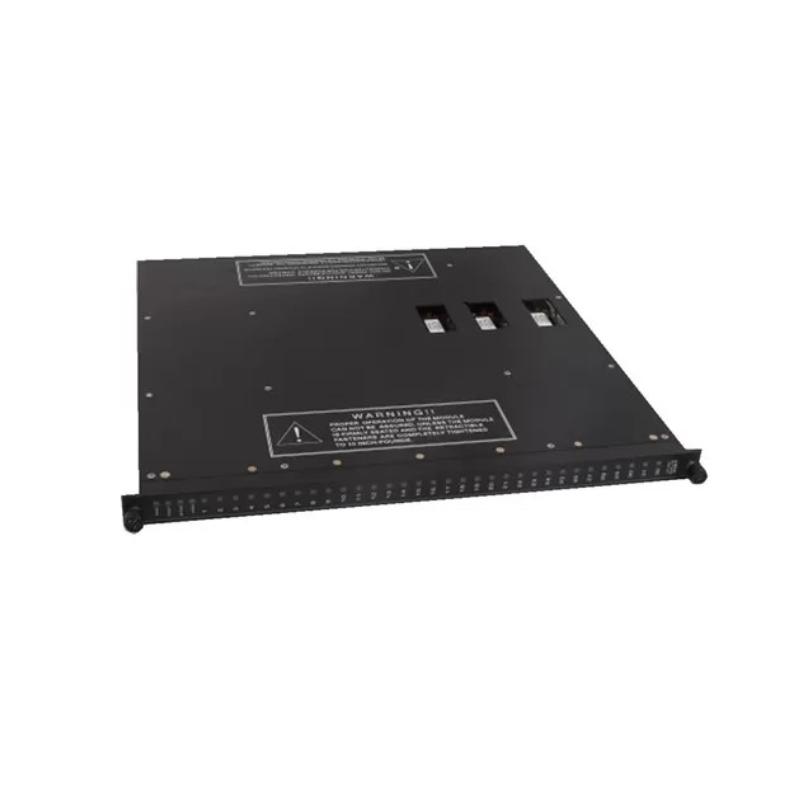

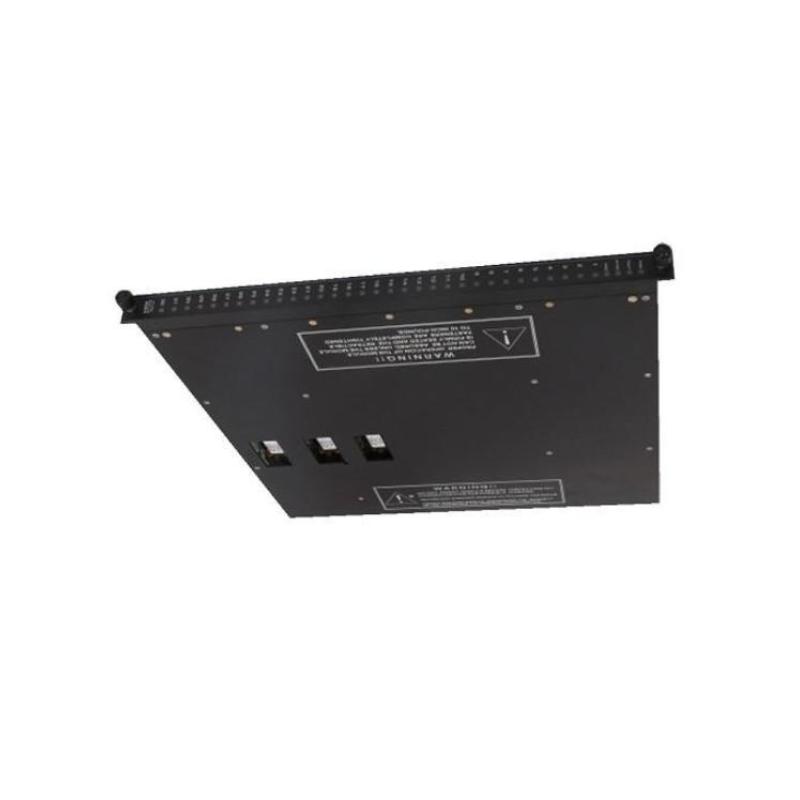

The Triconex 3664 Digital Output Module is a robust and reliable component engineered for use in Triconex fault‑tolerant control and safety systems. Designed to deliver precise on/off control signals to industrial field devices, this module provides high reliability and predictable performance in both standard automation and safety instrumented system (SIS) applications. Its modular design supports integration into distributed I/O racks and promotes system scalability while maintaining the stringent safety expectations of process industries.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3664 |
| Number of Output Channels | 16 discrete outputs |
| Output Type | Solid‑state or relay‑driven discrete signals |
| Nominal Output Voltage | 24–125 V DC / 120–240 V AC |
| Maximum Output Current | 2 A per channel |
| Output Response Time | < 5 ms per channel |
| Isolation | Channel‑to‑bus isolation for safety and noise immunity |
| Power Consumption | ~4 W typical |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.45 kg |
| Mounting | DIN‑rail or Triconex rack compatible |
| Safety Integrity | Designed to support SIL‑capable safety architectures |
