Introduction — Deterministic Relay Outputs for Safety‑Critical Automation

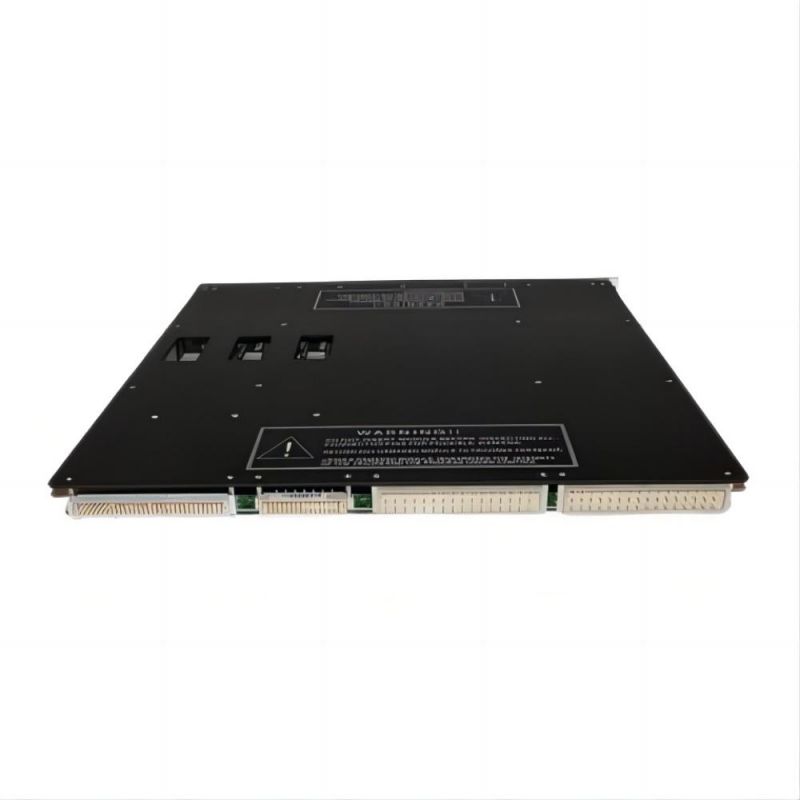

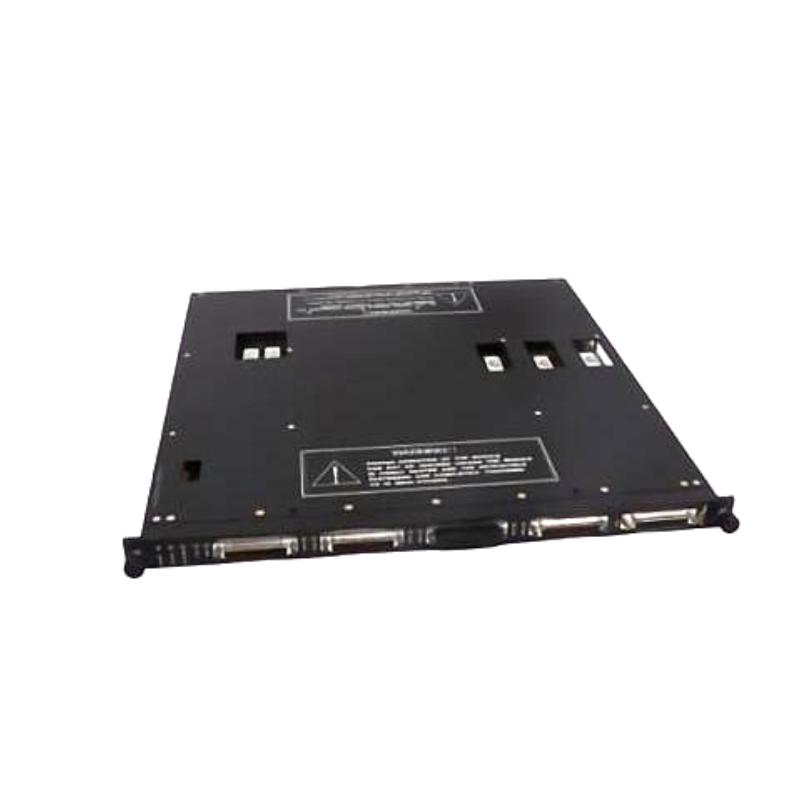

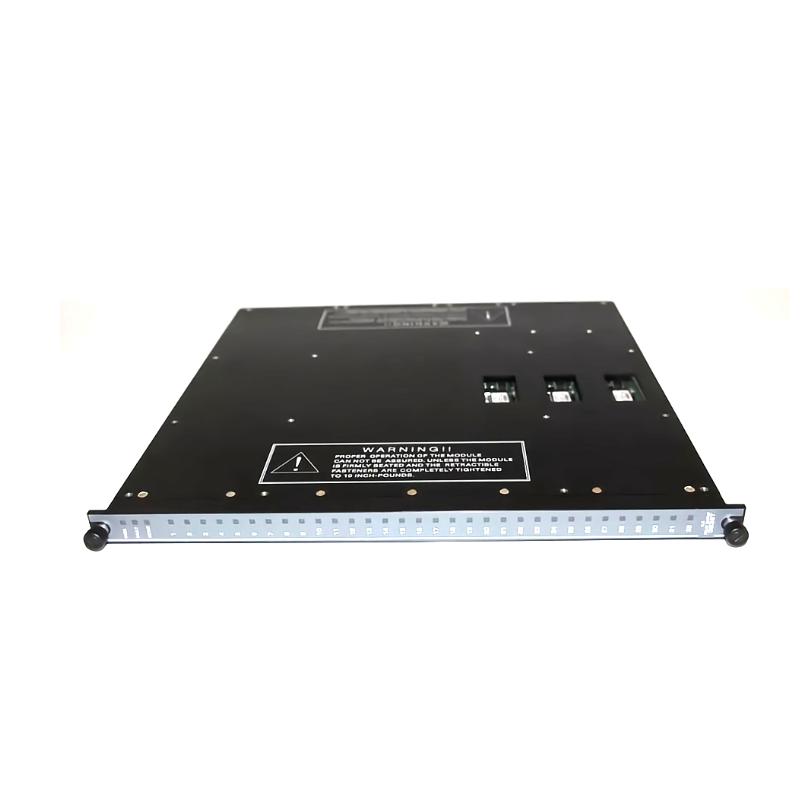

The Triconex 3636T Digital Relay Output Module is a robust I/O solution designed for high‑integrity automation and safety instrumented systems. Built into the Triconex fault‑tolerant architecture, this module delivers reliable relay‑driven outputs that provide physical contact switching for field devices such as solenoids, contactors, alarms, and shutdown actuators. With engineered redundancy and deterministic performance, the 3636T supports both control and safety tasks in demanding industrial environments. This module is ideal for applications where mechanical output integrity and system resilience are critical.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Relay Output Module |
| Model / Part Number | 3636T |
| Number of Output Channels | 8 independent relay outputs |
| Output Type | Electromechanical relay contacts (Form A / Form C as configured) |
| Nominal Load Voltage | 24–125 V DC; 120–240 V AC |
| Maximum Contact Current | 3 A per channel |
| Contact Configuration | Normally Open / Normally Closed contact options |
| Isolation | Full galvanic isolation between outputs and system bus |
| Response Time | Millisecond‑class mechanical switching |
| Power Consumption | ~4 W typical |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.48 kg |
| Mounting | DIN‑rail or Triconex rack compatible |
| Safety Integrity | Suitable for high‑availability, safety‑rated architectures |
