Long-Range Metric Proximity Probe for Reliable Turbomachinery Monitoring

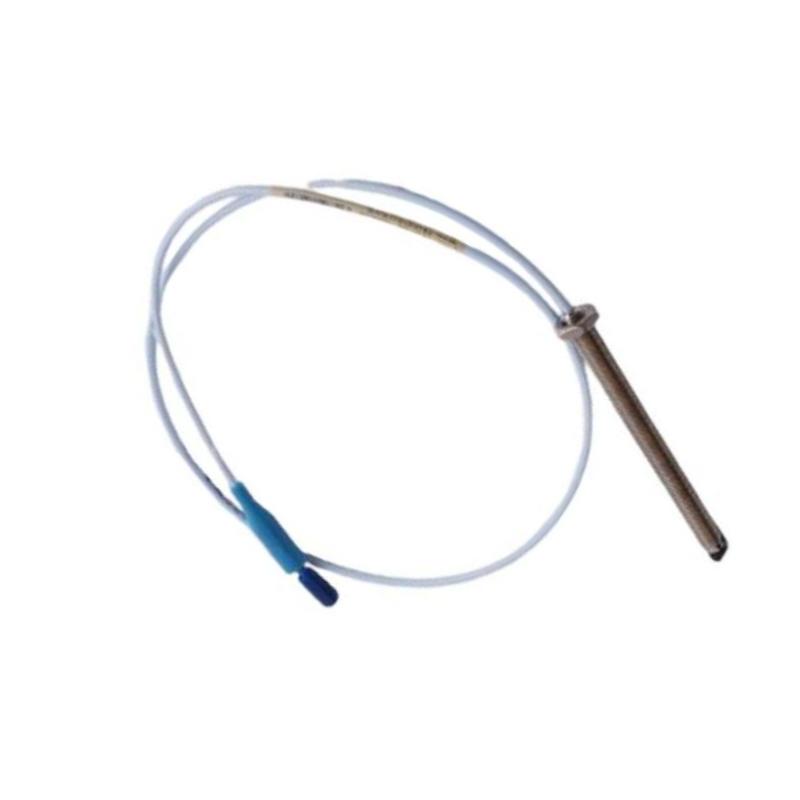

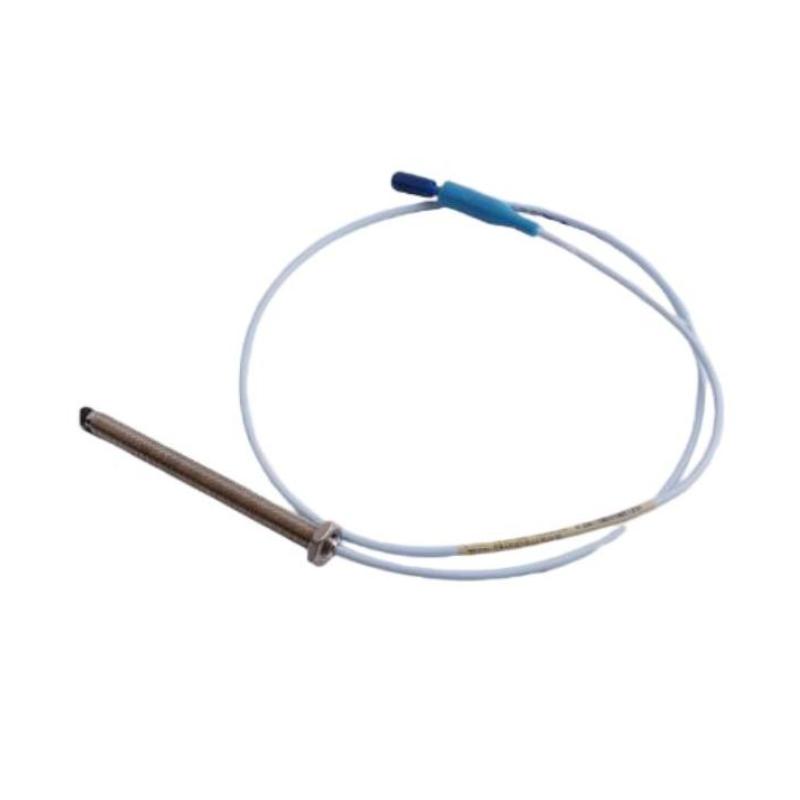

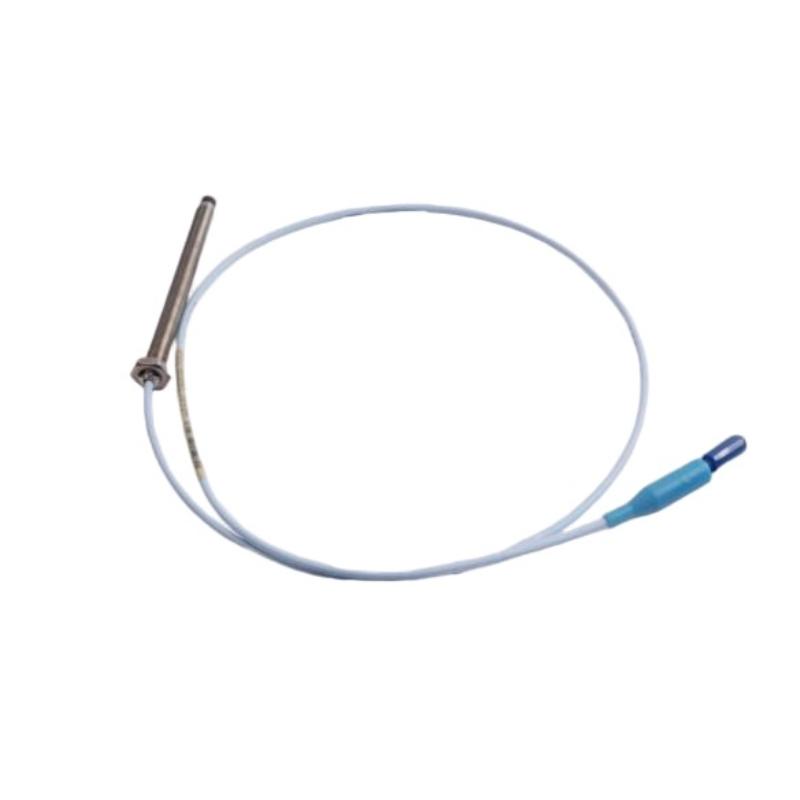

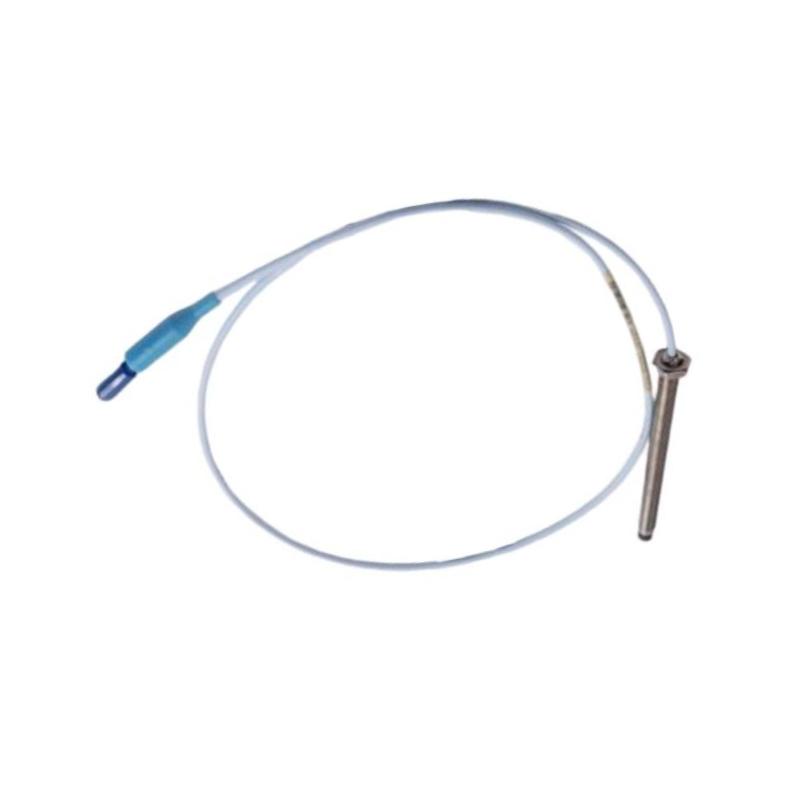

The Bently Nevada 330103-00-05-90-02-00 3300 XL 8 mm Proximity Probe (Metric) is a precision non-contact displacement sensor engineered for continuous monitoring of rotating machinery. Designed around proven eddy current sensing technology, this probe provides accurate measurement of shaft vibration, radial displacement, and axial position, helping operators maintain equipment reliability and improve predictive maintenance strategies.
As part of the 3300 XL 8 mm Proximity Transducer System, the 330103 series features an M10 × 1 metric thread and unarmored construction, making it suitable for machinery installations that require metric mounting compatibility. The 330103-00-05-90-02-00 configuration includes a 0 mm unthreaded length, 50 mm overall case length, 9.0-meter total cable length, miniature coaxial ClickLoc™ connector with standard cable, and no additional agency approval option.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-05-90-02-00 |
| Product Type | 3300 XL 8 mm Metric Proximity Probe |
| Measurement Technology | Eddy Current Non-Contact Displacement Sensing |
| Probe Series | 3300 XL 8 mm |
| Thread Type | M10 × 1 Metric Thread |
| Probe Construction | Standard Unarmored Design |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Total Cable Length | 9.0 m (29.5 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | Not Required |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Range | Approx. 2 mm (80 mils) |
| Sensitivity | Approx. 200 mV/mil (7.87 V/mm) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Cable Diameter | Approx. 3.2 mm |
| Probe Weight | Approx. 0.323 kg |
| Shipping Weight | Approx. 2 kg |
| Approximate Dimensions | Ø8 mm sensing tip × 50 mm case length + 9 m cable |
Applications
The 330103-00-05-90-02-00 proximity probe is designed for industrial machinery where accurate shaft measurement and extended installation distance are required.
Typical applications include:
-
Steam turbine shaft vibration monitoring
-
Gas turbine rotor displacement measurement
-
Centrifugal compressor protection systems
-
Generator condition monitoring
-
High-speed motor monitoring
-
Industrial pump vibration analysis
-
Gearbox diagnostic systems
-
Refinery rotating equipment protection
-
Petrochemical processing machinery
-
Power generation equipment monitoring
With its 9-meter cable configuration, this model is especially suitable for installations where the monitoring electronics are located farther away from the machine casing. When combined with a compatible 3300 XL Proximitor Sensor, it provides a complete vibration and position monitoring solution.
Product Advantages
Metric M10 × 1 thread design supports global industrial equipment installation standards.
9-meter cable length provides flexibility for large machinery layouts and remote monitoring installations.
50 mm compact case design allows easier installation in limited mounting areas.
Non-contact eddy current technology eliminates mechanical wear between the probe and shaft.
8 mm sensing tip provides stable measurement performance for critical rotating machinery.
ClickLoc™ connector technology ensures reliable electrical connection.
Stainless steel housing construction improves corrosion resistance and mechanical durability.
PPS probe tip material maintains consistent electrical performance.
Compatible with the 3300 XL monitoring platform for maintenance replacement and system expansion.
Ideal for continuous online machinery condition monitoring applications.
Technical FAQs
1. What is the Bently Nevada 330103-00-05-90-02-00 used for?
It is used for measuring shaft vibration, radial displacement, and axial position in rotating machinery using non-contact eddy current sensing.
2. What makes the 330103 series different from 330101 and 330102?
The 330103 series uses an M10 × 1 metric thread without armor, while 330101 uses a 3/8-24 UNF thread and 330102 uses a 3/8-24 UNF armored design.
3. Is the 330103-00-05-90-02-00 an armored probe?
No. This model is a standard unarmored metric proximity probe.
4. What does the "00" option indicate?
The first 00 indicates a 0 mm unthreaded length configuration.
5. What does the "05" option represent?
The 05 option indicates a 50 mm overall case length.
6. What does the "90" cable option mean?
The 90 option specifies a 9.0-meter (29.5 ft) total cable length.
7. What type of connector does this probe use?
It uses a miniature coaxial ClickLoc™ connector with standard cable configuration.
8. Does this model include hazardous-area certification?
No. The final -00 suffix indicates no additional agency approval option.
9. What additional components are required for operation?
A complete system normally requires a compatible 3300 XL Extension Cable (when applicable) and a 3300 XL Proximitor Sensor.
10. Why choose a 9-meter cable proximity probe?
The longer cable configuration allows installation flexibility when the monitoring cabinet or Proximitor Sensor location is positioned away from the machine.
