Compact Metric Eddy Current Sensor for Precision Shaft Monitoring Applications

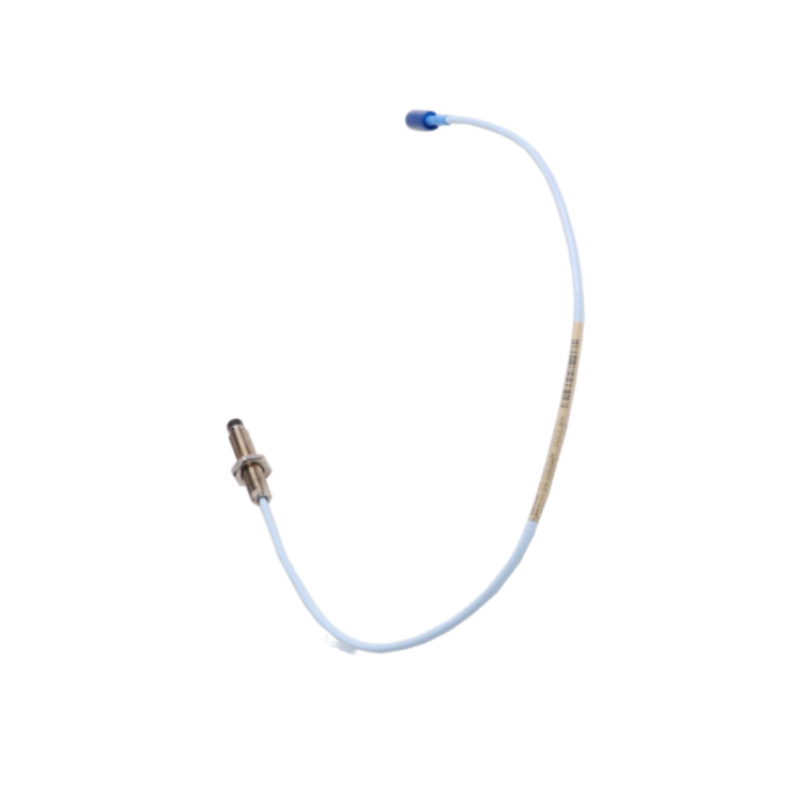

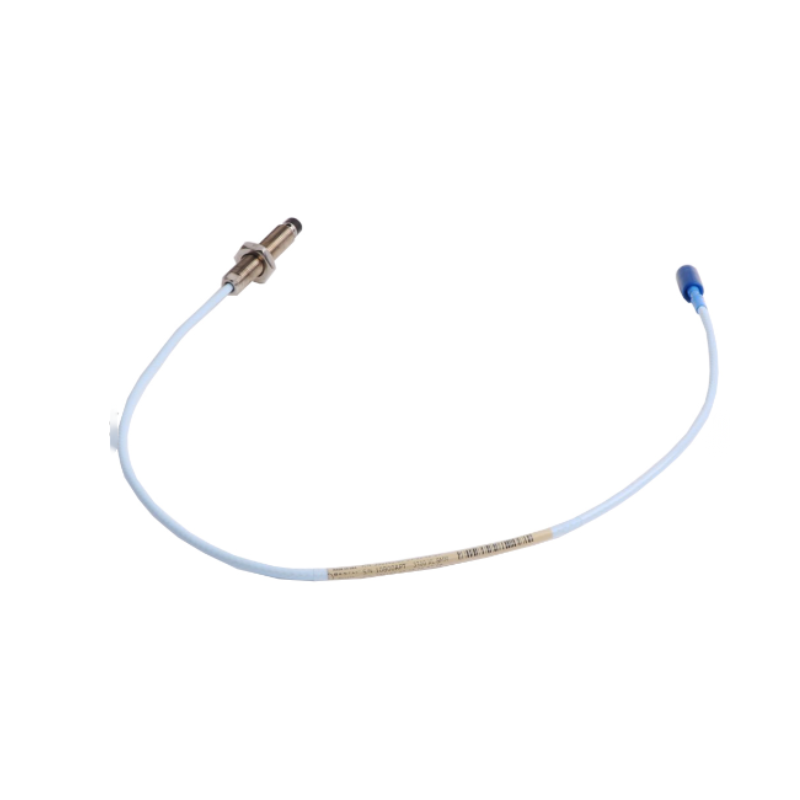

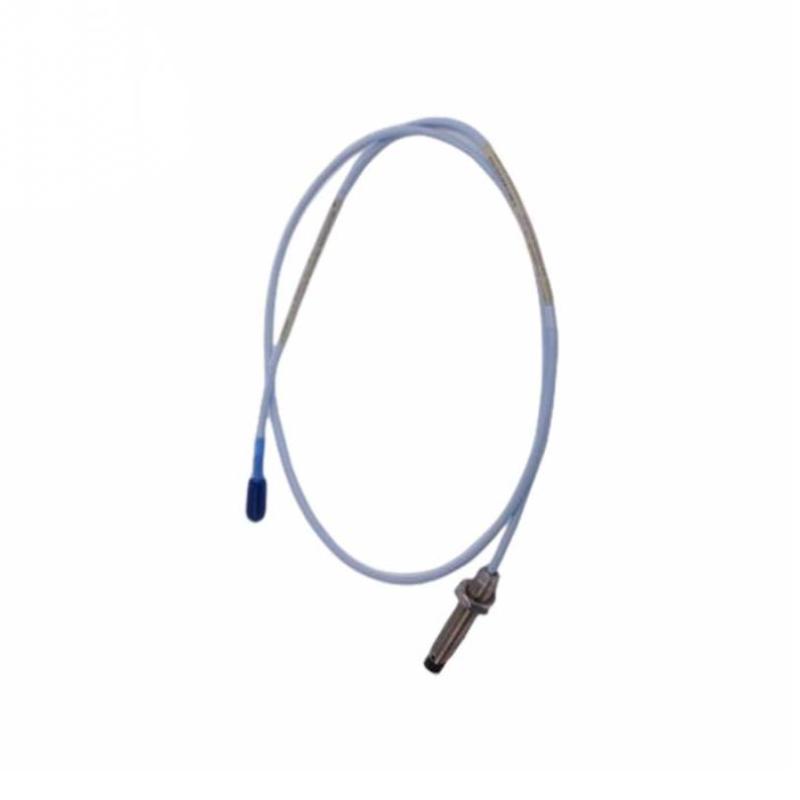

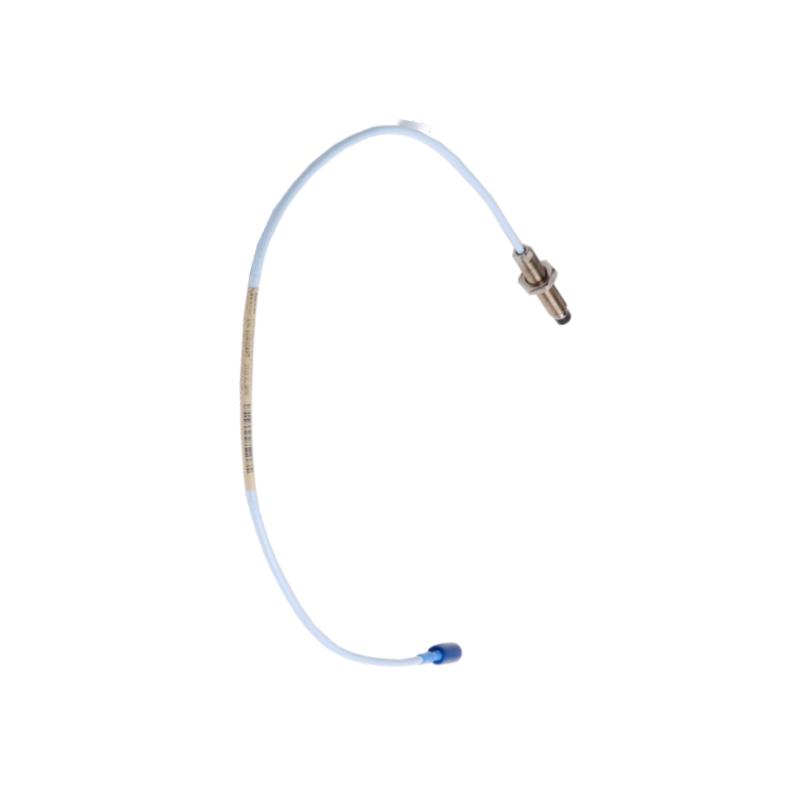

The Bently Nevada 330103-00-02-05-02-00 3300 XL 8 mm Proximity Probe (Metric) is a high-accuracy non-contact displacement sensor designed for monitoring the dynamic and static position of rotating machine shafts. Built on the trusted 3300 XL 8 mm Proximity Transducer System platform, this probe delivers dependable vibration measurement and shaft position feedback for critical industrial assets.
Featuring an M10 × 1 metric thread design without armor, the 330103 series is optimized for equipment requiring metric mounting compatibility and compact installation. The 330103-00-02-05-02-00 model includes a 0 mm unthreaded length, 20 mm overall case length, 0.5-meter cable, miniature coaxial ClickLoc™ connector with standard cable, and no additional agency approval option. Its compact structure makes it suitable for applications where installation space is limited while maintaining the proven accuracy of the 3300 XL sensing technology.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-02-05-02-00 |
| Product Type | 3300 XL 8 mm Metric Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Measurement |
| Series | 3300 XL 8 mm |
| Thread Type | M10 × 1 Metric Thread |
| Probe Construction | Standard Unarmored Design |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Configuration | Standard Cable |
| Agency Approval | Not Required |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Range | Approximately 2 mm (80 mils) |
| Sensitivity | Approximately 200 mV/mil (7.87 V/mm) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Approximate Probe Weight | 323 g/m |
| Shipping Weight | Approx. 1.5 kg |
| Approximate Dimensions | Ø8 mm sensing tip × 20 mm case length + 0.5 m cable |
Applications
The 330103-00-02-05-02-00 proximity probe is designed for accurate machinery monitoring in industrial environments where reliable shaft measurement is required.
Typical applications include:
-
Steam turbine shaft vibration monitoring
-
Gas turbine condition monitoring
-
Compressor rotor displacement measurement
-
Generator shaft position monitoring
-
Industrial motor protection
-
Pump vibration analysis
-
Gearbox monitoring systems
-
Rotating equipment diagnostics
-
Power generation machinery
-
Petrochemical process equipment
When combined with a compatible 3300 XL Extension Cable and 3300 XL Proximitor Sensor, this probe forms a complete proximity monitoring system capable of measuring both shaft vibration and position changes.
Technical FAQs
1. What is the Bently Nevada 330103-00-02-05-02-00 used for?
It is used to measure shaft vibration, radial displacement, and axial position on rotating machinery through non-contact eddy current sensing.
2. What is the difference between 330103 and 330101 probes?
The 330103 series uses an M10 × 1 metric thread, while the 330101 series uses a 3/8-24 UNF thread configuration.
3. Is this probe armored?
No. The 330103-00-02-05-02-00 is a standard unarmored metric probe. The armored metric equivalent belongs to the 330104 series.
4. What does the "00" in the model number indicate?
The first "00" indicates a 0 mm unthreaded length option.
5. What does the "02" case length option represent?
The "02" option specifies a 20 mm overall case length.
6. What does the "05" cable option mean?
The "05" option indicates a 0.5-meter (1.6 ft) total cable length.
7. What connector does this probe use?
It uses a miniature coaxial ClickLoc™ connector with standard cable configuration.
8. Does this model include hazardous-area certification?
No. The "-00" agency approval option indicates that no additional approval package is included.
9. What components are needed for a complete 3300 XL system?
A complete system normally includes the probe, compatible extension cable, and 3300 XL Proximitor Sensor.
10. Why choose the 3300 XL 8 mm metric probe family?
The 3300 XL 8 mm metric series provides reliable displacement measurement, strong mechanical construction, and compatibility with modern industrial machinery monitoring systems.
