Compact Metric Proximity Sensor for Accurate Shaft Position and Vibration Monitoring

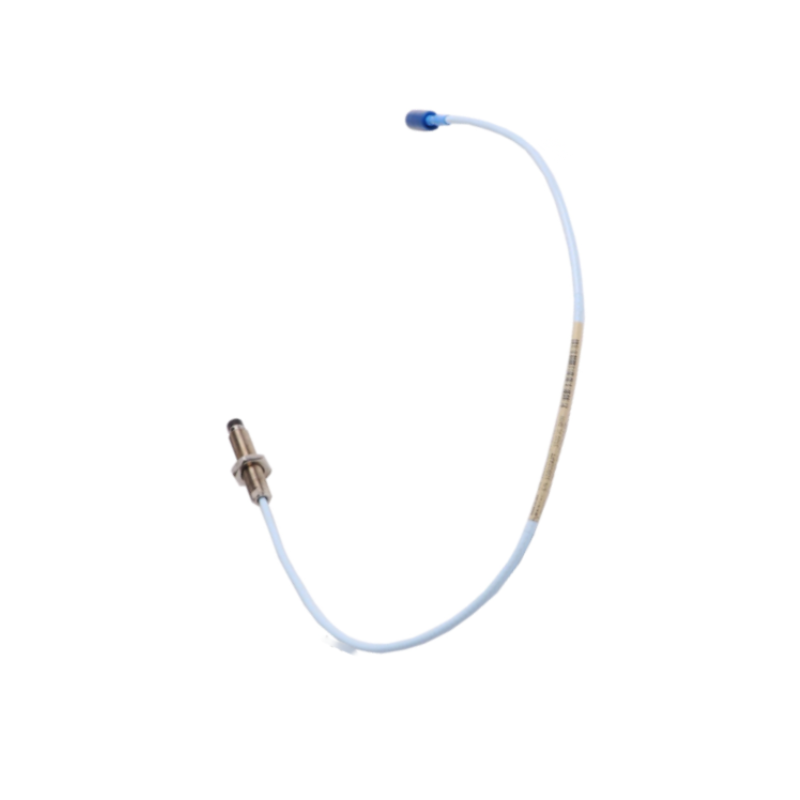

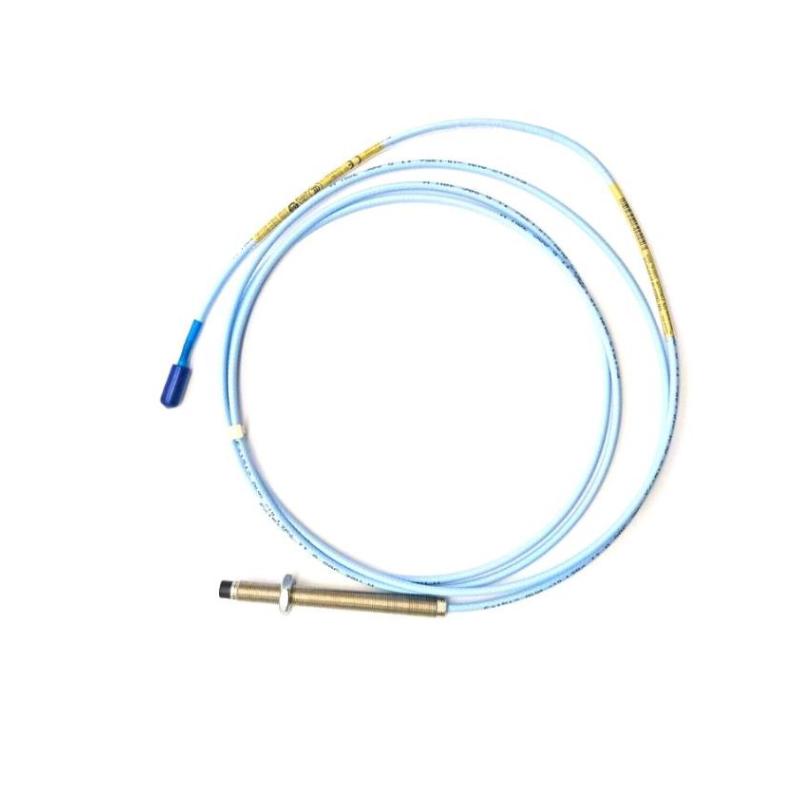

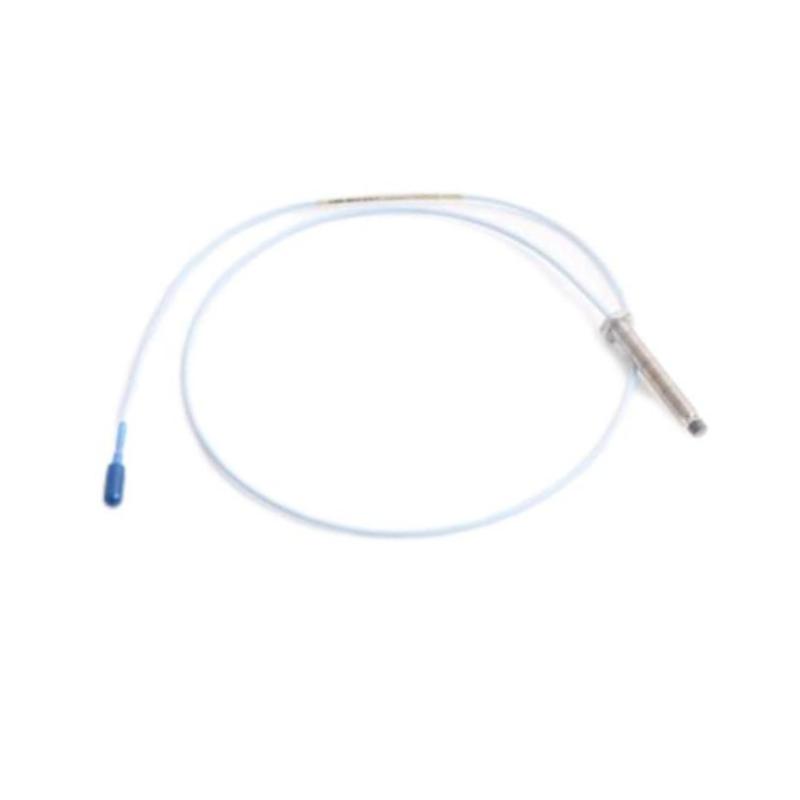

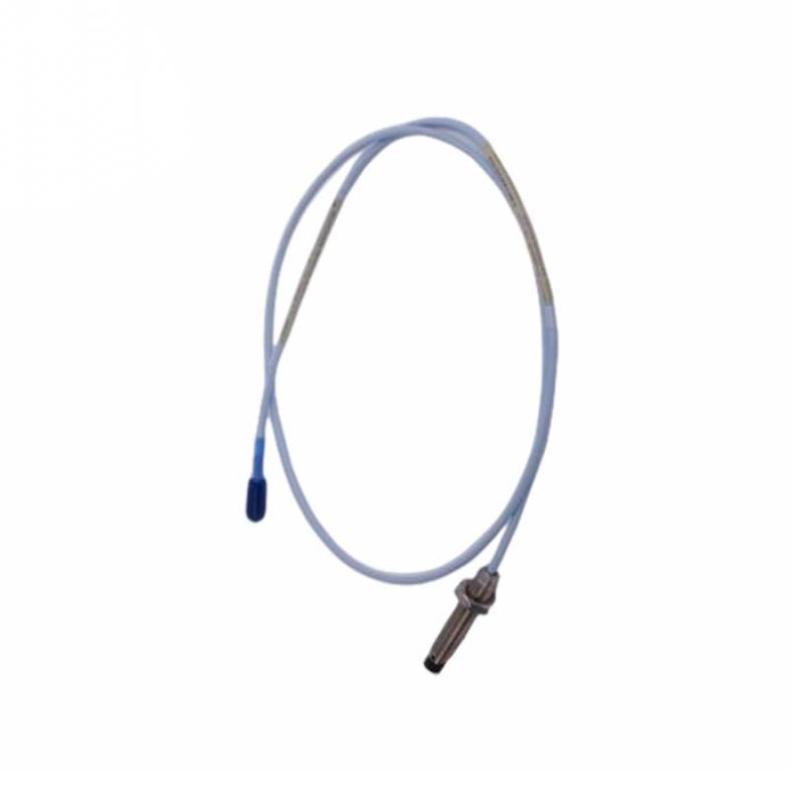

The Bently Nevada 330103-00-02-05-02-00 3300 XL 8 mm Proximity Probe (Metric) is a precision non-contact displacement sensor designed for reliable monitoring of rotating machinery. Utilizing advanced eddy current sensing technology, this probe provides accurate measurement of shaft vibration, radial displacement, and axial position in critical industrial equipment. As part of the 3300 XL 8 mm Proximity Transducer System, it delivers proven performance for machinery protection and condition monitoring applications.
Designed with an M10 × 1 metric thread and unarmored construction, the 330103 series provides a flexible solution for installations requiring metric mounting compatibility. The 330103-00-02-05-02-00 configuration features a 0 mm unthreaded length, 20 mm overall case length, 0.5-meter cable, miniature coaxial ClickLoc™ connector with standard cable, and no additional agency approval option. This compact design is ideal for applications where installation space is limited while maintaining the measurement reliability of the 3300 XL platform.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-02-05-02-00 |
| Product Type | 3300 XL 8 mm Metric Proximity Probe |
| Sensor Technology | Eddy Current Non-Contact Displacement Sensor |
| Probe Series | 3300 XL 8 mm |
| Thread Type | M10 × 1 Metric Thread |
| Probe Construction | Unarmored Design |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | Not Required (-00) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Measurement Range | Approx. 2 mm (80 mils) |
| Nominal Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature Range | -52 °C to +177 °C (-62 °F to +350 °F) |
| Probe Weight | Approx. 0.323 kg |
| Shipping Weight | Approx. 1.5 kg |
| Approximate Dimensions | Ø8 mm sensing tip × 20 mm case length + 0.5 m cable |
Applications
The 330103-00-02-05-02-00 proximity probe is designed for precise machinery monitoring where compact installation and accurate displacement measurement are required.
Typical applications include:
-
Steam turbine shaft monitoring
-
Gas turbine vibration protection
-
Centrifugal compressor condition monitoring
-
Generator rotor position measurement
-
High-speed motor monitoring
-
Industrial pump vibration analysis
-
Gearbox condition monitoring
-
Rotating equipment diagnostics
-
Power generation machinery
-
Petrochemical processing systems
When combined with a compatible 3300 XL Extension Cable and 3300 XL Proximitor Sensor, the probe forms a complete monitoring system capable of measuring both dynamic vibration and static shaft position changes.
Technical FAQs
1. What is the Bently Nevada 330103-00-02-05-02-00 used for?
It is used to measure shaft vibration, radial displacement, and axial position on rotating machinery through non-contact sensing technology.
2. What makes this model different from 330101 and 330102 probes?
The 330103 series uses an M10 × 1 metric thread and unarmored construction, while 330101 uses a 3/8-24 UNF thread without armor and 330102 uses a 3/8-24 UNF armored design.
3. What sensing technology does this probe use?
It uses eddy current technology to detect changes in the distance between the probe tip and a conductive shaft surface.
4. What does the "00" unthreaded length option mean?
The 00 option indicates a 0 mm unthreaded length configuration.
5. What does the "02" case length option specify?
The 02 option represents a 20 mm overall case length.
6. What does the "05" cable option indicate?
The 05 option specifies a 0.5-meter (1.6 ft) total cable length.
7. What connector is used on this proximity probe?
This model uses a miniature coaxial ClickLoc™ connector with standard cable.
8. Does this model include hazardous-area approvals?
No. The -00 suffix indicates that no additional agency approval option is selected.
9. What components are needed to build a complete 3300 XL system?
A complete system typically includes the proximity probe, compatible extension cable, and a 3300 XL Proximitor Sensor.
10. Why choose the 3300 XL 8 mm metric probe series?
The metric series provides accurate displacement measurement with international mounting compatibility and reliable performance for critical rotating machinery.
