Introduction — High‑Integrity Relay Output for Safety Control Systems

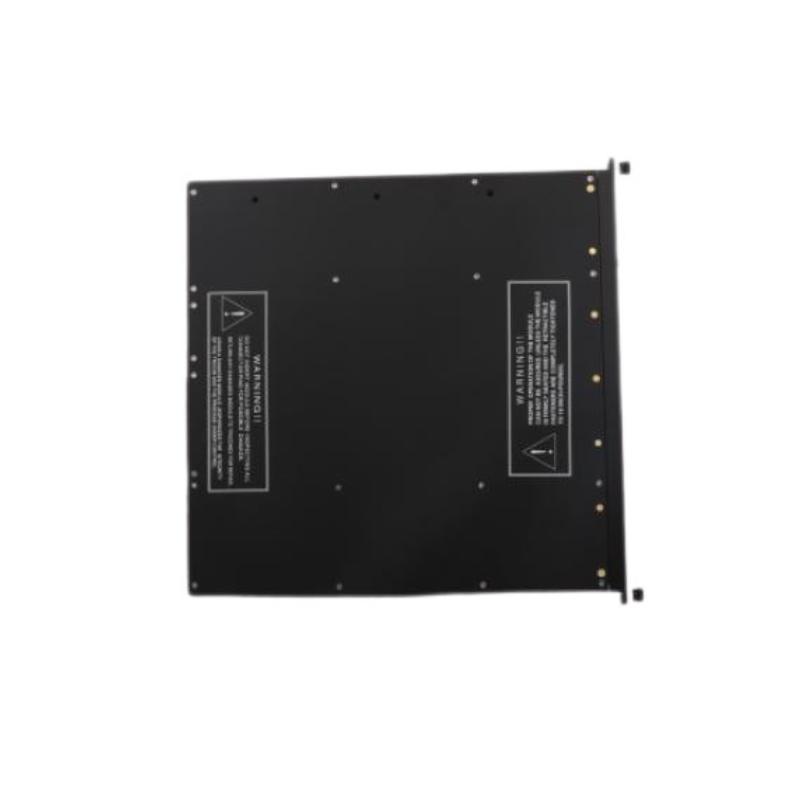

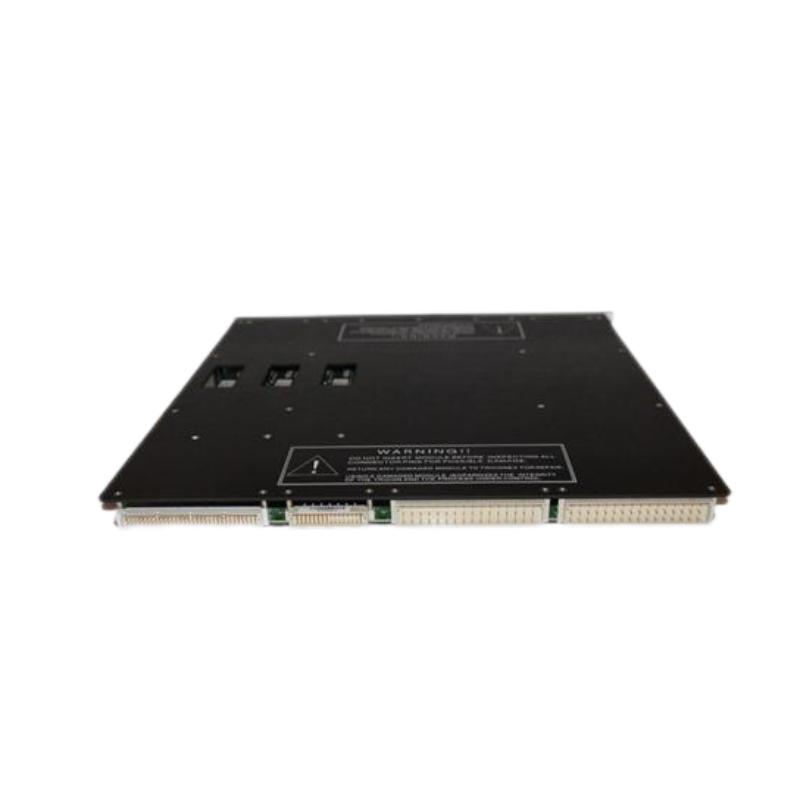

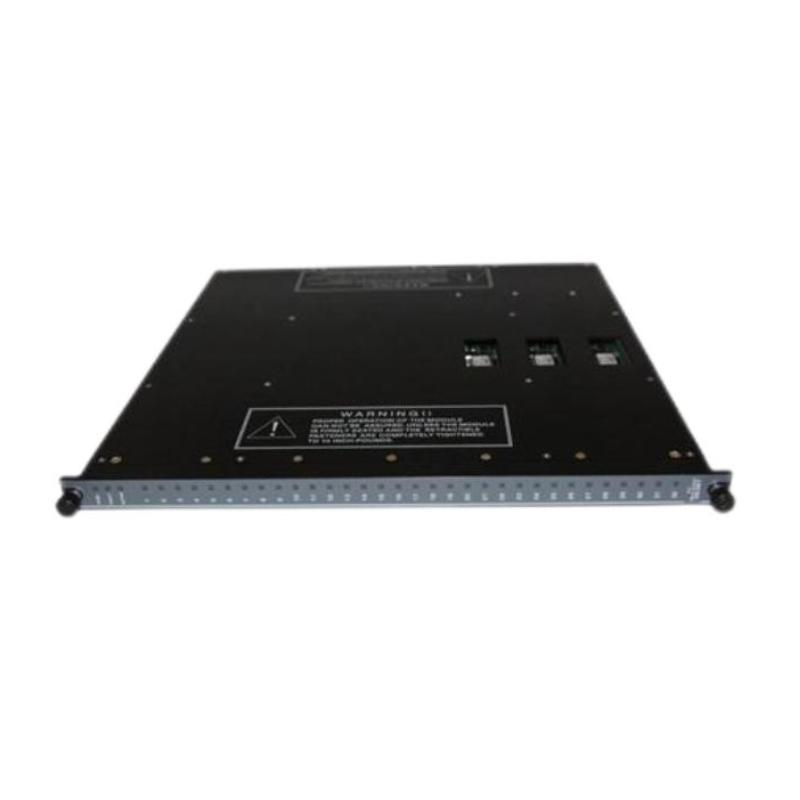

The Triconex 3636A Relay Output Module is engineered for demanding industrial applications where reliable discrete output control is critical. Designed to interface with Triconex safety and automation platforms, this module delivers robust relay‑driven outputs with fault tolerance and predictable performance. Its relay outputs are especially suited for driving external devices such as alarms, solenoids, contactors, and other field equipment that require galvanic isolation and mechanical switching. Whether used in safety instrumented systems (SIS) or process automation loops, the 3636A offers consistent, dependable operation under harsh industrial conditions.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Relay Output Module |
| Model / Part Number | 3636A |
| Number of Output Channels | 8 independent relay outputs |
| Output Type | Electromechanical relay contacts (form A / form C depending on configuration) |
| Nominal Output Voltage | 24–125 V DC, 120–240 V AC |
| Maximum Contact Current | Up to 3 A per relay contact |
| Isolation | Galvanic isolation between outputs and system backplane |
| Response Time | Typical relay operate/release times in milliseconds |
| Power Consumption | ~3–5 W (module operating power) |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | Approx. 120 mm × 100 mm × 40 mm |
| Weight | ~0.48 kg |
| Mounting | DIN‑rail or Triconex rack compatible |
| Safety Integrity | Suitable for high‑availability and safety‑rated architectures |
This compact form factor and built‑in relay drivers ensure the 3636A fits easily into modular Triconex racks while delivering clearly switchable outputs.
