Introduction — Robust Digital Output for Mission‑Critical Control

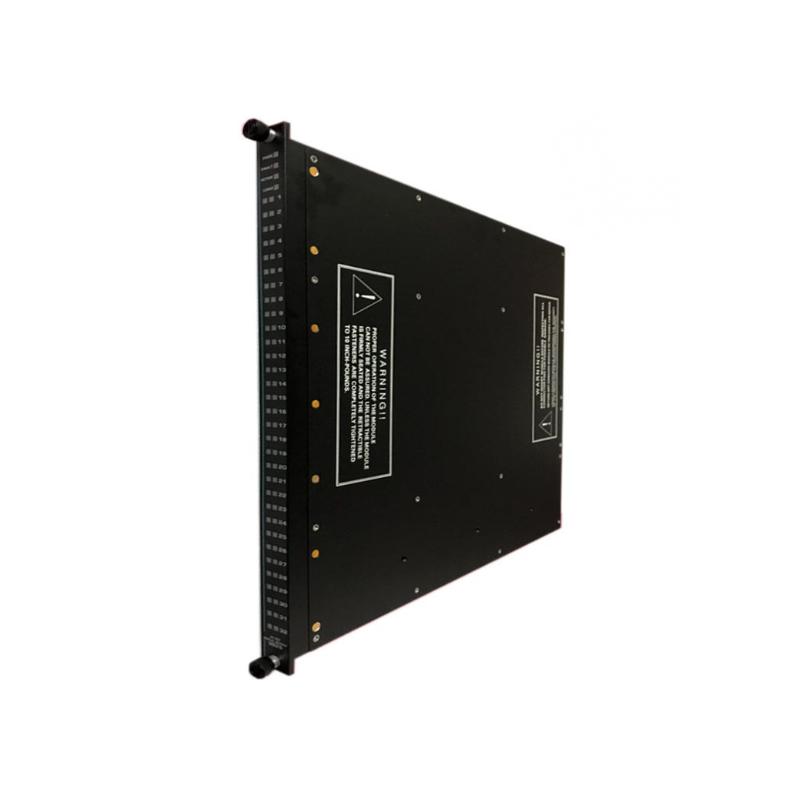

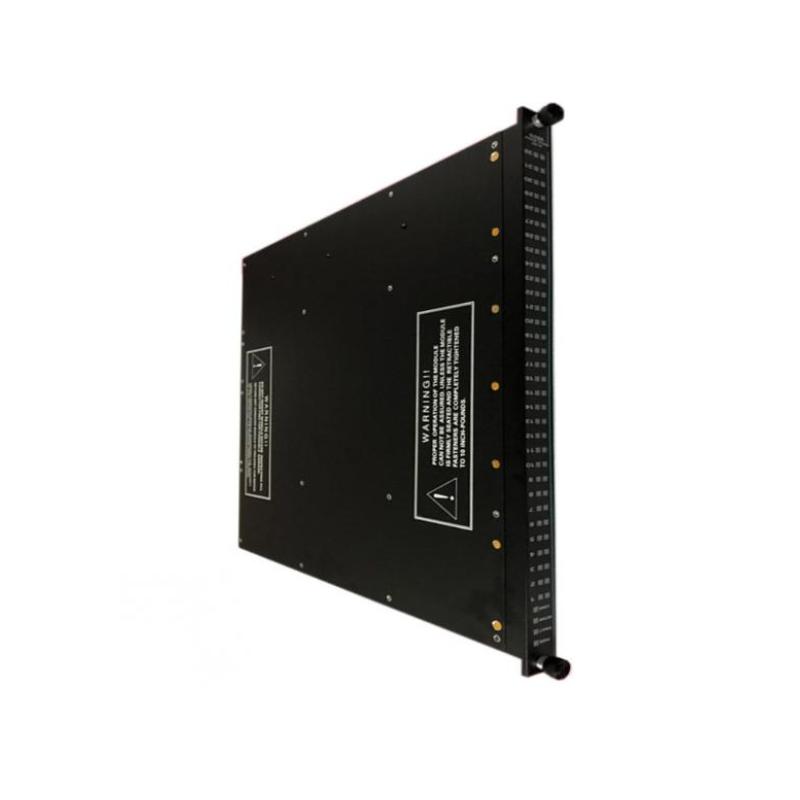

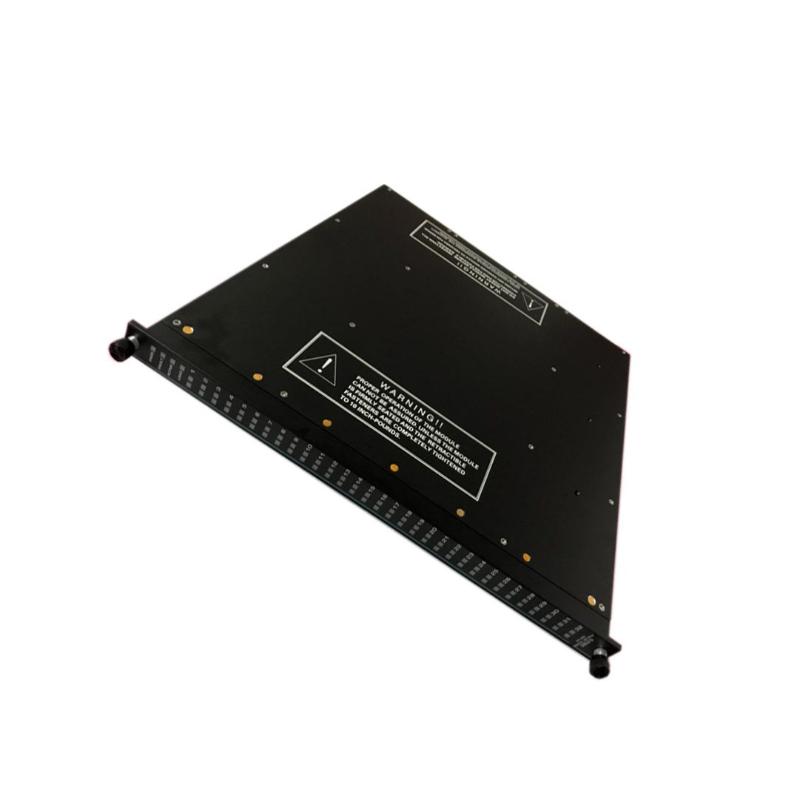

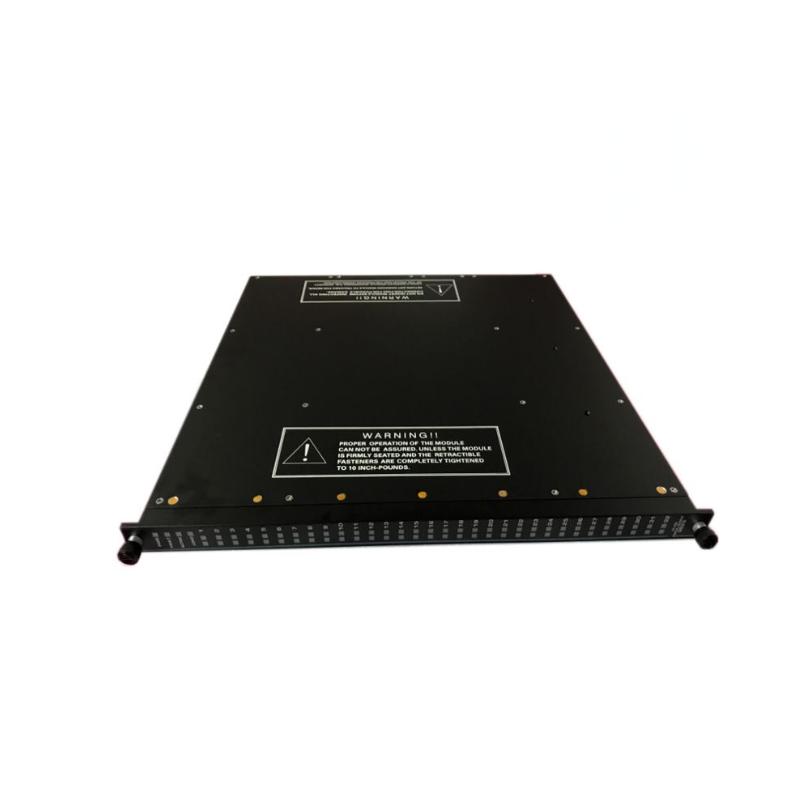

The Triconex 3625N Digital Output Module delivers dependable and deterministic discrete output signals for automation and safety instrumented systems. Built to meet the exacting demands of mission‑critical environments, this module interfaces seamlessly with Triconex controllers to drive actuators, relays, alarms, and shutdown logic. With a focus on redundancy, safety integrity, and fast response, the 3625N provides a trusted solution for industries where uptime and safety are paramount.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3625N |
| Number of Channels | 16 discrete outputs |
| Output Type | Solid‑state / relay compatible digital signals |
| Nominal Output Voltage | 24–125 V DC / 120–240 V AC |
| Maximum Output Current | 2 A per channel |
| Output Response Time | < 5 ms per channel |
| Isolation | Channel‑to‑bus isolation for electrical safety and noise immunity |
| Power Consumption | ~4 W typical |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.45 kg |
| Mounting | DIN‑rail or Triconex rack compatible |
| Safety Integrity | Designed for SIL‑capable architectures |
The compact footprint and rugged construction make the 3625N suitable for both new installations and upgrades in demanding industrial control systems.
