Introduction — High‑Integrity Digital Output for Safety and Control

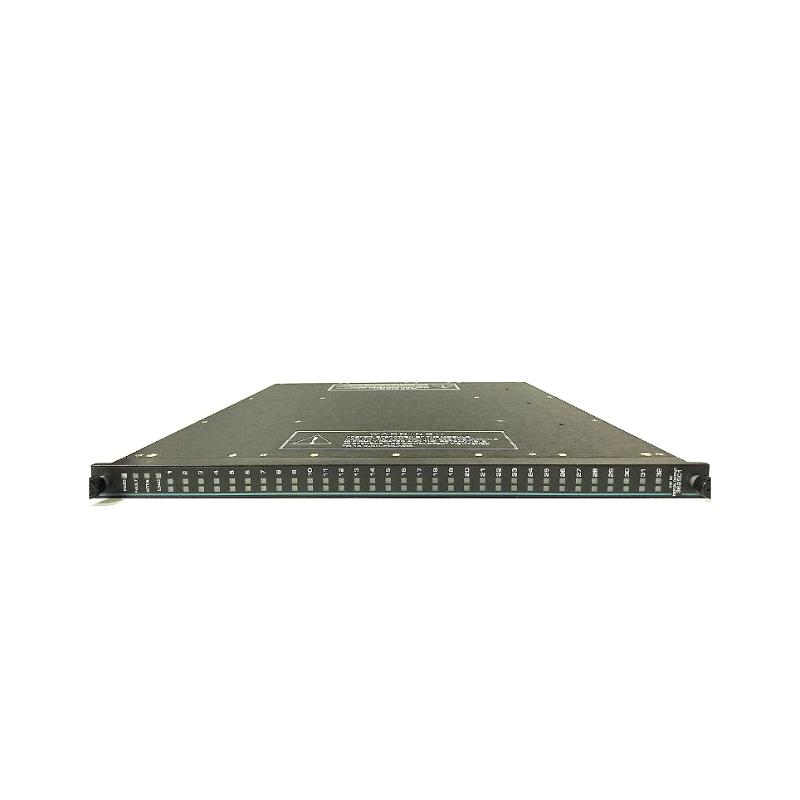

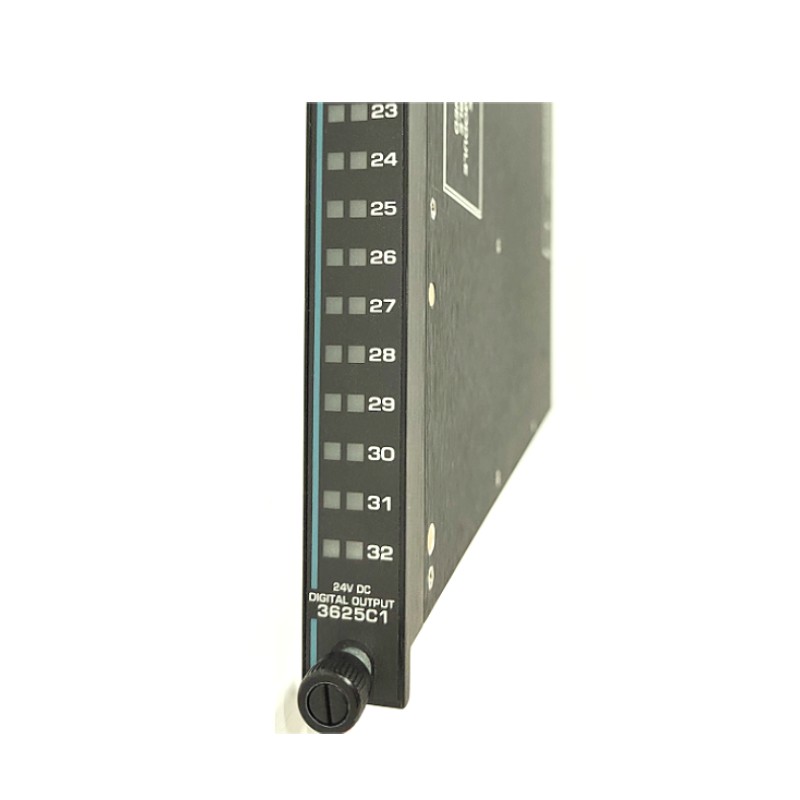

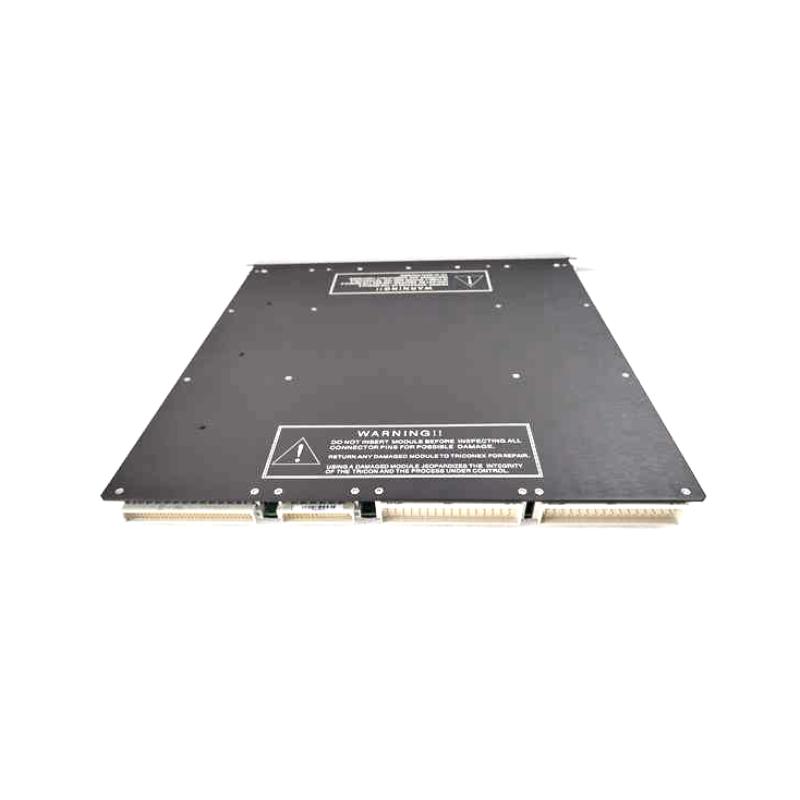

The Triconex 3625C1 Digital Output Module is engineered for mission‑critical automation systems where reliability cannot be compromised. As part of the Triconex safety and control I/O ecosystem, this module delivers deterministic discrete output signals with built‑in redundancy and fault tolerance. Whether driving actuators, alarms, or shutdown relays, the 3625C1 ensures predictable performance in demanding industrial environments. Its design is optimized for systems that require both control resilience and high safety integrity levels.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3625C1 |
| Number of Channels | 16 discrete outputs |
| Output Type | Solid‑state / relay compatible digital signals |
| Nominal Output Voltage | 24–125 V DC / 120–240 V AC |
| Maximum Output Current | 2 A per channel |
| Output Response Time | < 5 ms per channel |
| Isolation | Channel‑to‑bus isolation for safety and noise immunity |
| Power Consumption | ~4 W typical |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.45 kg |
| Mounting | DIN‑rail or Triconex rack compatible |
| Safety Integrity | Designed for high availability and SIL‑capable architectures |
This robust form factor and engineered isolation make the 3625C1 ideal for process industries where output reliability and safety are essential.
