Introduction — Reliable Digital Output for Safety and Control

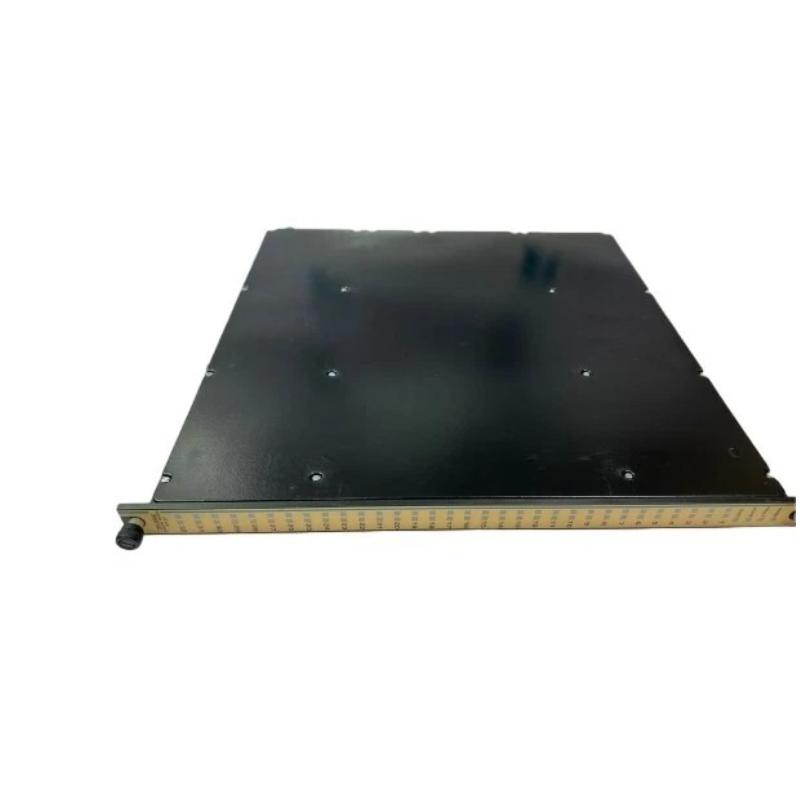

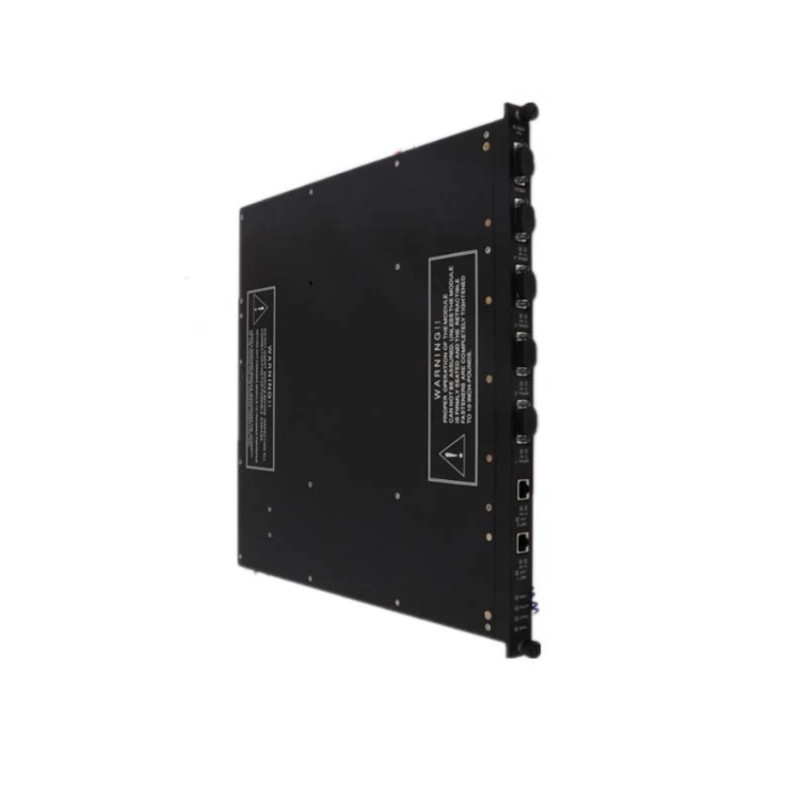

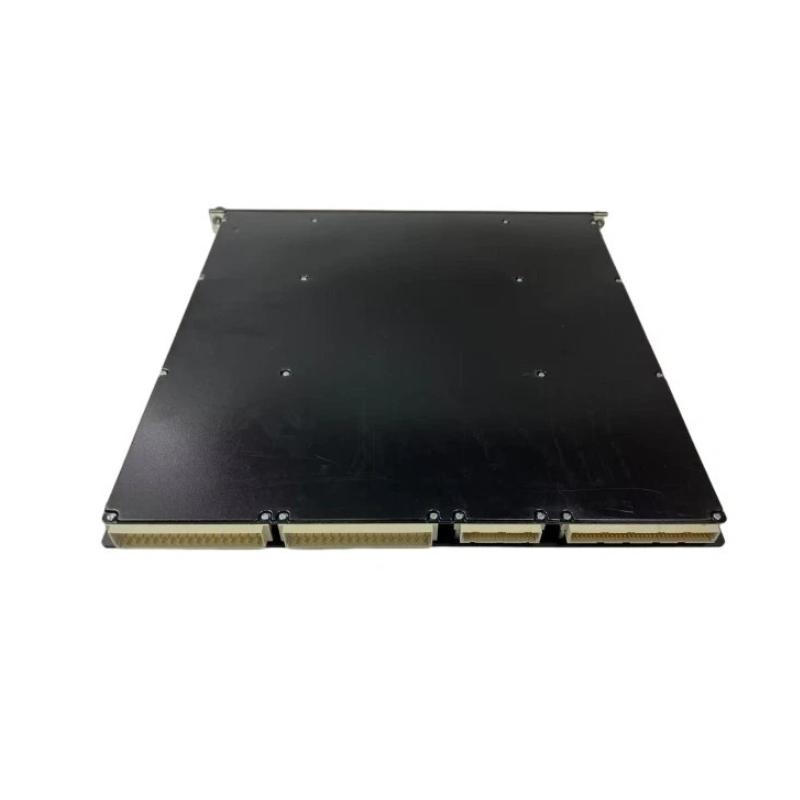

The Triconex 3625C Digital Output Module is engineered for high-reliability industrial automation applications, including safety instrumented systems (SIS). Designed to provide fast, accurate, and redundant digital outputs, this module interfaces seamlessly with Triconex controllers to manage actuators, alarms, and discrete field devices. Its robust design ensures continuous operation in critical processes, from oil & gas to power generation, making it a key component in maintaining operational safety and process integrity.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3625C |
| Number of Output Channels | 16 discrete outputs |
| Output Type | Relay / transistor configurable, on/off signals |
| Nominal Output Voltage | 24–125 V DC / 120–240 V AC |
| Output Current | Max 2 A per channel |
| Response Time | <5 ms typical |
| Isolation | Channel-to-bus isolation for safety and noise immunity |
| Power Consumption | ~4 W |
| Operating Temperature Range | –20 °C to +70 °C |
| Dimensions | 120 mm × 100 mm × 40 mm |
| Weight | ~0.45 kg |
| Mounting | DIN-rail or Triconex rack compatible |
| Compliance / Certifications | IEC61508, SIL2/SIL3, CE |
