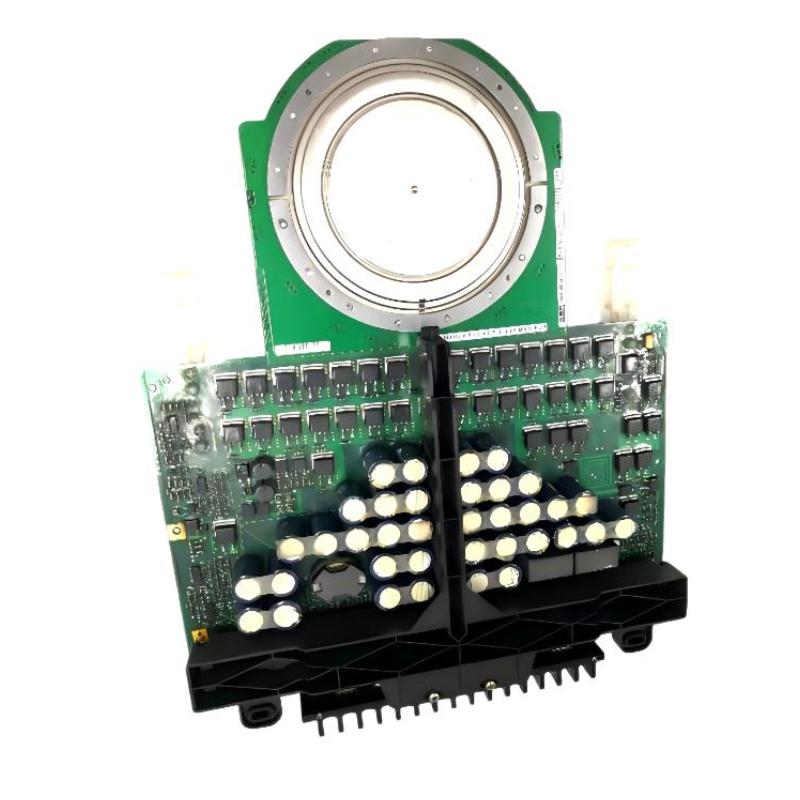

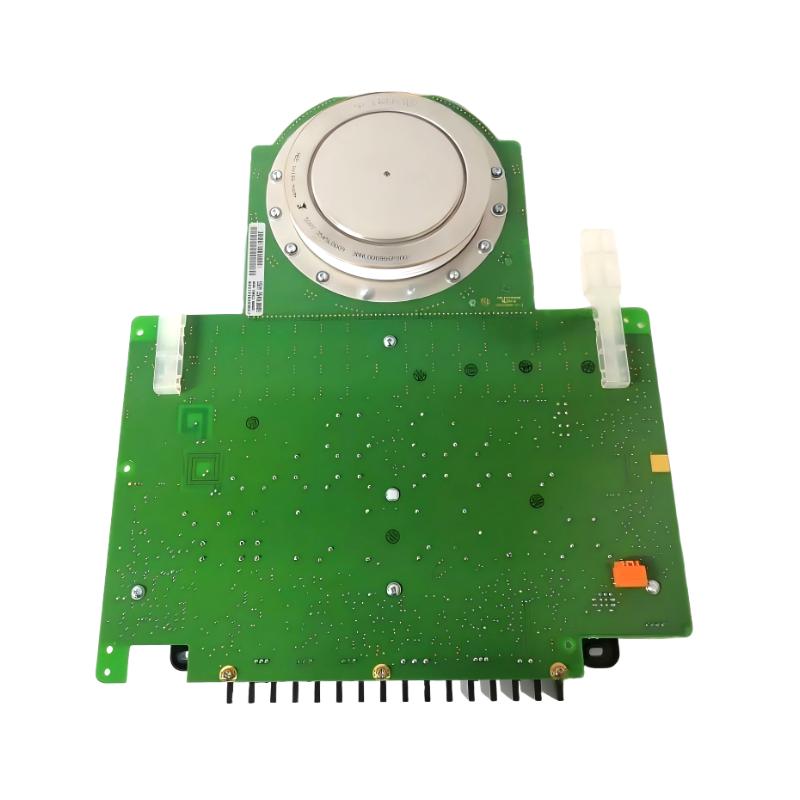

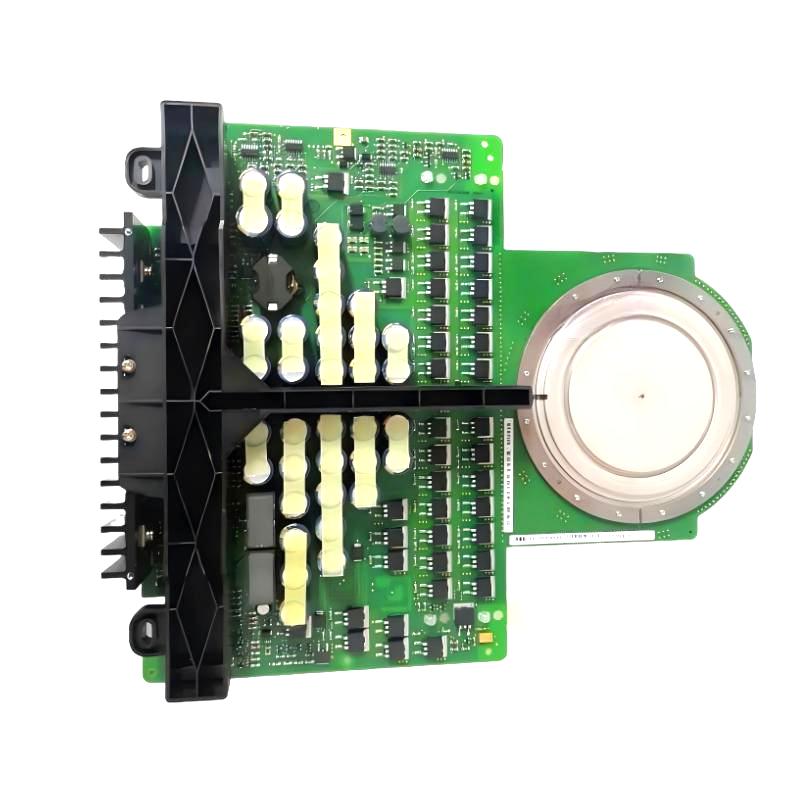

ABB 5SHY 3545L0009 3BHB013085R0001 IGCT Module

Brand:ABB PLC
Item No.:5SHY 3545L0009
Product Origin:Sweden (SE)
Product Dimensions:150 × 100 × 40 mm
Product Weight:1.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB 5SHY 3545L0009 3BHB013085R0001 IGCT Module is an advanced integrated gate-controlled thyristor (IGCT) module designed for high-performance power control applications. It is widely used in power electronics systems that require efficient switching and control of high-voltage, high-current loads. The IGCT technology combines the high-speed switching capabilities of a transistor with the power-handling abilities of a thyristor, making it an ideal solution for applications in power generation, industrial drives, renewable energy systems, and high-voltage DC (HVDC) transmission systems.

This module plays a crucial role in enhancing system efficiency, reducing switching losses, and improving overall reliability in power conversion systems. The ABB IGCT module ensures stable and precise control, providing optimal performance in demanding industrial environments.

Technical Specifications

SpecificationDetails
Model5SHY 3545L0009 3BHB013085R0001
TypeIGCT Module
Weight1.5 kg
Dimensions150 × 100 × 40 mm
Input Voltage1,200 V DC
Current Rating4,500 A
Switching FrequencyHigh-frequency switching capability
Operating Temperature-40°C to 125°C
Storage Temperature-40°C to 125°C
ComplianceCE, UL


Applications

The ABB 5SHY 3545L0009 3BHB013085R0001 IGCT Module is primarily used in industrial and power control systems that require efficient, high-performance power switching. Its applications include:

  • Power Generation: Used in power plants to control high-power converters and inverters, ensuring efficient power distribution and conversion.

  • Industrial Drives: The module is integrated into motor drive systems, where it ensures efficient switching of power to motors and helps optimize energy consumption.

  • Renewable Energy Systems: In systems such as wind or solar power generation, the IGCT module is used for power conversion and grid integration, ensuring stable output and reliable energy distribution.

  • HVDC Transmission: The 5SHY 3545L0009 IGCT module is used in HVDC transmission systems, where it controls high-voltage power flow across long distances, ensuring minimal loss and stable transmission.

  • Electric Vehicles: Used in electric vehicle (EV) charging stations and traction drives, where efficient power conversion is essential for reducing energy losses and improving charging speed.

  • High-Power Rectifiers and Inverters: In industrial systems that require the conversion of AC to DC or vice versa, the IGCT module ensures high-efficiency switching for smooth and reliable power conversion.


Advantages

  • High Efficiency: The IGCT module combines the benefits of thyristors and transistors to achieve high-speed switching with minimal power losses, improving overall system efficiency.

  • High Power Handling: With a current rating of 4,500 A, the 5SHY 3545L0009 can handle large power loads, making it suitable for demanding applications such as power generation and HVDC systems.

  • Wide Operating Temperature Range: The module operates in a broad temperature range of -40°C to 125°C, making it robust and reliable even in extreme environments.

  • Low Switching Losses: The IGCT technology ensures low switching losses, contributing to energy savings and better thermal management in power systems.

  • Versatile Applications: Its versatility in handling high currents and voltages makes it suitable for a variety of industrial applications, including industrial drives, HVDC, and renewable energy systems.

  • Robust Performance in Harsh Environments: The IGCT module is built to withstand the toughest conditions, making it ideal for high-stress industrial applications that require continuous, reliable performance in extreme environments.


Technical FAQs

  1. What is the primary function of the ABB 5SHY 3545L0009 IGCT module?

    • The 5SHY 3545L0009 IGCT module is used for efficient power switching in high-voltage power control systems, ensuring precise control and optimal performance in various industrial and power applications.

  2. What is the current rating of the IGCT module?

    • The 5SHY 3545L0009 has a current rating of 4,500 A, making it capable of handling large power loads.

  3. What industries can benefit from using the ABB IGCT module?

    • The IGCT module is ideal for industries such as power generation, HVDC transmission, renewable energy, industrial motor drives, and electric vehicle systems, where efficient power switching and control are critical.

  4. What is the operating temperature range for the 5SHY 3545L0009 module?

    • The 5SHY 3545L0009 operates in a temperature range of -40°C to 125°C, making it suitable for use in both extreme and standard industrial environments.

  5. What is the input voltage for the ABB 5SHY 3545L0009 IGCT module?

    • The 5SHY 3545L0009 operates with a 1,200 V DC input voltage, which is typical for high-voltage power applications.

  6. How does the IGCT module improve system efficiency?

    • By using high-speed switching and reducing switching losses, the IGCT module improves overall system efficiency, resulting in energy savings and lower operating costs in power conversion applications.

  7. Can the IGCT module be used in renewable energy applications?

    • Yes, the 5SHY 3545L0009 is commonly used in renewable energy systems such as wind and solar, where it helps in power conversion and integration with the grid.

  8. Is the ABB IGCT module compatible with other ABB power electronics products?

    • Yes, the IGCT module integrates seamlessly with other ABB power electronics products, enabling efficient power management and conversion in various industrial applications.

  9. What certifications does the ABB 5SHY 3545L0009 module have?

    • The 5SHY 3545L0009 IGCT module is CE and UL certified, ensuring it meets international standards for safety, performance, and reliability in industrial power applications.

  10. What applications are best suited for the ABB 5SHY 3545L0009 IGCT module?

    • The module is best suited for high-voltage power systems, including industrial drives, HVDC transmission, power generation, and renewable energy applications, where efficient switching and high power handling are required.
