Overview — Rugged Digital Output Performance for Safety-Critical Control

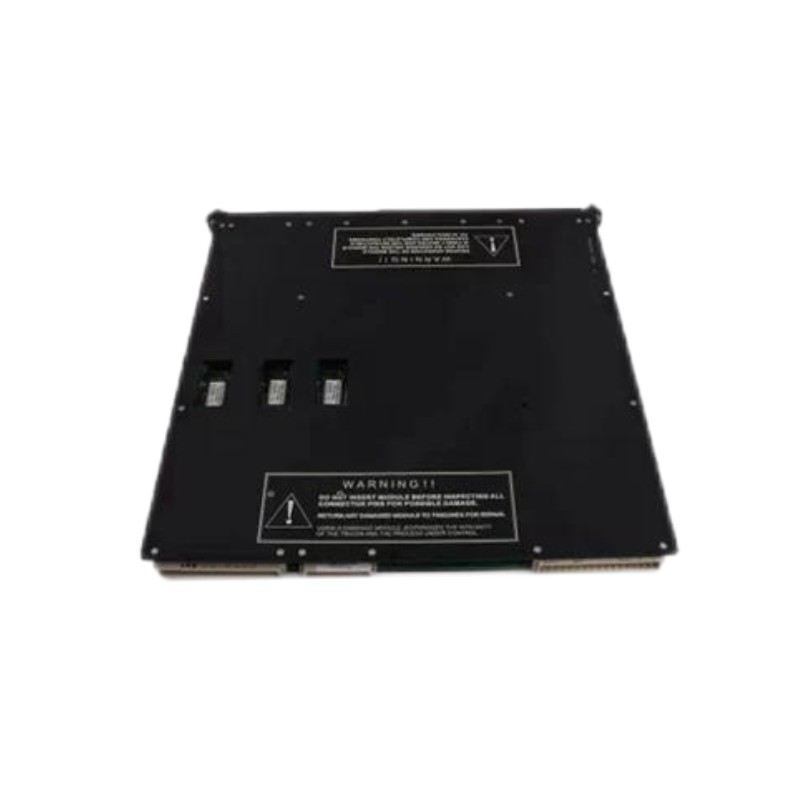

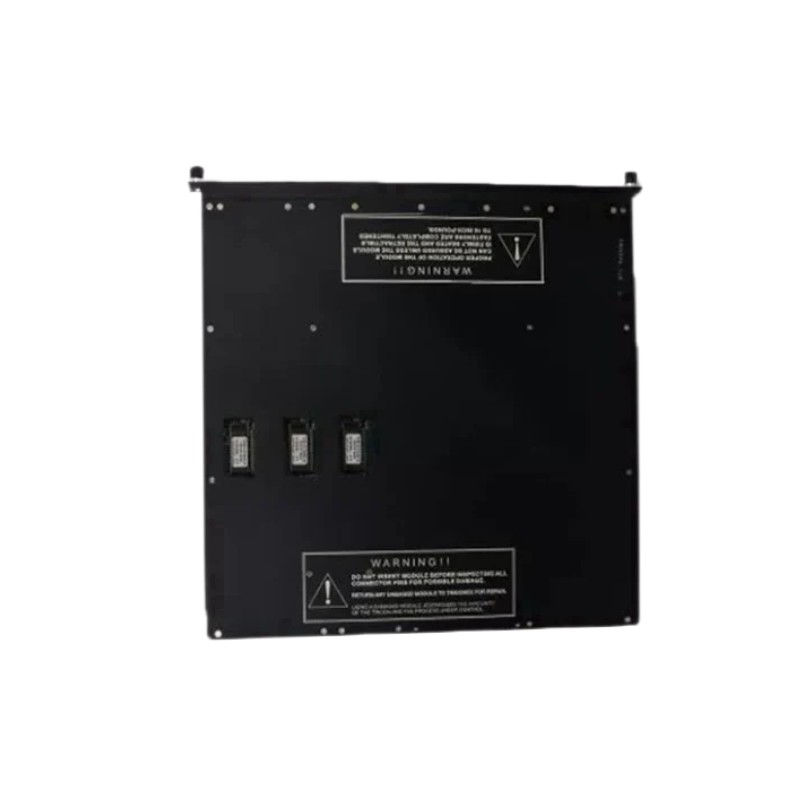

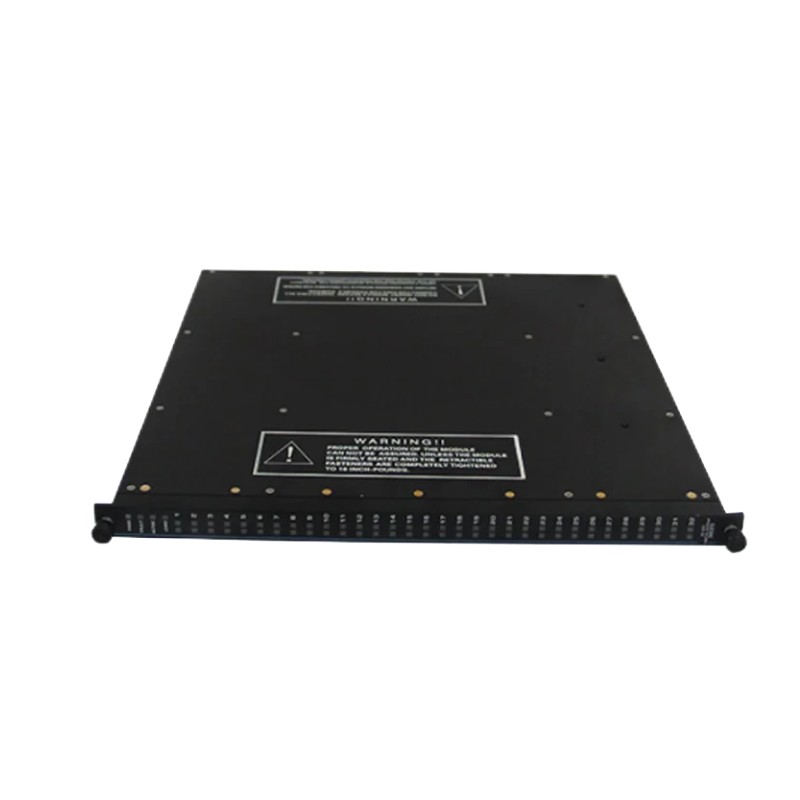

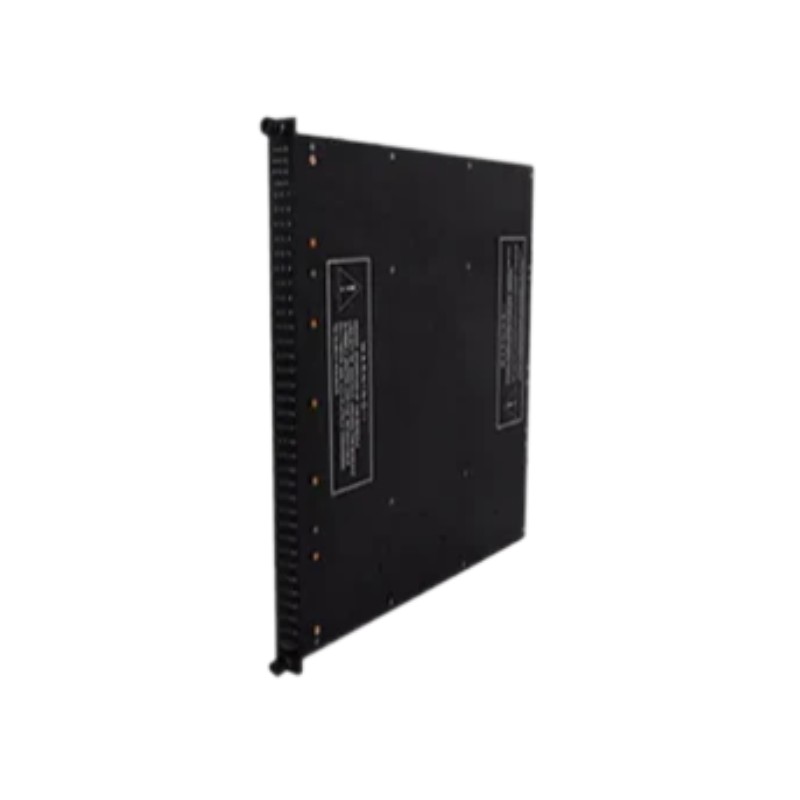

The Triconex 3623 Digital Output Module is engineered for environments where reliability cannot be compromised. Designed for the Tricon safety-instrumented platform, this module delivers deterministic switching, robust isolation, and continuous diagnostics that ensure safe actuation of field devices. Whether commanding relays, solenoids, or interlock mechanisms, the 3623 provides stable and fail-safe digital control essential for shutdown systems, process automation, and critical manufacturing sequences.
Technical Specifications — Core Parameters & Physical Characteristics
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | 3623 |
| Output Channels | 32 isolated digital outputs |
| Output Type | High-side, solid-state switching |
| Nominal Output Voltage | 24 V DC typical |
| Output Current | Up to 0.5 A per channel |
| Isolation | Channel-to-system and channel-to-channel galvanic isolation |
| Built-In Diagnostics | Line monitoring, output health check, fault reporting |
| Redundancy Support | Fully compatible with Tricon TMR architecture |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5%–95% non-condensing |
| Dimensions | Approx. 335 mm × 30 mm × 160 mm |
| Weight | ~0.65 kg |
| Installation | Hot-swap capable within Tricon chassis |
| Compliance | Industrial-grade EMI/EMC, IEC safety standards |
