Introduction — High-Reliability Digital Output for Critical Safety Systems

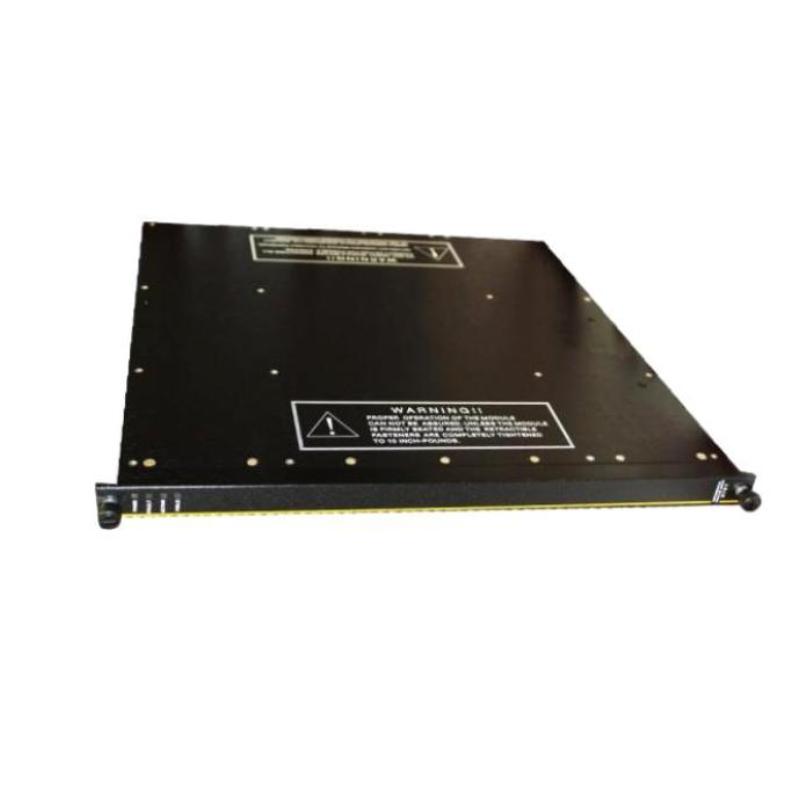

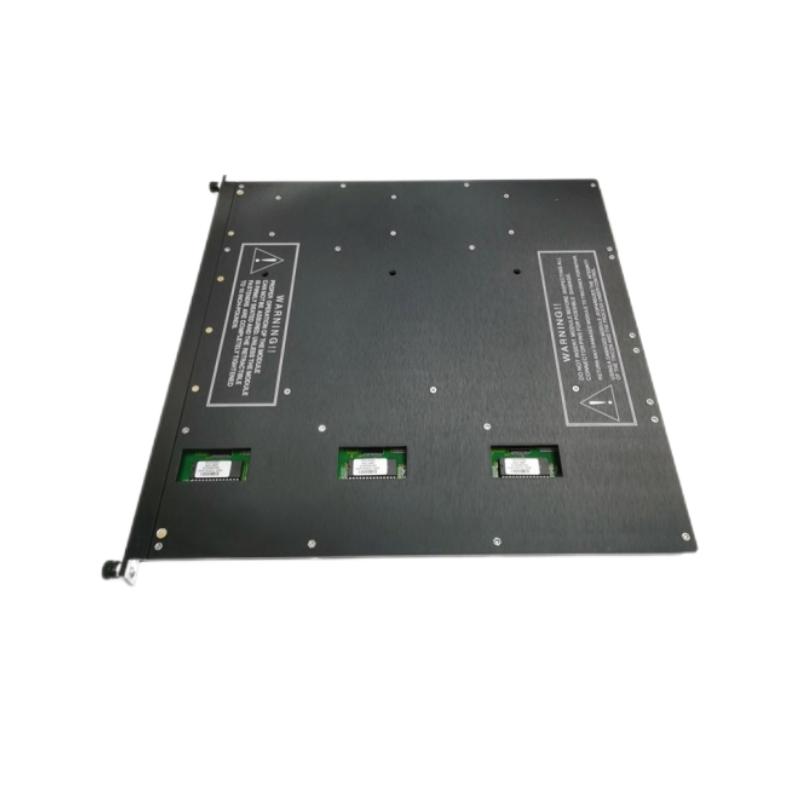

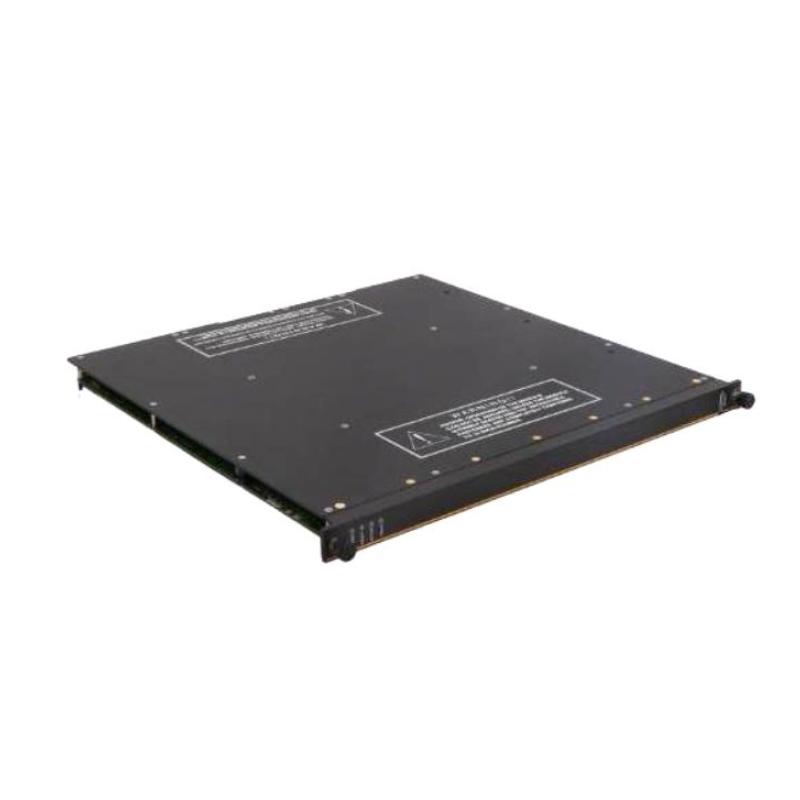

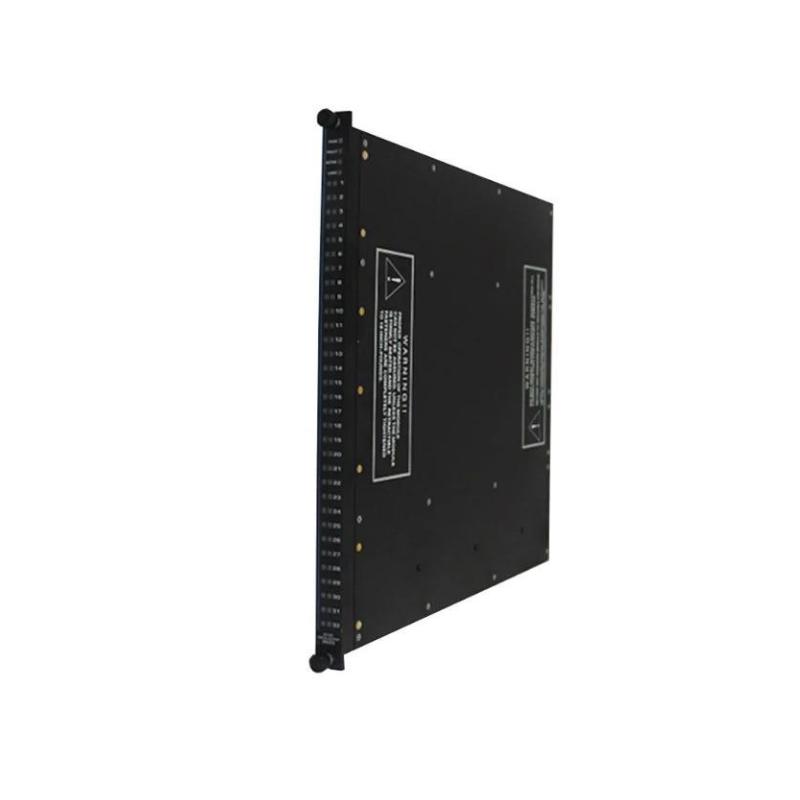

The Triconex 3617E Monitoring Digital Output Module is engineered for high-integrity safety, shutdown, and critical control applications. Designed for demanding industrial environments, the module delivers stable digital output signaling with continuous self-diagnostics, ensuring dependable operation across the full lifecycle of a safety instrumented system.
Its architecture leverages Triconex’s proven triple-modular-redundancy platform, offering unmatched fault tolerance and operating continuity. Whether deployed in oil & gas, refining, power generation, or chemical processing facilities, the 3617E delivers the clarity, speed, and reliability required for mission-critical shutdown logic.
Technical Specifications
| Specification | Description |
|---|---|
| Module Type | Monitoring Digital Output Module |
| Model / Part Number | 3617E |
| System Platform | Tricon / Triconex TMR Safety System |
| Channels | 32 digital output channels (monitored) |
| Output Type | Isolated digital output, logic-level compatible |
| Diagnostic Features | Per-channel health monitoring, line fault detection, watchdog, voting diagnostics |
| Power Consumption | Low-power design, supplied by system backplane |
| Response Time | Fast digital switching suitable for safety-critical actions |
| Electrical Isolation | Full galvanic isolation between field and logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | Approx. 350 mm × 30 mm × 210 mm |
| Weight | ~0.9 kg |
| Mounting | Tricon main chassis / I/O slot compatible |
| Compliance | SIL3 suitable architecture, IEC 61508 supporting design |
