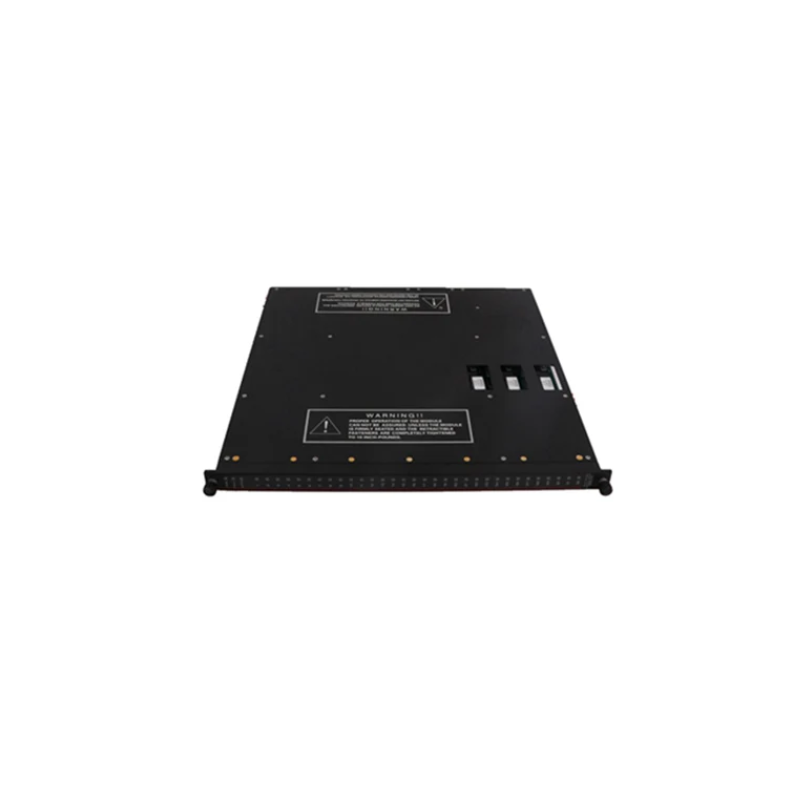

Introduction — High-Reliability Digital Output for Critical Safety Systems

The Triconex 3615E Digital Output Module is designed for use in high-integrity, mission-critical environments where safety, reliability, and continuous operation are non-negotiable. As part of the Triconex Triple Modular Redundant (TMR) safety platform, the 3615E ensures secure and deterministic digital signal output for shutdown systems, interlocks, and emergency control functions.

Its rugged design and fault-tolerant architecture make it a preferred choice in oil & gas, petrochemical, power generation, and other safety-regulated industries. The module delivers stable and isolated output channels with built-in diagnostics to ensure safe and reliable field actuation.

---

Technical Specifications — Electrical, Mechanical & Environmental

Specification	Description
Module Type	Digital Output Module
Model / Part Number	3615E
System Platform	Triconex TMR Safety System
Output Type	Isolated digital output (relay/solid-state depending on system configuration)
Number of Output Channels	32 channels (typical for 3615E series)
Isolation Rating	Channel-to-channel and channel-to-system isolation
Diagnostic Features	Built-in line monitoring, fault detection, output state verification
Power Requirements	Supplied through backplane
Operating Temperature	–10 °C to +60 °C
Storage Temperature	–40 °C to +85 °C
Module Dimensions	Approx. 330 mm × 40 mm × 180 mm
Weight	Approx. 1.1 kg
Mounting	Triconex chassis standard slot
