Overview

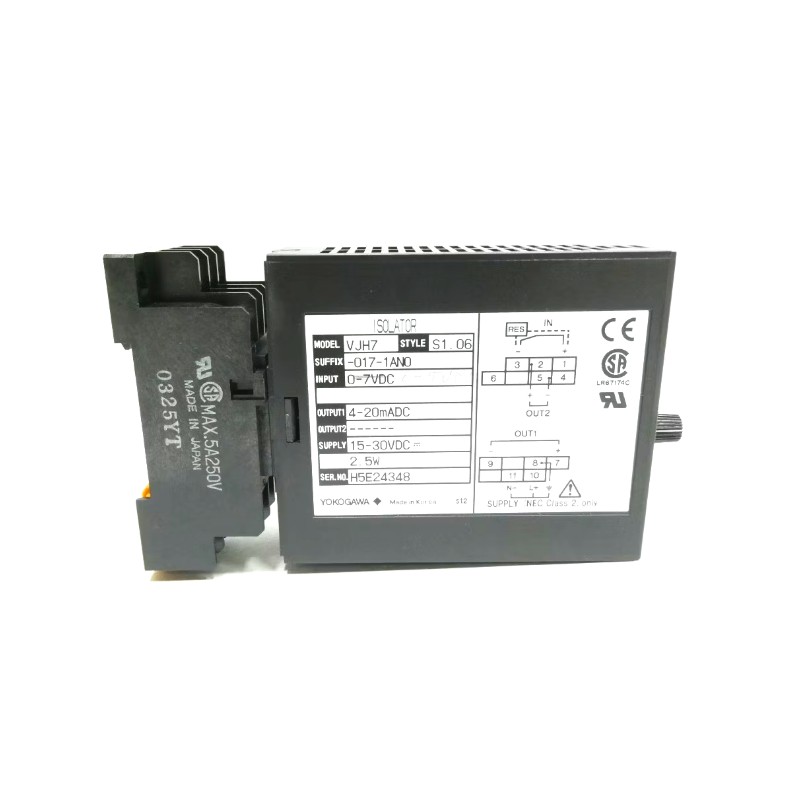

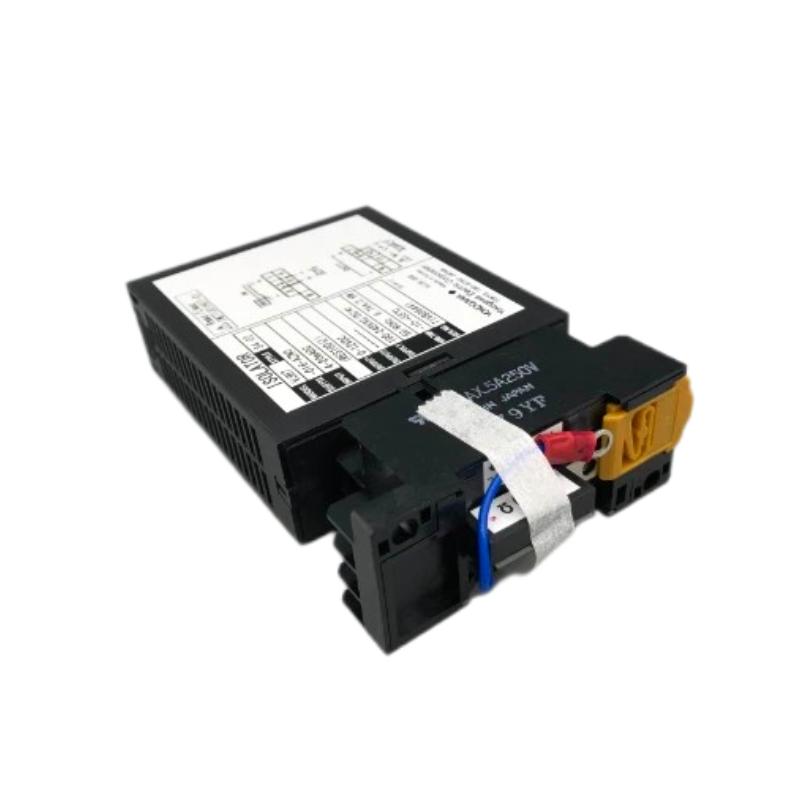

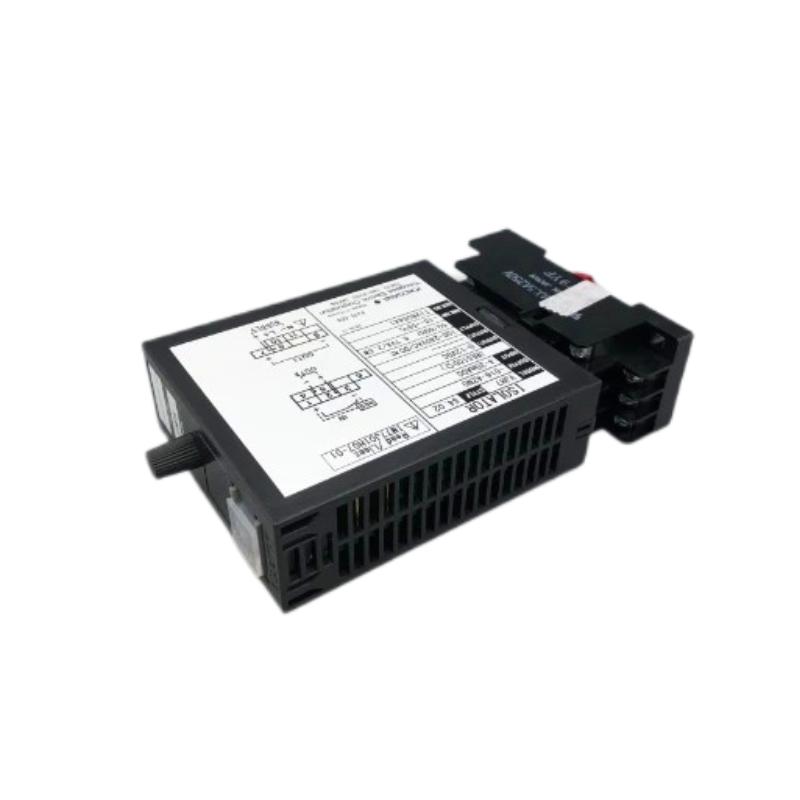

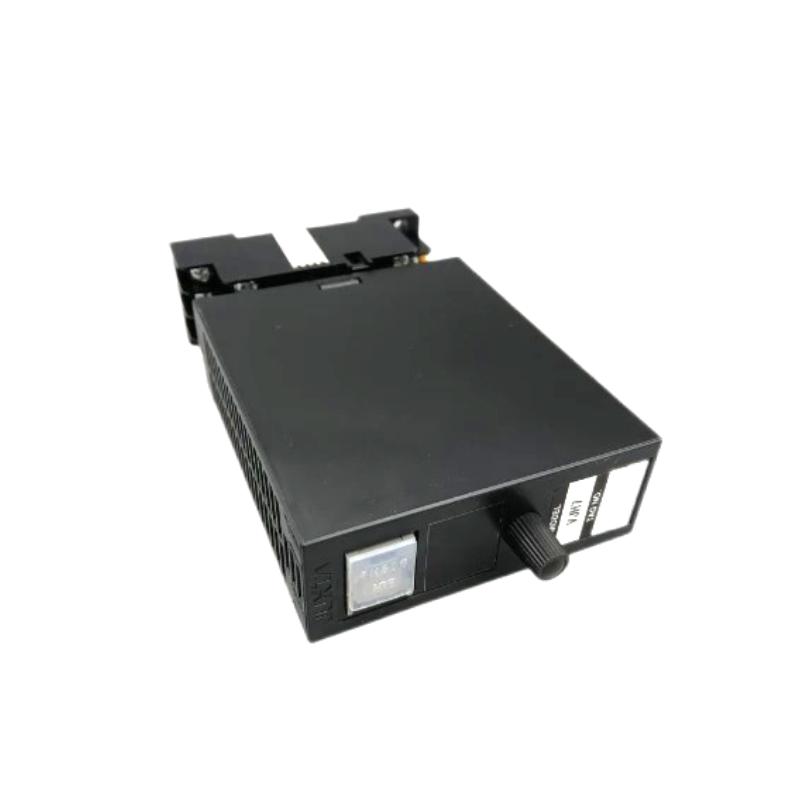

The Yokogawa VJH7-016-1ANO is a JUXTA VJ Series multifunction isolator module designed to electrically isolate and convert DC process signals while maintaining high accuracy and noise immunity. It accepts DC current or DC voltage inputs and provides isolated DC current or DC voltage outputs for PLC, DCS, and process automation systems. The VJH7 series also supports optional communication and alarm functions depending on the configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Signal Isolator Module |
| Manufacturer | Yokogawa |
| Model | VJH7-016-1ANO |
| Series | JUXTA VJ Series |
| Function | Multifunction Signal Isolator |
| Input Signal | DC Current or DC Voltage (configuration dependent) |
| Output Signal | Isolated DC Current or DC Voltage |
| Isolation | Input / Output / Power isolated |
| Accuracy | ±0.1% of span |
| Response Time | Approximately 200 ms (63% response) |
| Configuration | Software configurable via VJ77 or JHT200 |
| Mounting | DIN rail or wall mounting with VJ mounting base |
| Operating Temperature | -10°C to +55°C (typical) |
| Power Supply | Model dependent (100–240 VAC/DC or 15–30 VDC) |
