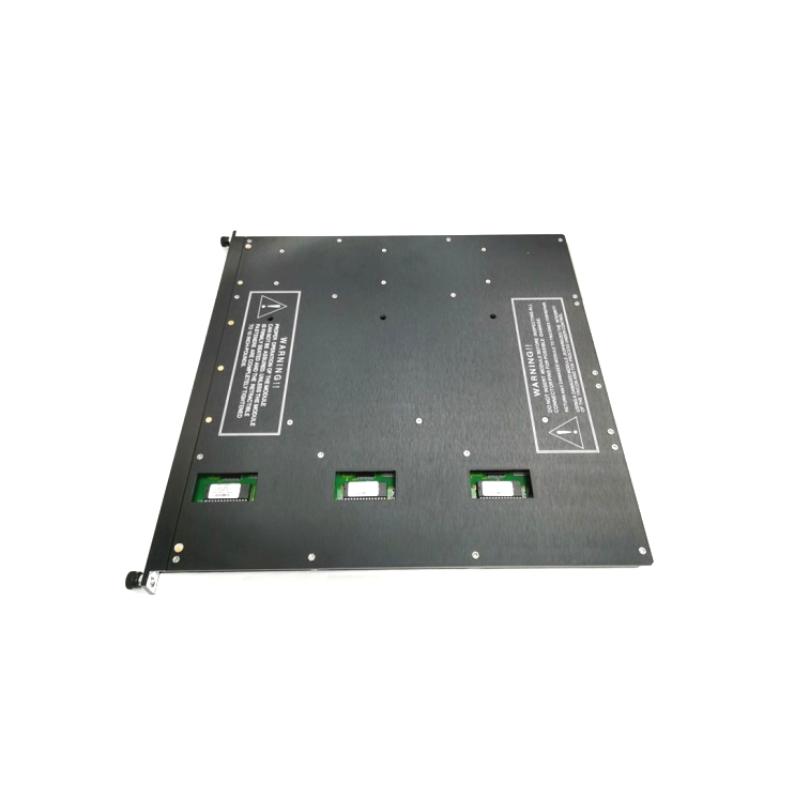

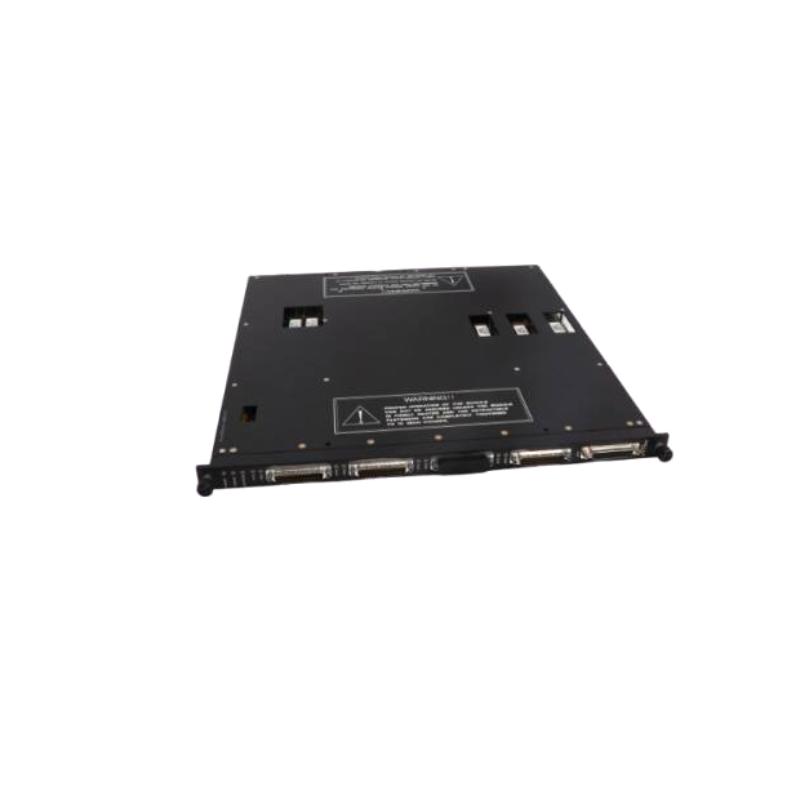

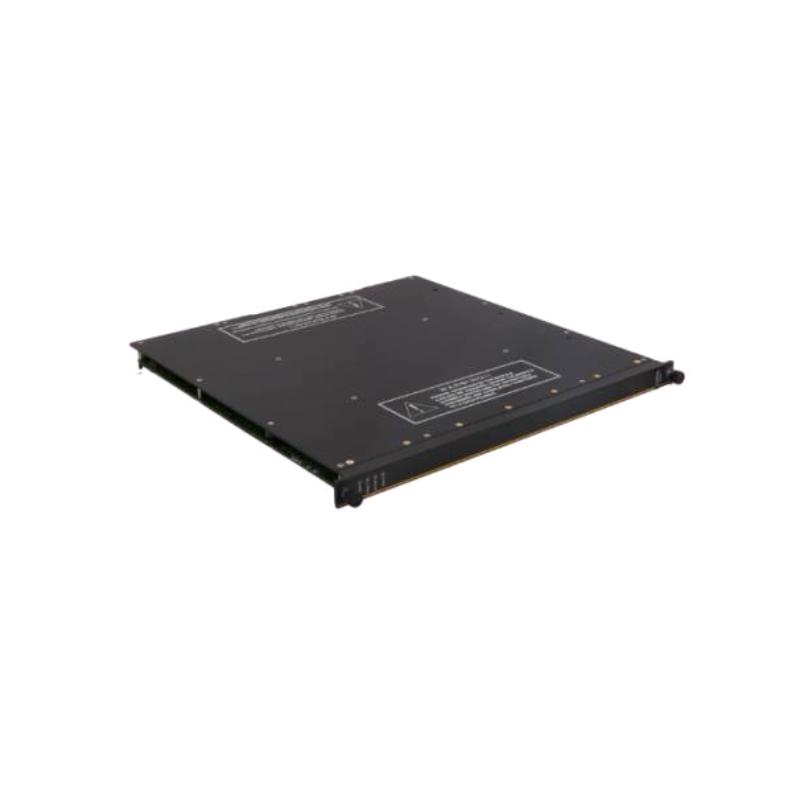

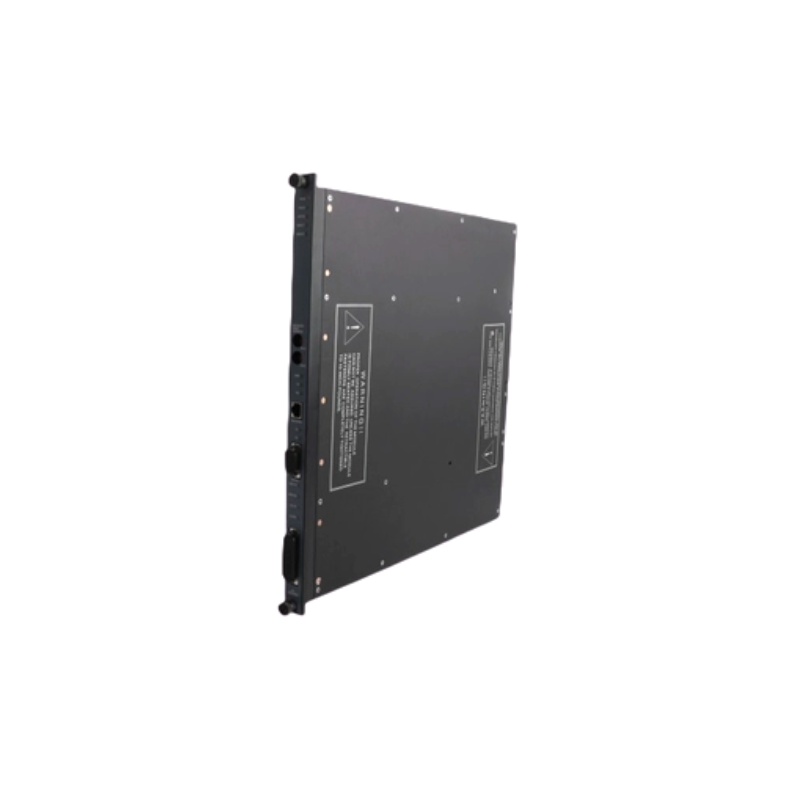

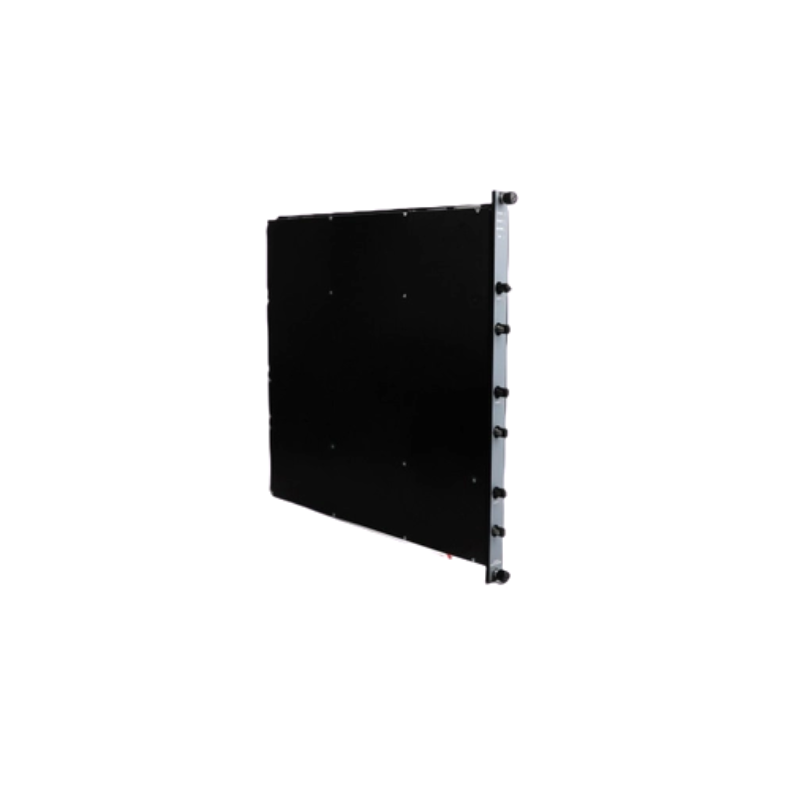

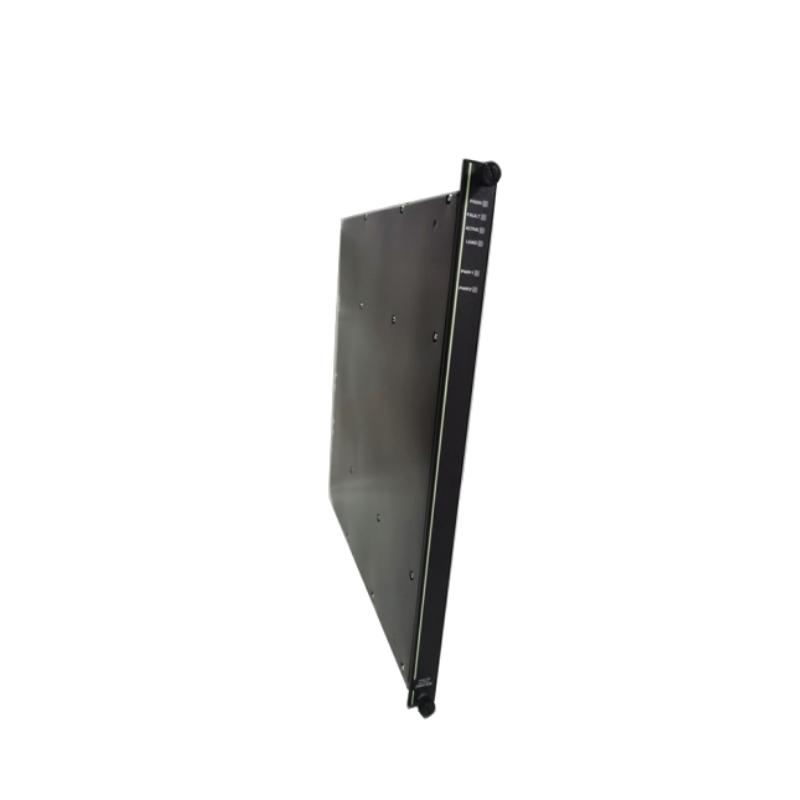

Triconex 3603T Digital Output Module

Brand:Invensys Triconex
Item No.:3603T
Product Origin:USA
Product Dimensions:190 x 100 x 40 mm
Product Weight:3.6kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Triconex 3603TTriconex 3603T-23603T-13603T-2+Triconex 3603T-3Triconex 3603T-1

Introduction

The Triconex 3603T Digital Output Module is a Triple Modular Redundant (TMR) safety‑critical output interface designed for Triconex systems used in high‑availability and mission‑critical automation environments. It delivers reliable discrete output signals to field devices such as solenoids, valves, contactors, alarms, and interlock circuits while providing advanced diagnostics, fault tolerance, and fail‑safe behavior. The 3603T is ideal for industries where safety integrity and continuous operation are essential.

Technical Specifications

ItemDetail
Module TypeTMR Digital Output Module
Model / Part Number3603T
Output VoltageTypically industry standard DC (e.g., 24 V or 120 V depending on configuration)
Output Channels16 digital outputs (common or isolated, system dependent)
Current RatingPer channel rating suitable for discrete device actuation (e.g., 0.5–0.8 A continuous, system dependent)
Surge / Peak CapabilityShort surge capability for inrush loads (actuator, coil switching)
DiagnosticsOn‑board status and fault indication, self‑test supervision
Point IsolationHigh level isolation between channels and backplane (industrial standard)
Operating TemperatureIndustrial range for safe, continuous operation
Storage TemperatureExtended storage temperature range
MechanicalStandard Triconex form factor for redundant backplane mount
WeightApprox. 0.4–0.6 kg (module class)
DimensionsStandard Triconex module size for cabinet/backplane integration


Applications

The 3603T Digital Output Module is widely used in safety‑critical and high‑availability control systems:

  • Emergency shutdown and safety interlock actuation

  • Solenoid valve and contactor control in process automation

  • Alarm and annunciator output signaling

  • Redundant output control in power generation systems

  • Oil & gas, petrochemical, and chemical plant safety logic

  • Distributed control systems requiring TMR behavior for functional safety

This module’s TMR architecture ensures that output decisions are made with redundant voting, minimizing the risk of false outputs due to internal faults.


Advantages

  • Triple Modular Redundancy (TMR) for high safety integrity and output availability

  • Built‑in diagnostics including status indicators for fault, active, and pass conditions

  • Self‑test and continuous supervision to detect latent failures

  • Fault tolerance and voting logic to prevent single point failure effects

  • Hot‑swap capability to support continuous system maintenance and minimal downtime

  • Wide industrial voltage and temperature tolerance for robust operation

  • Standardized module footprint for easy integration into Triconex racks

These features make the 3603T a robust choice for systems requiring both safety and reliability.


Technical FAQs (10)

  1. What is the output voltage supported?
    It supports the system’s specified DC output level (commonly 24 V or 120 V), depending on the system configuration.

  2. How many digital outputs are provided?
    Sixteen digital channels are typical for this module class.

  3. Can this module drive solenoids and contactors?
    Yes — within its rated current capability and with appropriate integration into the system.

  4. What safety features are built into the module?
    Triple Modular Redundancy ensures decisions are made based on majority voting, and self‑testing routines detect faults.

  5. Is this module hot‑swappable?
    Yes — it is designed to support hot‑swap operation with minimal system interruption.

  6. Does it provide output diagnostics?
    Yes — status indicators for each channel and module fault status are provided.

  7. What environments is the 3603T suited for?
    Industrial operation across wide temperature and electrical conditions common in process control.

  8. Does it support isolation between channels?
    Yes — the module is designed with appropriate isolation between output channels and the system backplane.

  9. Can the module operate with different output voltage standards?
    It depends on the Triconex system configuration (modules may be configured for different voltage rails within supported ranges).

  10. Which industries commonly use this module?
    Process industries such as oil & gas, petrochemical, power generation, utilities, and any facility requiring safety‑critical automation.
