Advanced Proximity Sensing for Reliable Machine Condition Monitoring

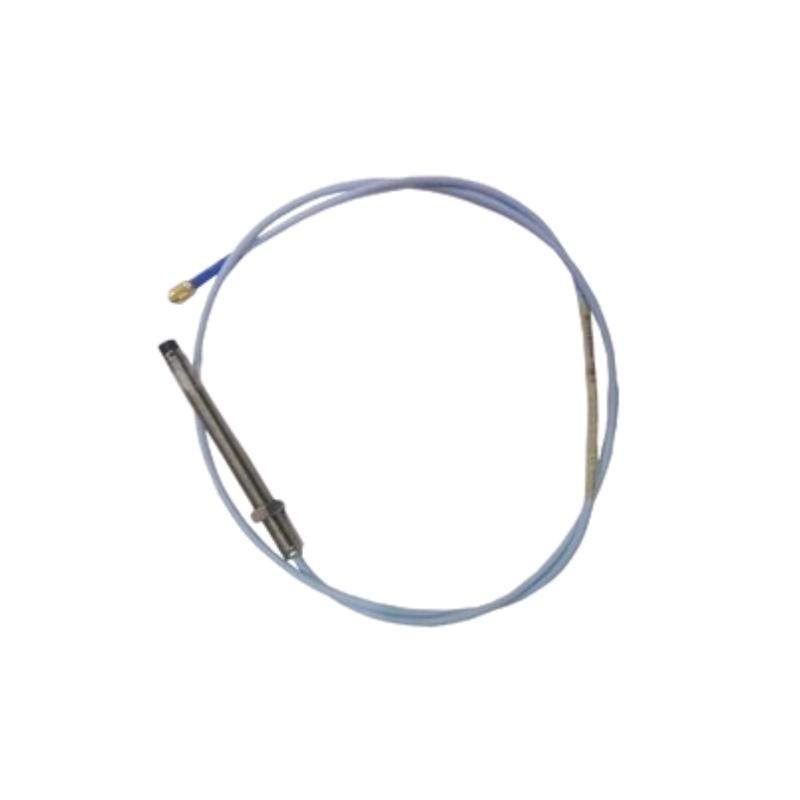

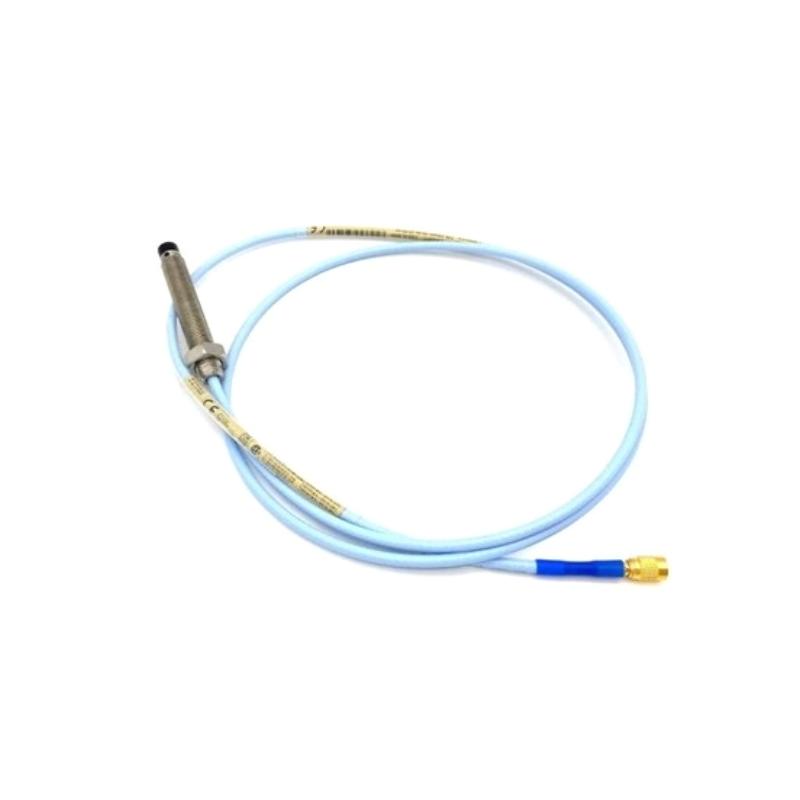

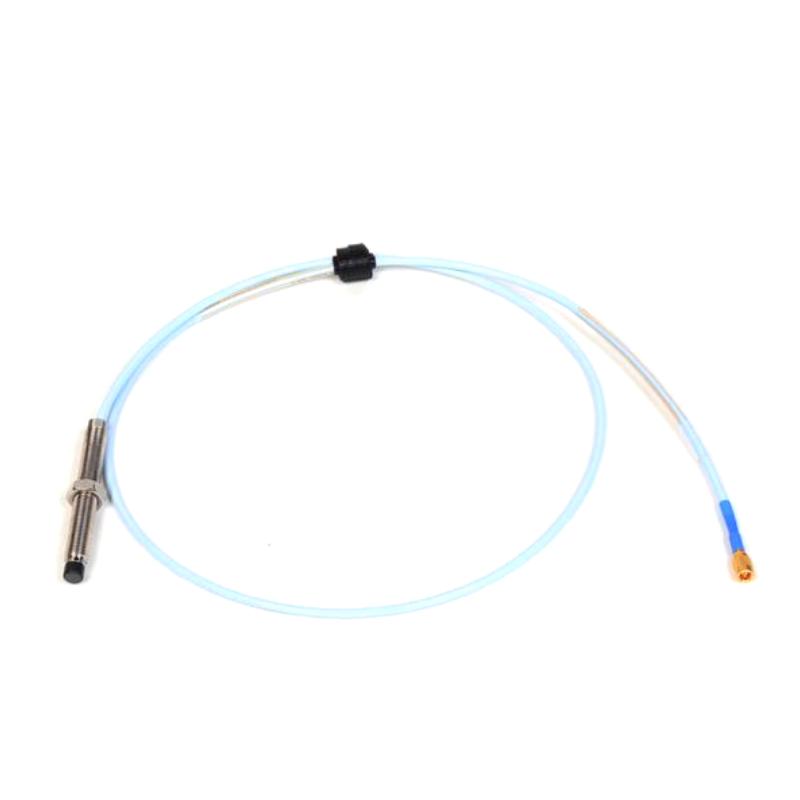

The Bently Nevada 330101-00-59-15-02-05 3300 XL 8mm Proximity Probe is engineered to provide accurate, non-contact measurement of shaft vibration, axial position, and displacement in critical rotating equipment. As a key component of the 3300 XL 8mm Proximity Transducer System, this probe delivers dependable performance and measurement stability, helping maintenance teams protect valuable assets and optimize equipment reliability.
Featuring an 8 mm sensing tip, a 5.9-inch probe case, and a 1.5-meter integral cable, this configuration is ideal for installations requiring additional cable length while maintaining excellent signal integrity. Its rugged design and proven eddy-current sensing technology make it well suited for continuous operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-59-15-02-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 3300 XL |
| Measuring Principle | Eddy Current Proximity Measurement |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (Without Armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 5.9 in (Approx. 150 mm) |
| Integral Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Standard Cable |
| Agency Approval | Multiple Approvals (05) |
| Mounting Method | Threaded Installation |
| Approximate Dimensions | Probe Body: 150 mm; Cable Length: 1.5 m |
| Approximate Weight | 0.35 kg |
