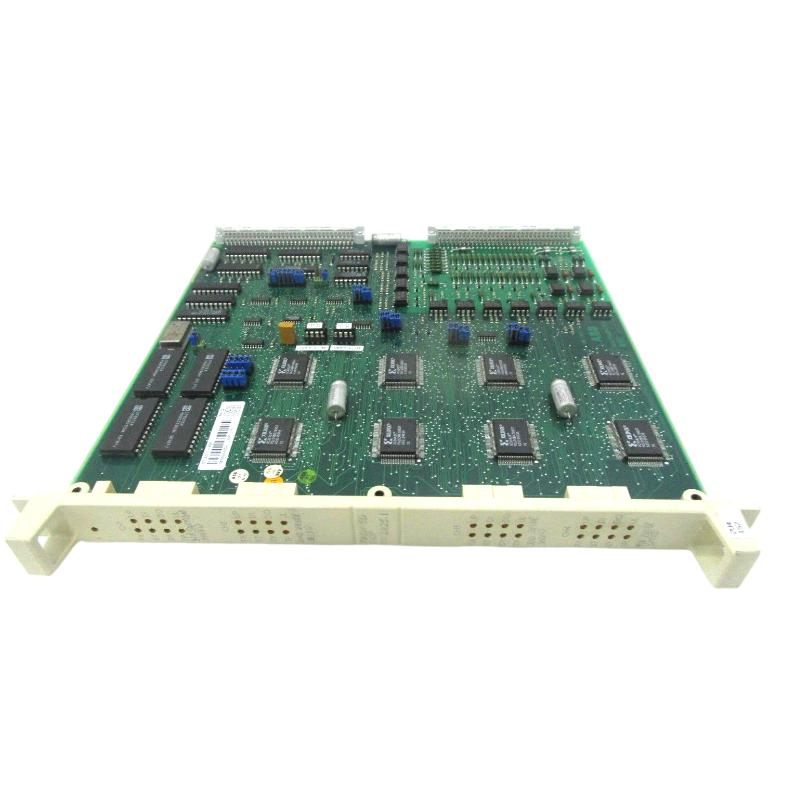

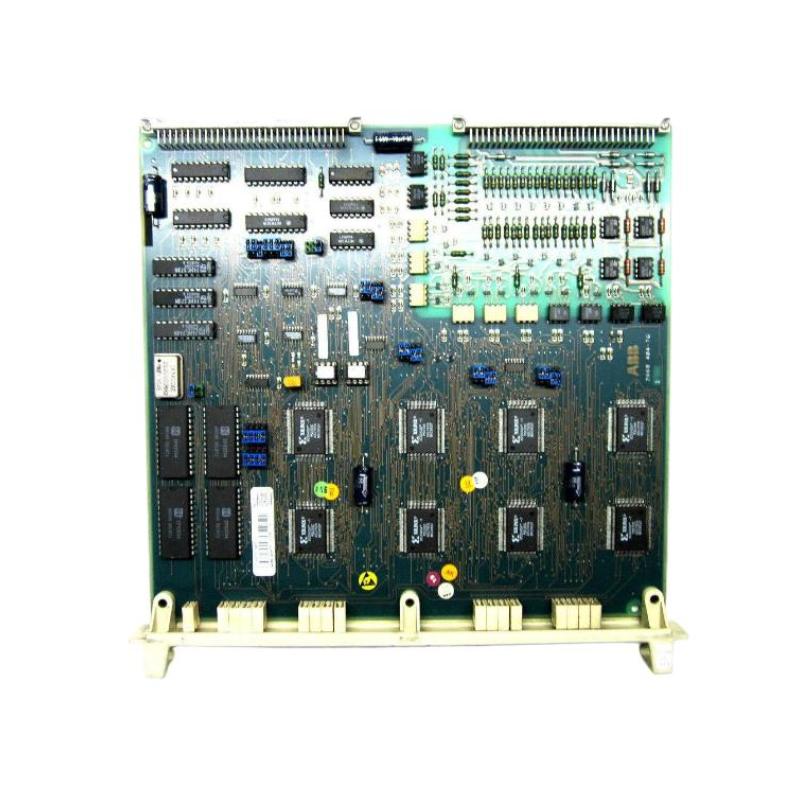

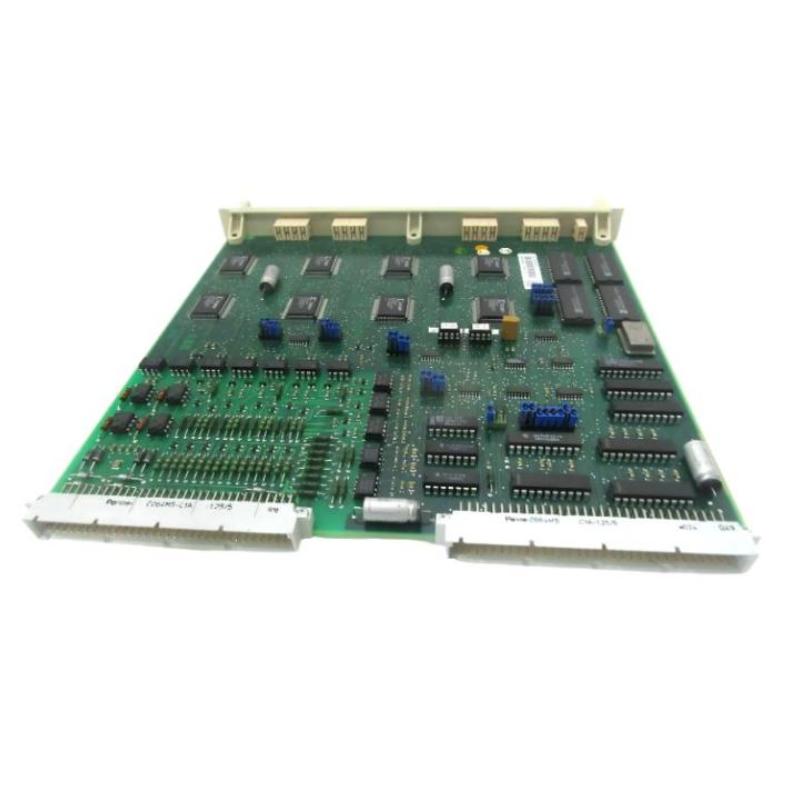

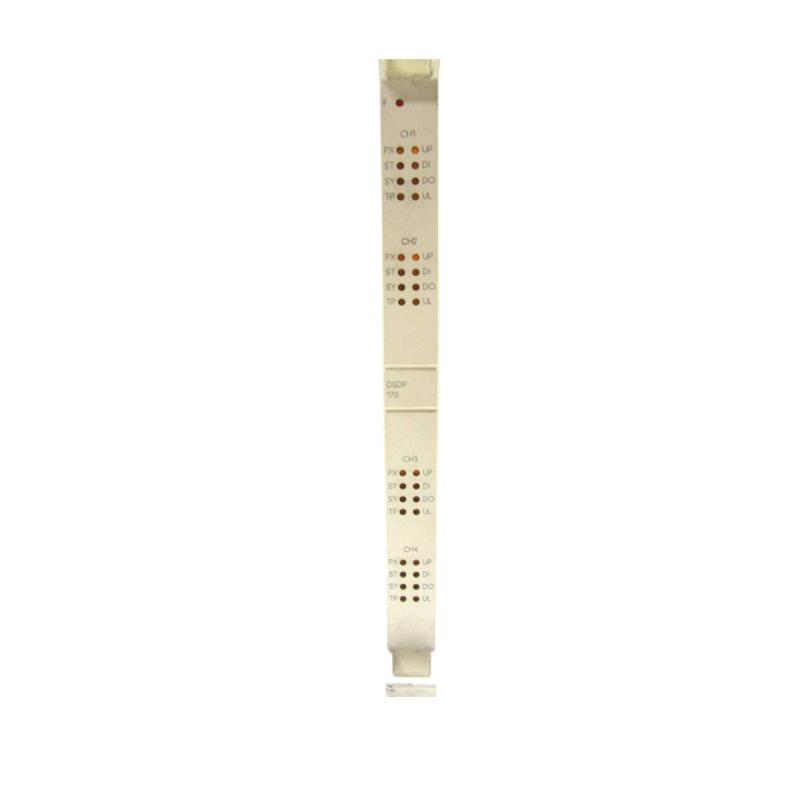

ABB DSDP 170 57160001-ADF DS Pulse Counter Board

Brand:ABB PLC
Item No.:DSDP 170
Product Origin:Sweden
Product Dimensions:328.5 ×18 ×238.5 mm
Product Weight:0.38 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The ABB DSDP 170 57160001-ADF DS Pulse Counter Board is a highly specialized and reliable module designed for precise pulse counting in industrial automation systems. It is widely used in applications that require the counting of pulses generated by external sensors, meters, or equipment, such as flow meters, speed sensors, and other pulse-generating devices. This module is integral to ABB’s process automation solutions, enabling efficient control, monitoring, and analysis of data from a variety of industrial processes. With its compact design and robust performance, the DSDP 170 Pulse Counter Board is ideal for applications in industries such as manufacturing, power generation, and chemical processing, where accurate and real-time data acquisition is critical.

Technical Specifications

Parameter Specification
Model DSDP 170 57160001-ADF
Type Pulse Counter Board
Dimensions 328.5 × 18 × 238.5 mm
Weight 0.38 kg (0.84 lbs)
Input Signal Pulse signals (digital)
Pulse Frequency High-frequency pulse counting
Power Consumption 1.5W max
Operating Temperature -20°C to 60°C
Environmental Rating IP20 (dust-protected)
Compliance CE, UL

Applications
The ABB DSDP 170 57160001-ADF DS Pulse Counter Board is used in various industries for counting pulses from sensors and monitoring devices:

  • Manufacturing: In industrial production systems, this module counts pulses generated by machines, allowing for the tracking of production rates, cycle times, and throughput.

  • Power Generation: The DSDP 170 is used to count pulses from flow meters, turbines, and speed sensors, helping power plants monitor energy flow, turbine speeds, and other key operational parameters.

  • Chemical Processing: In chemical plants, the module helps track flow rates, batch processing, and equipment performance, ensuring that operations are running within optimal conditions.

  • Water Treatment: The module counts pulses from flow sensors in water and wastewater treatment plants, allowing for real-time monitoring of water distribution and purification processes.

  • Automation Systems: The DSDP 170 is widely used to interface with sensors in automated systems for monitoring, control, and data acquisition, improving system efficiency and performance.


Advantages

  • Precise Pulse Counting: The DSDP 170 accurately counts pulses at high frequencies, providing critical data for industrial systems that rely on real-time information.

  • Compact Design: With dimensions of 328.5 × 18 × 238.5 mm and a weight of 0.38 kg, the pulse counter board is compact enough to fit into control panels and other confined spaces, while still delivering robust functionality.

  • Energy Efficient: The module operates with a maximum power consumption of 1.5W, ensuring minimal energy usage while maintaining high performance.

  • Wide Temperature Range: The DSDP 170 can operate in a wide range of temperatures from -20°C to 60°C, making it suitable for diverse industrial environments, from chilled facilities to high-temperature processing areas.

  • Durable Construction: With an IP20 rating, the module is dust-protected, ensuring reliable performance in environments where dust is present but without direct exposure to moisture.

  • Compliance with Standards: The DSDP 170 is certified for CE and UL standards, ensuring that it meets global safety and regulatory requirements for industrial applications.


Technical FAQs

  1. What is the ABB DSDP 170 57160001-ADF used for?
    The DSDP 170 is used to count pulses generated by external devices such as flow meters, sensors, and speed monitors, providing data for industrial control and monitoring systems.

  2. What are the dimensions of the DSDP 170 module?
    The module has compact dimensions of 328.5 × 18 × 238.5 mm, making it suitable for installation in tight spaces within control panels.

  3. How much does the DSDP 170 weigh?
    The DSDP 170 weighs 0.38 kg (0.84 lbs), which makes it lightweight and easy to handle during installation.

  4. What type of signal does the DSDP 170 handle?
    The DSDP 170 handles digital pulse signals from external sensors, allowing it to count pulses accurately in various industrial applications.

  5. What is the pulse frequency range of the DSDP 170?
    The module is designed to handle high-frequency pulse counting, making it suitable for a wide range of pulse-generating devices.

  6. What is the power consumption of the DSDP 170?
    The DSDP 170 has a maximum power consumption of 1.5W, ensuring that it operates efficiently without drawing excessive power from the control system.

  7. What is the operating temperature range for the DSDP 170?
    The module operates within a temperature range of -20°C to 60°C, making it suitable for use in a variety of industrial environments with different climate conditions.

  8. Is the DSDP 170 suitable for use in hazardous environments?
    Yes, the module complies with CE and UL standards, ensuring that it meets safety regulations for use in hazardous environments.

  9. What environmental protection does the DSDP 170 offer?
    The module has an IP20 rating, meaning it is protected against dust but not against water, making it ideal for environments with dust exposure but no direct moisture contact.

  10. In which industries is the DSDP 170 commonly used?
    The DSDP 170 is commonly used in manufacturing, power generation, chemical processing, water treatment, and automation systems, where pulse counting is essential for process monitoring and control.
