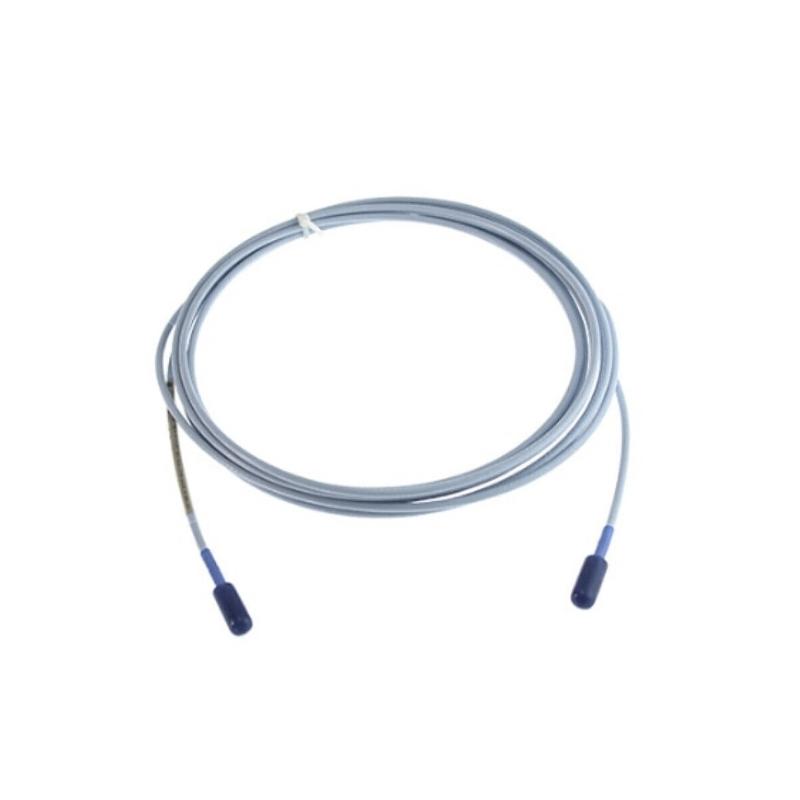

The Bently Nevada 330130-045-01-05 is a 3300 XL 8 mm Standard Extension Cable designed for use in the 3300 XL Proximity Transducer System. It connects a 3300 XL proximity probe to a 3300 XL Proximitor® Sensor, ensuring accurate transmission of vibration and shaft position signals. The extension cable is electrically calibrated as part of the complete transducer system and helps maintain the overall system accuracy required for machinery protection and condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | 3300 XL Standard Extension Cable |
| Manufacturer | Bently Nevada |
| Model | 330130-045-01-05 |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 4.5 m (14.8 ft) |
| Cable Construction | Armored cable |
| Connector Type | Miniature coaxial connectors |
| Cable Insulation | FEP-insulated triaxial cable |
| Agency Approval | 05 – CSA, ATEX, IECEx |
| Country of Origin | USA |
Frequently Asked Questions
1. What is the purpose of the 330130-045-01-05?
It connects a 3300 XL proximity probe to a 3300 XL Proximitor® Sensor, forming part of the calibrated transducer system used for shaft vibration and position monitoring.
2. What does the "045" option indicate?
It specifies a 4.5-meter (14.8-foot) cable length.
3. What does the "01" option indicate?
It specifies an armored cable, providing additional protection against mechanical damage in demanding industrial environments.
4. What does the "05" approval option mean?
The 05 suffix indicates CSA, ATEX, and IECEx hazardous-area approvals, making the cable suitable for certified hazardous locations.
5. Can this cable be used with any 3300 XL probe?
Yes, provided the probe, extension cable, and Proximitor® Sensor are matched to achieve the required calibrated system length (typically 5 m or 9 m).
6. Why is cable length important?
The 3300 XL transducer system is factory calibrated for a specific total electrical length. Using the correct extension cable ensures accurate vibration and displacement measurements.
7. What are the benefits of the armored version?
The armored construction provides increased resistance to crushing, abrasion, and mechanical impact, making it well suited for installations in cable trays, conduits, and harsh industrial environments.
8. Is the cable compatible with API 670 systems?
Yes. When used as part of a correctly configured 3300 XL Proximity Transducer System, it supports installations designed to meet API 670 requirements.
