Introduction | High-Accuracy Vibration Sensing for Critical Machinery Protection

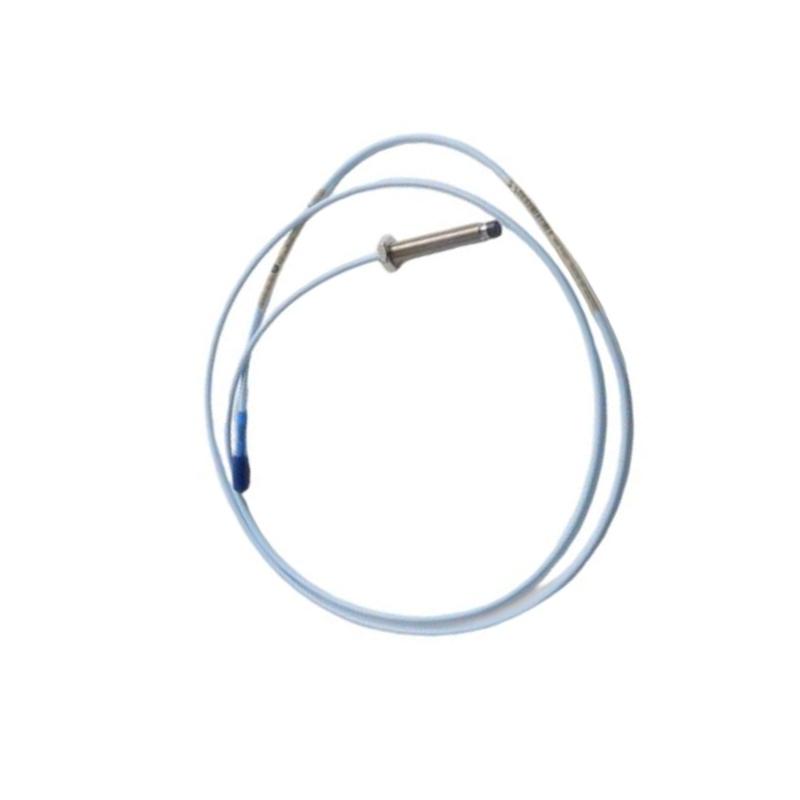

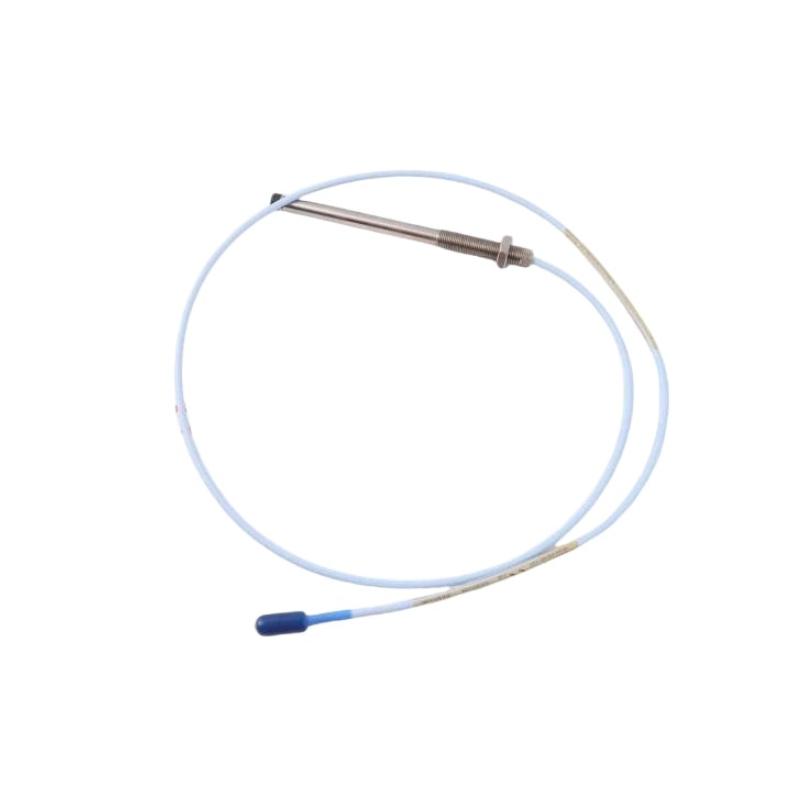

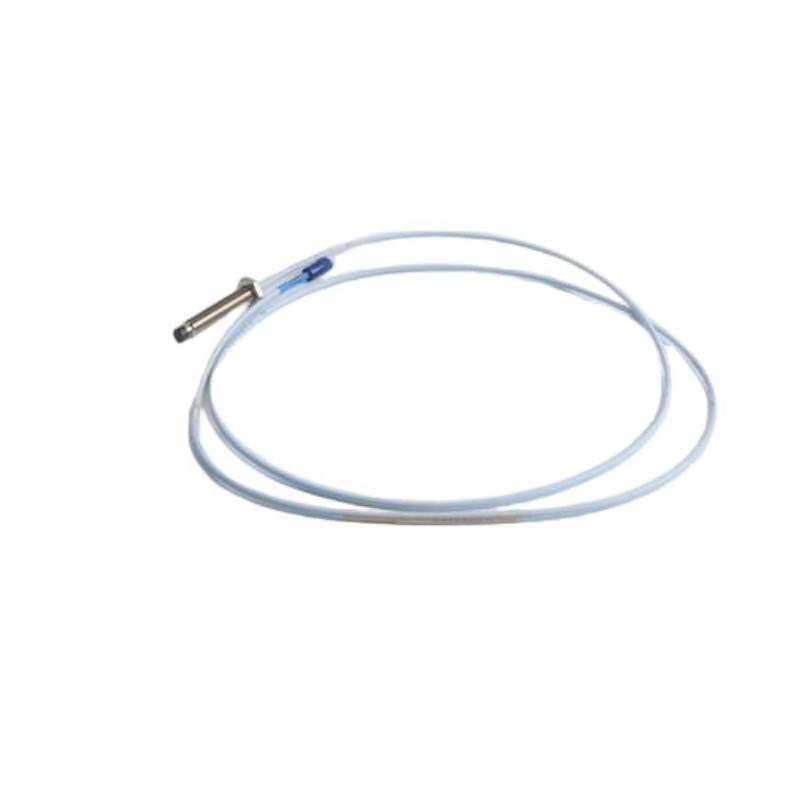

The Bently Nevada 330103-17-22-10-02-05 3300 XL Proximity Probe is a precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position in rotating machinery. As part of the industry-proven 3300 XL 8mm series, this probe delivers stable, repeatable measurements in demanding industrial environments such as turbines, compressors, and large-scale rotating equipment.
Built for integration with the 3300 XL Proximitor Sensor system, it provides non-contact measurement that supports predictive maintenance strategies and early fault detection, helping operators reduce unplanned downtime and extend asset lifespan.
Technical Specifications | Mechanical Design & Performance Data
| Parameter | Specification |
|---|
| Model | 330103-17-22-10-02-05 |
| Series | 3300 XL |
| Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact inductive (eddy current) |
| System Compatibility | Bently Nevada 3300 XL Proximitor System |
| Target Material | Conductive metal shaft surfaces (e.g., AISI 4140 steel) |
| Output | Voltage proportional to gap distance (system-based) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Integral coaxial probe cable |
| Thread Type | M10 × 1 (typical 330103 configuration) |
| Operating Temperature | -52°C to +177°C (system dependent) |
Applications | Where This Probe Delivers Maximum Value
The 330103-17-22-10-02-05 is widely used in condition monitoring and machinery protection systems:
-
Gas and steam turbine vibration monitoring
-
Centrifugal compressor shaft displacement measurement
-
Industrial pump condition diagnostics
-
Generator rotor position and vibration monitoring
-
Oil & gas rotating equipment protection systems
-
Petrochemical and refinery process machinery monitoring
-
Power plant turbine supervisory instrumentation (TSI) systems
Its precision sensing capability supports early detection of imbalance, misalignment, and bearing wear.
Advantages | Why Industry Engineers Trust the 3300 XL Platform
-
High-precision eddy current sensing for accurate shaft measurement
-
Excellent long-term signal stability with minimal drift
-
Strong resistance to electromagnetic interference (EMI/RFI)
-
Proven compatibility with Bently Nevada monitoring ecosystems
-
Rugged design suitable for extreme industrial environments
-
Interchangeable system architecture for simplified maintenance
-
Reliable performance in continuous 24/7 operation
-
Widely adopted in global critical infrastructure industries
This probe is engineered for environments where measurement accuracy directly impacts equipment safety and operational continuity.
Technical FAQs | Practical Engineering Insights
1. What does this proximity probe measure?
It measures shaft vibration, displacement, and position in rotating equipment.
2. What system is it compatible with?
It is designed for use with the Bently Nevada 3300 XL Proximitor Sensor system.
3. What is the operating principle?
It uses eddy current technology for non-contact measurement.
4. Can it measure both static and dynamic movement?
Yes, it measures both shaft position and vibration.
5. Is this probe suitable for turbines?
Yes, it is widely used in turbine supervisory systems.
6. What material does it measure best?
Conductive metallic surfaces such as steel shafts.
7. Does it require calibration?
It is calibrated as part of the complete transducer system.
8. Can it operate in high-temperature environments?
Yes, it supports high industrial operating temperature ranges depending on system configuration.
9. Is it interchangeable with other 3300 XL probes?
Only within matching system configurations and lengths.
10. What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy manufacturing.
