Introduction | High-Precision Vibration Measurement for Critical Machinery

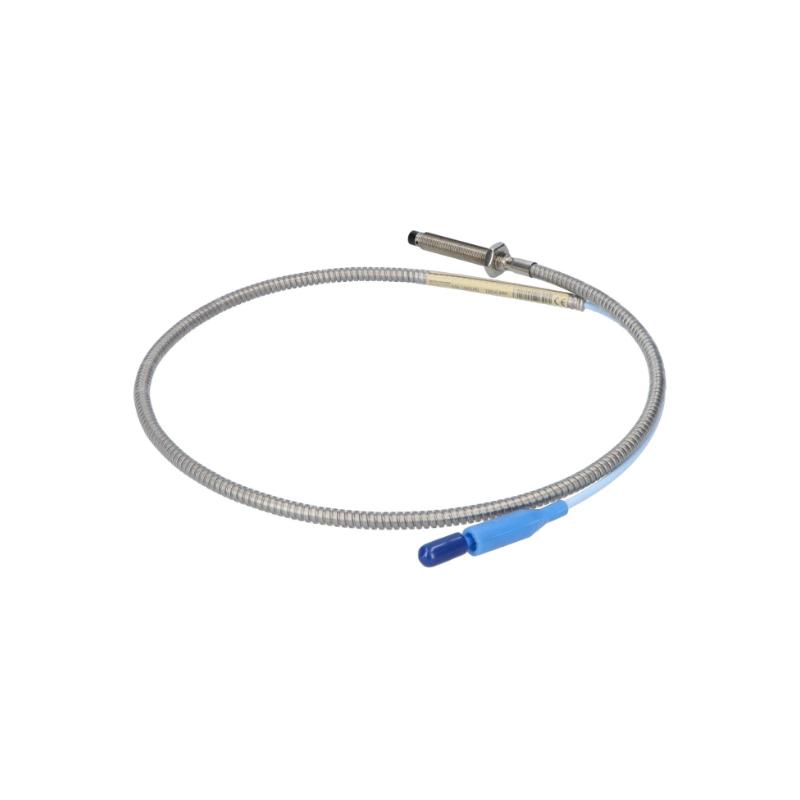

The Bently Nevada 330103-15-23-05-02-CN 3300 XL Proximity Probe is a high-performance eddy current sensor designed for accurate shaft vibration, displacement, and position monitoring in rotating machinery. As part of the widely trusted 3300 XL series, this probe delivers exceptional stability, interchangeability, and long-term reliability in harsh industrial environments.
Engineered for condition monitoring systems in turbines, compressors, pumps, and generators, it provides non-contact measurement with outstanding linear response. The probe is built to support predictive maintenance strategies, helping operators reduce downtime and maintain optimal machine health across continuous operations.
Technical Specifications | Electrical & Mechanical Details
| Parameter | Specification |
|---|
| Model | 330103-15-23-05-02-CN |
| Series | 3300 XL |
| Type | Eddy Current Proximity Probe |
| Measurement | Shaft vibration / displacement / position |
| System Compatibility | 3300 XL Proximitor Sensor System |
| Output Signal | Proportional voltage (via proximitor system) |
| Operating Principle | Eddy current non-contact measurement |
| Cable Type | Integral coaxial cable with ClickLoc connector |
| Target Material | Conductive metallic shaft surfaces |
| Operating Temperature | -52°C to +177°C (system dependent) |
| Mounting Type | Threaded probe installation |
Applications | Where This Probe Performs Best
The 330103-15-23-05-02-CN probe is widely used in mission-critical rotating equipment monitoring systems:
-
Steam and gas turbine vibration monitoring
-
Centrifugal and axial compressor shaft measurement
-
Industrial pump condition monitoring systems
-
Power generation machinery protection systems
-
Oil & gas rotating equipment diagnostics
-
Refinery and petrochemical plant condition monitoring
-
Generator shaft displacement and axial position tracking
Its ability to deliver stable readings in harsh environments makes it a core component in predictive maintenance and machinery protection systems.
Advantages | Why Engineers Prefer the 3300 XL Series Probe
-
High accuracy eddy current measurement for reliable vibration data
-
Excellent long-term stability with minimal signal drift
-
Strong resistance to electrical noise and industrial interference
-
Compatible with global Bently Nevada 3300 XL systems
-
Robust construction for high-temperature and high-vibration environments
-
Consistent interchangeability across system components
-
Designed for continuous 24/7 industrial operation
-
Proven reliability in critical power and process industries
This probe is widely regarded as an industry benchmark for machinery condition monitoring due to its durability and measurement precision.
Technical FAQs | Engineering Insights
1. What is the main function of this probe?
It measures shaft vibration, displacement, and position in rotating machinery.
2. Does it require a proximitor sensor?
Yes, it must be used with a Bently Nevada 3300 XL Proximitor system.
3. What measurement principle does it use?
It operates using eddy current non-contact sensing technology.
4. Can it measure static and dynamic values?
Yes, it supports both vibration (dynamic) and position (static) measurements.
5. Is it suitable for turbines?
Yes, it is commonly used in steam and gas turbine monitoring systems.
6. What type of cable does it use?
It uses an integrated coaxial cable with a secure ClickLoc connector.
7. Is it resistant to harsh environments?
Yes, it is designed for high temperature, vibration, and industrial noise conditions.
8. Can it be replaced individually?
Yes, but system calibration compatibility must be maintained.
9. What industries use this probe most?
Power generation, oil & gas, petrochemical, and heavy manufacturing.
10. Does it support predictive maintenance systems?
Yes, it is widely used in condition monitoring and predictive maintenance setups.
