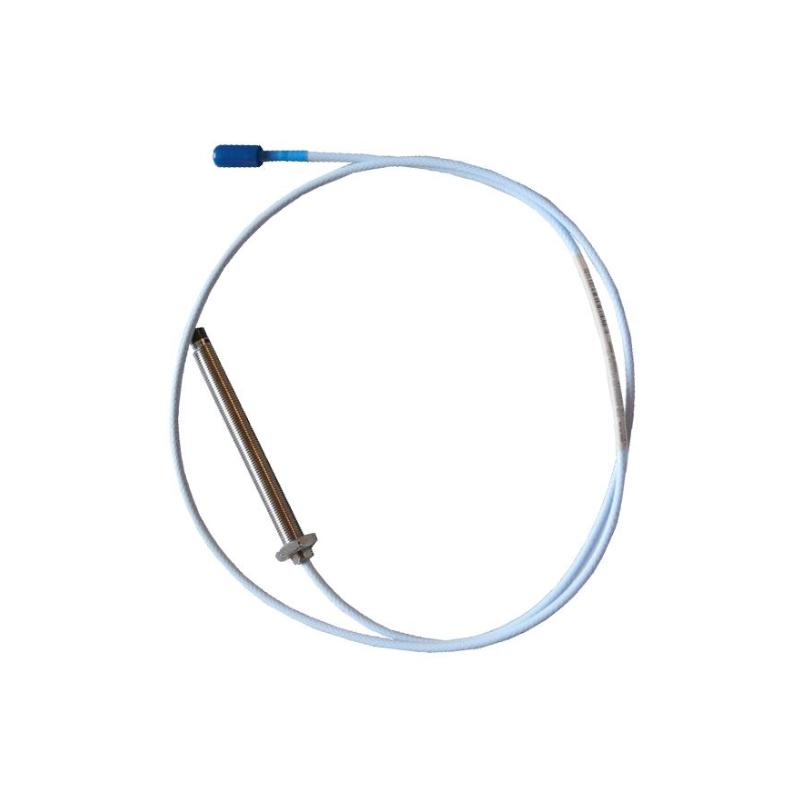

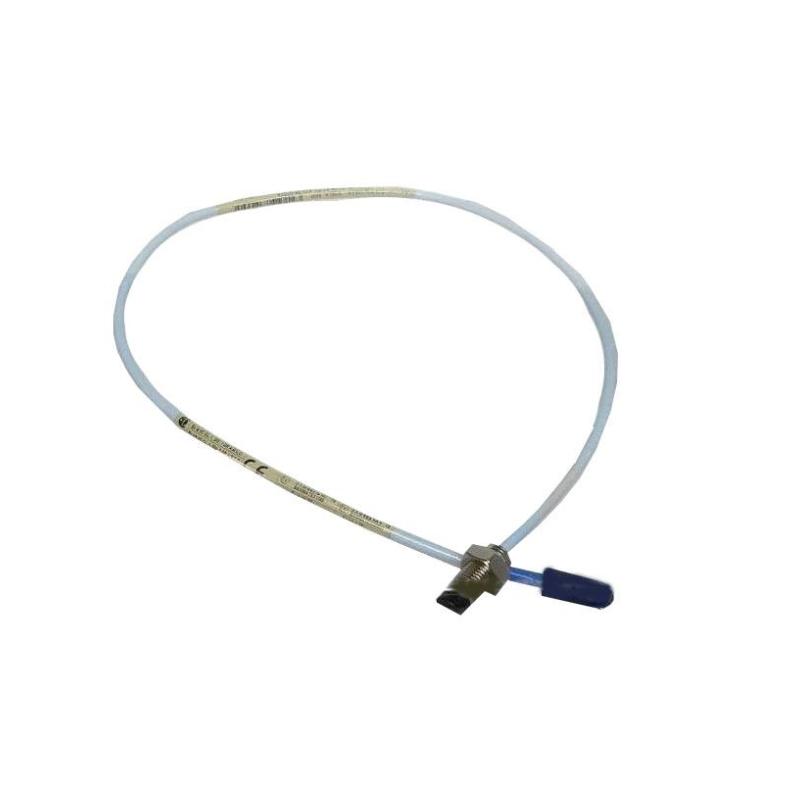

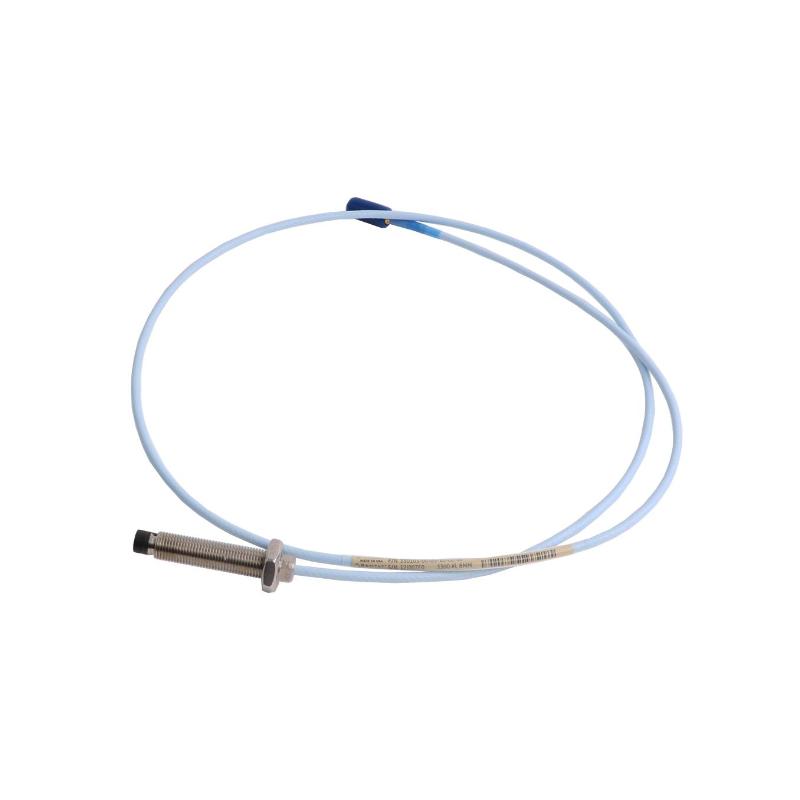

Bently Nevada 330103-00-14-10-12-05 8 mm Eddy-Current Proximity Probe

Name: Bently Nevada 330103-00-14-10-12-05 8 mm Eddy-Current Proximity Probe
Brand: Bently Nevada PLC
SKU: 9249
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330103-00-14-10-12-05
Product Origin:USA
Product Dimensions:Probe tip diameter 8 mm; case length 1.4 in
Product Weight:0.31kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview

The Bently Nevada 330103-00-14-10-12-05 is a 3300 XL 8 mm metric eddy-current proximity probe designed for continuous, non-contact monitoring of shaft vibration, shaft position, radial displacement, and rotor motion in critical rotating equipment. It is intended for use with a compatible 3300 XL Proximitor® Sensor and extension cable as part of the 3300 XL 8 mm Proximity Transducer System, which is designed to meet API 670 requirements when installed as a complete calibrated system.

Technical Specifications

Parameter	Specification
Product Type	Eddy-Current Proximity Probe (Metric)
Manufacturer	Bently Nevada
Model	330103-00-14-10-12-05
Product Series	3300 XL 8 mm
Probe Diameter	8 mm
Thread Size	M10 × 1
Armor	Without armor
Unthreaded Length	0 mm
Overall Case Length	140 mm
Integral Cable Length	1.0 m (3.3 ft)
Connector Type	Miniature coaxial ClickLoc® connector
Cable Type	FluidLoc® cable
Agency Approval	05 – CSA, ATEX, IECEx

Typical Applications

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Fans and blowers
Gearboxes
Hydroelectric generators
Oil & gas production facilities
Petrochemical processing plants

Key Features

8 mm eddy-current sensing technology
Metric M10 × 1 threaded probe
140 mm probe body length
1.0 m integral cable
FluidLoc® cable for improved resistance to fluid ingress
Miniature ClickLoc® connector
High accuracy and excellent long-term stability
Compatible with 3300 XL Proximitor® Sensors and extension cables
CSA, ATEX, and IECEx certified
API 670 compliant when installed as a complete transducer system

Frequently Asked Questions

1. What is the 330103-00-14-10-12-05 used for?

It is used for continuous monitoring of shaft vibration, shaft position, eccentricity, and rotor displacement in rotating machinery such as turbines, compressors, pumps, and motors.

2. What does the "14" option indicate?

It specifies an overall probe case length of 140 mm.

3. What cable length is supplied?

The 10 option specifies a 1.0-meter (3.3-foot) integral cable.

4. What does connector option "12" mean?

The 12 option specifies a Miniature ClickLoc® connector with FluidLoc® cable, providing enhanced protection against fluid migration inside the cable.

5. What does the final "05" approval option indicate?

It indicates the probe carries CSA, ATEX, and IECEx hazardous-area approvals for installation in certified hazardous locations.

6. Is this a metric or imperial probe?

It is the metric version of the 3300 XL 8 mm probe family and uses an M10 × 1 thread.

7. Is it compatible with other 3300 XL components?

Yes. It is designed to operate with compatible 3300 XL Proximitor® Sensors and appropriately matched extension cables to maintain the calibrated transducer system length.

8. Does it comply with API 670?

Yes. When installed as a complete 3300 XL 8 mm Proximity Transducer System, it is designed to comply with API 670 requirements.
