Bently Nevada 330101-32-57-05-01-05 Proximity Probe / Eddy‑Current Sensor

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

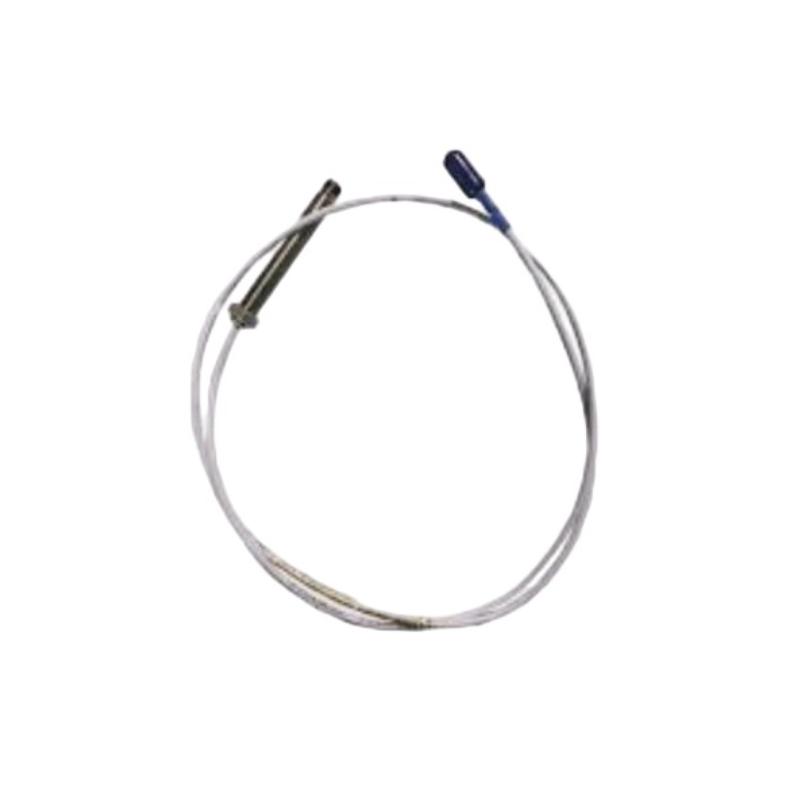

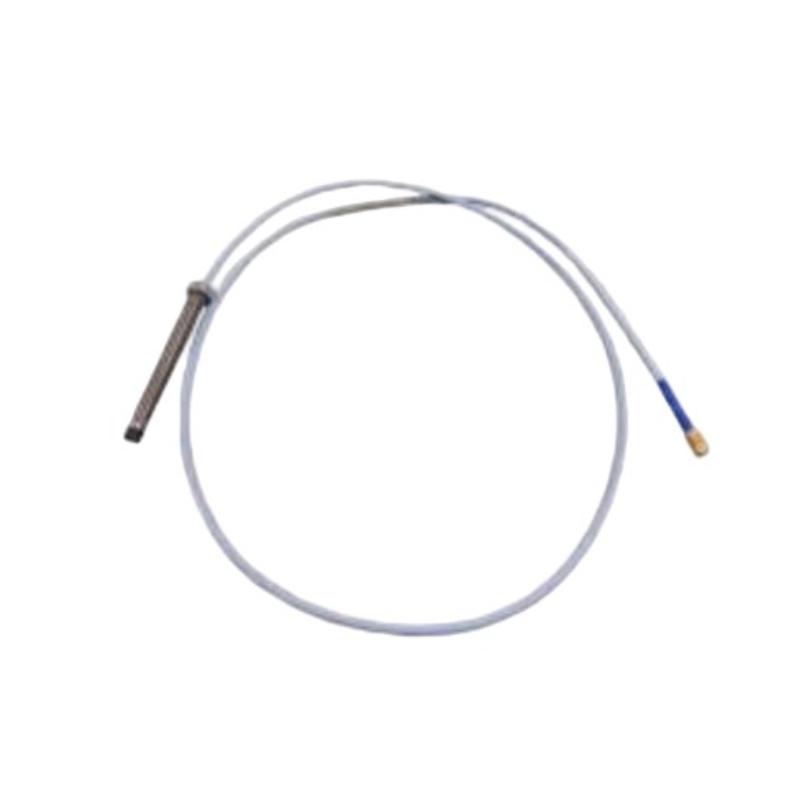

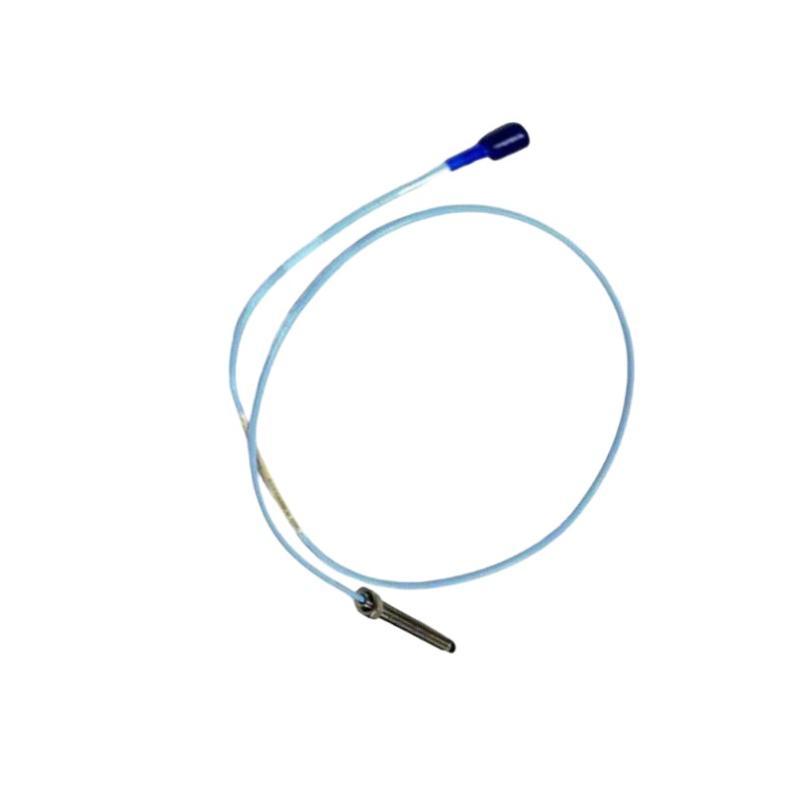

Bently Nevada 330101-32-57-05-01-05 Proximity Probe / Eddy‑Current Sensor

Name: Bently Nevada 330101-32-57-05-01-05 Proximity Probe / Eddy‑Current Sensor
Brand: Bently Nevada PLC
SKU: 9245
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330101-32-57-05-01-05
Product Origin:USA
Product Dimensions:Probe diameter 8 mm × Probe length 100 mm × Cable length 57 m
Product Weight:2.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview

The Bently Nevada 330101-32-57-05-01-05 is a 3300 XL 8 mm eddy-current proximity probe designed for non-contact measurement of shaft vibration, shaft position, radial displacement, and rotor motion in critical rotating machinery. It is used with a compatible 3300 XL Proximitor® Sensor and extension cable as part of the 3300 XL 8 mm Proximity Transducer System. The complete system provides a calibrated output proportional to the distance between the probe tip and a conductive target and is designed to meet API 670 requirements when configured correctly.

Technical Specifications

Parameter	Specification
Product Type	Eddy-Current Proximity Probe
Manufacturer	Bently Nevada
Model	330101-32-57-05-01-05
Product Series	3300 XL 8 mm
Probe Diameter	8 mm
Thread Size	3/8-24 UNF
Armor	Without armor
Unthreaded Length	3.2 in (81.3 mm)
Overall Case Length	5.7 in (144.8 mm)
Integral Cable Length	0.5 m (1.6 ft)
Connector Type	Miniature coaxial ClickLoc® connector with connector protector
Cable Type	Standard cable
Agency Approval	05 – CSA, ATEX, IECEx

Typical Applications

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Fans and blowers
Gearboxes
Hydroelectric generators
Oil & gas facilities
Petrochemical plants

Key Features

8 mm non-contact eddy-current sensing technology
Continuous shaft vibration and shaft position monitoring
3.2-inch unthreaded probe length
5.7-inch overall case length
0.5 m integral cable
ClickLoc® miniature coaxial connector with connector protector
High measurement accuracy and interchangeability
Compatible with 3300 XL Proximitor® Sensors
CSA, ATEX, and IECEx certified
API 670 compliant when used as part of a complete 3300 XL transducer system

Frequently Asked Questions

What is the 330101-32-57-05-01-05 used for?

It is used to continuously monitor shaft vibration, shaft position, and rotor displacement in critical rotating equipment such as turbines, compressors, pumps, and motors.

What does the "32" option indicate?

It specifies a 3.2-inch unthreaded probe length.

What does the "57" option indicate?

It specifies a 5.7-inch overall probe case length.

What cable length is supplied?

The 05 cable option specifies a 0.5-meter (1.6-foot) integral cable.

What does connector option "01" mean?

The 01 option identifies a Miniature coaxial ClickLoc® connector with connector protector and standard cable.

What does the final "05" approval option indicate?

It denotes CSA, ATEX, and IECEx hazardous-area approvals, allowing installation in certified hazardous environments.

Is this probe compatible with other 3300 XL components?

Yes. It is designed to operate with compatible 3300 XL Proximitor® Sensors and extension cables of the appropriate calibrated system length.

Does it comply with API 670?

Yes. When installed as a complete 3300 XL 8 mm Proximity Transducer System, it is designed to comply with API 670 requirements.
