Overview

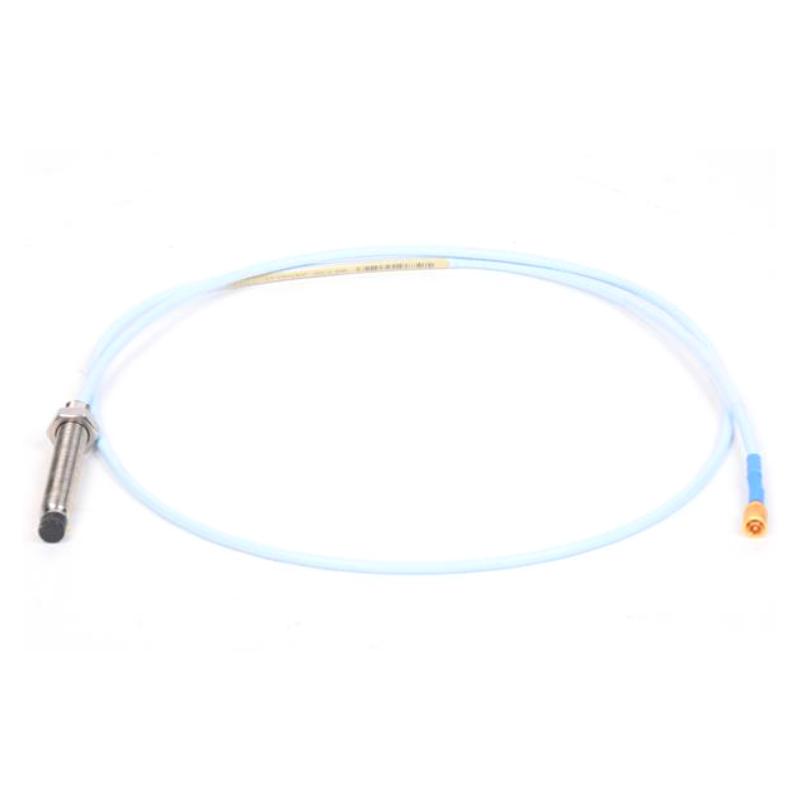

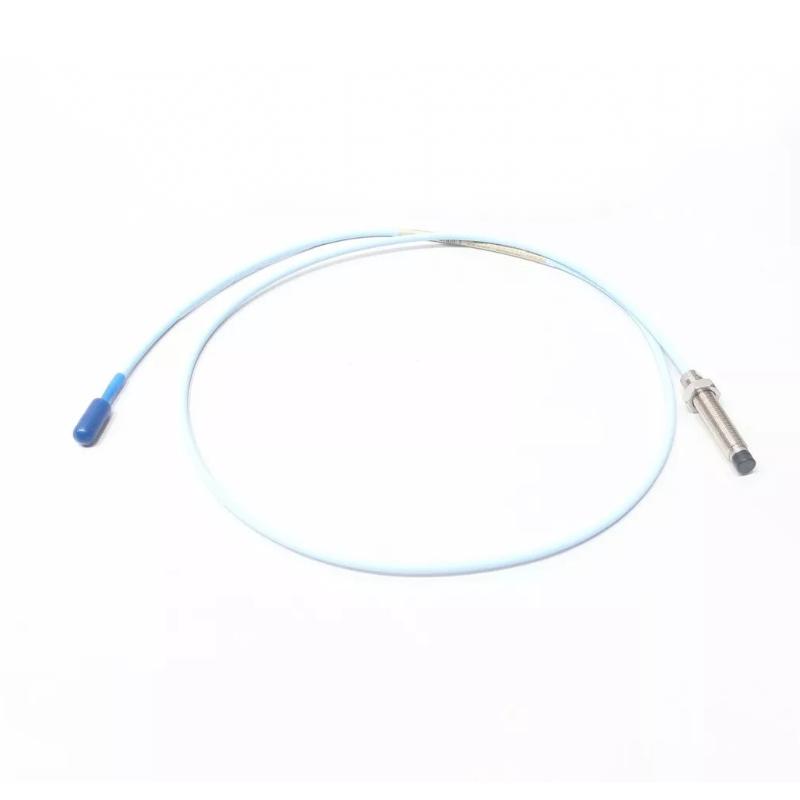

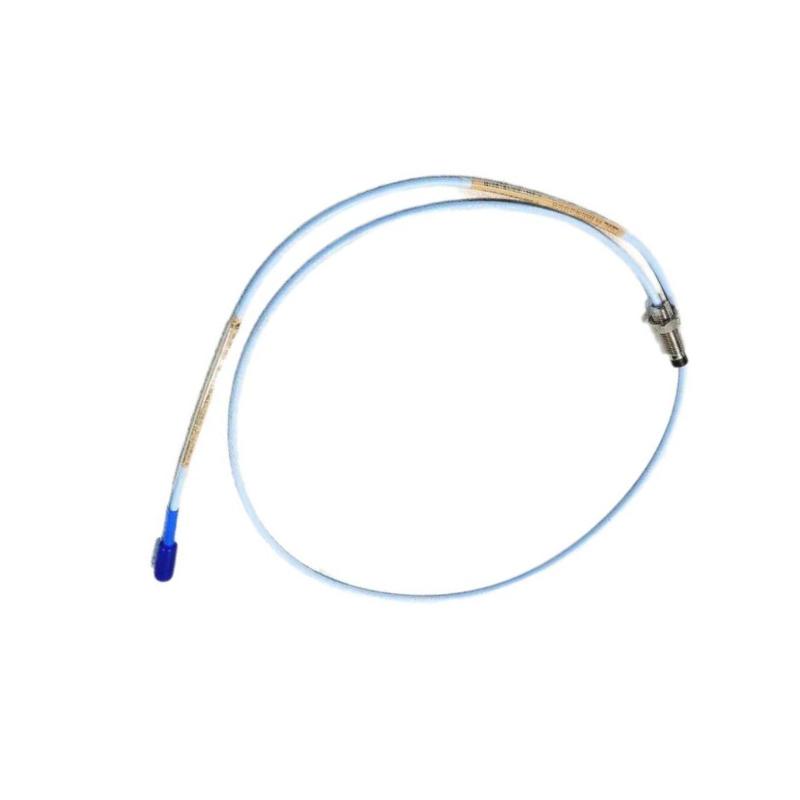

The Bently Nevada 330101-31-39-10-02-05 is a 3300 XL 8 mm eddy-current proximity probe designed for continuous, non-contact measurement of shaft vibration, shaft position, radial displacement, and rotor motion in critical rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which includes a compatible 3300 XL Proximitor® Sensor and extension cable. When installed as a complete system, it is designed to meet the performance requirements of API 670 for machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-Current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-31-39-10-02-05 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Armor | Without armor |
| Unthreaded Length | 3.1 in (78.7 mm) |
| Overall Case Length | 3.9 in (99.1 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc® connector |
| Cable Type | Standard cable |
| Agency Approval | 05 – CSA, ATEX, IECEx approvals |
