Overview

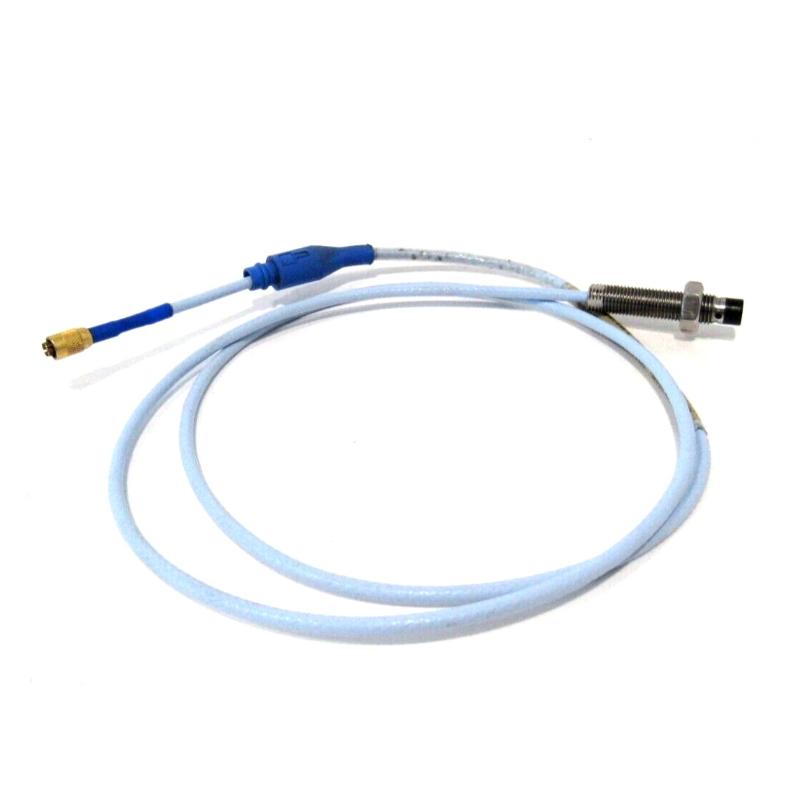

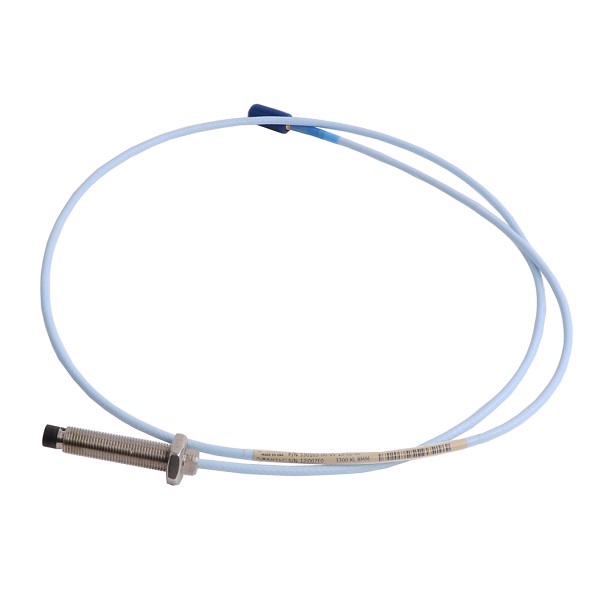

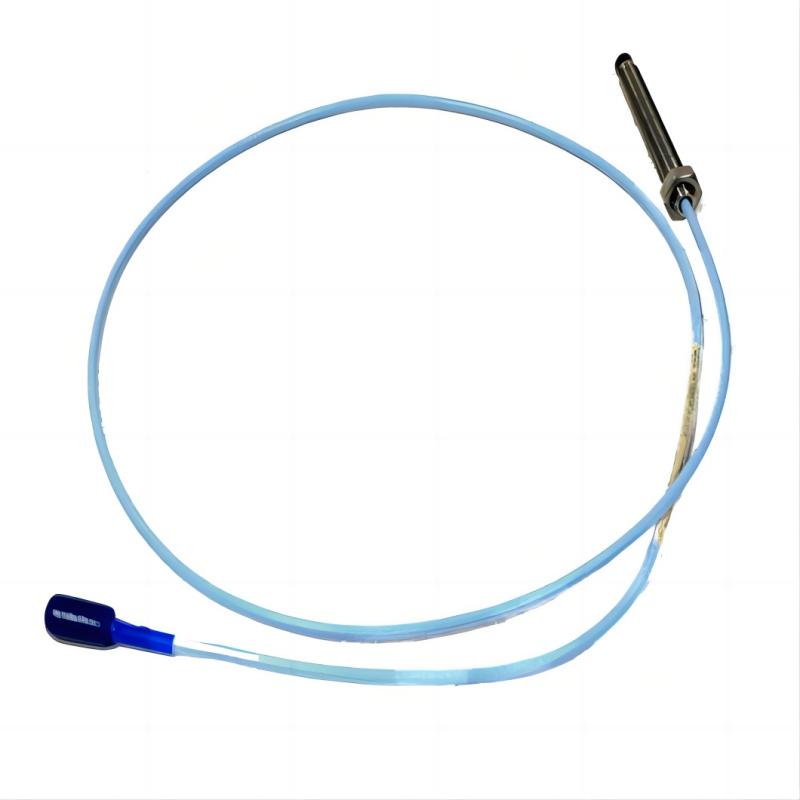

The Bently Nevada 330101-30-63-10-02-CN is a 3300 XL 8 mm eddy-current proximity probe designed for continuous, non-contact measurement of shaft vibration, shaft position, radial displacement, and rotor motion in critical rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, operating with a compatible 3300 XL Proximitor® Sensor and extension cable. The complete transducer system is designed to meet API 670 requirements for machinery protection and condition monitoring.

Technical Specifications

Frequently Asked Questions

1. What is this probe used for?

It measures shaft vibration, shaft position, radial displacement, eccentricity, and related parameters in rotating machinery for condition monitoring and machinery protection.

2. What does the "30" option indicate?

It specifies a 3.0-inch unthreaded probe length.

3. What does the "63" option indicate?

It specifies a 6.3-inch overall probe case length.

4. What cable length is supplied?

The 10 option specifies a 1.0-meter (3.3-foot) integral cable.

5. What connector does it use?

The 02 option specifies a Miniature coaxial ClickLoc® connector with a standard cable.

6. What does the "CN" approval option mean?

The CN version includes China-specific approvals, including Chinese NEPSI certification together with supporting ATEX/IECEx documentation for applicable installations.

7. Is it compatible with other 3300 XL components?

Yes. It is designed to operate with compatible 3300 XL Proximitor® Sensors and extension cables having the correct overall system length.

8. Is it API 670 compliant?

Yes. When installed as part of a complete 3300 XL 8 mm Proximity Transducer System, it is designed to satisfy API 670 performance requirements.

9. Can it replace another 3300 XL probe?

Yes, provided the replacement matches the original probe's mechanical dimensions, cable length, connector option, and overall calibrated transducer system length.

10. What are its primary benefits?

It delivers accurate, stable, non-contact shaft motion measurements with excellent reliability, making it suitable for predictive maintenance and machinery protection in critical industrial equipment.
