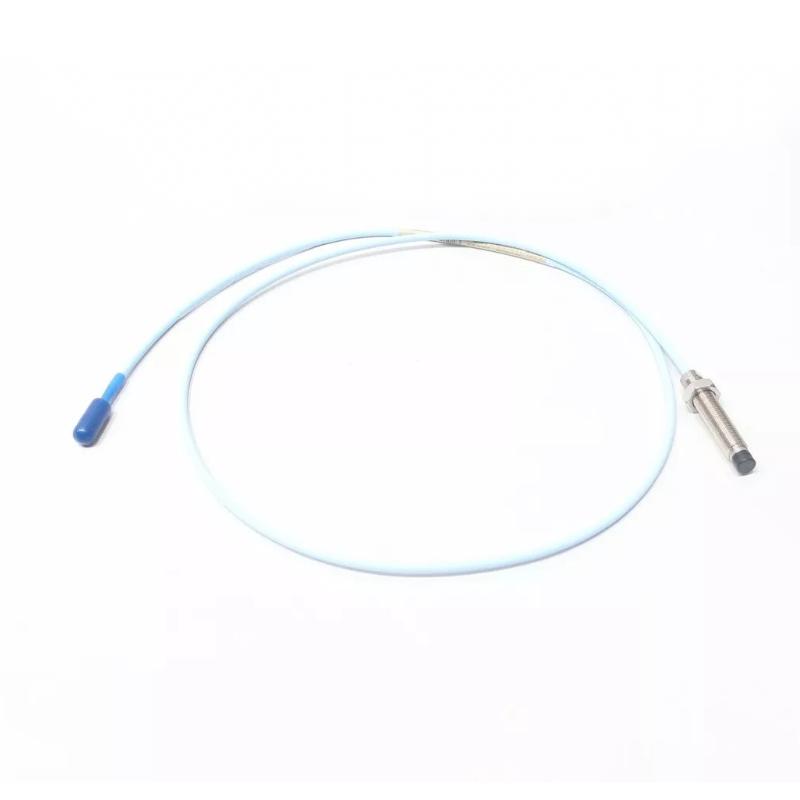

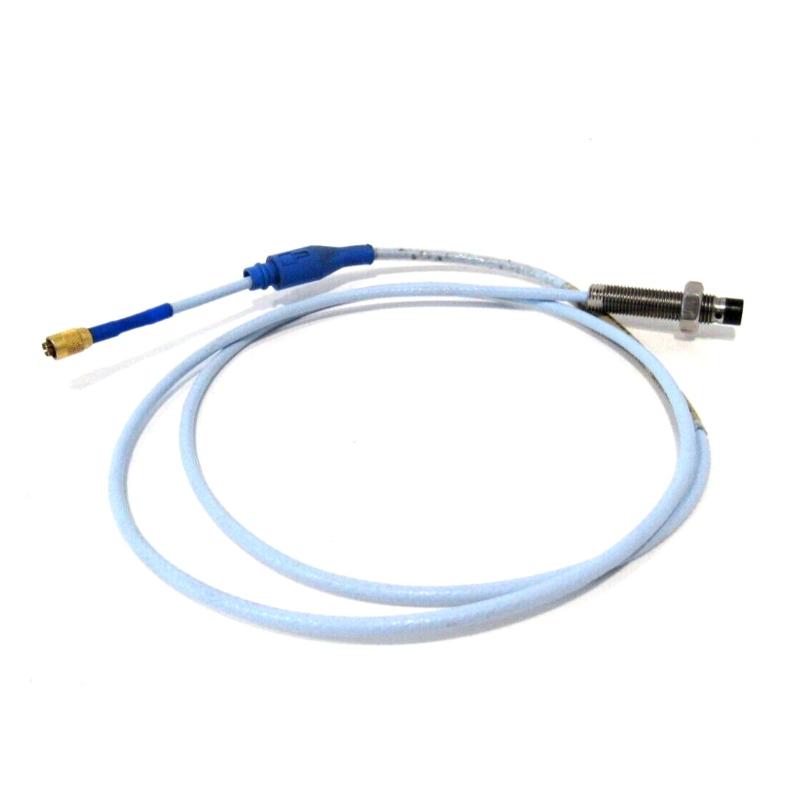

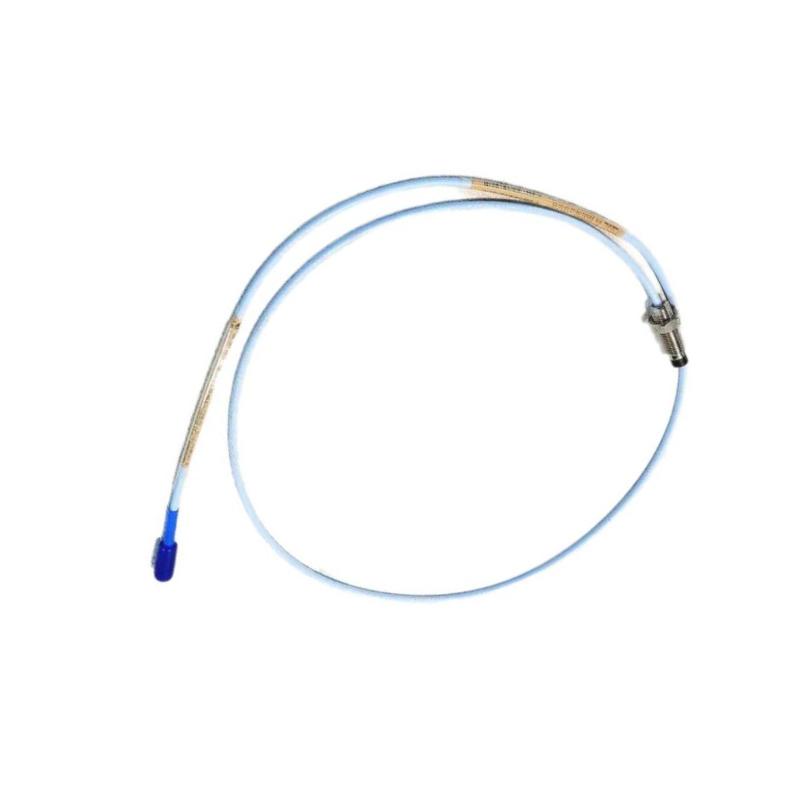

Bently Nevada 330101-30-63-10-02-CH 3300 XL Proximity Probe

Name: Bently Nevada 330101-30-63-10-02-CH 3300 XL Proximity Probe
Brand: Bently Nevada PLC
SKU: 9242
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.: 330101-30-63-10-02-CH
Product Origin:USA
Product Dimensions:Probe tip 8 mm；system length 63 m；“CH” China-standard configuration
Product Weight:0.35kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview

The Bently Nevada 330101-30-63-10-02-CH is a 3300 XL 8 mm eddy-current proximity probe designed for continuous, non-contact monitoring of shaft vibration, shaft position, radial displacement, and rotor motion in critical rotating machinery. It is used as part of the 3300 XL 8 mm Proximity Transducer System, together with a compatible 3300 XL Proximitor® Sensor and extension cable. The complete system is designed to meet API 670 requirements for machinery protection.

Parameter	Specification
Product Type	Eddy-Current Proximity Probe
Manufacturer	Bently Nevada
Model	330101-30-63-10-02-CH
Product Series	3300 XL 8 mm
Probe Diameter	8 mm
Thread Size	3/8-24 UNF
Armor	Without armor
Unthreaded Length	3.0 in (76.2 mm)
Overall Case Length	6.3 in (160 mm)
Integral Cable Length	1.0 m (3.3 ft)
Connector Type	Miniature coaxial ClickLoc® connector
Cable Type	Standard cable
Approval Option	CH (requires manufacturer verification)

Typical Applications

Steam turbines
Gas turbines
Centrifugal compressors
Pumps
Electric motors
Fans and blowers
Gearboxes
Hydroelectric generators
Oil & gas production facilities
Petrochemical processing plants

Key Features

8 mm non-contact eddy-current sensing technology
Continuous shaft vibration and position monitoring
3.0-inch unthreaded mounting length
6.3-inch overall probe body
1.0 m integral cable
Miniature ClickLoc® connector
High measurement accuracy and long-term stability
Compatible with 3300 XL Proximitor® Sensors and extension cables
Designed for API 670 machinery protection systems when installed as a complete transducer system.

Frequently Asked Questions

1. What is this probe used for?

It is used for non-contact monitoring of shaft vibration, shaft position, and rotor displacement on critical rotating equipment.

2. What does the "30" option indicate?

It specifies a 3.0-inch unthreaded probe length.

3. What does the "63" option indicate?

It specifies a 6.3-inch overall probe case length.

4. What cable length is supplied?

The 10 option specifies a 1.0-meter (3.3-foot) integral cable.

5. What connector does it use?

The 02 option specifies a Miniature coaxial ClickLoc® connector with a standard cable.

6. What does the "CH" suffix mean?

There is no published evidence in Bently Nevada's official ordering documentation that CH is a standard approval option for the 3300 XL probe series. If your probe is marked CH, verify it with the manufacturer's documentation or the original purchase records.

7. Is it compatible with other 3300 XL components?

Yes. It is designed for use with compatible 3300 XL Proximitor® Sensors and extension cables that provide the correct overall transducer system length.

8. Is it API 670 compliant?

Yes. When installed as a complete 3300 XL 8 mm Proximity Transducer System, it is designed to satisfy API 670 performance requirements.
