Frequently Asked Questions

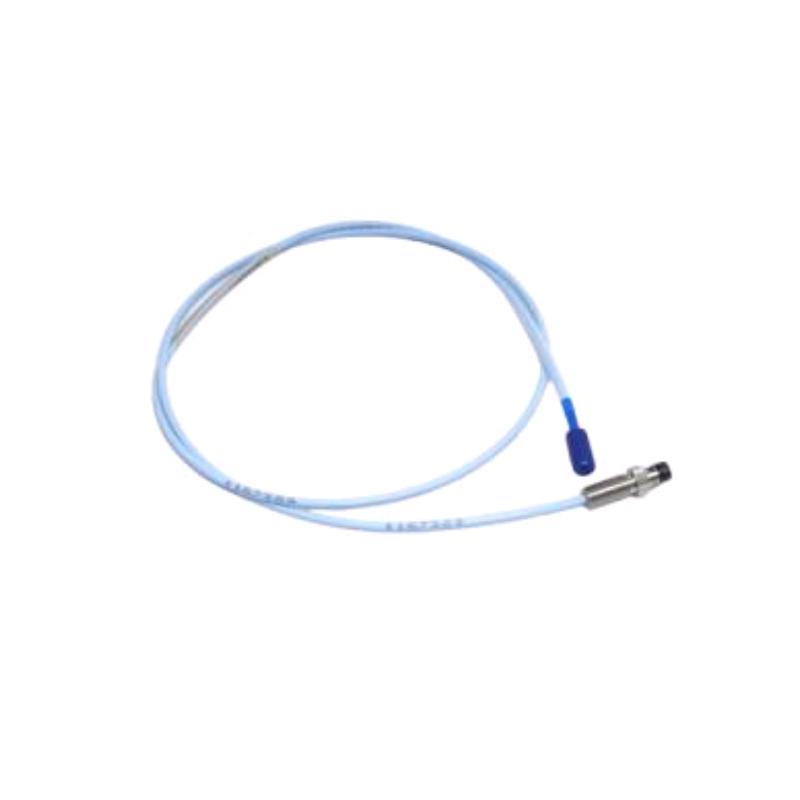

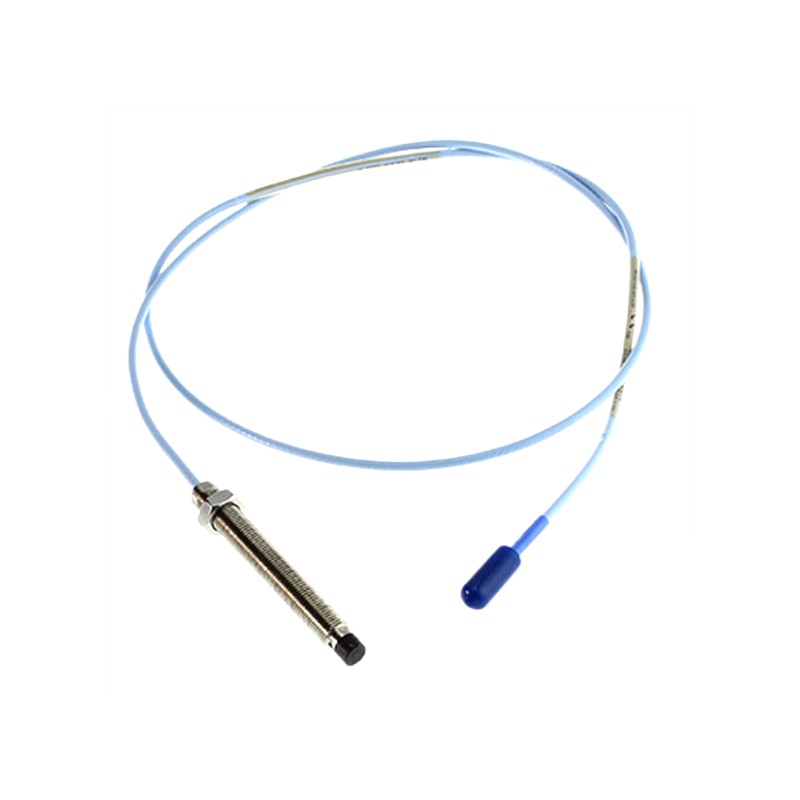

1. What is the 330101-30-63-10-02-05 used for?

It is used for continuous monitoring of shaft vibration, shaft position, and rotor displacement in critical rotating equipment.

2. What does the "30" option indicate?

It specifies a 3.0-inch unthreaded probe length.

3. What does the "63" option indicate?

It specifies a 6.3-inch overall probe case length. Overall case lengths are configurable in 0.5-inch increments according to the manufacturer's ordering guide.

4. What cable length is supplied?

The 10 option specifies a 1.0-meter (3.3-foot) integral cable.

5. What connector does it use?

The 02 option specifies a Miniature coaxial ClickLoc® connector with a standard cable.

6. What does the "05" approval option mean?

It indicates CSA, ATEX, and IECEx hazardous-area approvals, making the probe suitable for installation in certified hazardous locations.

7. Which Proximitor® Sensor should be paired with this probe?

The probe should be used with the matching 3300 XL Proximitor® Sensor and the correct system cable length to maintain factory calibration and specified performance.

8. Is it API 670 compliant?

Yes. When installed as a complete 3300 XL 8 mm Proximity Transducer System, it is designed to meet API 670 requirements.

9. Can it replace another 3300 XL probe?

Yes, provided the replacement matches the original probe's thread type, mechanical dimensions, cable length, connector option, and overall transducer system length.

10. What are the primary benefits?

It provides highly accurate, stable, non-contact shaft motion measurements with excellent reliability and interchangeability for machinery protection and predictive maintenance.
