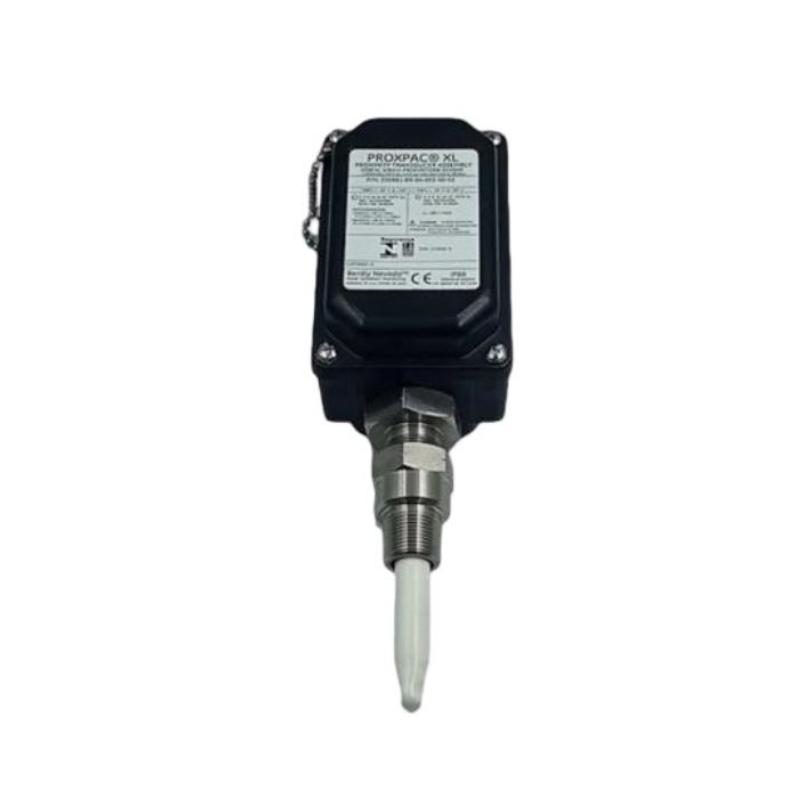

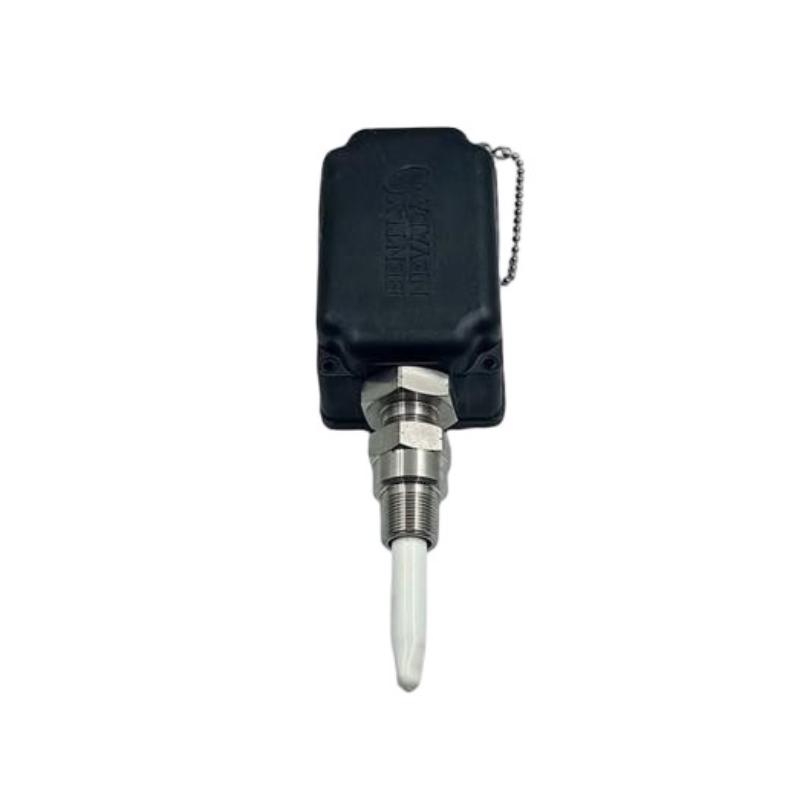

Bently Nevada 330881-28-06-105-00-02 PROXPAC XL Proximity Sensors

Name: Bently Nevada 330881-28-06-105-00-02 PROXPAC XL Proximity Sensors
Brand: Bently Nevada PLC
SKU: 9169
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330881-28-06-105-00-02
Product Origin:USA
Product Dimensions:92 × 91 × 91 mm
Product Weight:1.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Self-Contained Vibration Monitoring Solution for Industrial Rotating Machinery

The Bently Nevada 330881-28-06-105-00-02 PROXPAC® XL Proximity Transducer Assembly is a fully integrated machinery protection device designed to simplify installation while delivering accurate and stable shaft vibration and position measurements in demanding industrial environments.

As part of the PROXPAC XL series, this model combines a 3300 XL 8 mm proximity probe and an embedded Proximitor® sensor within a single rugged housing, eliminating the need for separate Proximitor enclosures and external extension cabling. This architecture significantly reduces installation time, wiring complexity, and commissioning effort while improving system consistency.

It is widely used in compressors, pumps, motors, fans, and turbine auxiliary systems where continuous condition monitoring is critical for safe and efficient operation.

Technical Specifications

Parameter	Specification
Product Type	PROXPAC® XL Proximity Transducer Assembly
Model Number	330881-28-06-105-00-02
Product Series	PROXPAC XL
Measurement Technology	Eddy-current non-contact sensing
Probe System	3300 XL 8 mm proximity probe
Integrated Function	Probe + Proximitor® sensor in one housing
Measurement Capability	Shaft vibration, displacement, radial position
Probe Approval Option	28 = Multiple approvals
Standoff Adapter Option	06 = 60 mm configuration
Probe Penetration	105 mm
Fittings Option	00 = No fittings (plugs and washers included)
Mounting Thread	3/4-14 NPT
Housing Material	Polyphenylene Sulfide (PPS) with conductive reinforcement
Environmental Rating	IP66 / Type 4X equivalent protection
Operating Temperature	-35°C to +85°C (electronics), higher for probe section
Frequency Response	0 – 10 kHz (system dependent)
Signal Output	Proximitor-conditioned vibration signal
Approximate Dimensions	92 × 91 × 91 mm
Approximate Weight	~1.4 kg

Applications

Centrifugal compressor monitoring systems
Steam and gas turbine auxiliary equipment
Industrial pump vibration monitoring
Electric motor condition monitoring
Gearbox health diagnostics
Fan and blower protection systems
Petrochemical process machinery
Power generation rotating assets
OEM machinery packages
Continuous predictive maintenance systems

Advantages

Fully integrated probe and Proximitor® sensor design
Eliminates external housing and extension cable requirements
Reduces installation time and engineering complexity
High measurement accuracy for shaft vibration and position
Strong resistance to EMI/RFI interference
Rugged PPS housing for harsh industrial environments
IP66-rated protection for dust and water exposure
Suitable for continuous 24/7 monitoring
Improves system reliability and consistency
Reduces long-term maintenance effort

Technical FAQs

1. What is a PROXPAC XL system?

It is a self-contained proximity transducer assembly that integrates both the probe and signal conditioning electronics into one unit.

2. What measurements does it provide?

It measures shaft vibration, shaft displacement, and shaft position.

3. Does it require a separate Proximitor® sensor?

No. The Proximitor® electronics are built into the assembly.

4. What is the main benefit of this design?

It simplifies installation by eliminating separate housings and reducing wiring.

5. What equipment is it typically used on?

Compressors, pumps, motors, fans, turbines, and gearboxes.

6. Is it suitable for harsh environments?

Yes. It is designed for industrial environments with moisture, dust, and electrical noise.

7. What does the “28” code mean?

It indicates a 3300 XL 8 mm probe with multiple approvals.

8. Can it be used for continuous monitoring?

Yes. It is designed for permanent 24/7 operation.

9. Why is PPS housing used?

Polyphenylene Sulfide provides strength, chemical resistance, and static charge dissipation.

10. What industries use this system?

Oil & gas, power generation, petrochemical, mining, and manufacturing industries.
