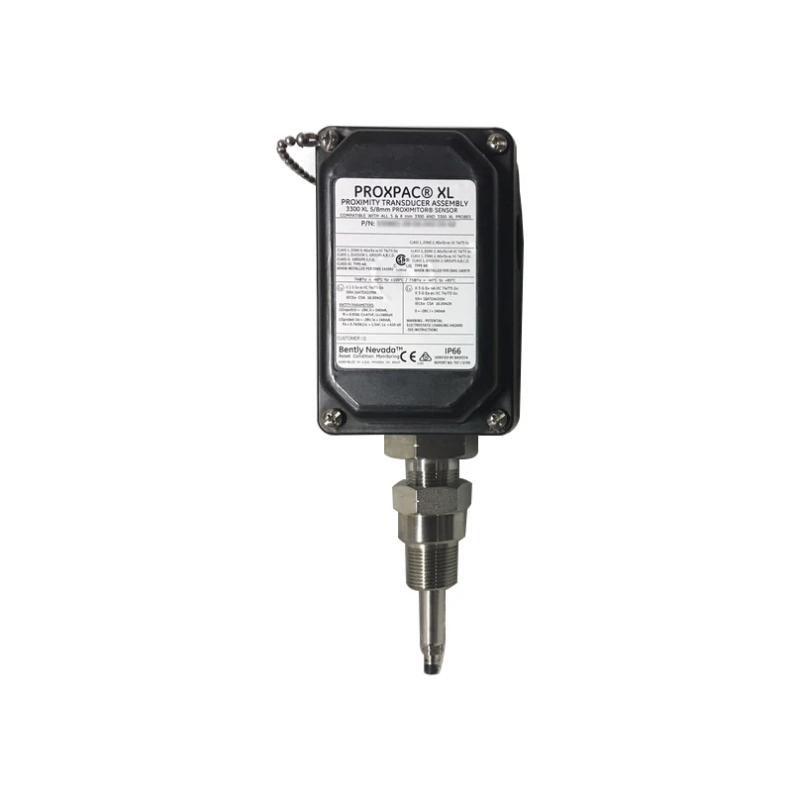

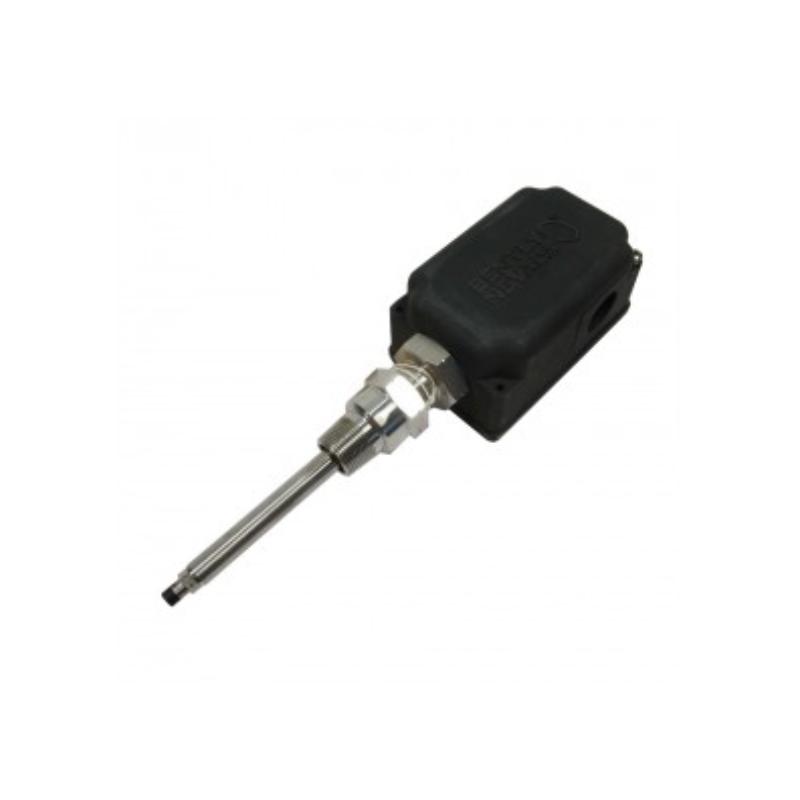

Bently Nevada 330881-16-06-165-07-02 PROXPAC® XL Reverse Mount Proximity Transducer Assembly

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330881-16-06-165-07-02 PROXPAC® XL Reverse Mount Proximity Transducer Assembly

Name: Bently Nevada 330881-16-06-165-07-02 PROXPAC® XL Reverse Mount Proximity Transducer Assembly
Brand: Bently Nevada PLC
SKU: 9166
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330881-16-06-165-07-02
Product Origin:USA
Product Dimensions:93 × 91 × 91 mm
Product Weight:1.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Integrated Reverse-Mount Monitoring Solution for Critical Rotating Equipment

The Bently Nevada 330881-16-06-165-07-02 PROXPAC® XL Reverse Mount Proximity Transducer Assembly is a factory-integrated machinery protection system designed to simplify installation while delivering precise shaft vibration and shaft position measurements for demanding industrial applications.

Unlike conventional proximity probe installations that require separate housings, extension cables, and external drivers, the PROXPAC XL architecture incorporates a 3300 XL 8 mm probe and an integrated Proximitor® sensor within a single enclosure, reducing installation complexity and minimizing field wiring requirements.

This reverse-mount configuration is particularly suitable for turbines, compressors, pumps, motors, and other critical rotating machinery operating in harsh industrial environments. The PROXPAC XL enclosure is engineered to provide robust environmental protection while simplifying maintenance access.

Technical Specifications

Parameter	Specification
Product Type	PROXPAC® XL Reverse Mount Proximity Transducer Assembly
Model Number	330881-16-06-165-07-02
Product Series	PROXPAC XL
Probe System	3300 XL 8 mm proximity probe
Measurement Technology	Eddy-current non-contact sensing
Function	Shaft vibration and shaft position monitoring
Sensor Configuration	Integrated probe and Proximitor® assembly
Probe Approval Option	16 = 3300 XL 8 mm probe without approvals
Standoff Adapter Option	06 = 60 mm adapter configuration (application dependent)
Probe Penetration	165 mm
Fittings Option	07 = Factory-specified industrial fittings package
Mounting Thread	3/4-14 NPT
Probe Cable	1 m triaxial cable
Probe Material	AISI 304 stainless steel
Probe Tip Material	Polyphenylene Sulfide (PPS)
Housing Protection	Type 4X / IP66 enclosure
Operating Temperature (Probe)	-51°C to +177°C
Operating Temperature (Driver)	-35°C to +85°C
Frequency Response	0 to 10 kHz
Linear Measurement Range	Approximately 2 mm
Approximate Dimensions	93 × 91 × 91 mm
Approximate Weight	1.4–1.5 kg

Applications

Steam turbine protection systems
Gas compressor vibration monitoring
Industrial pump condition monitoring
Electric motor protection systems
Gearbox vibration analysis
Petrochemical processing equipment
Power generation facilities
Oil & gas rotating assets
OEM machinery packages
Continuous predictive maintenance programs

Advantages

Integrated design reduces installation complexity
Reverse-mount architecture improves accessibility
Eliminates separate Proximitor® housing requirements
High-accuracy non-contact measurements
Excellent resistance to harsh environments
Strong EMI/RFI immunity
Reduces field wiring errors
Supports continuous 24/7 operation
Improves overall equipment reliability
Simplifies long-term maintenance planning

Technical FAQs

1. What is a PROXPAC XL assembly?

It is an integrated proximity transducer system that combines the probe and Proximitor® sensor into one housing.

2. What does this assembly measure?

It measures shaft vibration, shaft displacement, and shaft position.

3. What is the advantage of reverse mounting?

Reverse mounting simplifies access and installation in applications with restricted machine layouts.

4. Does it require a separate Proximitor® enclosure?

No. The Proximitor® sensor is integrated into the assembly housing.

5. Which machines commonly use this system?

Turbines, compressors, pumps, motors, and industrial gearboxes.

6. Is it suitable for outdoor environments?

Yes. The enclosure is designed with IP66 environmental protection.

7. Can it operate continuously?

Yes. It is engineered for permanent 24/7 machinery monitoring.

8. Is it resistant to industrial electrical interference?

Yes. The system is designed with strong EMI/RFI immunity.

9. Why choose an integrated assembly instead of separate components?

It reduces installation time, wiring complexity, and potential commissioning errors.

10. Which industries commonly use PROXPAC XL systems?

Power generation, oil & gas, petrochemical, marine, and heavy manufacturing industries.
