Compact Vibration Monitoring Solution for Space-Constrained Rotating Equipment

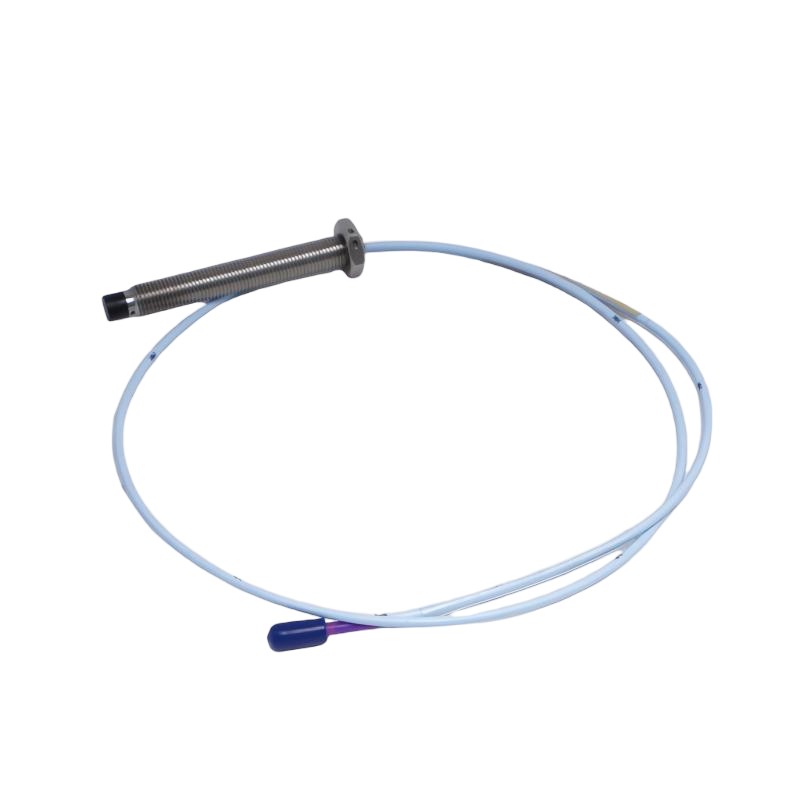

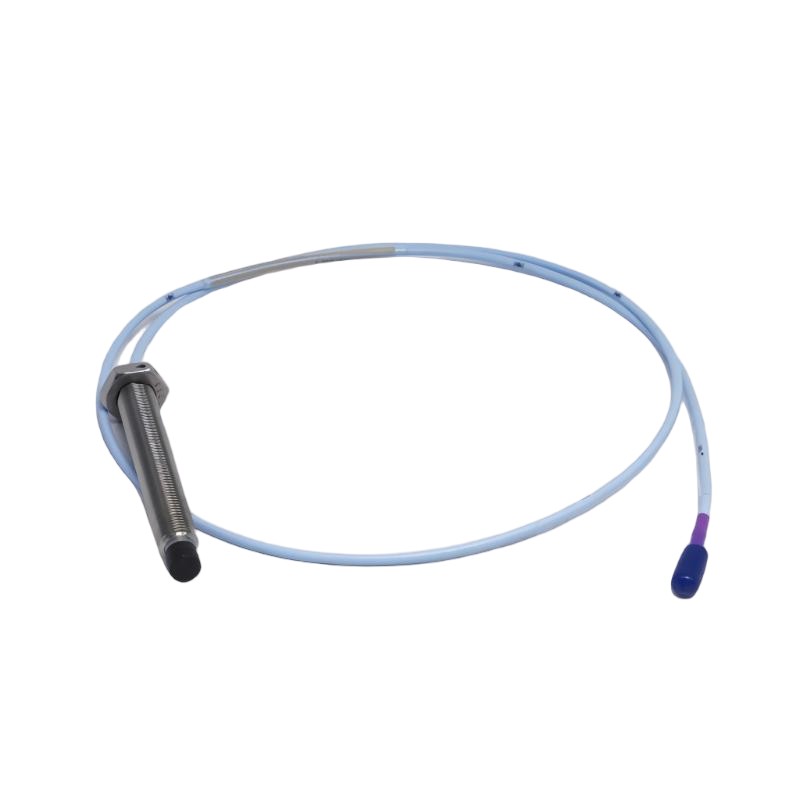

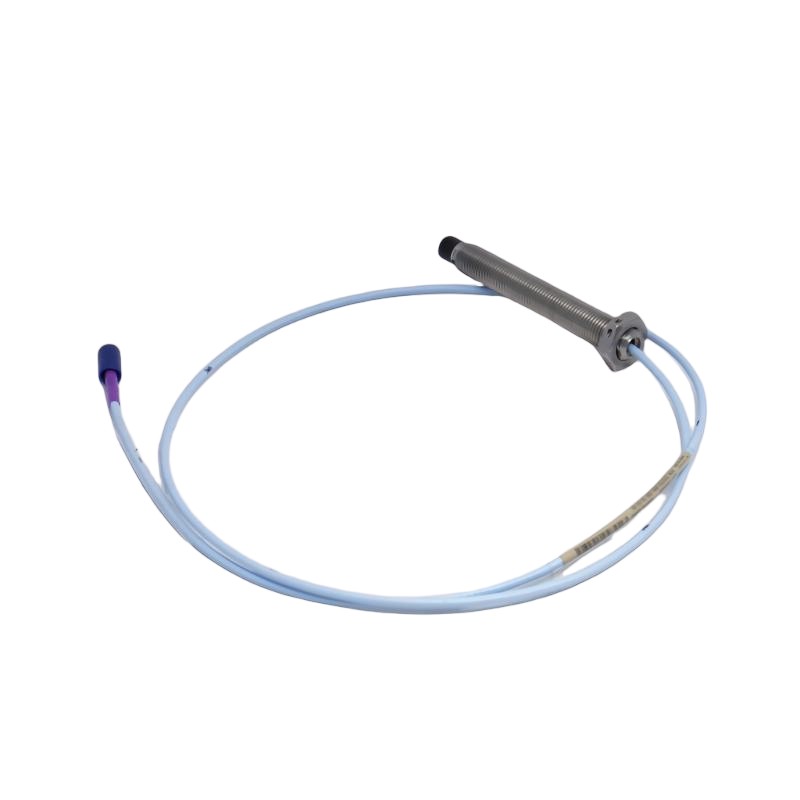

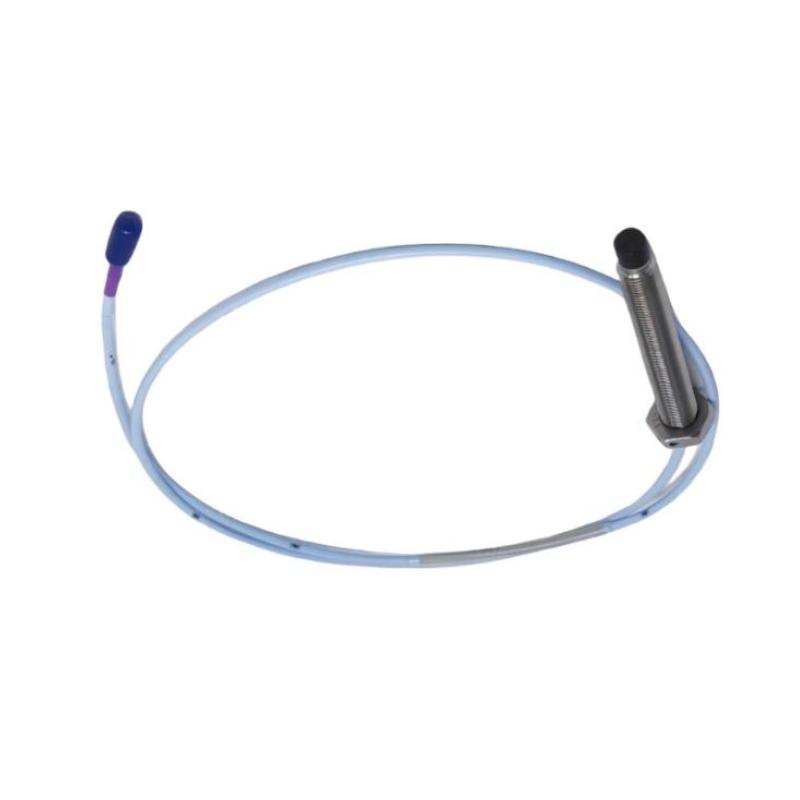

The Bently Nevada 330902-00-40-05-01-00 3300 XL NSv Proximity Probe is a high-precision non-contact eddy-current sensor designed for machinery applications where installation space is limited but accurate vibration and shaft position monitoring remain essential.
As part of the 3300 XL NSv Transducer System, this proximity probe combines the performance advantages of the 3300 XL platform with a compact mechanical design optimized for small machines, narrow mounting areas, and restricted side clearances. It is widely used in compressors, pumps, electric motors, gearboxes, and auxiliary turbomachinery that require dependable condition monitoring and predictive maintenance.
Built for long-term industrial reliability, the probe provides stable measurements even in harsh operating environments with high levels of electrical interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 XL NSv Proximity Probe |
| Model Number | 330902-00-40-05-01-00 |
| Product Series | 3300 XL NSv Transducer System |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 5 mm |
| Probe Design | NSv compact probe |
| Probe Material | Stainless steel |
| Integrated Cable Length | 0.5 m |
| Connector Type | Miniature ClickLoc® connector |
| Measurement Capability | Shaft vibration, radial position, axial position |
| Operating Temperature | -35°C to +177°C |
| Environmental Protection | High EMI/RFI immunity |
| System Compatibility | 3300 XL NSv extension cables and Proximitor® sensors |
| Approximate Dimensions | Configuration dependent |
| Approximate Weight | 0.15–0.30 kg |
