Introduction

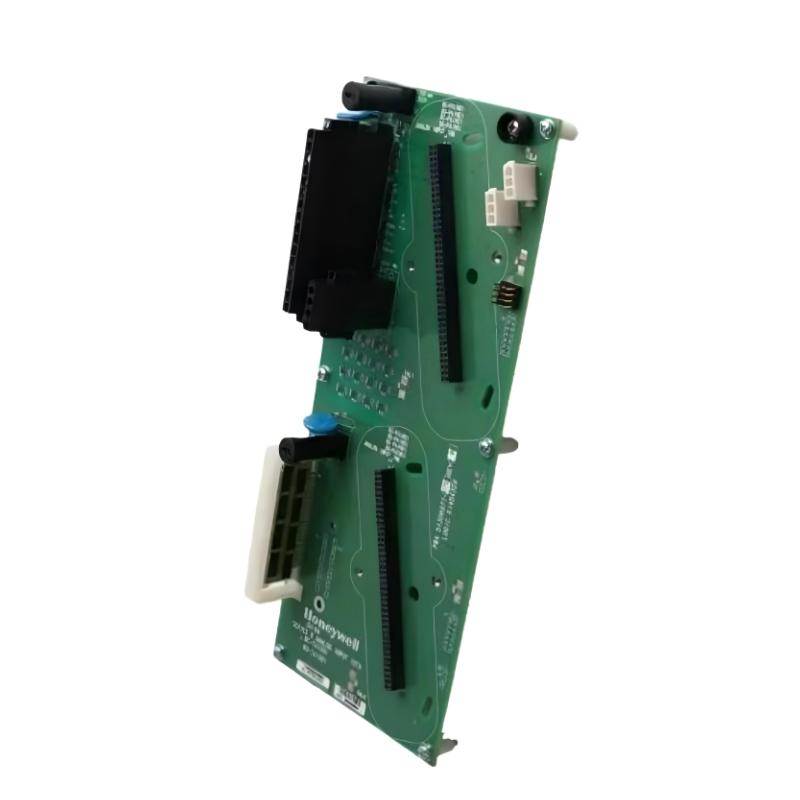

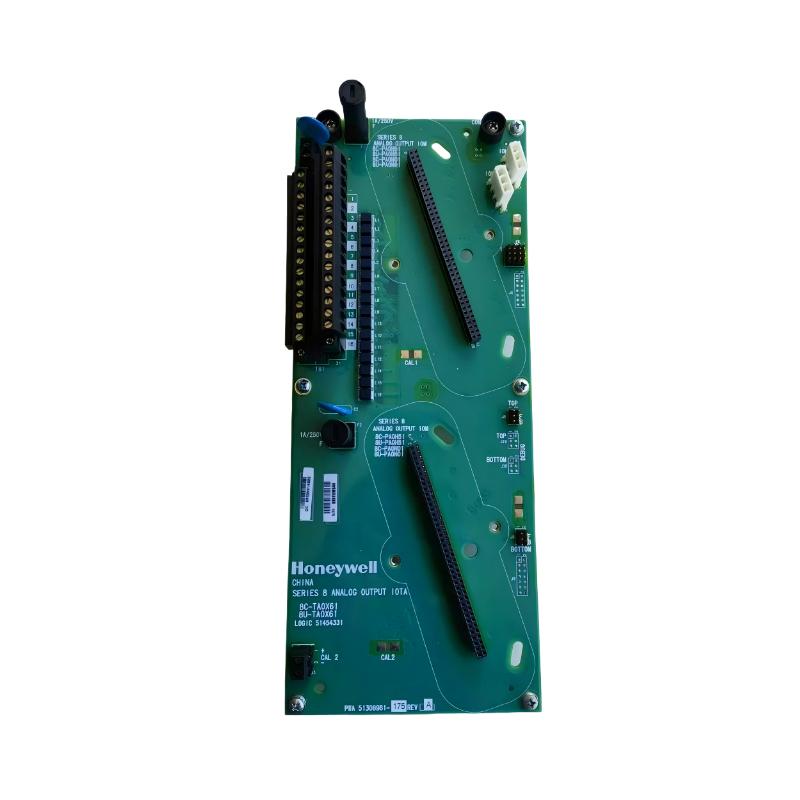

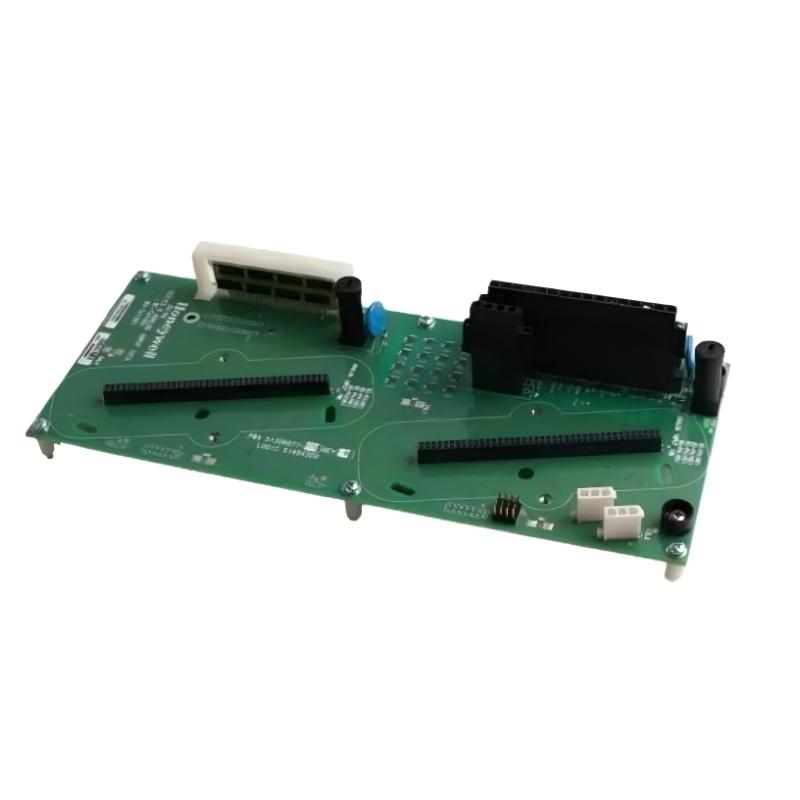

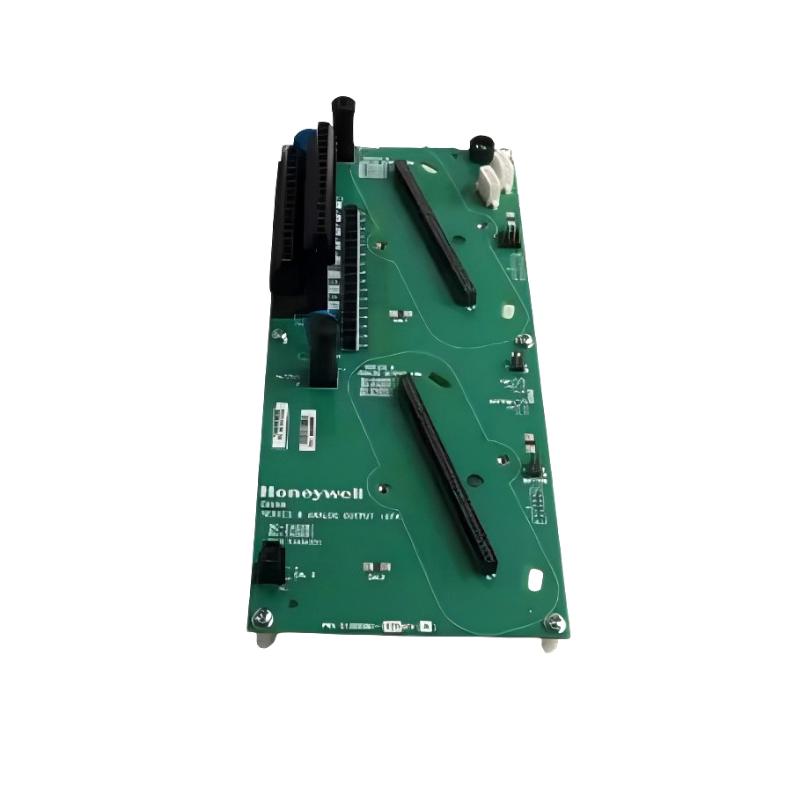

The Honeywell 8C-TAOX61 (51306981-175) Analog Output Card is engineered to deliver stable and precise analog control signals for demanding industrial environments. It forms a dependable interface between the control system and field actuators, supporting accurate modulation of valves, drives, and other analog-controlled equipment in process automation systems.
Technical Specifications
| Parameter | Description |
|---|
| Module Type | Analog Output Card |
| Model | 8C-TAOX61 |
| Part Number | 51306981-175 |
| Dimensions | 220 × 120 × 304.8 mm (H × W × D) |
| Weight | 0.7 kg |
| Function | Output of analog control signals |
| System Compatibility | Honeywell control and automation platforms |
Applications
• Analog control of valves, dampers, and actuators
• Output commands to VFDs and industrial drives
• Fine-tuned modulation for continuous process control
• Advanced automation in oil & gas, refining, and power sectors
• Expansion of analog output capacity within Honeywell DCS systems
Advantages
• High output accuracy to ensure stable field control
• Robust noise immunity suitable for harsh plant conditions
• Scalable modular design for flexible system expansion
• Seamless integration with Honeywell Experion architecture
• Long service life with minimal maintenance requirements
Technical FAQs
-
What type of analog output does the card support?
Commonly supports current-based signals such as 4–20 mA.
-
How is the card powered?
It receives power through the system backplane.
-
How many output channels are provided?
The channel count depends on the TAOX61 configuration.
-
Are diagnostics available?
Yes, built-in diagnostics can be monitored through the Honeywell system.
-
Can the card be hot-swapped?
Hot-swap capability varies based on the chassis used.
-
Does it support HART passthrough?
Availability depends on the system’s I/O configuration.
-
Is it compatible with Honeywell Experion PKS?
Fully compatible.
-
What types of field devices can it control?
Actuators, valves, and industrial drives requiring analog signals.
-
Does it require periodic calibration?
Factory calibrated; recalibration is rarely needed.
-
In what environments is it typically used?
Industrial process plants requiring precise analog output control.
