High-Power Performance Designed for Energy-Efficient Industrial Systems

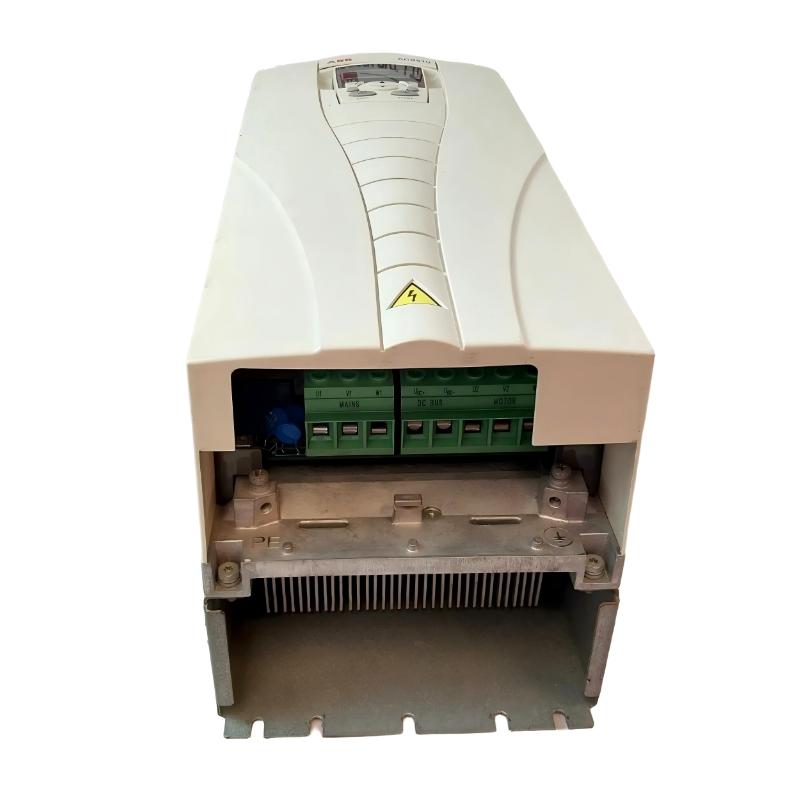

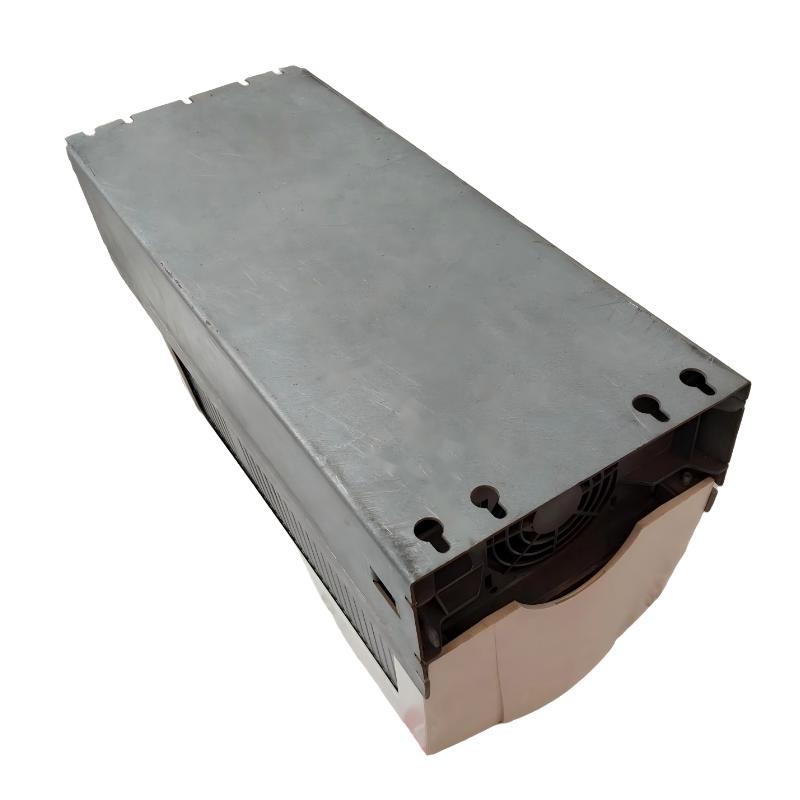

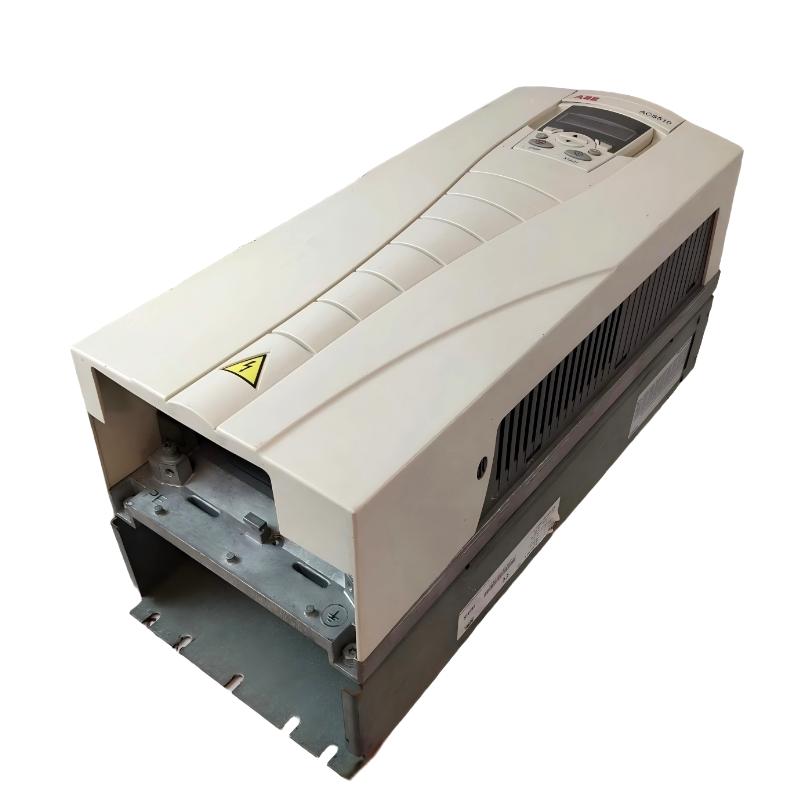

The ABB ACS510-01-195A-4 Variable Frequency Drive is a robust and intelligent motor control solution engineered for demanding HVAC, pumping, water treatment, and general industrial applications. As part of ABB's trusted ACS510 series, this drive is specifically developed to optimize energy consumption, simplify operation, and maximize system reliability.
Built for 380-480V three-phase networks, this 110 kW drive delivers precise motor regulation while helping facilities reduce operating costs and improve process efficiency. Its integrated control functions, user-friendly interface, and long-term durability make it a preferred solution for industrial automation projects worldwide.
Product Performance & Technical Data
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | ACS510 |
| Product Type | Variable Frequency Drive (VFD) / Frequency Converter |
| Model Number | ACS510-01-195A-4 |
| Product Code | 3ABD00015758-D |
| Rated Output Power | 110 kW (150 HP) |
| Input Voltage | 380-480 V AC |
| Input Phase | 3-Phase |
| Input Frequency | 48-63 Hz |
| Rated Output Current | 195 A |
| Maximum Output Current | 205 A |
| Output Frequency Range | 0-500 Hz |
| Protection Rating | IP21 |
| Mounting Type | Wall Mounted |
| Frame Size | R6 |
| Communication | Built-in Modbus RTU (RS-485) |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -10°C to +40°C |
| Maximum Installation Altitude | 1000 m (without derating) |
| Dimensions | 955 × 350 × 420 mm |
| Weight | Approximately 59 kg |
Where This Drive Excels
The ACS510-01-195A-4 is widely deployed in large-scale industrial environments where operational stability and energy savings are essential.
Common applications include:
-
HVAC systems
-
Water treatment plants
-
Municipal pumping stations
-
Industrial fan systems
-
Air handling units
-
Compressors
-
Cooling towers
-
Material handling systems
-
Manufacturing facilities
-
Building automation infrastructure
Its application-specific functions significantly simplify commissioning and reduce engineering complexity.
Key Benefits That Add Real Value
Outstanding Energy Savings
Variable speed operation reduces unnecessary power consumption and lowers overall operating expenses.
Simplified Installation
Integrated functions minimize external component requirements and reduce installation time.
Reliable Heavy-Duty Operation
Designed for continuous industrial environments requiring high uptime.
User-Friendly Interface
Intuitive parameter configuration allows operators to commission systems quickly.
Flexible Communication Capability
Built-in Modbus RTU supports easy integration into industrial automation networks.
Reduced Maintenance Costs
Optimized motor operation decreases mechanical wear on connected equipment.
Technical FAQs
1. What motor size is this drive designed for?
It is primarily designed for motors up to 110 kW (150 HP).
2. Which voltage systems are supported?
The drive operates on 380-480V three-phase AC power systems.
3. Is this drive suitable for HVAC applications?
Yes. The ACS510 series was specifically optimized for HVAC, pumping, and building automation systems.
4. Does it support Modbus communication?
Yes. Built-in RS-485 Modbus RTU communication is included.
5. Can it control both pumps and fans?
Absolutely. Pump and fan applications are among its primary use cases.
6. Is vector control available?
Yes. It supports advanced motor control methods alongside standard V/Hz operation.
7. What enclosure protection rating does it have?
This model is rated IP21 and is intended for indoor installation.
8. Is a brake chopper included?
Brake chopper availability depends on specific configurations and application requirements. Optional braking solutions are available.
9. Can it be integrated into existing automation systems?
Yes. It supports integration with various fieldbus communication options through expansion modules.
10. What routine maintenance is recommended?
Inspect cooling fans, clean ventilation channels, tighten electrical terminals, and periodically verify operating parameters.
