ABB 5STP1752H000 / 3BHL000986P3016 High Power Thyristor

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB 5STP1752H000 / 3BHL000986P3016 High Power Thyristor

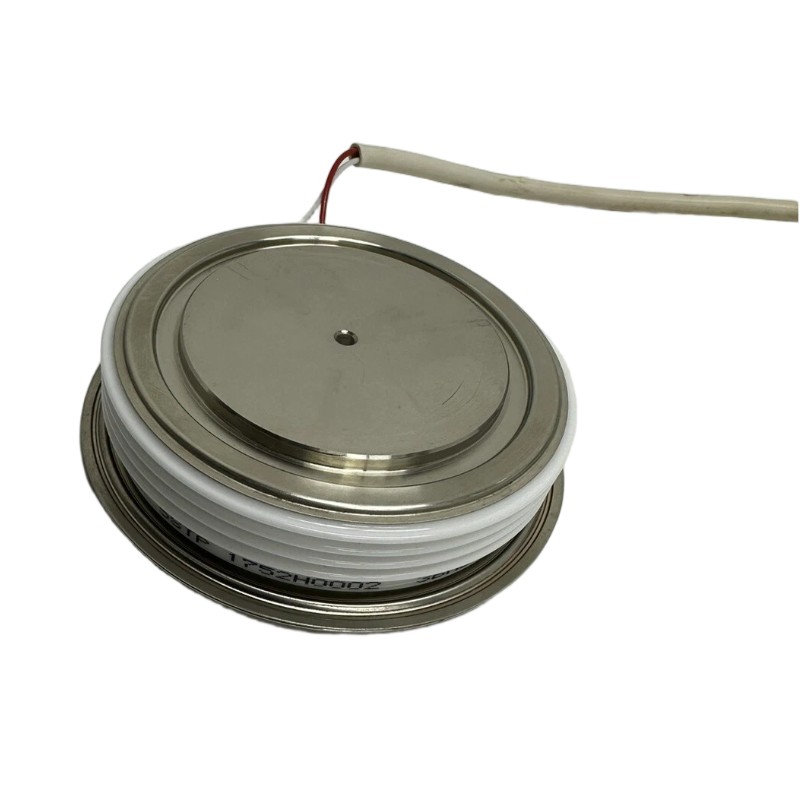

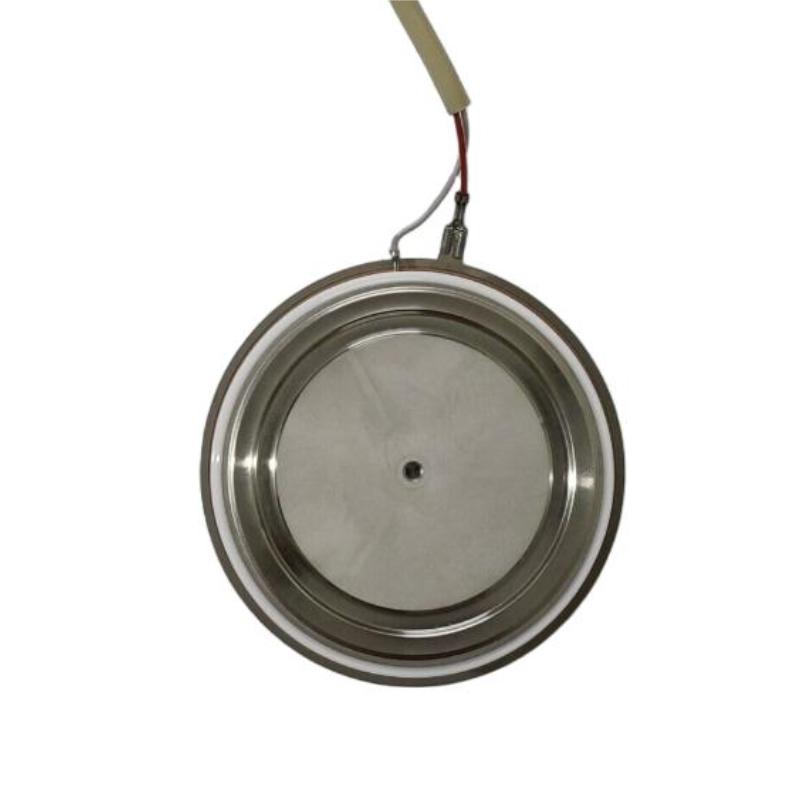

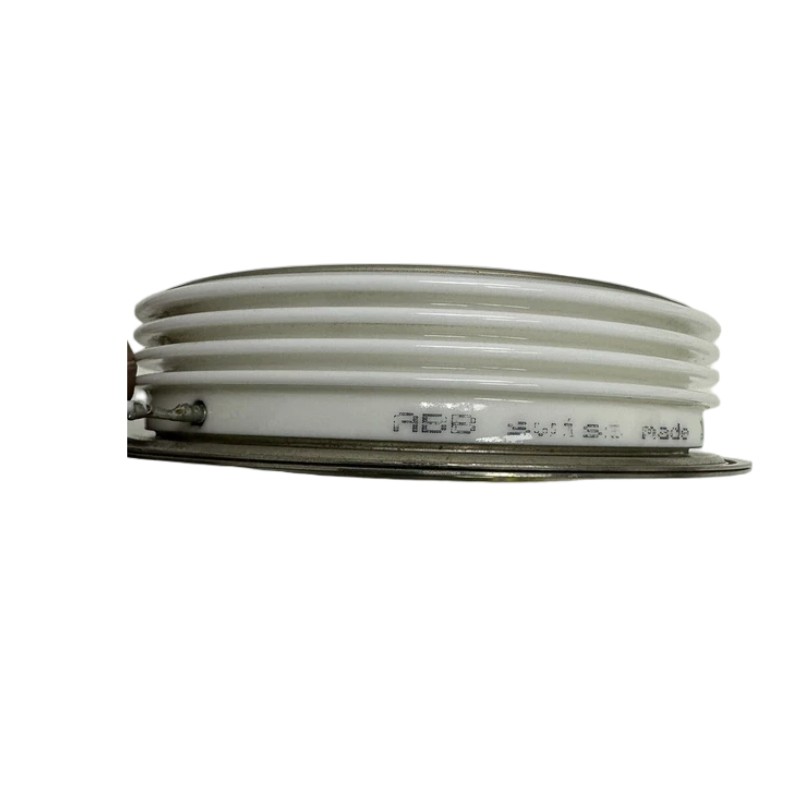

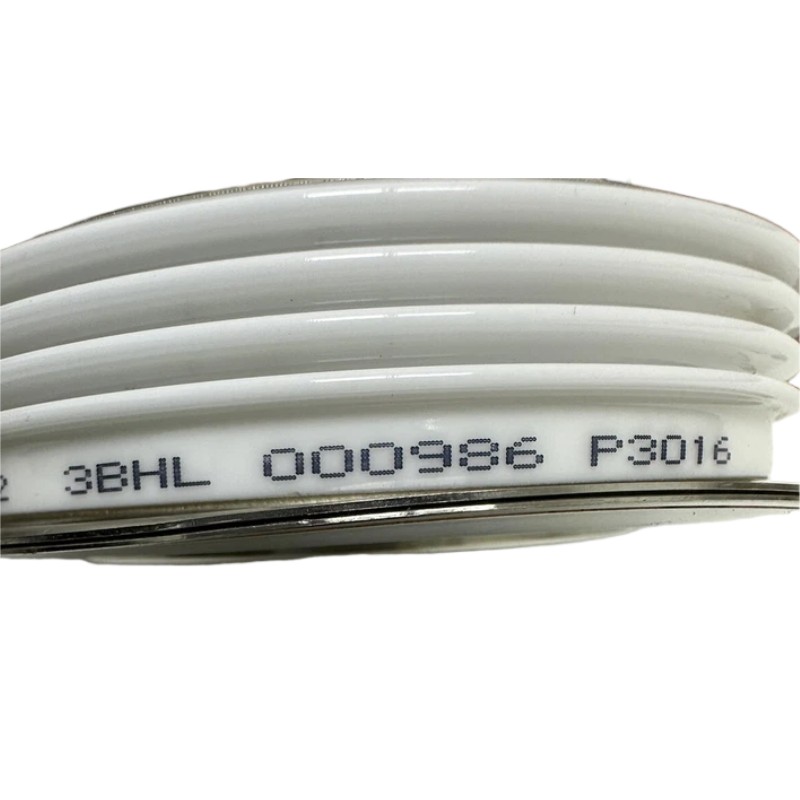

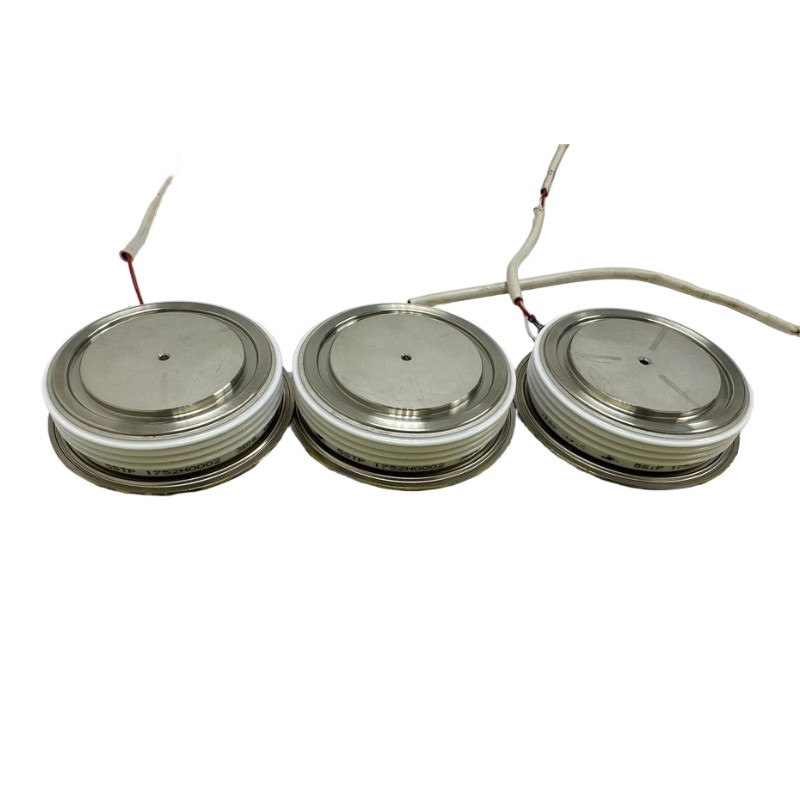

Name: ABB 5STP1752H000 / 3BHL000986P3016 High Power Thyristor
Brand: ABB PLC
SKU: 905
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:5STP1752H000 / 3BHL000986P3016
Product Origin:Sweden
Product Dimensions:83 mm × 26 mm
Product Weight:0.6kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB 5STP1752H000 (3BHL000986P3016) is a high-performance industrial power thyristor designed for demanding AC/DC conversion, protection, and heavy-duty control systems. Built for resilience under extreme electrical stress, it offers predictable switching behavior, excellent thermal conductivity, and outstanding surge current capability. This robust device is widely used in high-energy industrial environments where reliability cannot be compromised.

Technical Specifications

Item	Detail
Module Type	High Power Thyristor (SCR)
Model Numbers	5STP1752H000 / 3BHL000986P3016
Function	High-capacity switching for phase control & protection
Housing	Press-pack / disc-style industrial thyristor
Voltage Rating	High-voltage blocking capability (kV-class range)
Surge Current Rating	Supports very high non-repetitive surge currents
Thermal Design	Low on-state voltage drop for reduced heat generation
Cooling Method	Compatible with forced-air or conduction-cooled systems
Dimensions	Standard medium-to-large press-pack footprint
Weight	Approx. 0.45–1.06 kg depending on configuration
Material Construction	Industrial ceramic and high-conductivity metal interfaces

Applications

High-power rectifiers and AC/DC conversion stacks
Motor soft starters and heavy-duty industrial drives
Crowbar circuits for fast surge energy diversion
High-power inverter modules and industrial power control systems
Metallurgy furnace control and large-scale process power
Utility grid power stabilization and power factor control
Semiconductor protection and energy management systems

Advantages

Exceptional surge current handling ensures long-term system protection
Press-pack structure provides uniform pressure and excellent thermal performance
High reliability under continuous load, ideal for critical industrial operations
Low conduction losses due to optimized on-state characteristics
Superior thermal cycling endurance for long service life
Scalable architecture, suitable for series or parallel module designs
Industrial-grade construction, built to withstand harsh electrical and environmental conditions

Technical FAQs (10)

What type of device is the 5STP1752H000?
It is a high-power SCR thyristor for phase control and protection applications.
Can it be used in crowbar protection circuits?
Yes, it is commonly used for high-energy surge protection and fault diversion.
What housing format does it use?
A durable press-pack/disc style housing ideal for high-power stacks.
Does it support series or parallel operation?
Yes, the design accommodates multi-device stacking for higher power systems.
How does it manage heat?
The press-pack interface offers excellent thermal transfer for efficient cooling.
Is it suitable for high-voltage power control?
Yes, the device is engineered for high blocking voltage environments.
Does it require a specific cooling method?
Forced-air or conduction cooling is recommended, depending on load conditions.
Is it compatible with industrial SCR racks?
Yes, it fits into standard industrial thyristor stack configurations.
What industries commonly use this module?
Steel, mining, utilities, petrochemical, and high-energy process industries.
Does it offer low conduction loss?
Yes, its low on-state voltage reduces energy loss and enhances system efficiency.
