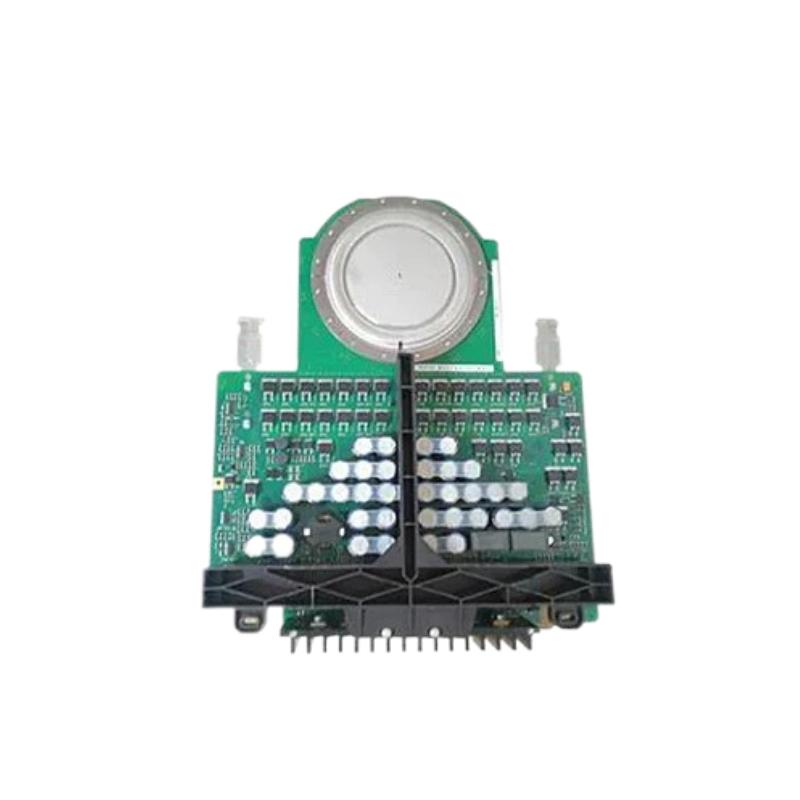

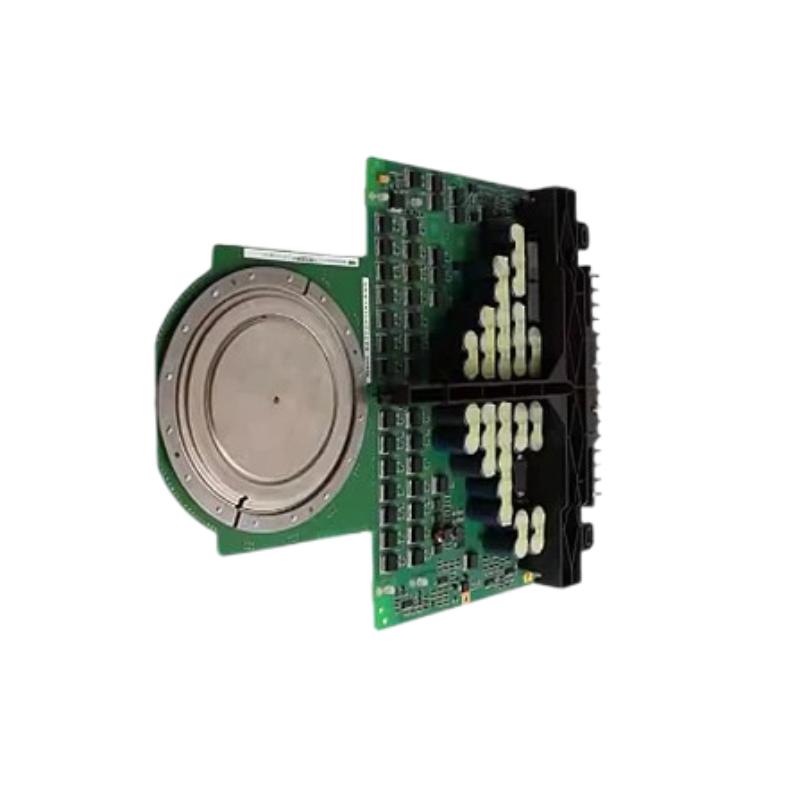

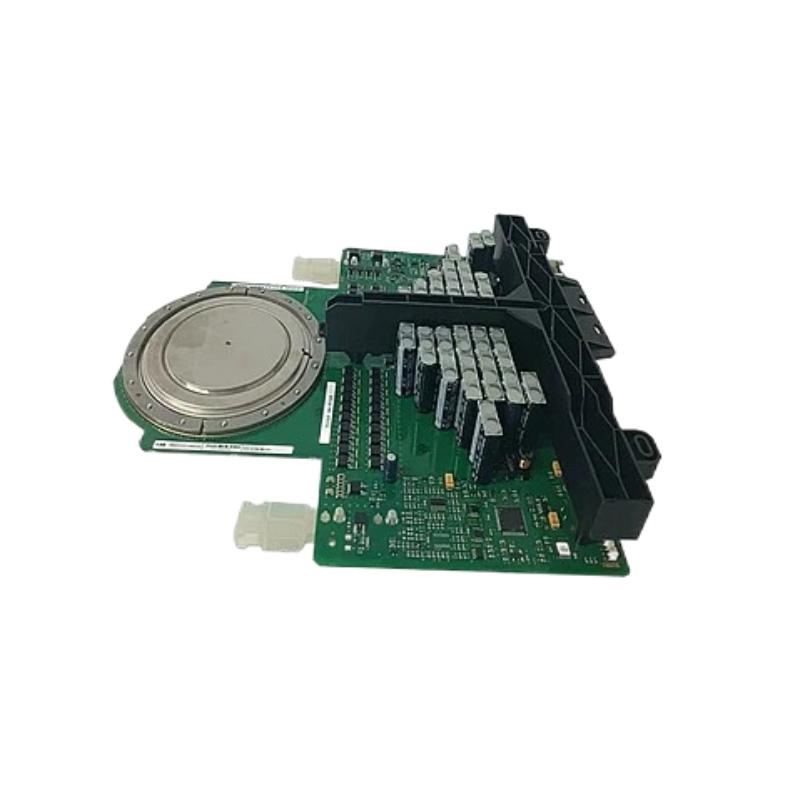

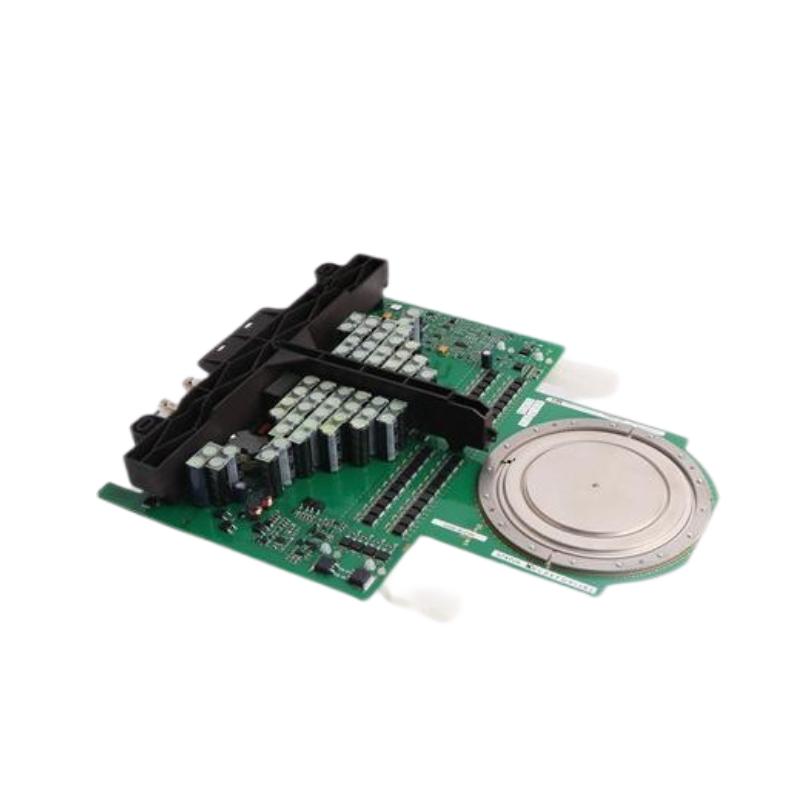

ABB 5SHY5055L0002 3BHB026114R0001 IGCT Modules

Brand:ABB PLC
Item No.:5SHY5055L0002 3BHB026114R0001
Product Origin:Sweden
Product Dimensions:500mm x 300mm x 200mm
Product Weight:3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

5SHY5055L0002 3BHB026114R0001 45SHY5055L0002 3BHB026114R0001 25SHY5055L0002 3BHB026114R0001 15SHY5055L0002 3BHB026114R0001 3

Introduction

The ABB 5SHY5055L0002 (part number 3BHB026114R0001) is a high-power IGCT (Integrated Gate-Commutated Thyristor) module designed for industrial power-electronics systems that demand exceptional efficiency, ruggedness, and long-term stability. Engineered for medium- and high-voltage applications, this module is widely used in HVDC systems, large-motor drives, medium-voltage inverters, and grid-stabilization equipment. Its powerful conduction capability and fast switching behavior make it a reliable choice for mission-critical environments.

Technical Specifications

ParameterDetail / Rating
Module TypeIGCT Power Module
Part Number5SHY5055L0002 / 3BHB026114R0001
Rated Voltage5.5 kV (asymmetric)
Current Handling CapabilityHigh-current capability suitable for large industrial converters
Switching TypeIGCT fast gate-commutated switching
MountingPress-pack / bolt-in power module
Operating / Junction Temperature Range–40 °C to +125 °C
Cooling RequirementForced cooling required (heat-sink or liquid-cooling integration)
WeightApprox. 3.3 kg
Typical System Voltage ClassMedium- to high-voltage power systems


Applications

The 5SHY5055L0002 IGCT Module is designed for large-scale industrial and power-grid environments where high power density and reliability are essential:

  • Medium- and high-voltage motor drives (steel, cement, mining, and petrochemical industries)

  • HVDC transmission and long-distance power-conversion systems

  • Medium-voltage inverters and large-capacity frequency converters

  • Static VAR compensators (SVC) and STATCOM units

  • Renewable-energy power conversion (wind turbine converters, solar inverters, energy-storage converters)

  • High-power industrial propulsion systems and large rotating machinery


Advantages

  • High-voltage, high-current capability ideal for heavy-duty industrial and power-grid applications

  • Fast, efficient IGCT switching ensures lower conduction losses and increased overall system efficiency

  • Extremely rugged construction designed to withstand severe mechanical, thermal, and electrical stress

  • Wide operating temperature range supports continuous operation in harsh environments

  • Scalable modular design allows the module to be integrated into large converters and inverter stacks

  • High reliability proven IGCT architecture offers long service life and stable operation under demanding loads


Technical FAQs (10)

  1. What type of device is the 5SHY5055L0002?
    It is an IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module designed for high-power switching.

  2. What is the main voltage rating?
    The module operates at approximately 5.5 kV, suitable for high-voltage power-electronics systems.

  3. Is it suitable for industrial motor drives?
    Yes — it is commonly used in large medium-/high-voltage drives.

  4. Does it support fast switching?
    Yes — IGCT technology supports fast and efficient gate-controlled switching.

  5. What cooling method is required?
    Forced cooling, such as liquid cooling or a high-capacity heat-sink assembly, is required.

  6. Can the module be used in HVDC systems?
    Absolutely — IGCT modules are standard in HVDC converters due to their high power density and reliability.

  7. Is press-pack mounting necessary?
    Yes — the module is designed for press-pack or bolt-in installation due to its mechanical and thermal characteristics.

  8. What is the operating temperature range?
    Approximately –40 °C to +125 °C junction temperature.

  9. Can the module be paralleled or stacked?
    Yes — multiple IGCT modules can be used in series or parallel when designed with appropriate balancing and protection.

  10. What industries typically use this module?
    Heavy industry, power transmission, renewable-energy systems, and any application requiring high-voltage power conversion.
