Introduction

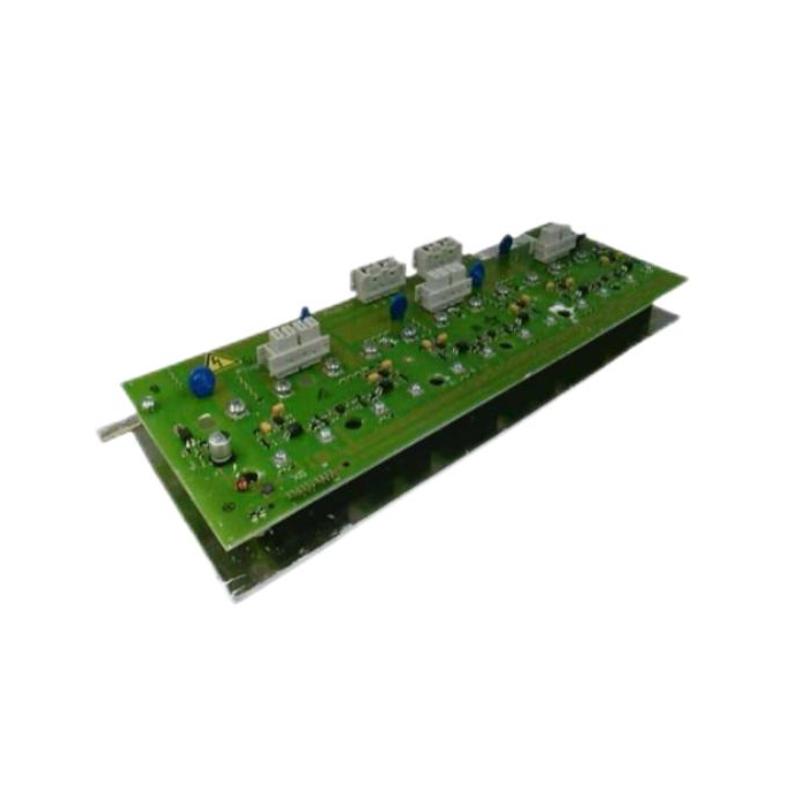

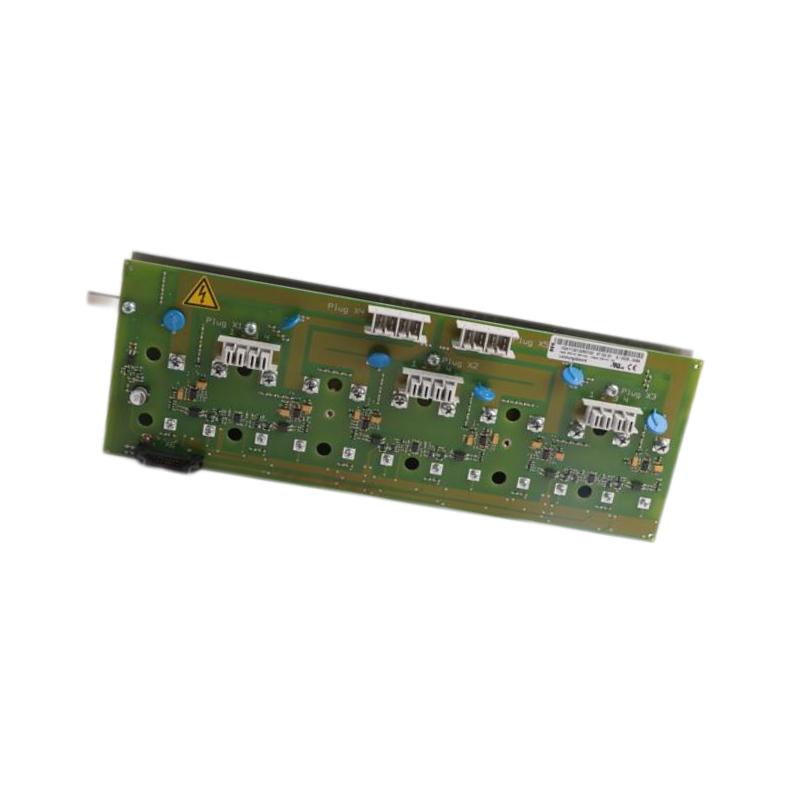

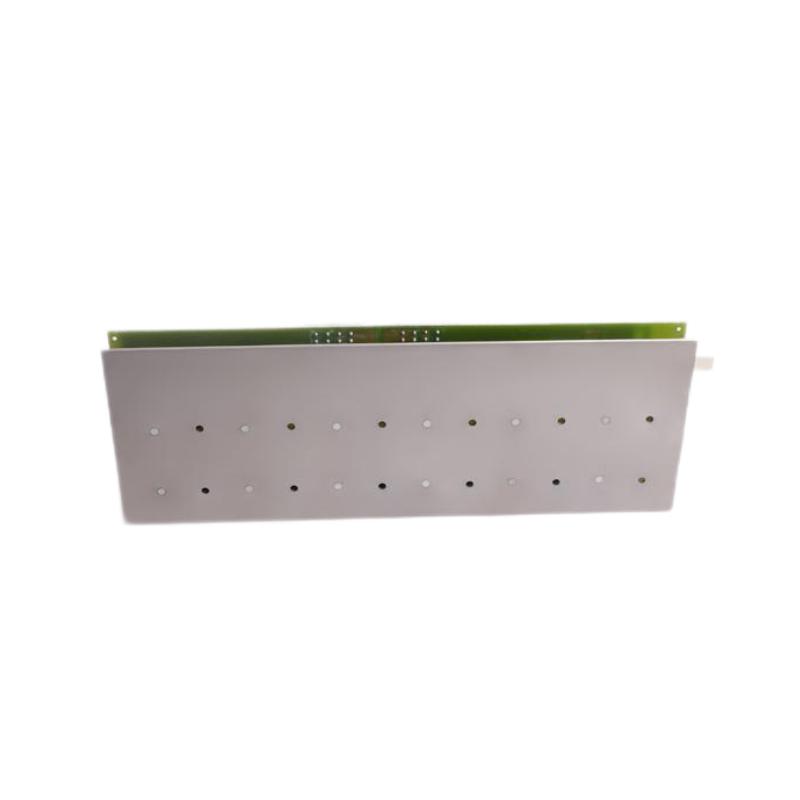

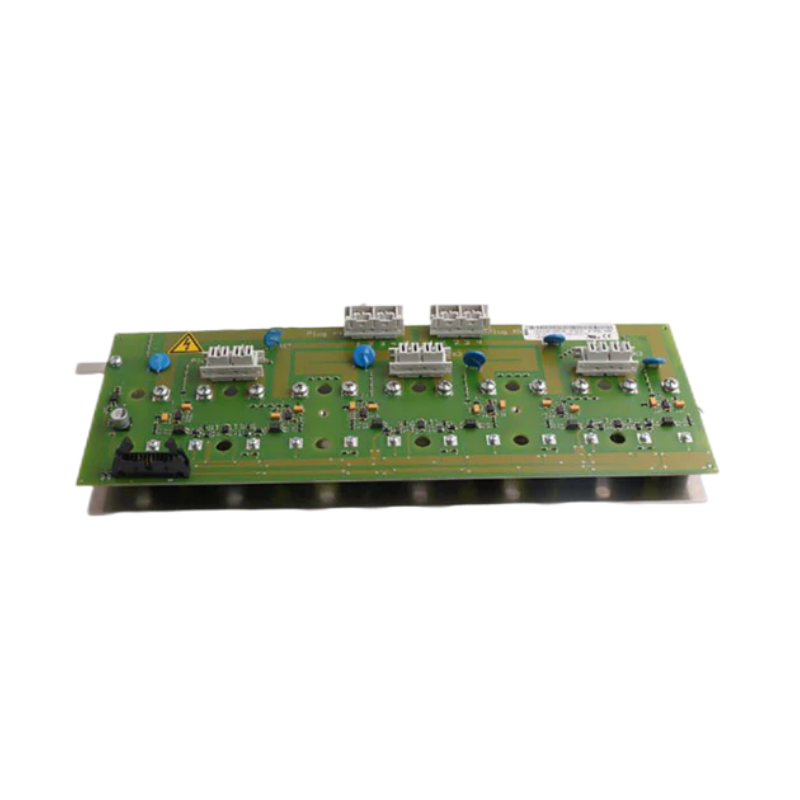

The ABB 07SS91 1SAY130130R0100 is a high-performance Output Control Board designed for ABB automation systems. Serving as a crucial interface between control logic and actuators, this board provides reliable switching and output management for industrial processes. With robust electrical design, precise signal handling, and compatibility with ABB control modules, it is ideal for distributed control systems, machine automation, and retrofitting older installations.
Technical Specifications
| Item | Detail |
|---|---|
| Module Type | Output Control Board |
| Model / Part Number | 07SS91 / 1SAY130130R0100 |
| System Compatibility | ABB Advant / Master platforms |
| Output Type | Relay / transistor outputs (configurable) |
| Number of Outputs | 16 digital outputs standard (may vary by configuration) |
| Switching Capacity | Up to 24 V DC / 2 A per output (typical) |
| Isolation | Electrical isolation between channels and control logic |
| Operating Temperature | 0 … +55 °C |
| Storage Temperature | –25 … +70 °C |
| Mounting | Rack-mounted module in ABB control cabinets |
| Dimensions (W × H × D) | 120 mm × 100 mm × 40 mm |
| Weight | Approx. 0.45 kg |
