Introduction

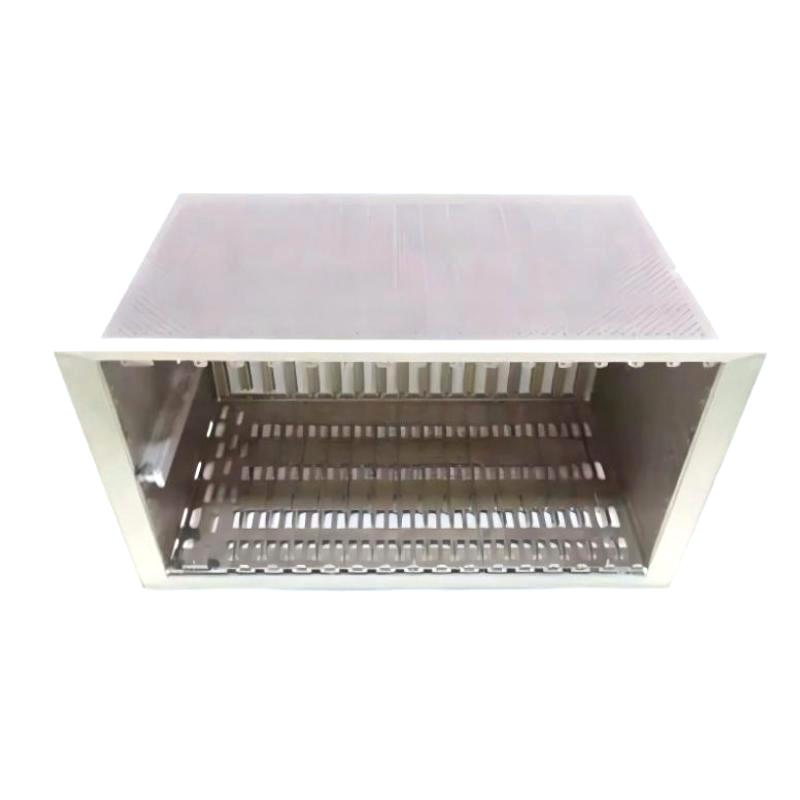

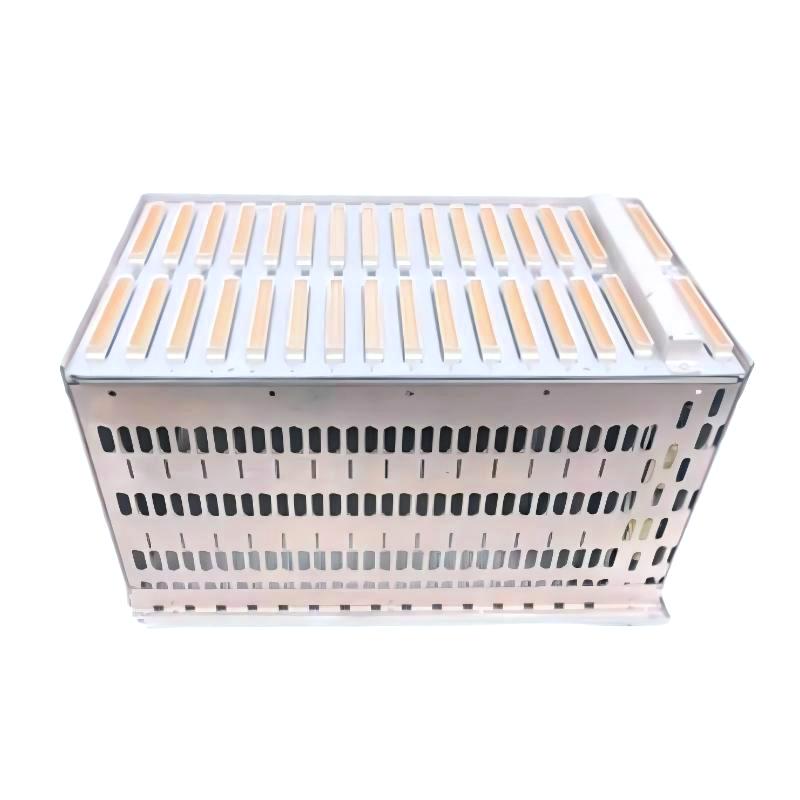

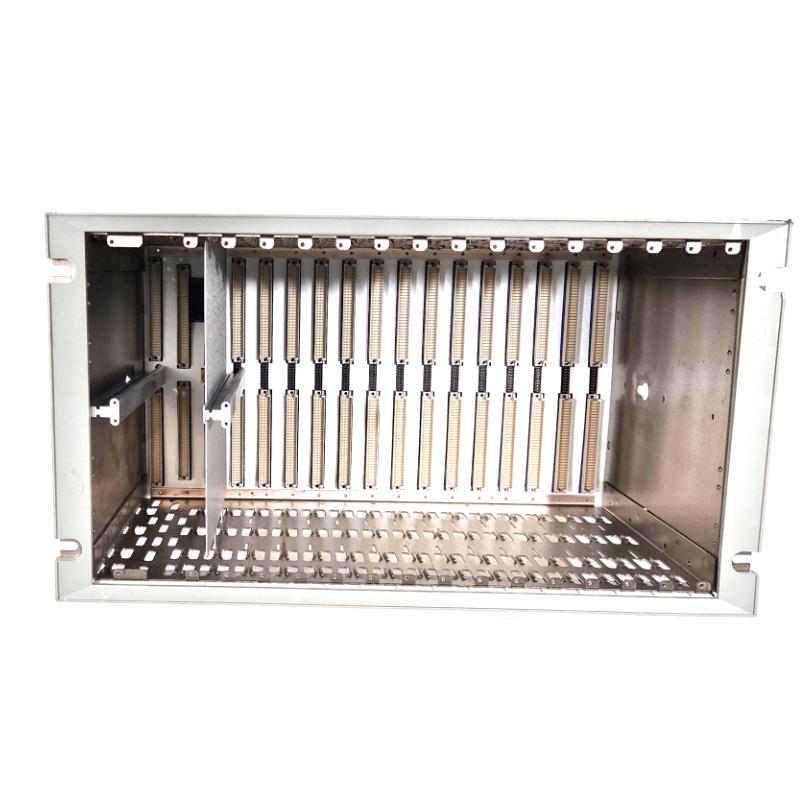

The Bently Nevada 3500/05-01-02-05-00-01 System Rack is built to securely house multiple modules within the 3500 series machinery protection and monitoring system. Its industrial-grade steel construction ensures mechanical stability, proper grounding, and efficient integration with system backplanes, providing reliable performance in demanding industrial environments.
Technical Specifications
| Parameter | Description |
|---|
| Module Type | System Rack |
| Model / Ordering Code | 3500/05-01-02-05-00-01 |
| Rack Size | 19-inch, 14 module slots |
| Weight | 4.5 kg |
| Function | Housing and interconnection for monitoring modules |
| Construction | Industrial-grade steel with reinforced mounting and ventilation |
| Mounting | Standard 19-inch rack installation |
| Interface | Compatible backplane for Bently Nevada 3500 series modules |
Applications
• Centralized housing for 3500 series monitoring and protection modules
• Machinery vibration and condition monitoring
• System expansions requiring organized multi-slot integration
• Retrofit and maintenance of industrial monitoring systems
• Secure mounting platform for PLC and signal processing modules
Advantages
• High reliability for continuous industrial operation
• Robust steel construction for long-term durability
• Supports flexible module configurations
• Organized layout simplifies installation and wiring
• Ventilation slots for thermal management
• Compatible with all Bently Nevada 3500 series modules
Technical FAQs
-
Does the system rack support all 3500 series modules?
Yes, it is fully compatible with all modules in the 3500 series.
-
How many modules can the rack hold?
It accommodates up to 14 modules.
-
What type of mounting is required?
Standard 19-inch rack installation.
-
Does the rack provide cooling for installed modules?
Ventilation slots allow passive cooling and heat dissipation.
-
Can it be wall-mounted?
It is primarily designed for rack installation; wall mounting requires additional hardware.
-
Does it include grounding provisions?
Yes, the rack provides secure grounding for safety and signal integrity.
-
Is it resistant to industrial vibration?
Yes, the steel construction ensures mechanical stability in harsh environments.
-
What is the empty weight of the rack?
The empty rack weighs 4.5 kg.
-
Can the system be expanded in the future?
Expansion requires additional racks or larger enclosures.
-
Is it suitable for harsh industrial environments?
Yes, it is designed to withstand demanding industrial conditions.
