Introduction

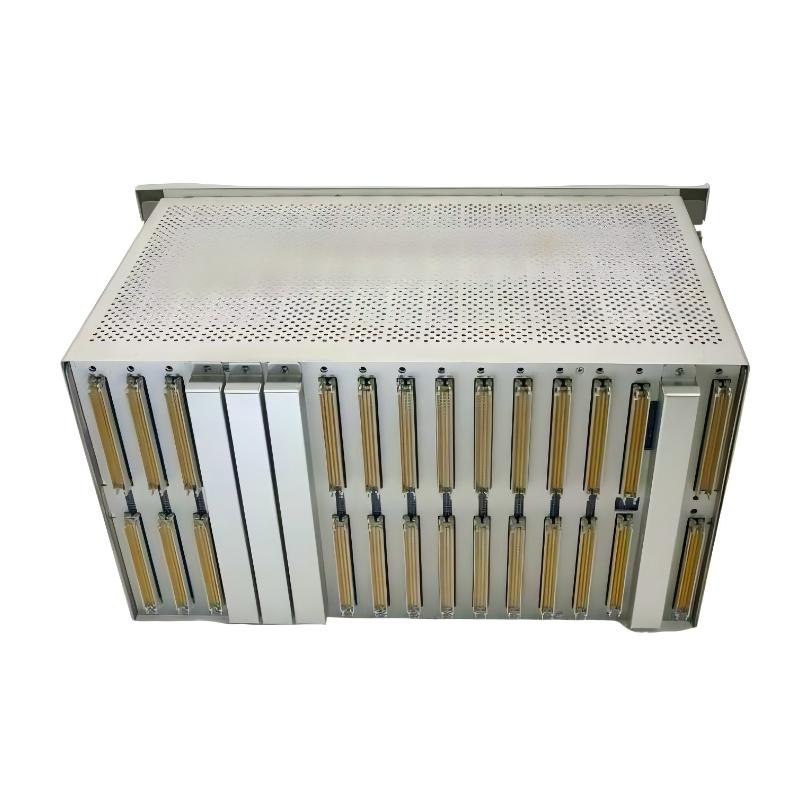

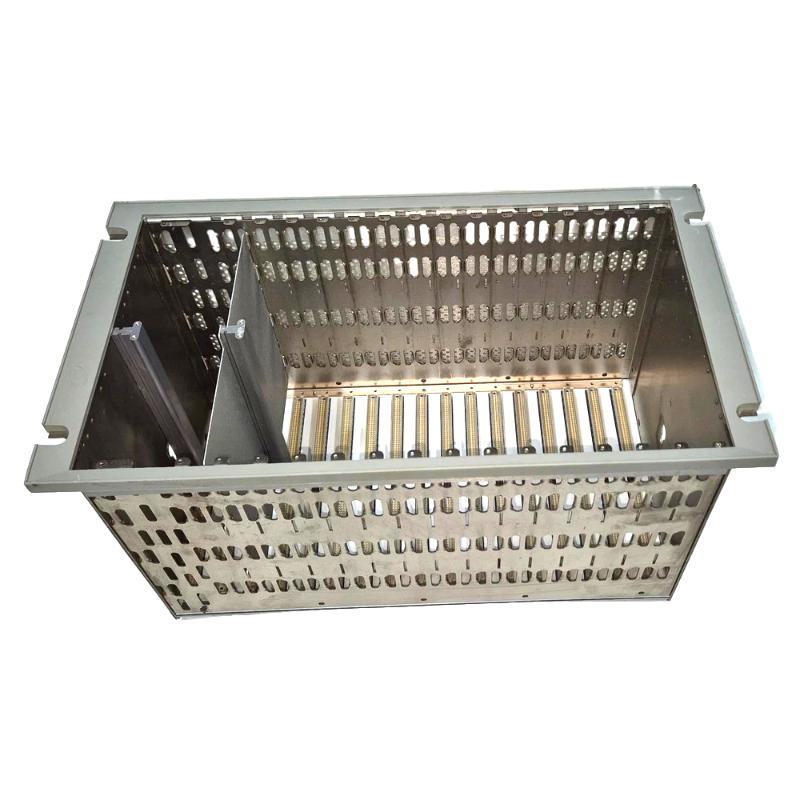

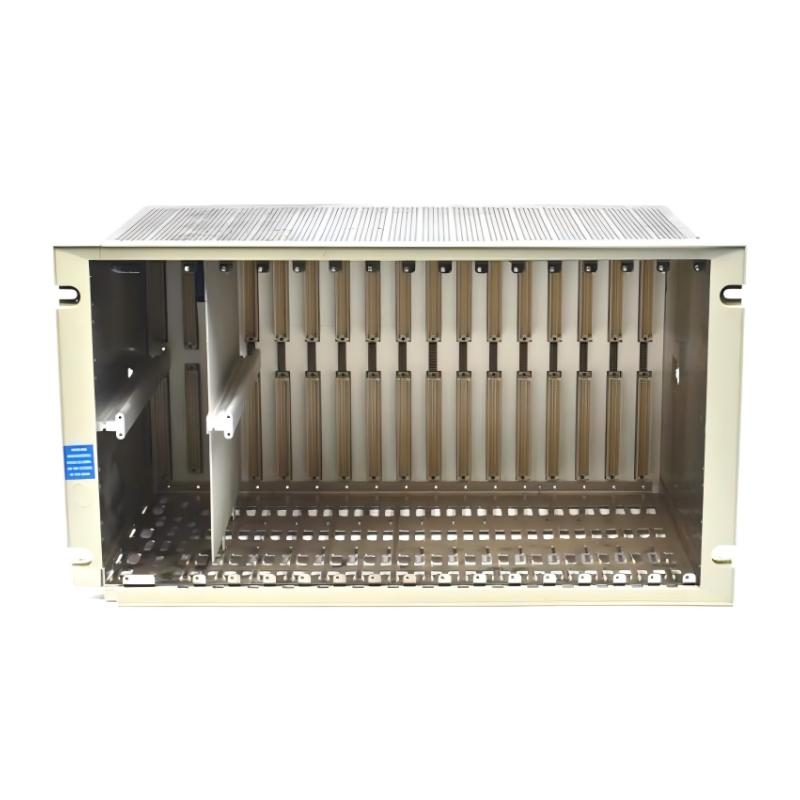

The Bently Nevada 3500/05-01-02-01-00-01 System Rack is engineered to securely house modules within the 3500 series machinery protection and monitoring system. Its sturdy construction provides mechanical stability, organized module alignment, and seamless integration with system backplanes, ensuring reliable operation in demanding industrial environments.
Technical Specifications
| Parameter | Description |
|---|
| Module Type | System Rack |
| Model / Ordering Code | 3500/05-01-02-01-00-01 |
| Rack Size | 19-inch, 14 module slots |
| Weight | 4.5 kg |
| Function | Housing and interconnection for monitoring modules |
| Construction | Industrial-grade steel with reinforced mounting and ventilation |
| Mounting | Standard 19-inch rack installation |
| Interface | Compatible backplane for Bently Nevada 3500 series modules |
Applications
• Centralized housing for 3500 series monitoring and protection modules
• Machinery vibration and condition monitoring
• System expansions requiring organized multi-slot integration
• Retrofit and maintenance of industrial monitoring systems
• Secure mounting platform for PLC and signal processing modules
Advantages
• High reliability for continuous industrial operation
• Robust steel construction for long-term durability
• Supports flexible module configurations
• Organized layout simplifies installation and wiring
• Ventilation slots for thermal management
• Compatible with all Bently Nevada 3500 series modules
Technical FAQs
-
Does the system rack support all 3500 series modules?
Yes, it is fully compatible with all modules in the 3500 series.
-
How many modules can the rack hold?
It accommodates up to 14 modules.
-
What type of mounting is required?
Standard 19-inch rack installation.
-
Does the rack provide cooling for installed modules?
Ventilation slots allow passive cooling and heat dissipation.
-
Can it be wall-mounted?
It is primarily designed for rack installation; wall mounting requires additional hardware.
-
Does it include grounding provisions?
Yes, the rack provides secure grounding for safety and signal integrity.
-
Is it resistant to industrial vibration?
Yes, the steel construction ensures mechanical stability in harsh environments.
-
What is the empty weight of the rack?
The empty rack weighs 4.5 kg.
-
Can the system be expanded in the future?
Expansion requires additional racks or larger enclosures.
-
Is it suitable for harsh industrial environments?
Yes, it is designed to withstand demanding industrial conditions.
