High-Stability Vibration Measurement for Critical Rotating Machinery

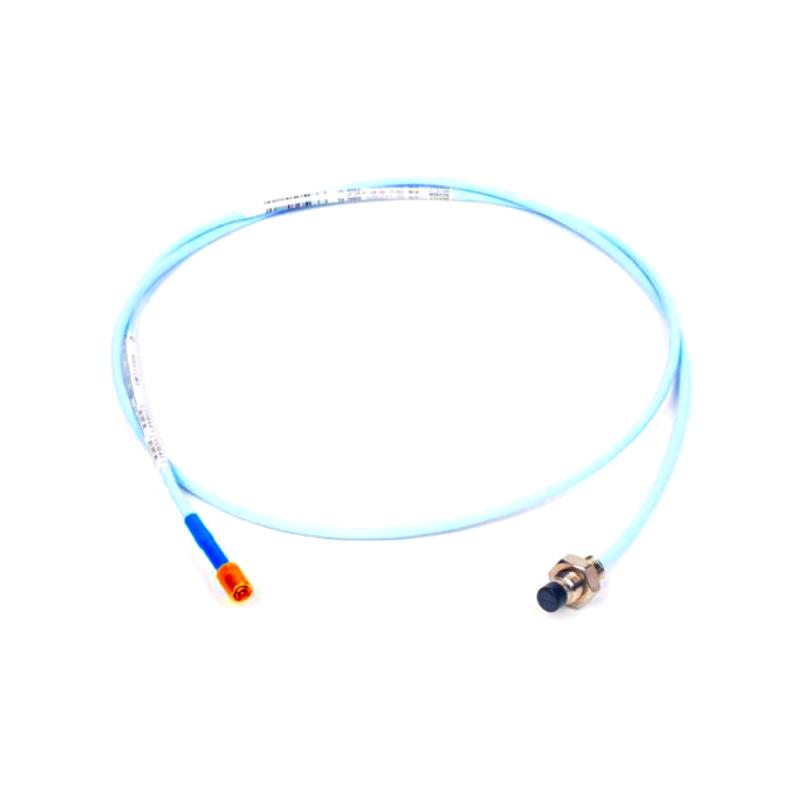

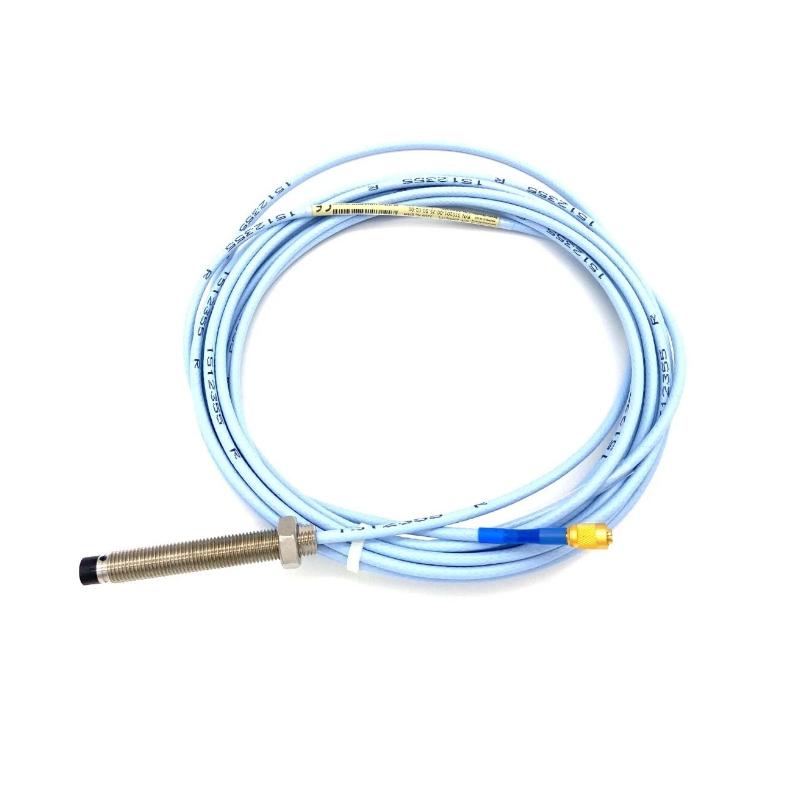

The Bently Nevada 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe is a precision eddy current sensor engineered for continuous, non-contact monitoring of shaft vibration and displacement. As part of the proven 3300 XL proximity transducer system, it delivers stable signal output, strong linear accuracy, and excellent long-term reliability in demanding industrial environments.
The “36” case length configuration (3.6 inches) provides extended mechanical reach, making it suitable for installations requiring deeper probe mounting positions or thicker machinery housings. The “05” cable length (0.5 m / 1.6 ft) and “02-05” configuration typically indicate ClickLoc connector design with standard cable and global approval options for industrial deployment.
Technical Specifications (Including Dimensions & Weight)
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-36-05-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current Technology |
| Function | Shaft vibration & displacement monitoring |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Length Option | 3.6 in (“36”) |
| Cable Length Option | 0.5 m (“05”) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard industrial cable |
| Housing Material | Stainless steel |
| System Compatibility | 3300 XL Proximitor Systems |
| Approx. Dimensions | ~160 × 16 × 16 mm |
| Approx. Weight | ~0.323 kg |
Applications
This probe is widely used in rotating machinery condition monitoring where precision and reliability are essential:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring
-
Centrifugal compressor protection
-
Industrial pump shaft displacement tracking
-
Generator rotor vibration analysis
-
Electric motor condition monitoring
-
Oil & gas production systems
-
Petrochemical processing facilities
Its non-contact eddy current measurement enables early detection of imbalance, misalignment, shaft looseness, and bearing wear before they escalate into equipment failure.
Advantages
Extended Mechanical Installation Flexibility
The 3.6-inch case design allows deeper mounting capability in complex machinery structures.
Stable Industrial Signal Performance
Delivers consistent vibration data for accurate trending and predictive diagnostics.
Rugged Construction for Harsh Environments
Stainless steel body ensures resistance to vibration, heat, and industrial contamination.
Seamless System Integration
Fully compatible with Bently Nevada 3300 XL Proximitor systems for plug-and-play interchangeability.
Predictive Maintenance Support
Helps identify early-stage mechanical degradation, reducing downtime risk and improving asset lifespan.
Technical FAQs
1. What is the function of this probe?
It measures shaft vibration and displacement without physical contact.
2. What technology does it use?
It uses eddy current sensing technology for high-precision monitoring.
3. What does the “36” represent?
It indicates a 3.6-inch case length configuration.
4. What does the “05” represent?
It typically refers to a 0.5 m cable length option.
5. Is it compatible with 3300 XL systems?
Yes, it is fully compatible with the Bently Nevada 3300 XL Proximitor system.
6. Can it operate continuously?
Yes, it is designed for continuous industrial condition monitoring.
7. What industries use it?
Power generation, oil & gas, petrochemical, manufacturing, and heavy industry.
8. What equipment is monitored?
Turbines, compressors, pumps, motors, and generators.
9. Is it suitable for harsh environments?
Yes, it is engineered for industrial-grade operating conditions.
10. Why is the 3300 XL series widely trusted?
Because it offers stable accuracy, modular interchangeability, and long-term reliability in critical machinery protection systems.
