Advanced Flame Safeguard Control for Industrial Combustion Systems

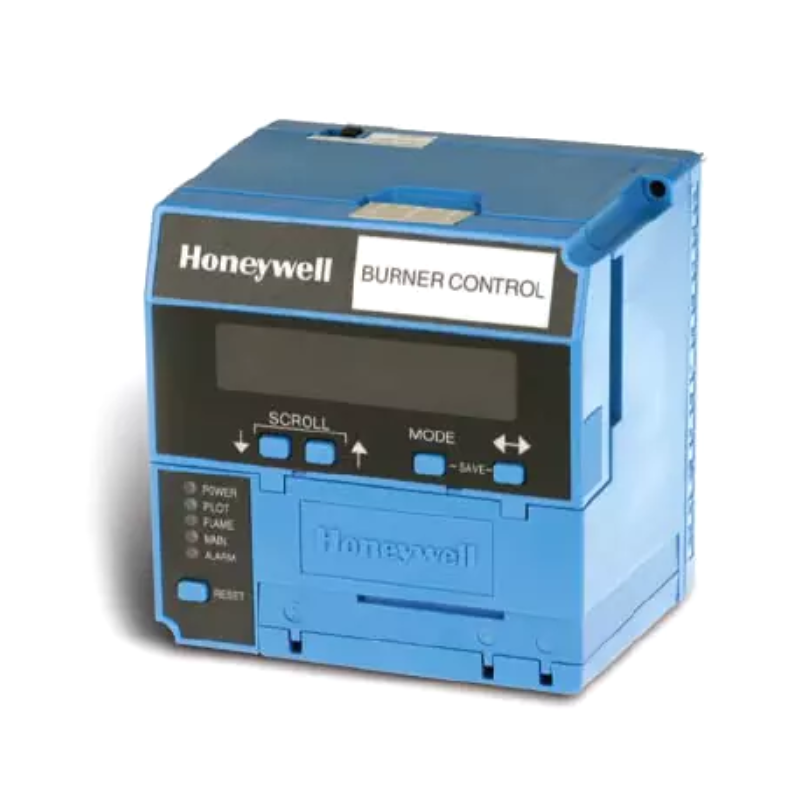

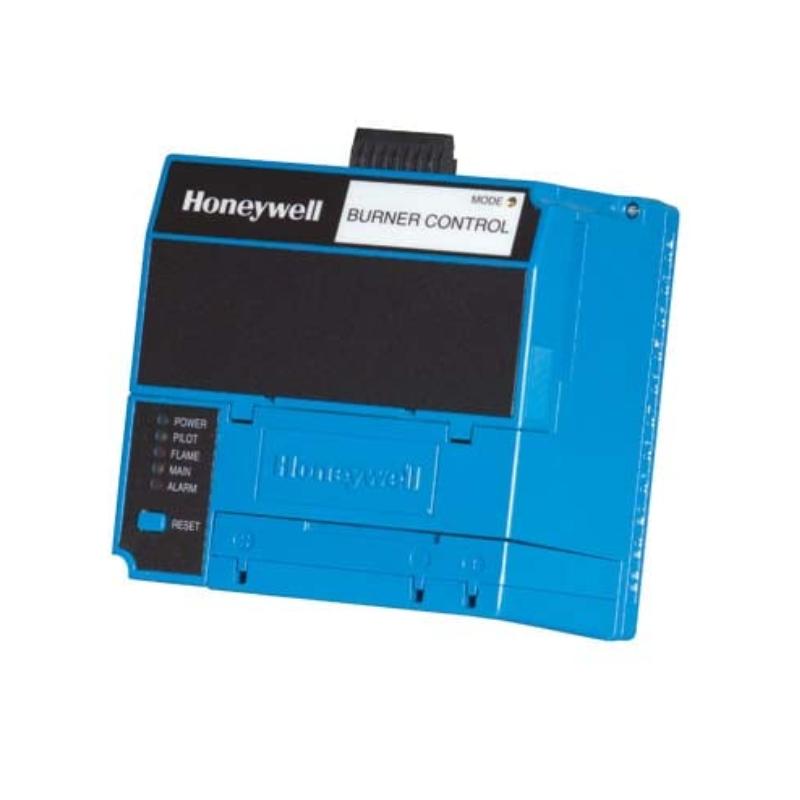

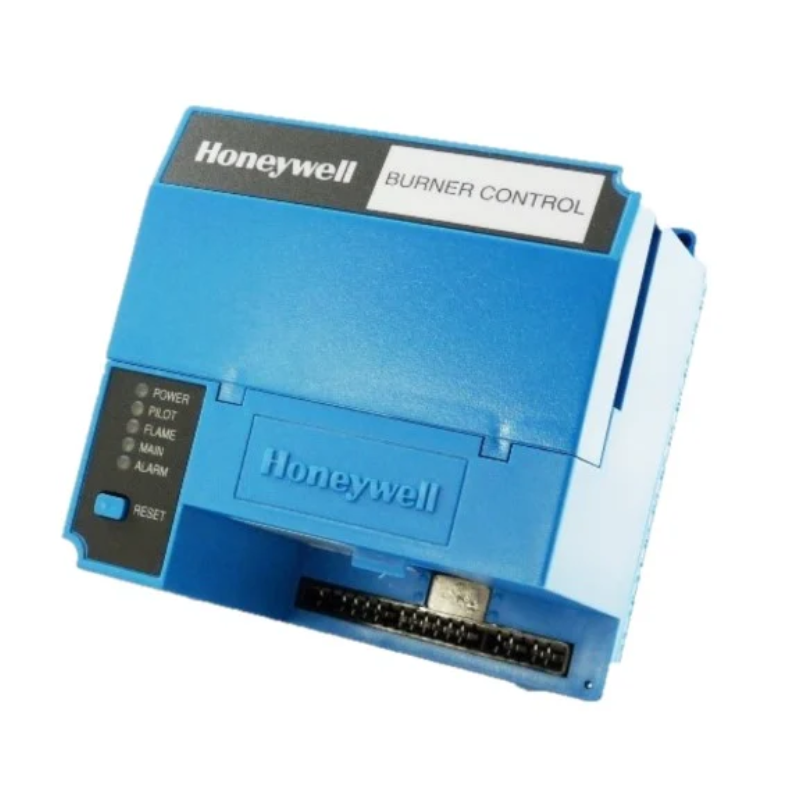

The Honeywell RM7800G1018 Burner Control Unit is a dependable flame safeguard relay module engineered for modern burner management applications. Designed for high-demand industrial and commercial combustion systems, this unit delivers precise burner sequencing, continuous flame supervision, and advanced operational diagnostics to support safe and efficient performance.
Known for its stability and intelligent control architecture, the RM7800G1018 is widely used in heating systems where reliability and operational continuity are essential. Its modular design simplifies installation and maintenance while helping operators improve burner efficiency and system visibility.
From large boiler installations to process heating environments, this Honeywell control unit provides trusted combustion management performance with long-term durability.
Engineering Specifications & Product Data
| Technical Item | Details |
|---|
| Product Name | Honeywell RM7800G1018 |
| Product Type | Burner Control Unit |
| Series | RM7800 Series |
| Primary Function | Flame Safeguard & Burner Sequencing |
| Input Voltage | 120 VAC |
| Frequency Rating | 50/60 Hz |
| Flame Detection Support | UV, IR, Rectification Amplifiers |
| Safety Monitoring | Integrated Self-Check Diagnostics |
| Display Compatibility | Supports Keyboard Display Modules |
| Mounting Configuration | Modular Plug-In Design |
| Operating Environment | Industrial & Commercial Applications |
| Status Indicators | LED Diagnostic Indicators |
| Housing Material | Industrial Thermoplastic Enclosure |
| Dimensions | Approx. 13.0 × 10.5 × 10.0 cm |
| Weight | Approx. 1.0 kg |
Industrial Usage Scenarios
The RM7800G1018 is designed for critical burner management applications requiring accurate flame monitoring and secure operational sequencing.
Frequently Used In
-
Industrial burner systems
-
Commercial boilers
-
Gas-fired combustion equipment
-
Thermal processing systems
-
Steam generation facilities
-
Petrochemical heating systems
-
Food and beverage processing plants
-
Metal treatment furnaces
-
Textile manufacturing equipment
-
Building heating automation systems
Its adaptable modular platform makes it suitable for both newly designed systems and modernization projects.
Core Product Advantages
Intelligent Flame Monitoring
The control unit continuously supervises flame conditions and burner operation to support stable and secure combustion performance.
Fast Diagnostic Access
Built-in LED indicators and display compatibility allow technicians to quickly identify system conditions and reduce troubleshooting time.
Reliable Continuous Operation
Designed for industrial-duty environments, the RM7800G1018 delivers dependable long-term performance under demanding operating conditions.
Flexible System Compatibility
The unit supports multiple amplifier and sensor configurations, making integration easier across various combustion systems.
Simplified Maintenance
Its modular structure allows faster replacement and servicing, minimizing downtime during maintenance operations.
Technical FAQs
1. What is the main purpose of the RM7800G1018?
The unit controls burner startup, flame monitoring, shutdown sequencing, and combustion safety management.
2. Is the RM7800G1018 suitable for commercial boiler systems?
Yes. It is commonly installed in commercial and industrial boiler applications.
3. Can this control unit work with different flame detectors?
Yes. It supports compatible ultraviolet, infrared, and rectification flame amplifiers.
4. Does the unit include diagnostic capabilities?
Yes. Integrated LED diagnostics provide operational and fault status information.
5. What power input does the module require?
The RM7800G1018 operates using a 120 VAC power supply.
6. Is this burner control unit designed for industrial environments?
Yes. It is engineered for demanding industrial combustion applications requiring stable performance.
7. Can the module help reduce maintenance time?
Yes. Diagnostic feedback and modular replacement capability help streamline maintenance procedures.
8. Is the RM7800G1018 compatible with Honeywell display modules?
Yes. It supports compatible display interfaces for enhanced monitoring and troubleshooting.
9. What industries typically use this model?
Industries including manufacturing, petrochemical, food processing, utilities, and commercial heating commonly use this unit.
10. Can the module be integrated into retrofit burner systems?
Yes. Its modular architecture supports both retrofit and new system integration projects.
