Heavy-Duty Capacitor Switching Solution for Reliable Power Factor Systems

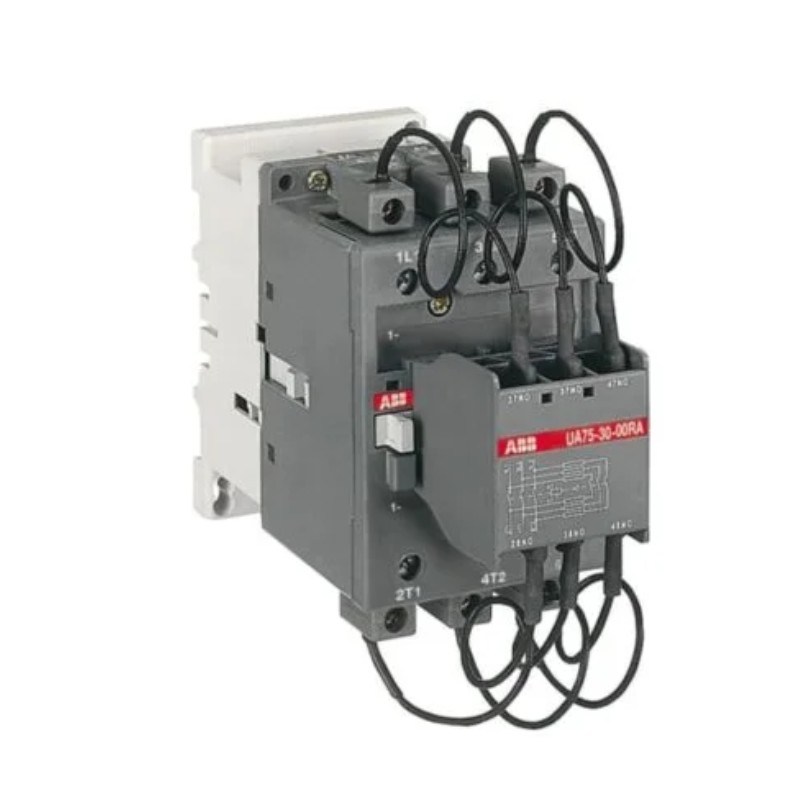

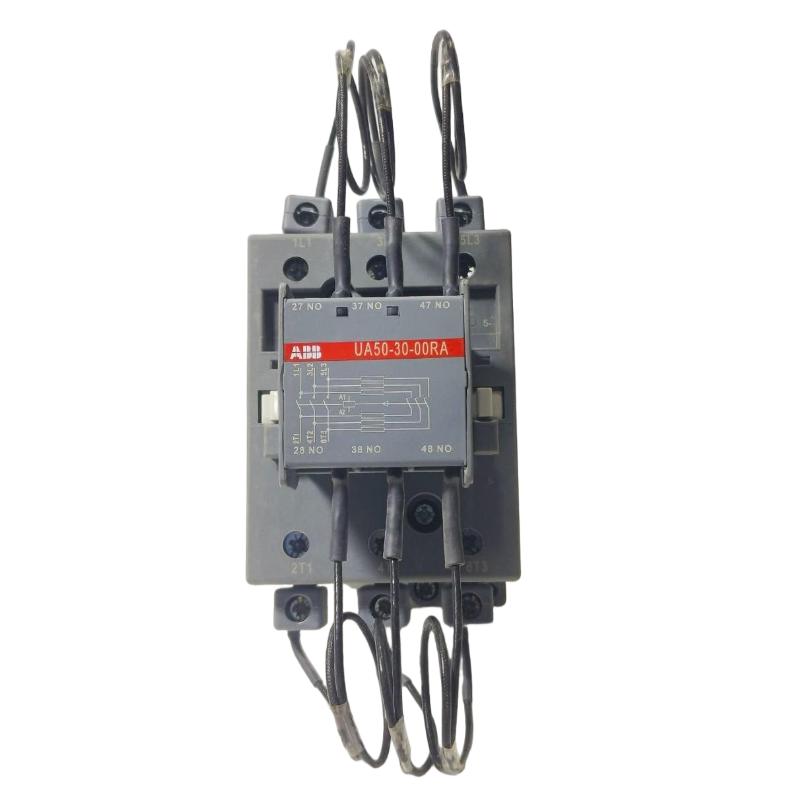

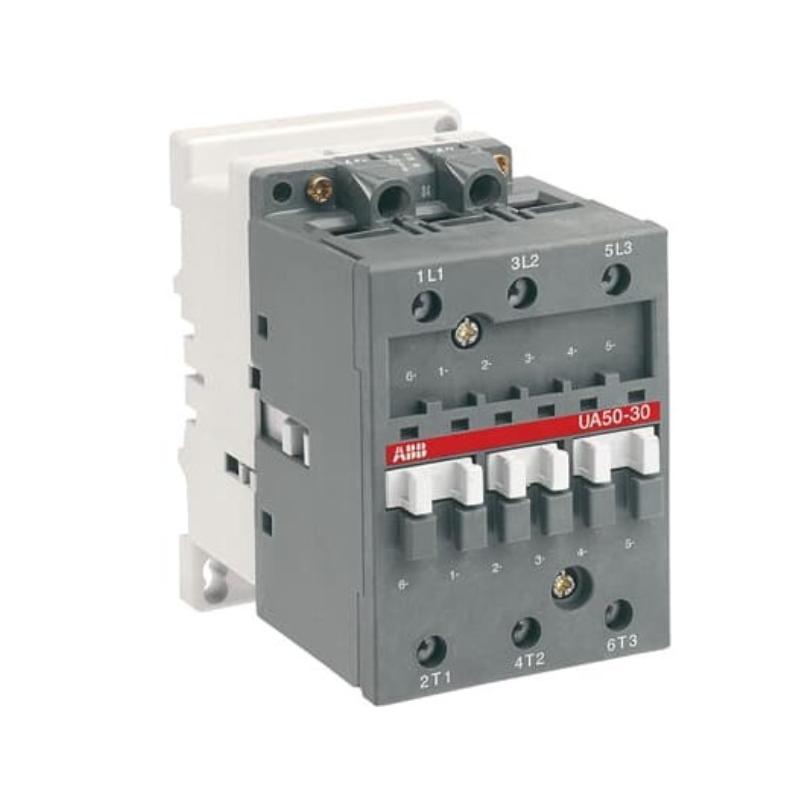

The ABB UA50-30-00RA 1SBL351024R8000 Capacitor Contactor is a specialized 3-pole switching device designed for capacitor bank applications in power factor correction systems. It is engineered to safely handle high inrush currents generated during capacitor switching, ensuring stable and long-life operation in industrial electrical networks.
Unlike standard contactors, this model integrates pre-insertion damping resistors, making it highly effective for reducing electrical stress during capacitor energization. This results in improved system reliability, reduced wear on capacitors, and smoother switching performance in reactive power compensation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | UA50-30-00RA |
| Part Number | 1SBL351024R8000 |
| Product Type | Capacitor Duty Contactor |
| Poles | 3 main poles |
| Rated Power (400–415 V) | Up to 40 kVAr |
| Control Coil Voltage | 220–230 V AC (50 Hz), 230–240 V AC (60 Hz) |
| Switching Function | Capacitor bank switching with pre-charge resistors |
| Electrical Life | Up to 250,000 cycles (<500 V) |
| Mechanical Life | ~3 million operations |
| Operating Temperature | -40°C to +70°C |
| Installation Type | Panel / DIN rail mounted |
| Protection Class | IP20 (coil), IP10 (terminals) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Weight | Approx. 1.35 kg |
| Dimensions | Approx. 150 × 70 × 140 mm |
Industrial Applications
The ABB UA50-30-00RA capacitor contactor is widely used in electrical systems where reactive power compensation is required:
-
Power factor correction capacitor banks
-
Industrial electrical distribution systems
-
Manufacturing plants and heavy machinery facilities
-
Commercial building power optimization systems
-
Renewable energy grid stabilization systems
-
HVAC and large motor-driven installations
-
Utility substations and distribution panels
Its controlled switching design helps prevent harmful current spikes during capacitor energization.
Key Advantages
Controlled Capacitor Switching
Built-in pre-insertion resistors significantly reduce inrush current, protecting both capacitors and electrical networks.
Extended Equipment Lifespan
Minimizes electrical and thermal stress, increasing the operational life of capacitor banks.
High Reliability Operation
Designed for intensive switching cycles with consistent long-term performance in industrial environments.
Stable Power Factor Improvement
Ensures smooth capacitor engagement for efficient reactive power compensation.
ABB Engineering Quality
Manufactured to IEC standards for dependable operation in global industrial applications.
Reduced Electrical Stress
Pre-charging function helps avoid damaging current peaks during switching events.
Technical FAQs
1. What is the main function of this capacitor contactor?
It switches capacitor banks in power factor correction systems while limiting inrush current.
2. Why is it different from a standard contactor?
It includes pre-insertion resistors to control high switching currents.
3. Where is it commonly used?
It is used in industrial power factor correction and capacitor bank systems.
4. What is its rated power?
Up to 40 kVAr at 400–415 V systems.
5. What is the coil voltage?
220–230 V AC (50 Hz) or 230–240 V AC (60 Hz).
6. What is its electrical lifespan?
Up to 250,000 electrical switching cycles under rated conditions.
7. Can it handle high inrush currents?
Yes, it is specifically designed for capacitor inrush current management.
8. What is its operating temperature range?
From -40°C to +70°C.
9. Does it require additional resistors?
No, it already includes integrated damping resistors.
10. Why is capacitor switching control important?
It prevents damage to capacitors and reduces stress on electrical networks during switching.
