Introduction

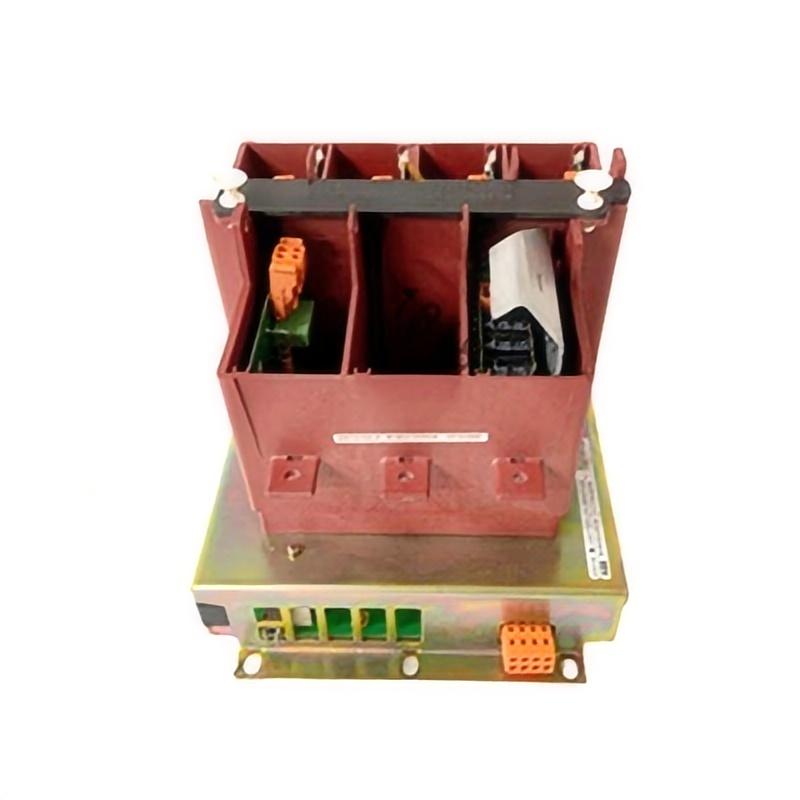

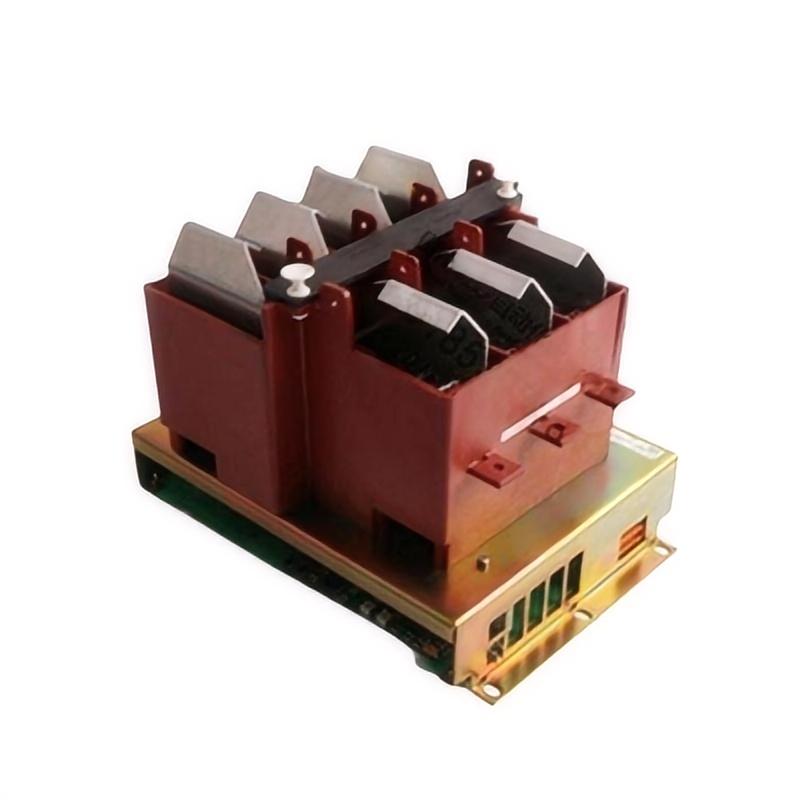

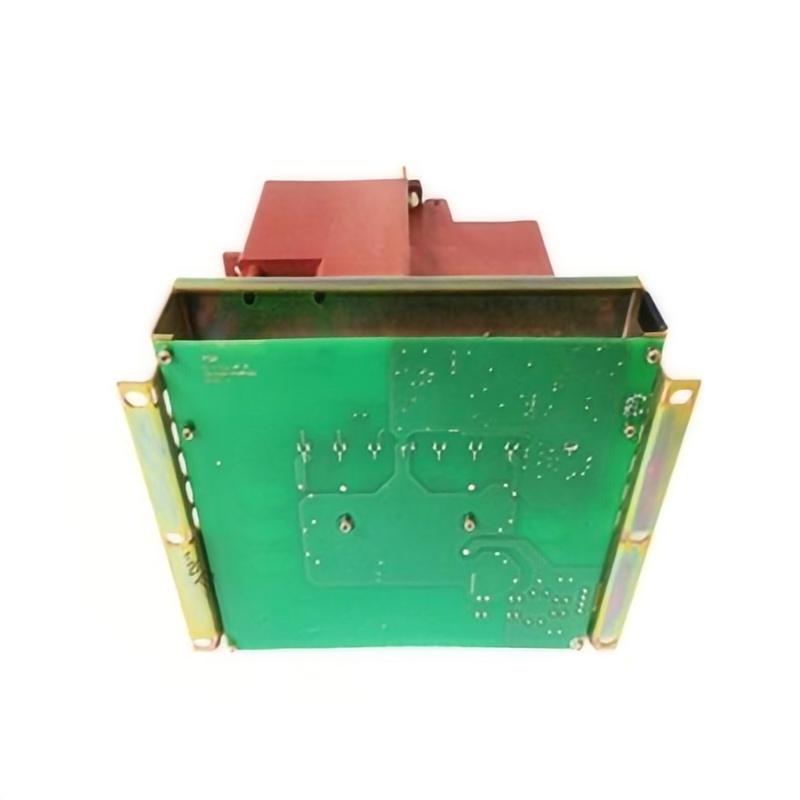

The ABB T60407-B4803-X010 (3BHB004719R0001) Pulse Transformer is a high-voltage industrial transformer designed for precise pulse signal transmission in power electronics systems. It is commonly used in ABB medium-voltage drives and power conversion systems, where accurate gating and isolation of control pulses are required.
This component plays a key role in IGBT/thyristor firing circuits, ensuring reliable signal transfer between control electronics and power switching devices while maintaining electrical isolation and signal integrity.
Technical Specifications
| Item | Description |
|---|
| Product Type | Pulse Transformer |
| Model | T60407-B4803-X010 |
| ABB Part Number | 3BHB004719R0001 |
| Function | Pulse signal transmission & electrical isolation |
| Application | Medium voltage drive firing circuits |
| Rated Isolation Voltage | up to 10 kV |
| Operating Principle | Electromagnetic pulse transfer |
| System Compatibility | ABB ACS5000 / ACS6000 drive systems |
| Installation Type | Internal drive module / PCB-mounted component |
| Insulation Class | Industrial high-voltage insulation design |
Applications
The ABB pulse transformer is widely used in high-power industrial systems requiring controlled switching and signal isolation:
-
Medium-voltage variable frequency drives
-
Industrial motor control systems
-
Power converter and inverter systems
-
High-power thyristor and IGBT gate drive circuits
-
Energy transmission and conversion equipment
-
Heavy industrial automation systems
It is especially important in systems where precise pulse shaping and electrical isolation are required for safe and stable switching operation.
Technical FAQs
1. What is the main function of this pulse transformer?
It transfers control pulses while providing electrical isolation.
2. Where is it typically used?
In ABB medium-voltage drives and power conversion systems.
3. What voltage level can it handle?
It supports high insulation levels up to around 10 kV.
4. Is it a standalone device?
No, it is an internal component used inside drive systems.
5. What systems use this model?
ABB ACS5000 and ACS6000 drive platforms.
6. What is its role in drives?
It delivers firing pulses to power semiconductor devices.
7. Can it be repaired?
It is typically replaced as a module rather than repaired.
8. Does it require calibration?
No calibration is required after installation.
9. What makes it important in power electronics?
It ensures safe and accurate switching control signals.
10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
