Introduction

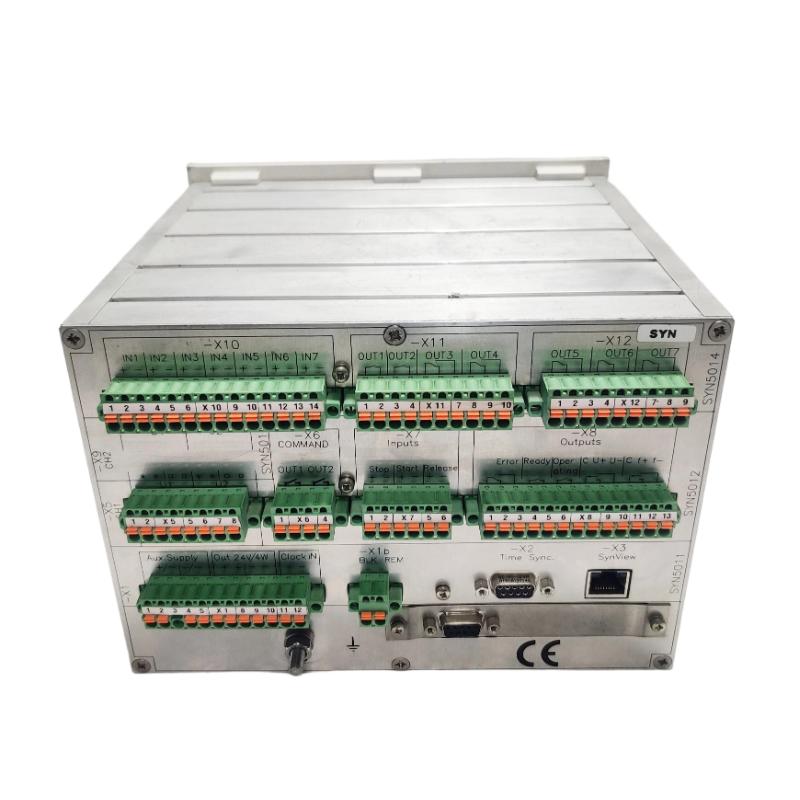

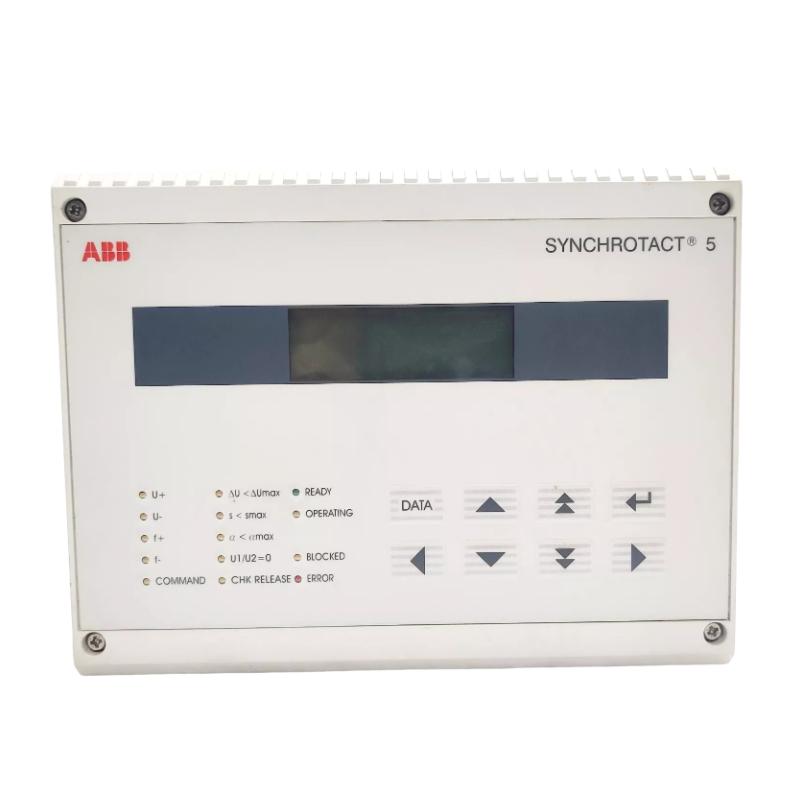

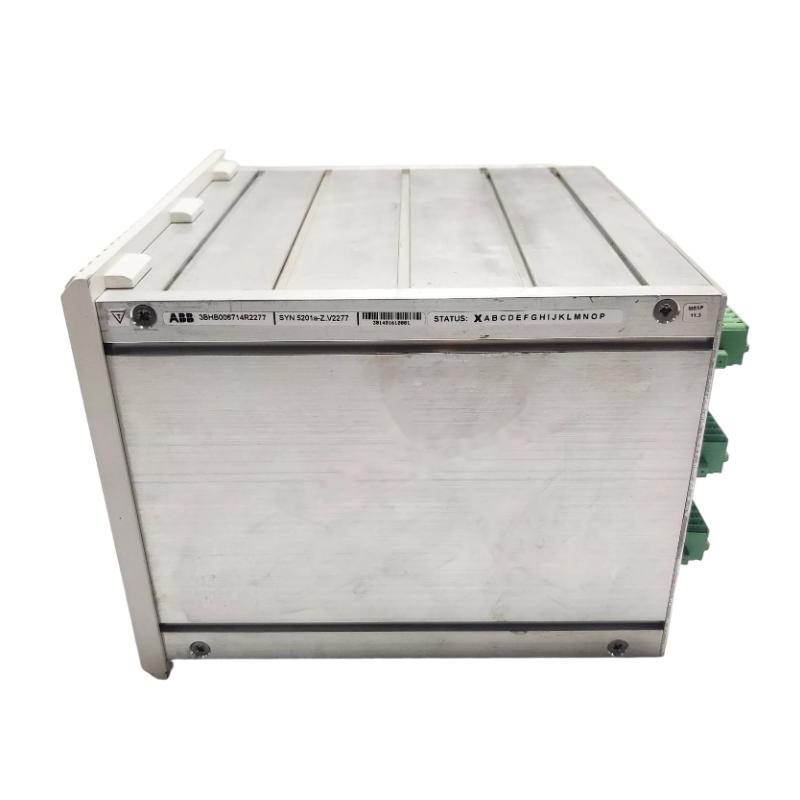

The ABB SYN 5201a-Z, V2277 (3BHB006714R2277) Synchronization Device is part of the SYNCHROTACT 5 series, designed for precise synchronization control in generator and power grid applications. It is used to coordinate electrical parameters such as voltage, frequency, and phase angle before parallel connection of power sources.
This device is widely applied in power generation plants, industrial energy systems, and utility infrastructure where stable and controlled synchronization is required to support continuous and coordinated operation of electrical networks.
Technical Specifications
| Item | Description |
|---|
| Product Type | Synchronization / Paralleling Device |
| Model | SYN 5201a-Z, V2277 |
| Part Number | 3BHB006714R2277 |
| Series | ABB SYNCHROTACT 5 |
| Function | Generator and grid synchronization control |
| Operating Concept | Voltage, frequency, and phase alignment supervision |
| Frequency Range | 50 / 60 Hz industrial systems |
| Voltage Monitoring | AC measurement inputs (system dependent) |
| Phase Monitoring | Phase angle comparison and alignment control |
| Installation Type | Control cabinet / system rack module |
Applications
The SYN 5201a-Z V2277 device is used in industrial and utility environments where controlled synchronization is required:
-
Power generation plants (thermal, hydro, gas)
-
Industrial generator paralleling systems
-
Substation and grid interconnection systems
-
Offshore and marine power systems
-
Industrial backup power synchronization setups
-
Large-scale energy infrastructure networks
It supports safe and controlled connection between multiple power sources under defined electrical conditions.
Technical FAQs
1. What is the main function of this device?
It manages synchronization between generators and electrical grids.
2. What system is it part of?
It is part of the ABB SYNCHROTACT 5 synchronization system.
3. What parameters does it control?
Voltage, frequency, and phase angle alignment.
4. Where is it typically used?
In power plants, substations, and industrial energy systems.
5. Does it support automatic synchronization?
Yes, it supports automated synchronization control logic.
6. Can it be used in renewable energy systems?
Yes, it can be integrated into hybrid energy systems.
7. What is its role before grid connection?
It ensures electrical conditions are aligned before connection.
8. Does it require software configuration?
Yes, ABB engineering tools are used for setup.
9. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
10. Why is it important in power systems?
It helps maintain stable and controlled synchronization between power sources.
