Introduction

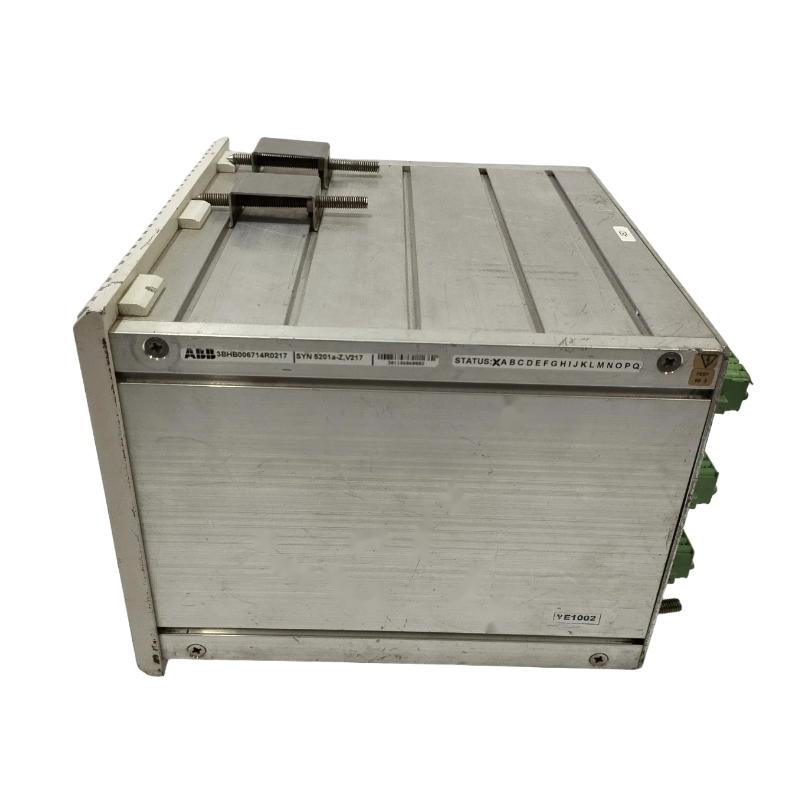

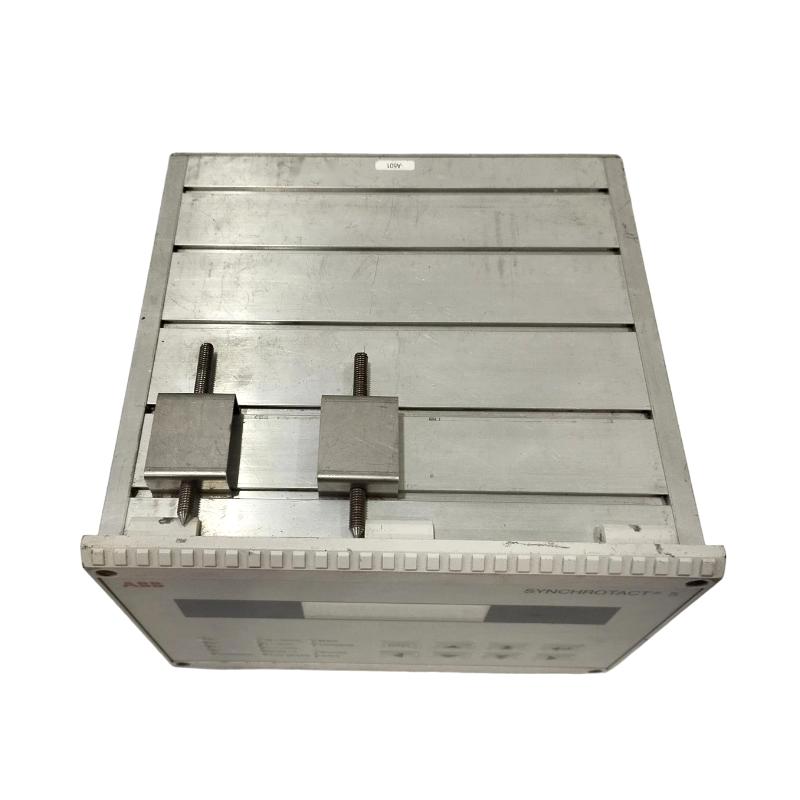

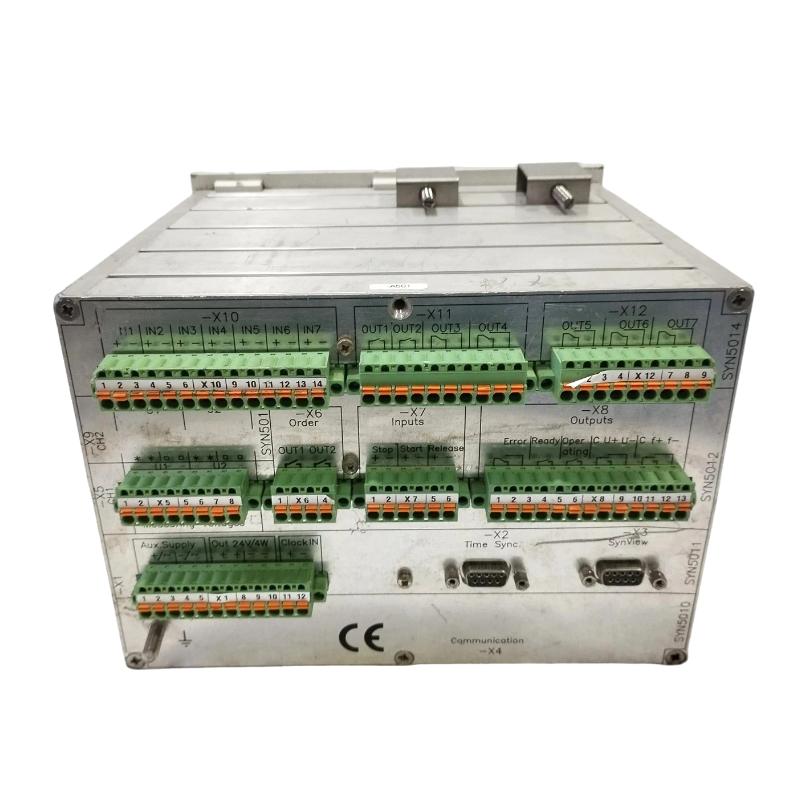

The ABB SYN 5201a-Z, V217 (3BHB006714R0217) Synchronization Device is part of the SYNCHROTACT 5 series, designed for precise generator and grid synchronization in industrial and utility power systems. It is used to coordinate voltage, frequency, and phase conditions before connecting electrical sources in parallel operation.
The device is widely applied in power generation and distribution environments where controlled synchronization logic is required to support stable system integration and continuous energy operation.
Technical Specifications
| Item | Description |
|---|
| Product Type | Synchronization / Paralleling Device |
| Model | SYN 5201a-Z, V217 |
| Part Number | 3BHB006714R0217 |
| Series | ABB SYNCHROTACT 5 |
| Function | Generator and grid synchronization control |
| System Role | Phase, voltage, and frequency matching supervision |
| Frequency Range | 50/60 Hz systems (industrial standard) |
| Voltage Input | AC measurement inputs (system dependent) |
| Control Function | Synchronization monitoring and command generation |
| Installation Type | Control cabinet / rack-mounted module |
Applications
The SYN 5201a-Z device is used in electrical systems requiring controlled synchronization between power sources, including:
-
Power generation plants (thermal, hydro, gas)
-
Industrial generator paralleling systems
-
Utility grid connection and substation automation
-
Offshore and marine power systems
-
Industrial backup and emergency power systems
-
Large-scale energy infrastructure networks
It ensures that electrical sources are aligned under controlled conditions before connection to shared networks.
Technical FAQs
1. What is the main function of this device?
It manages synchronization between generators and electrical grids.
2. What system is it part of?
It is part of the ABB SYNCHROTACT 5 synchronization platform.
3. What parameters does it monitor?
Voltage, frequency, and phase angle differences.
4. Where is it typically used?
In power plants, substations, and industrial energy systems.
5. Does it support automatic synchronization?
Yes, it supports automated synchronization control logic.
6. Can it be used in renewable energy systems?
Yes, it can be integrated into hybrid energy infrastructures.
7. What is its role in system operation?
It ensures correct alignment before electrical connection.
8. Does it require configuration software?
Yes, ABB engineering tools are used for setup and configuration.
9. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
10. What makes it important in power systems?
It helps ensure controlled and stable synchronization between power sources.
