Introduction

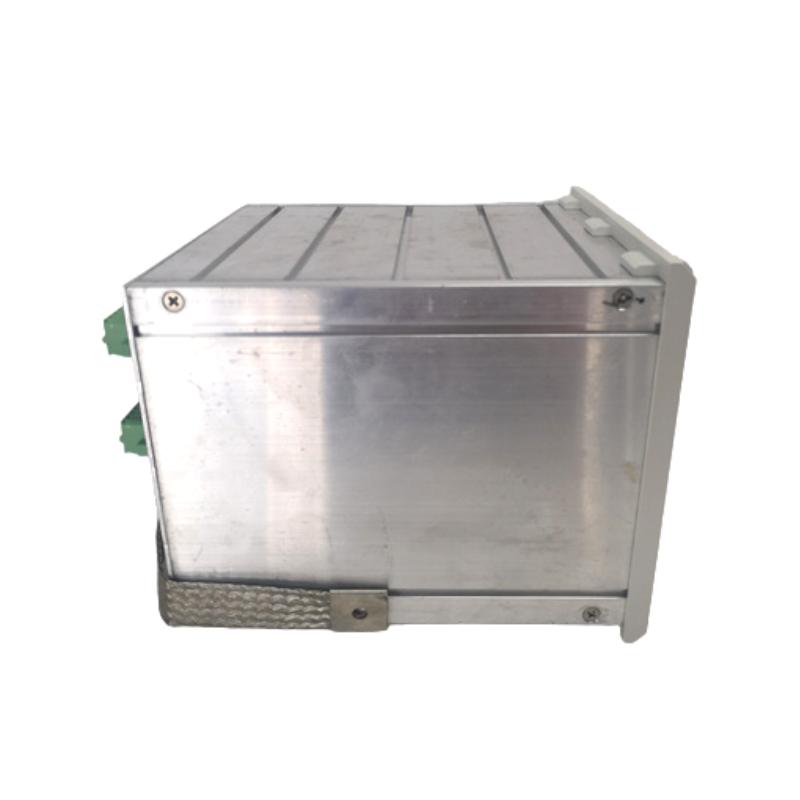

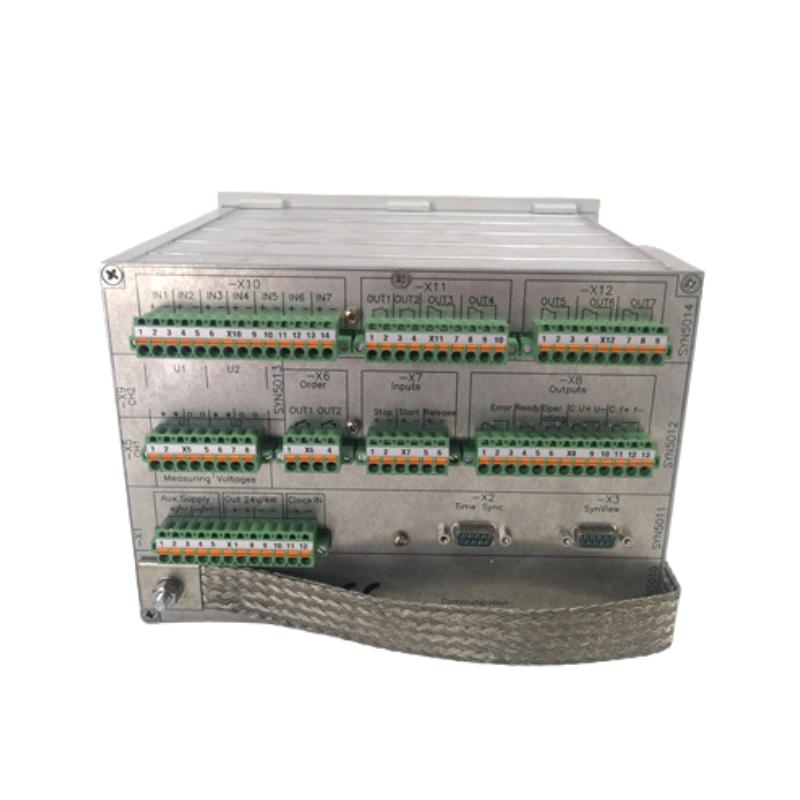

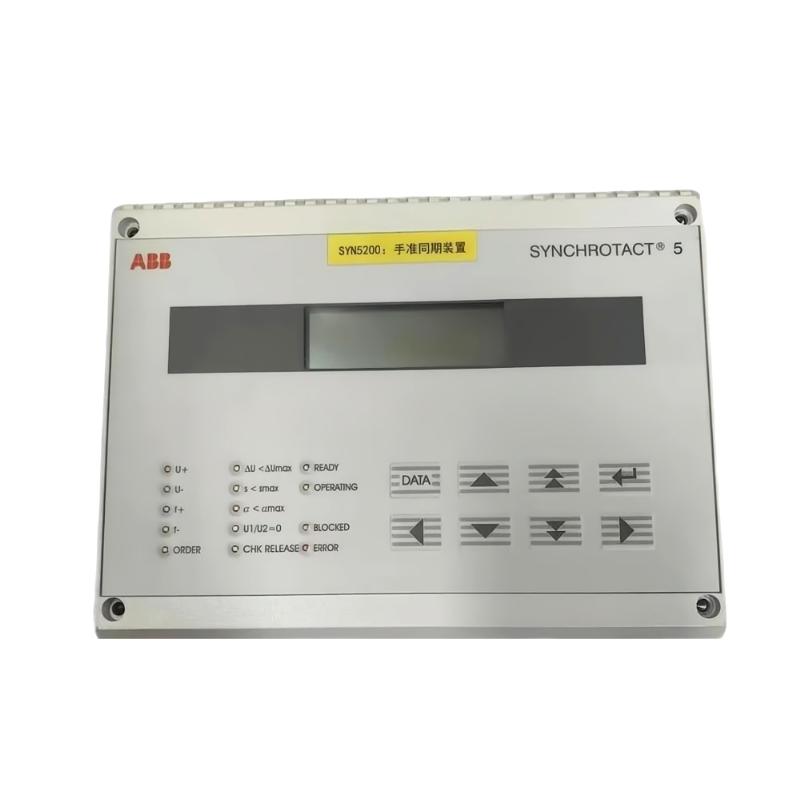

The ABB SYN 5200a-Z, V0221 (3BHB006713R0217) Synchronizing Device is part of the SYNCHROTACT 5 series, designed for high-precision synchronization of generators, power lines, and busbar systems. It is widely used in power generation and industrial energy systems where controlled paralleling and stable electrical integration are required.
This device supports automated synchronization logic, helping ensure that voltage, frequency, and phase conditions are properly aligned before circuit breaker closure. It is commonly applied in power plants, industrial microgrids, and distributed energy systems where operational stability is a key requirement.
Technical Specifications
| Item | Description |
|---|
| Product Type | Digital Synchronizing / Paralleling Device |
| Model | SYN 5200a-Z, V0221 |
| Part Number | 3BHB006713R0217 |
| Series | ABB SYNCHROTACT 5 |
| Function | Automatic synchronization & paralleling control |
| System Role | Generator / grid synchronization supervision |
| Voltage Input Range | Configurable AC/DC (system dependent) |
| Frequency Range | 45–65 Hz (typical industrial systems) |
| Phase Monitoring | Voltage, frequency, phase angle comparison |
| Communication | Industrial control system integration (SCADA/PLC compatible) |
| Installation Type | Control cabinet / rack-mounted module |
Applications
The SYN 5200a-Z synchronization device is used in systems requiring precise control of electrical connection conditions, including:
-
Power generation plants (thermal, hydro, and gas)
-
Industrial generator paralleling systems
-
Utility grid interconnection systems
-
Offshore and marine power systems
-
Industrial microgrid and backup power installations
-
Renewable energy integration systems
It ensures that power sources are connected under controlled electrical conditions to maintain system stability and operational continuity.
Technical FAQs
1. What is the main function of this device?
It manages synchronization between generators and electrical networks.
2. What systems is it used with?
It is commonly used in ABB SYNCHROTACT 5 based power systems.
3. Does it support automatic synchronization?
Yes, it supports automated and supervised synchronization modes.
4. What parameters does it monitor?
Voltage, frequency, and phase angle differences.
5. Where is it typically installed?
Inside industrial control cabinets or generator control panels.
6. Is it used in power plants?
Yes, it is widely used in utility and industrial power generation systems.
7. Can it be used in renewable energy systems?
Yes, it can be integrated into hybrid and renewable energy setups.
8. Does it require software configuration?
Yes, configuration is done via ABB engineering tools.
9. What is its role in system stability?
It ensures synchronization conditions are properly aligned before connection.
10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
